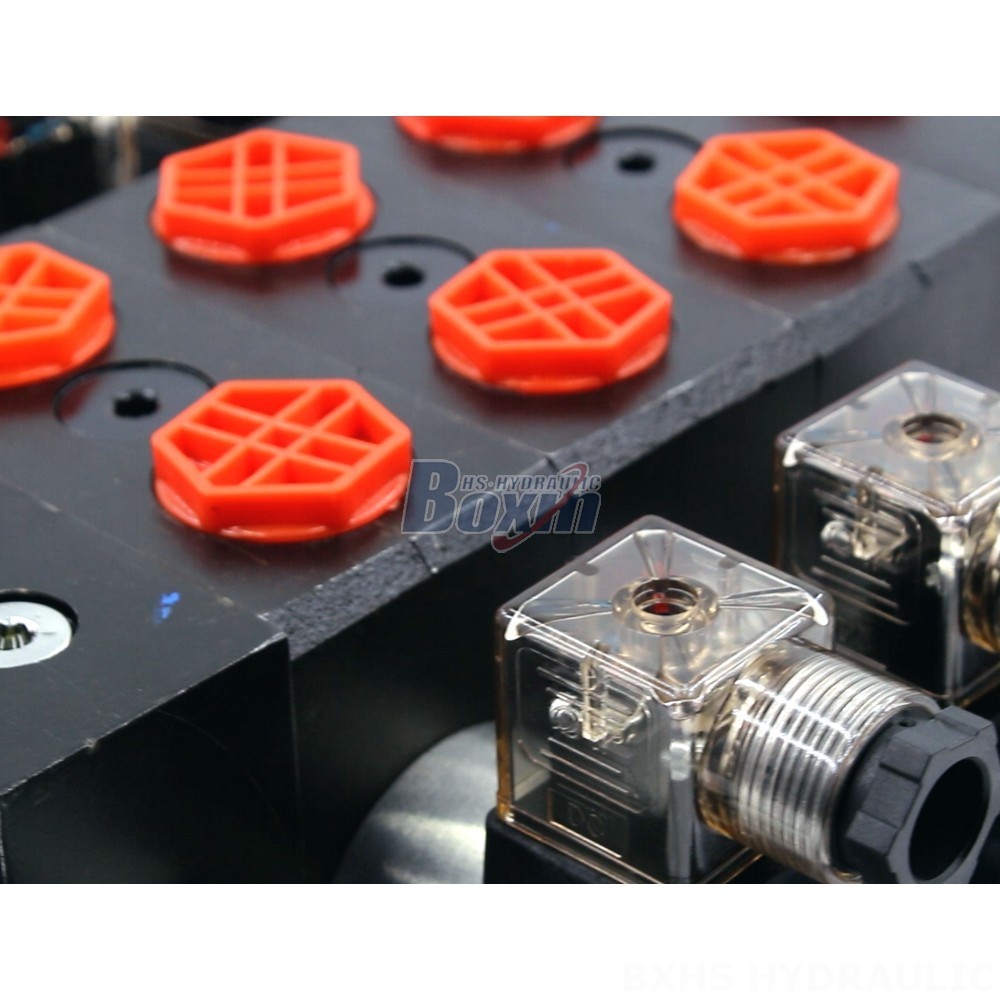

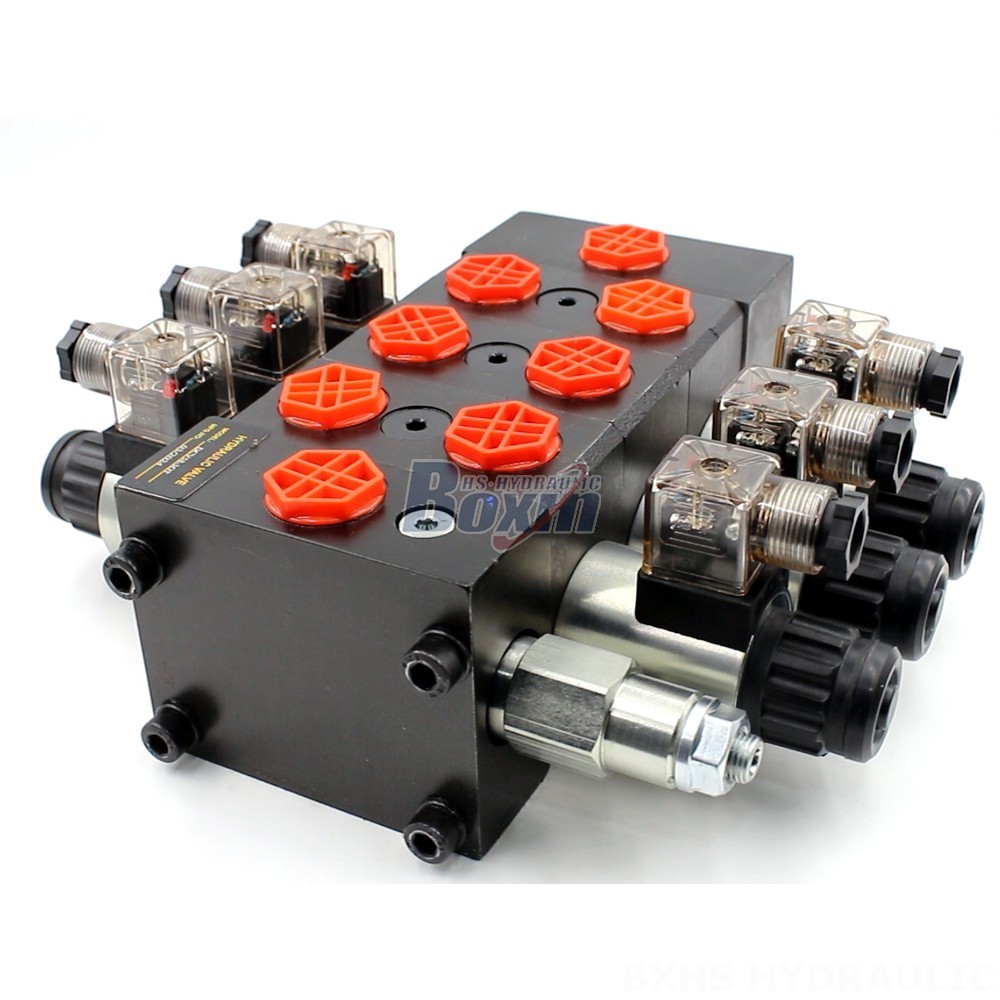

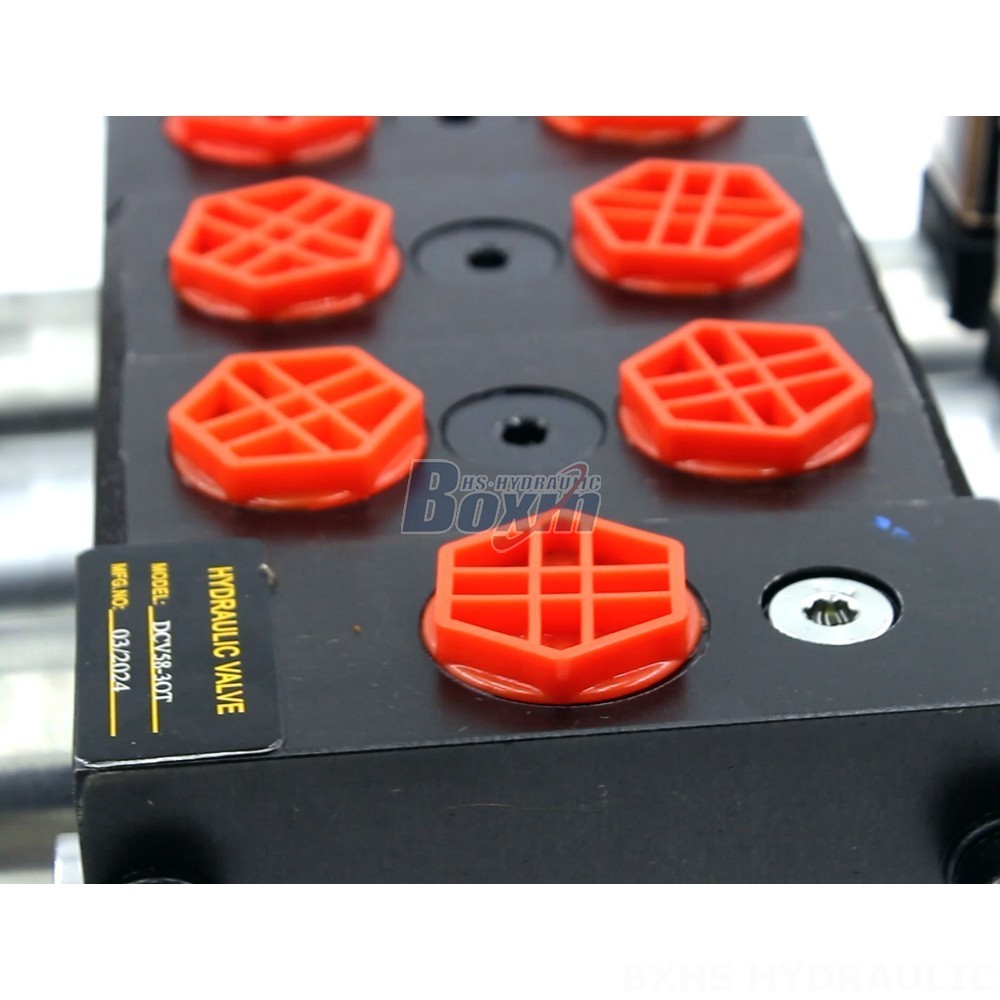

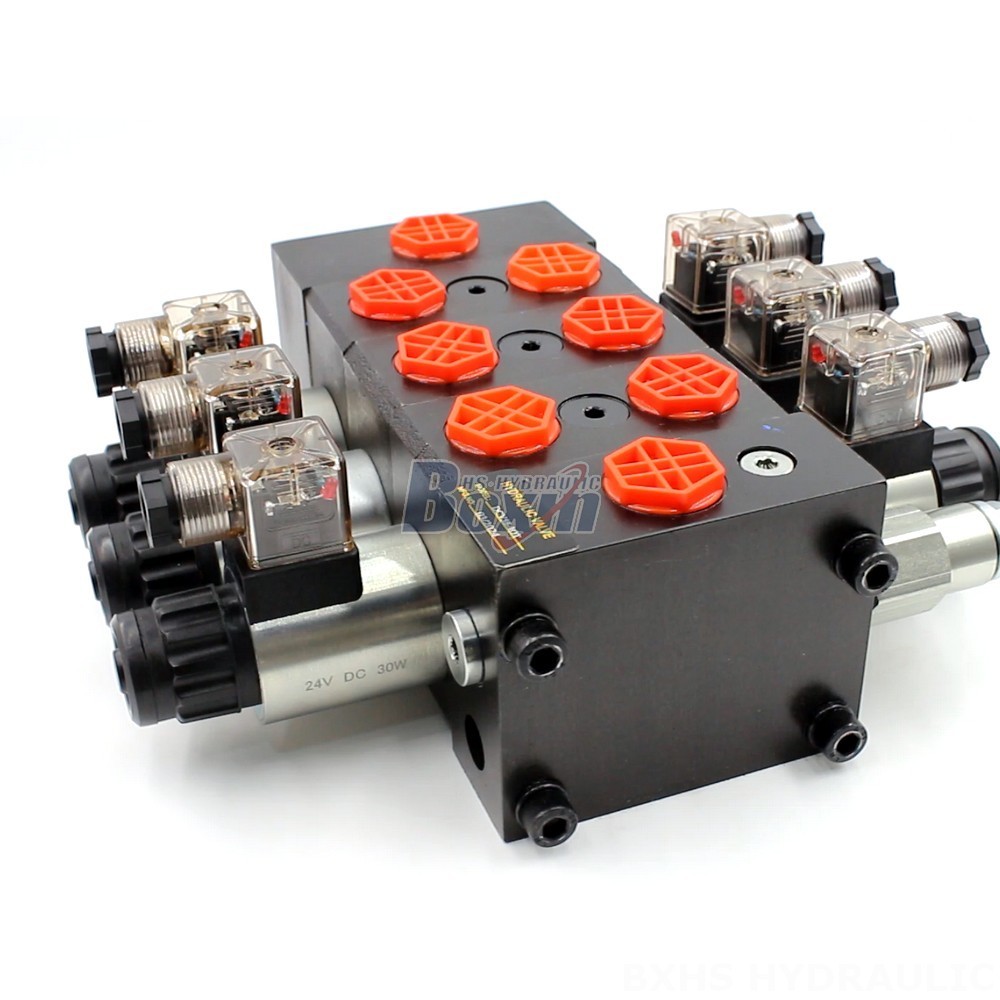

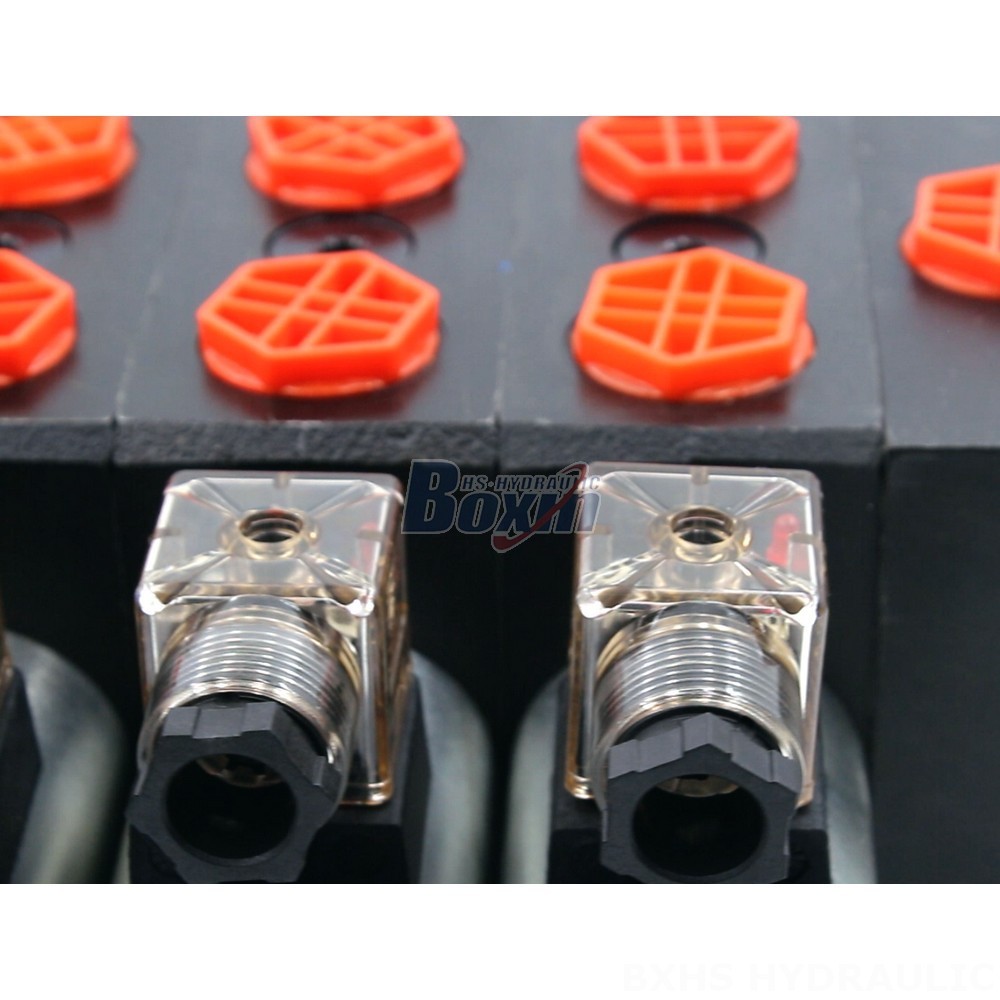

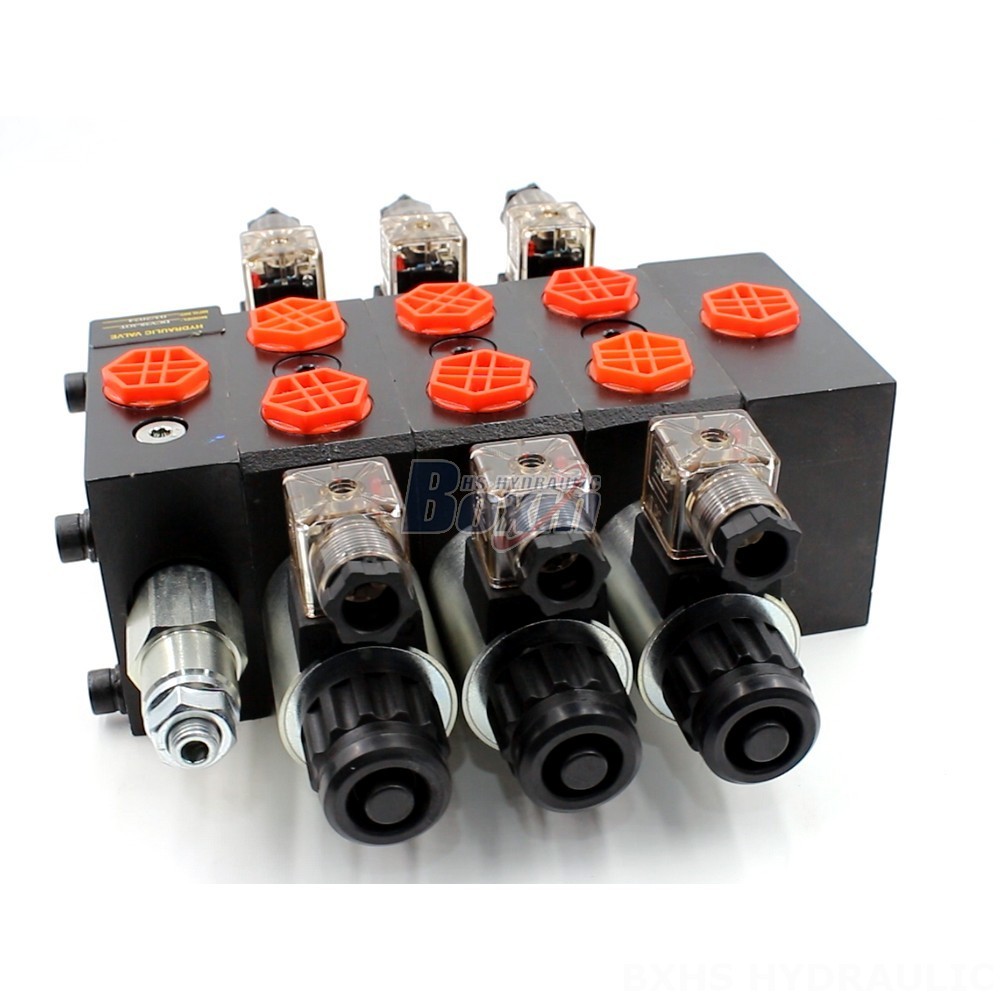

The DCV58 Solenoid 3 Spool Sectional Directional Valve is a high-performance hydraulic valve designed for demanding applications in various industries, including industrial vehicles, construction, agriculture, and material handling. With its advanced solenoid control and sectional design, it offers precise and reliable flow control, making it ideal for complex hydraulic systems requiring multiple spool operations.
| Série DCV58 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Solénoïde, Solénoïde et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Orifice de sortie | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimension du raccord | G1/2, M22×1.5, SAE 10, 1/2 NPT |
**Key Features:**
- Solenoid control for precise and responsive operation
- Sectional design allows for modular configuration and easy maintenance
- 3 spool design provides independent control of multiple hydraulic circuits
- High flow capacity of 60 L/min for efficient system operation
- Maximum pressure rating of 350 bar for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s for compatibility with various hydraulic fluids
- Durable construction and high-quality components ensure long service life
**Applications:**
- Industrial vehicles: forklifts, telehandlers, aerial platforms
- Construction equipment: excavators, skid steer loaders, motor graders
- Agricultural machinery: tractors, harvesters, sprayers
- Material handling equipment: cranes, stackers, conveyors
