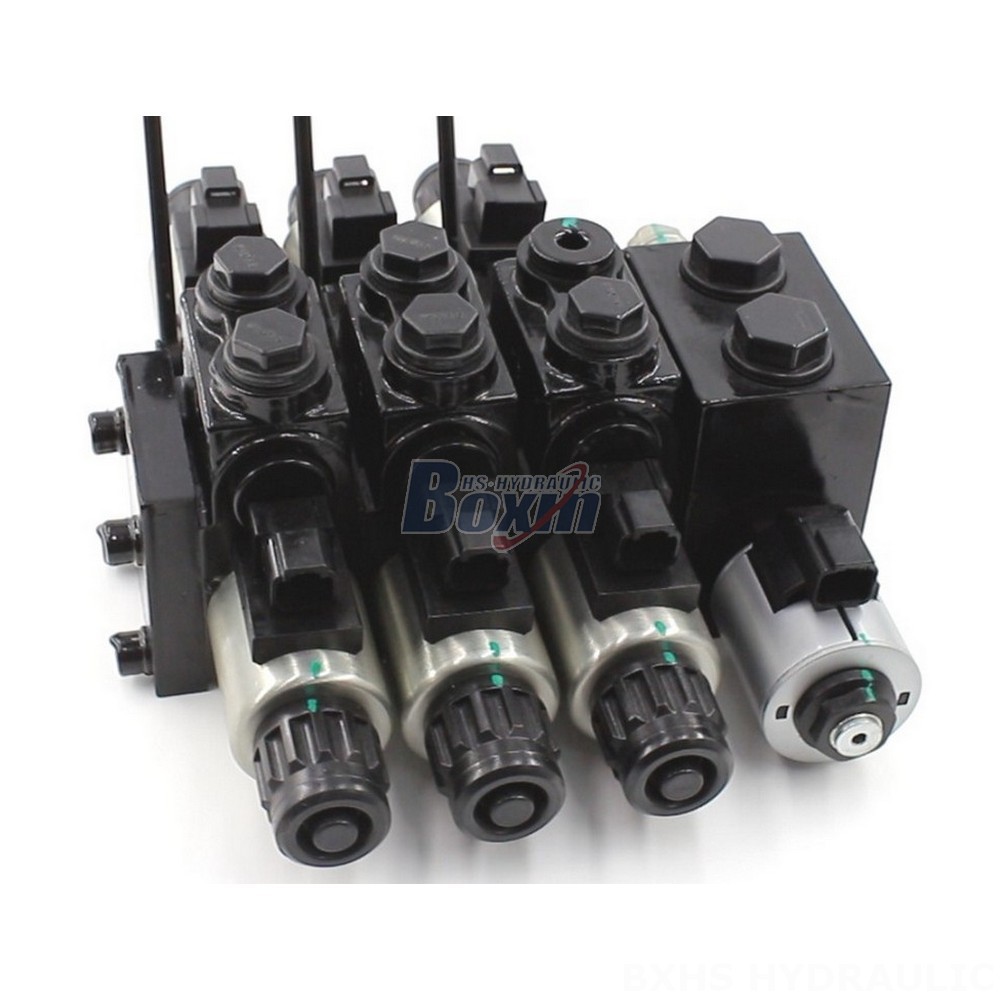

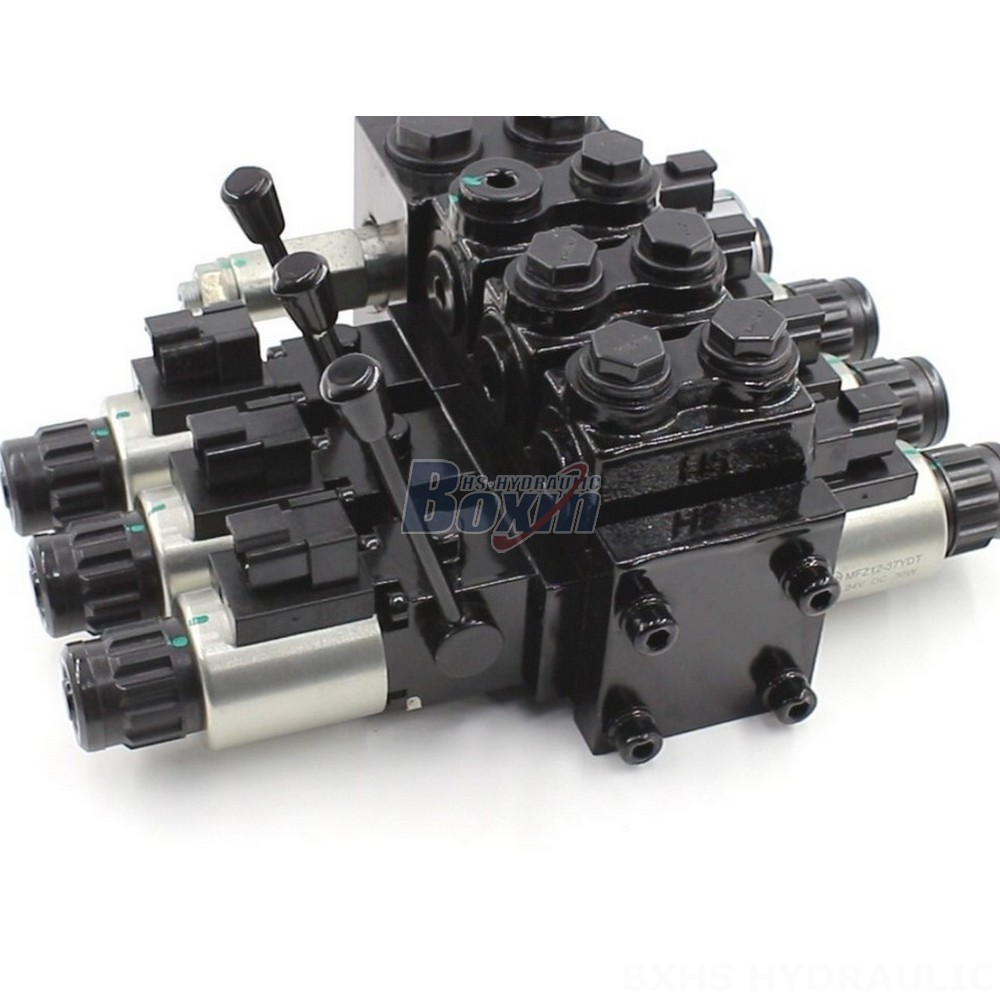

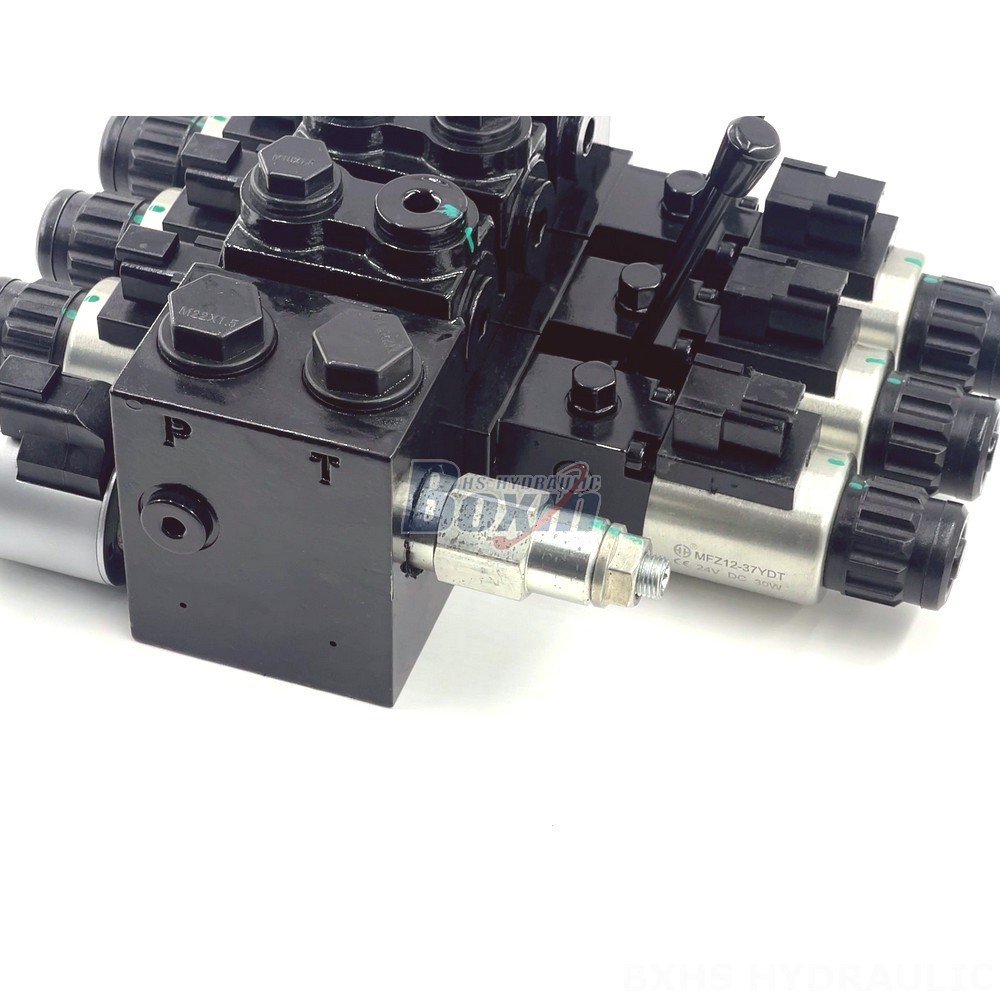

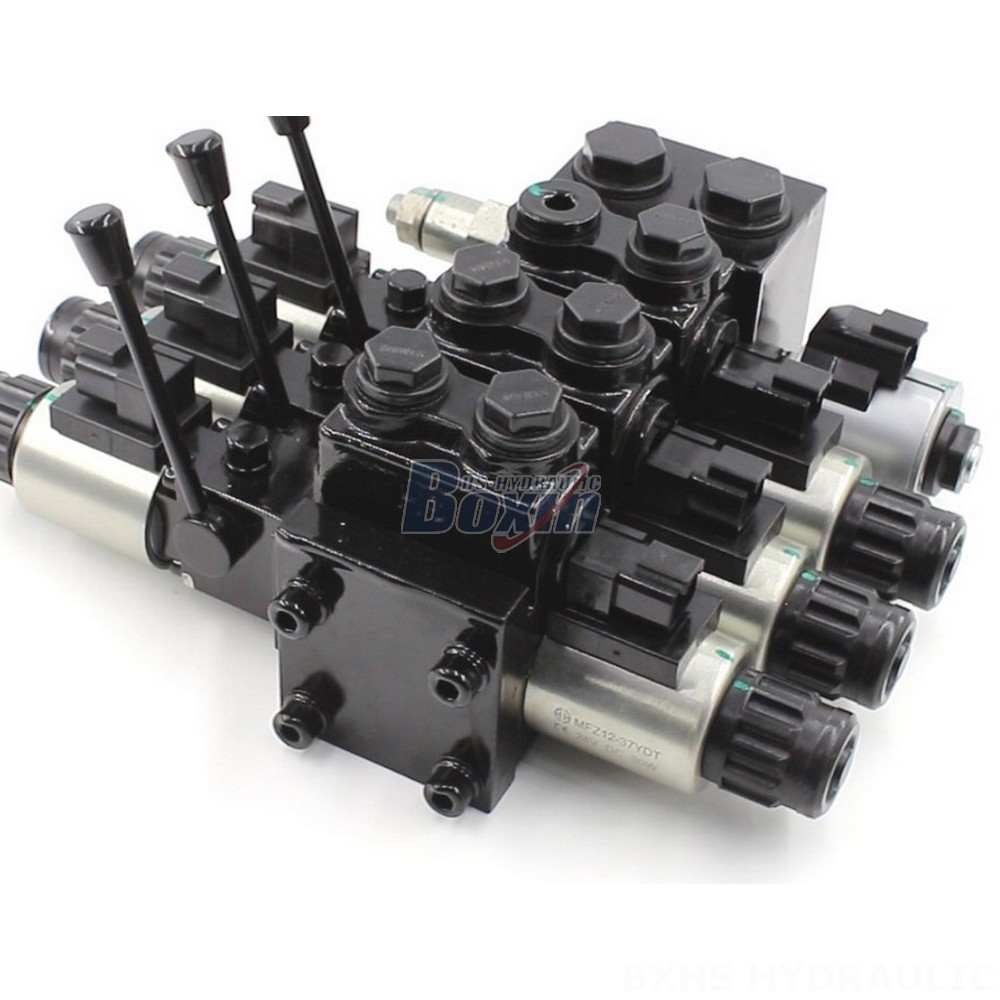

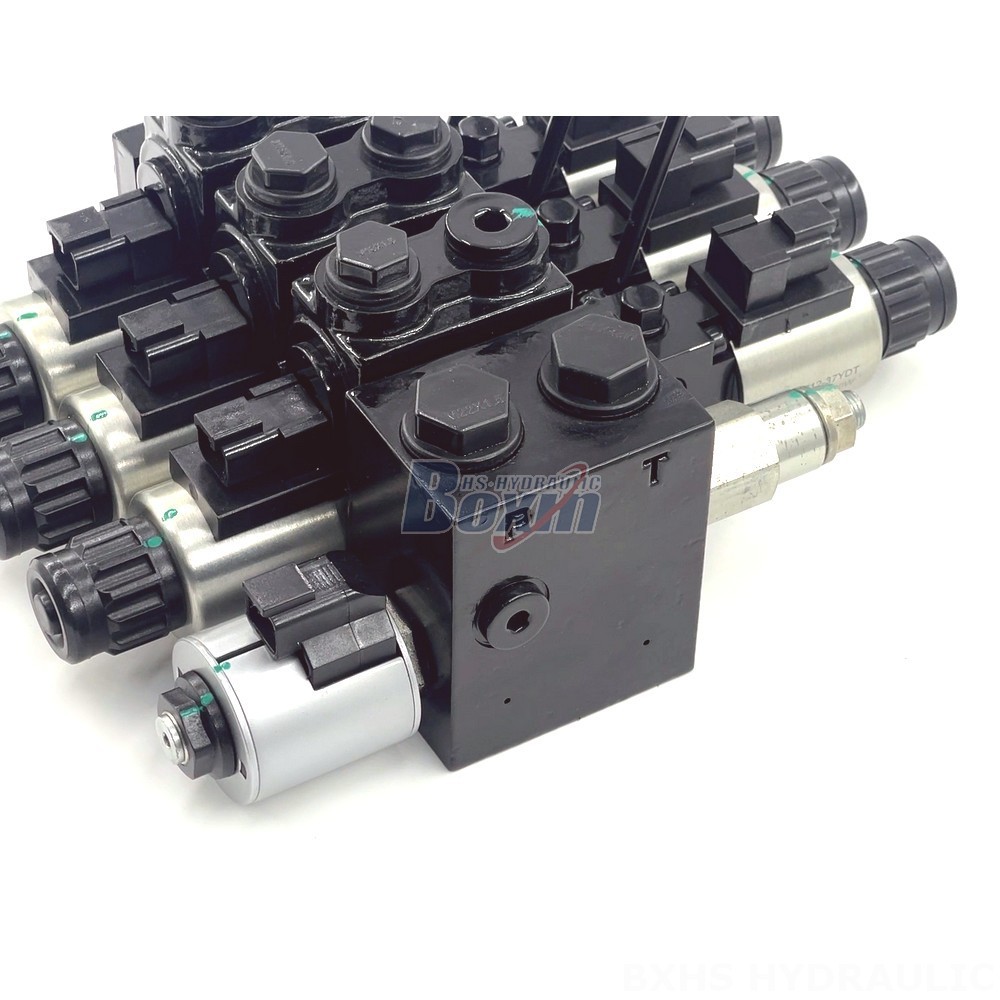

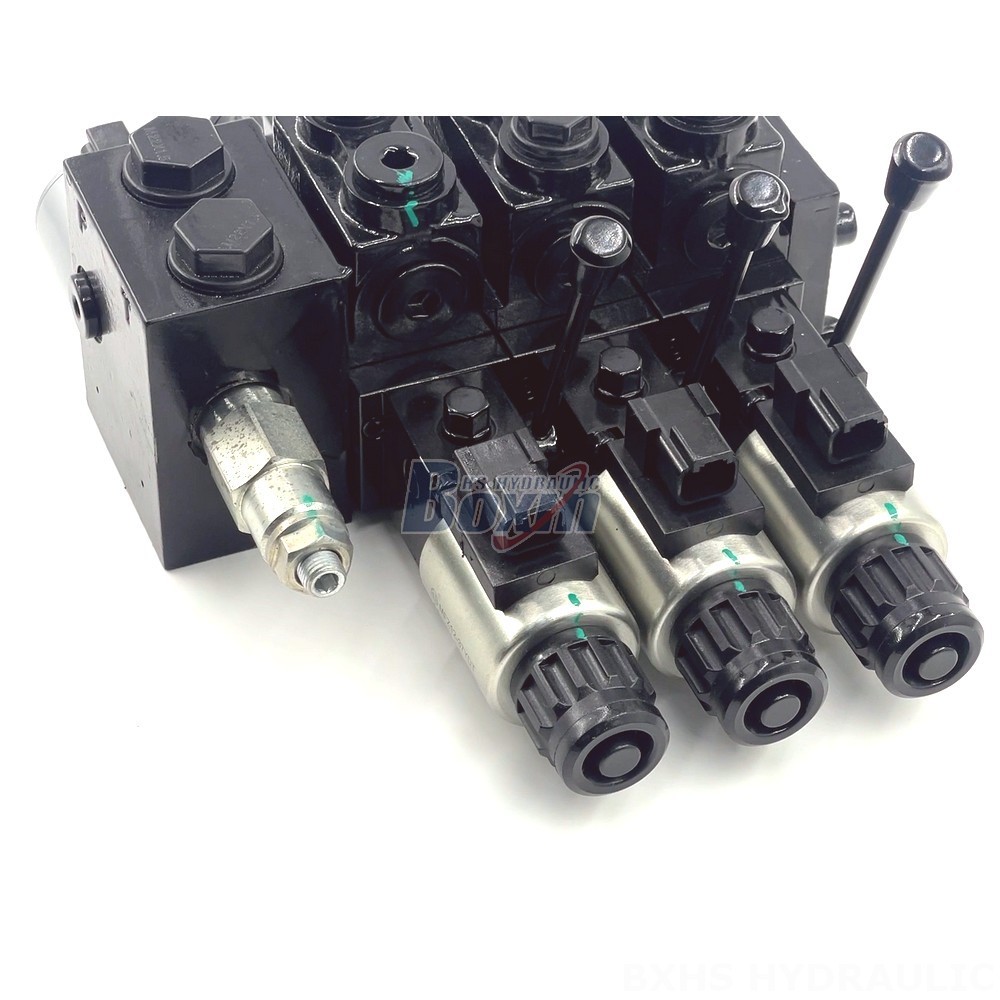

The DCV58 Series High Pressure Pneumatic Directional Valve is a durable and reliable 3-section, high-performance hydraulic valve designed for use in heavy-duty applications such as construction, material handling, and agriculture. It features a 60 L/min flow rate, 350 bar maximum pressure, and a robust design for demanding environments.
| Série DCV58 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Solénoïde, Solénoïde et manuel |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 350 bar (5 100 psi) |
| Orifice d'entrée | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Orifice de sortie | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Dimension du raccord | G1/2, M22×1.5, SAE 10, 1/2 NPT |
The DCV58 Series High Pressure Pneumatic Directional Valve is a versatile and efficient control solution for various hydraulic systems. It is a 3-section, sectional valve with a rated flow of 60 L/min (15.8 US gpm) and a maximum pressure rating of 350 bar (5100 psi). The valve can be controlled by solenoid or manually, providing flexibility in operation. This robust valve is designed to withstand harsh environments with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The DCV58 Series is ideal for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and mini-excavators. With its high-quality construction and customizable options, the DCV58 Series ensures reliable and efficient hydraulic control for your equipment.
