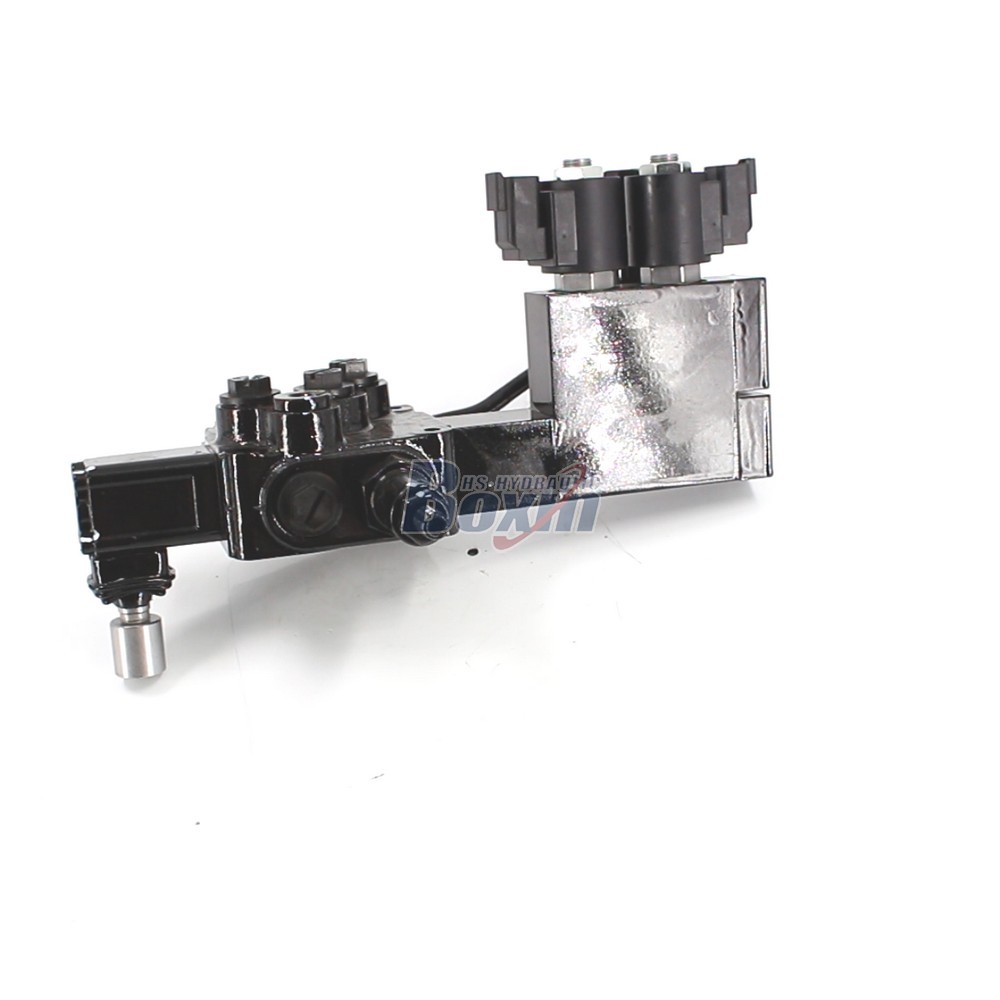

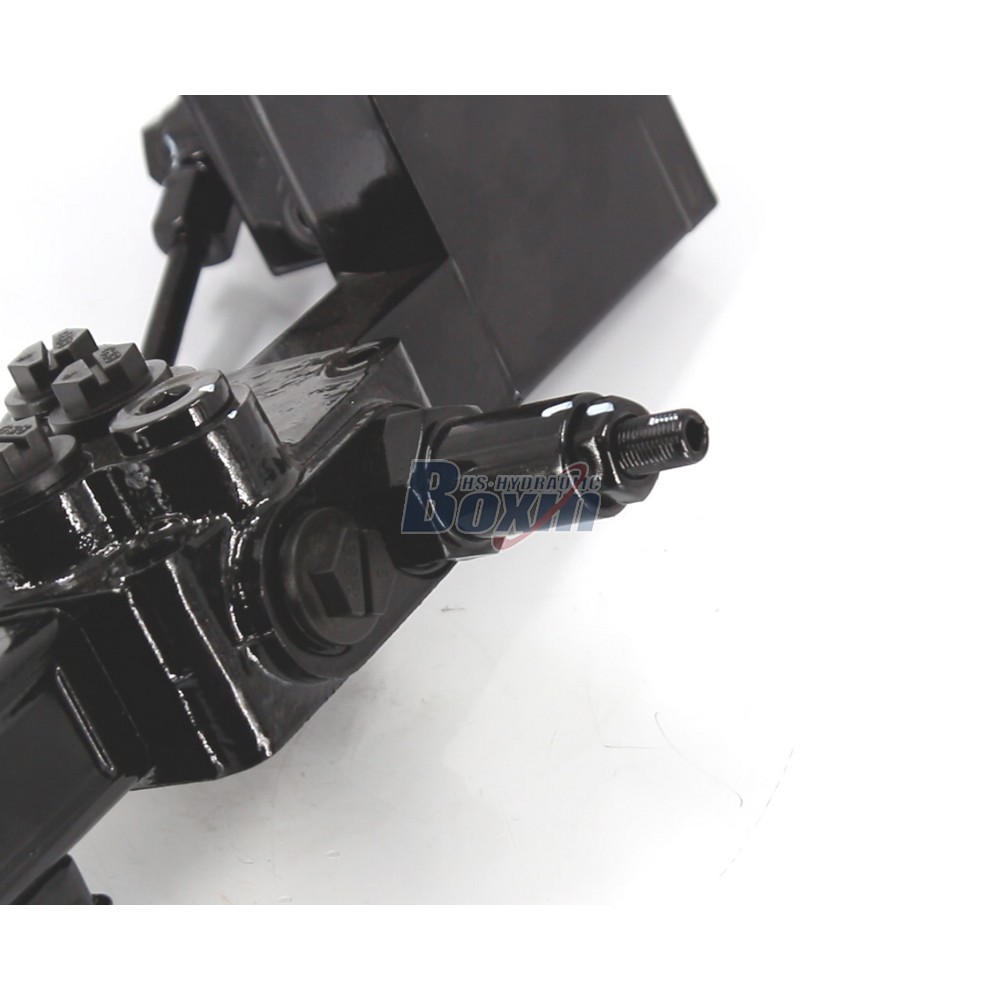

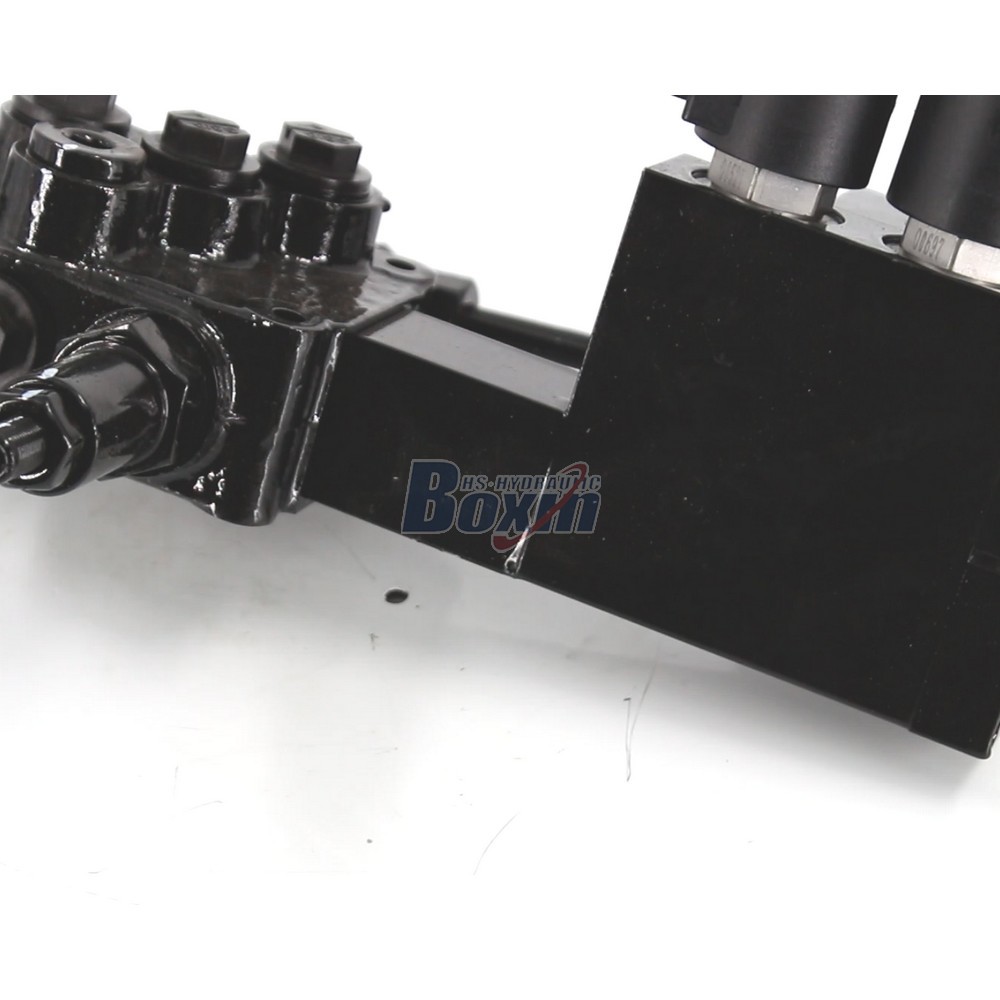

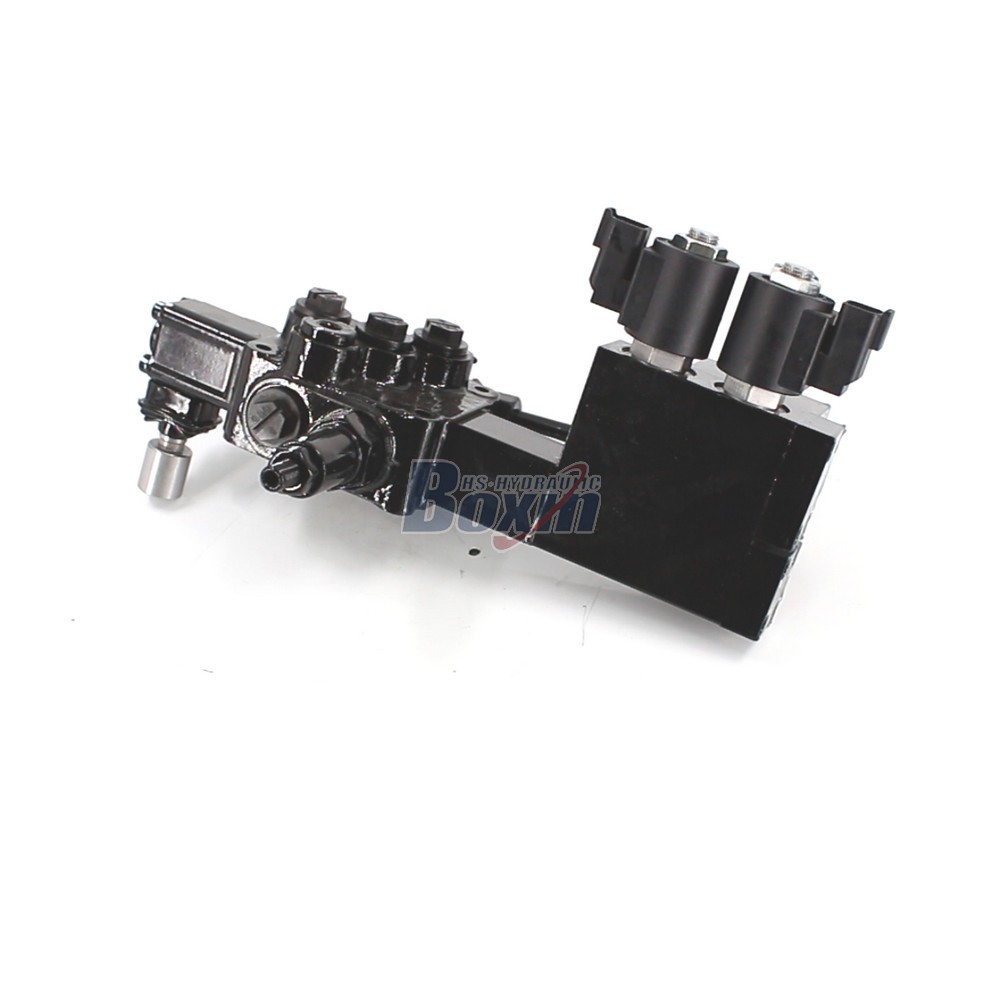

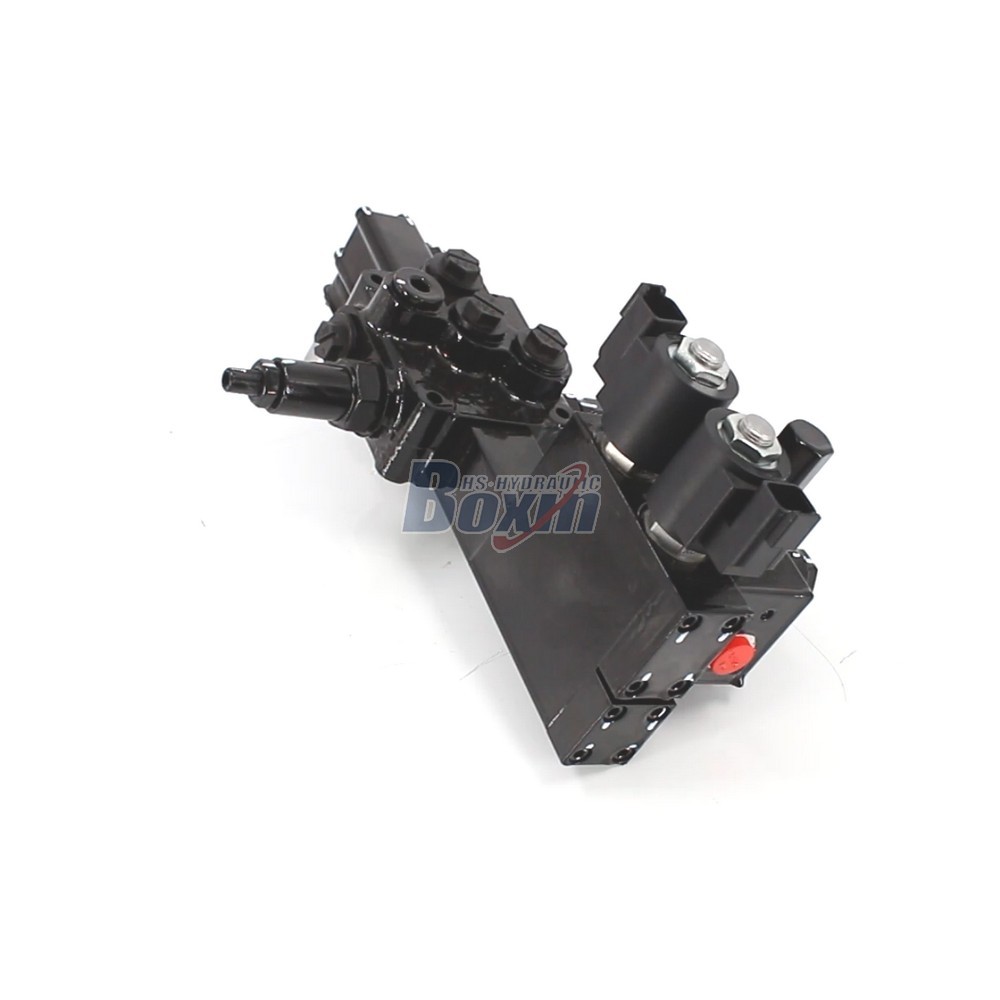

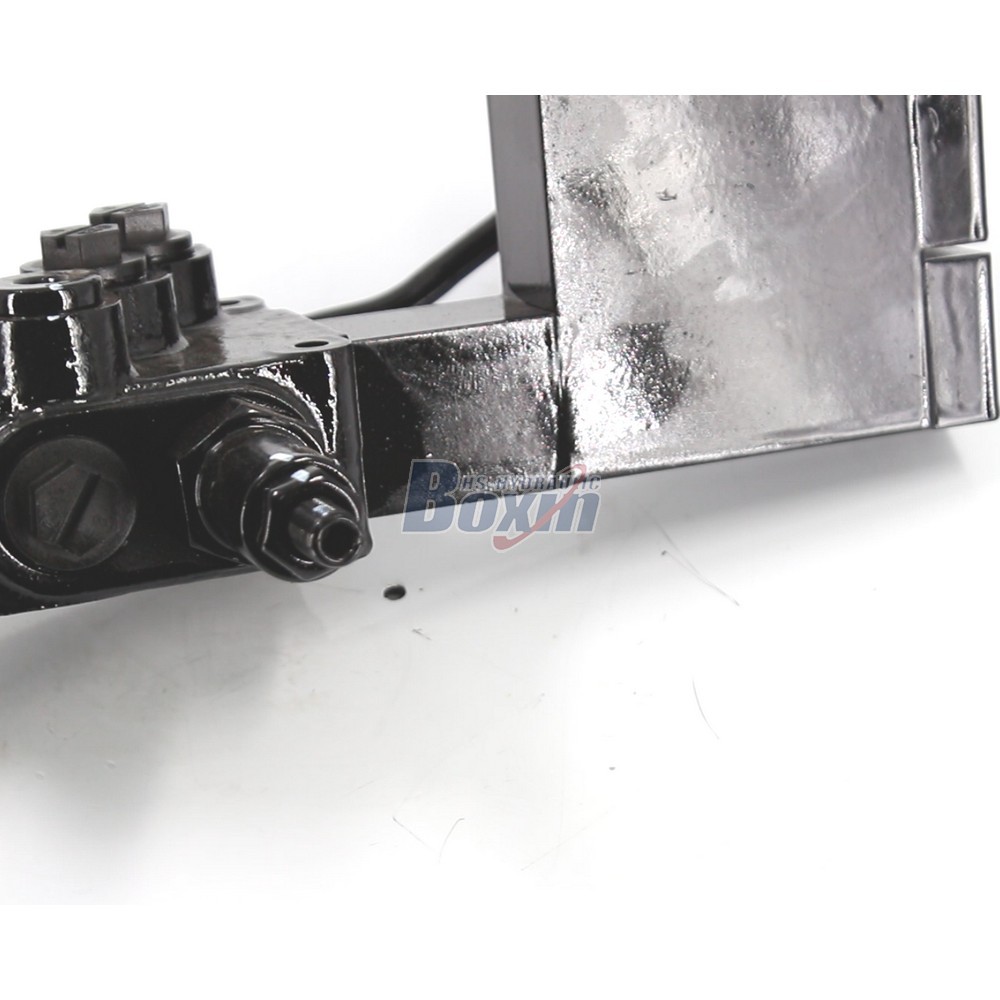

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

Méthode de contrôle:Électro-hydraulique

Distributeur:1 tiroir

Débit nominal:20 L/min (5,2 US gal/min)

Pression maximale:315 bar (4 600 psi)

Orifice d'entrée:G3/8

Orifice de sortie:G1/2

Dimension du raccord:G3/8

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série DCV20 Vanne directionnelle monobloc

Taille de l'emballage:32*18*20

Poids brut:3.40 kg

Disponibilité: En stock

68 personnes consultent ce produit

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve

DCV20DY-OT Electro-hydraulic 1 Spool Monoblock Directional Valve drawing image

The DCV20DY-OT is a high-performance 1-spool electro-hydraulic monoblock directional control valve designed for compact applications requiring precise fluid management. With a rated flow of 20 L/min and a maximum pressure capacity of 350 bar, it is ideal for modern agricultural, construction, and material handling equipment.

Série DCV20 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Électro-hydraulique, Manette, Manuel et manette
Distributeur 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs
Plage de températures ambiantes -40 °C à +80 °C (-40 °F à +176 °F)
Type de structure Distributeur monobloc
Section 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 20 L/min (5,2 US gal/min)
Pression maximale 350 bar (5 100 psi)
Orifice d'entrée G3/8, M18×1.5, SAE 8, 3/8 NPT
Orifice de sortie G3/8, M18×1.5, SAE 8, 3/8 NPT
Dimension du raccord G3/8, M18×1.5, SAE 8, 3/8 NPT

As a leading manufacturer of premium hydraulic products, we provide the DCV20DY-OT Electro-hydraulic Monoblock Valve engineered for demanding industrial environments. This 1-spool valve offers a compact footprint and high efficiency for machinery such as forklifts, mini-excavators, and aerial platforms. Our factory specializes in large-scale manufacturing, offering flexible OEM, ODM, and private labeling services to meet your specific technical requirements. We provide reliable factory wholesale supply and customization options for port sizes and spool configurations. We are actively seeking global partners, including professional distributors, wholesalers, agents, and traders, to expand our international market presence. By sourcing directly from our facility, you benefit from competitive factory pricing, consistent quality control, and robust supply chain support. Whether you need bulk wholesale orders or customized branding for your local market, our manufacturing team is equipped to deliver high-pressure hydraulic solutions that satisfy industrial standards worldwide.
