Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1126 personnes consultent ce produit
The DCV200 Electro-hydraulic Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. With its compact size and lightweight design, the DCV200 is easy to install and maintain.
| Série DCV200 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette, Manuelle et électro-hydraulique, Moteur électrique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 200 L/min (52 US gal/min) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Orifice de sortie | G1, M33×2.0, SAE 16, 1 NPT |
| Dimension du raccord | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |

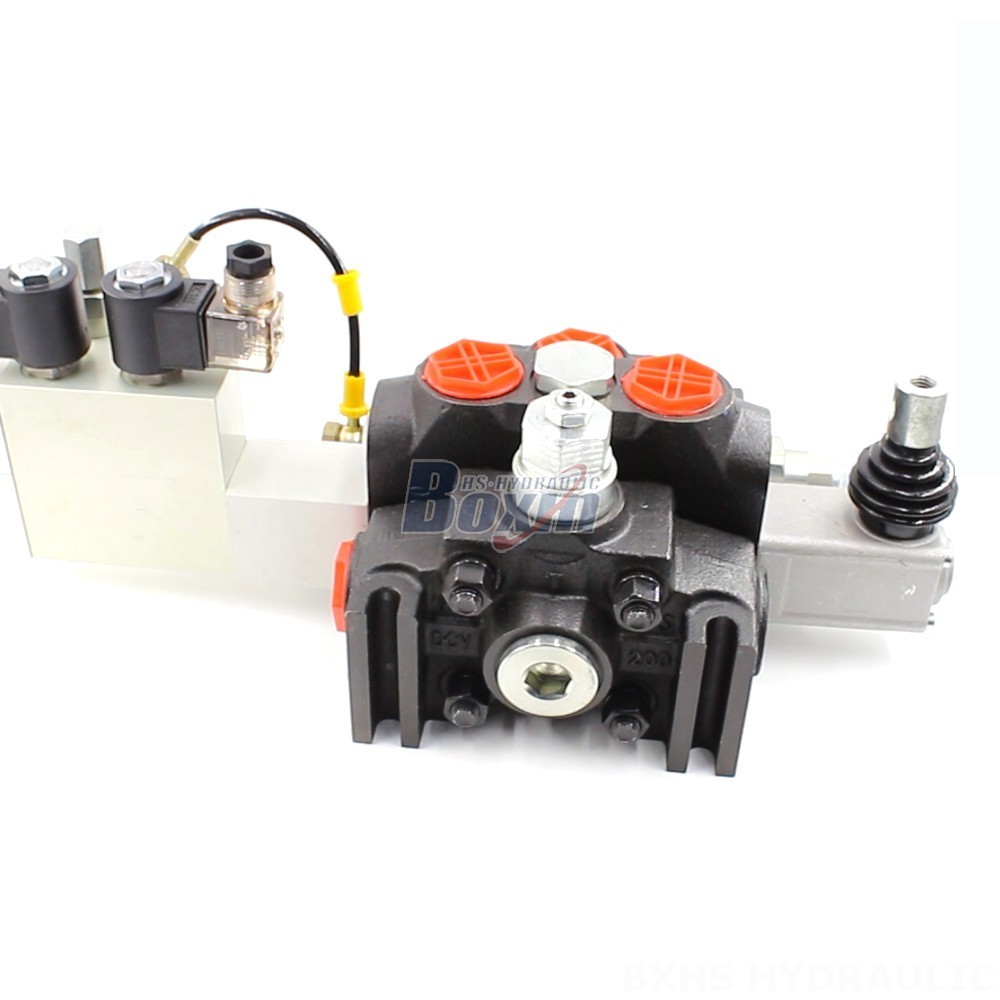

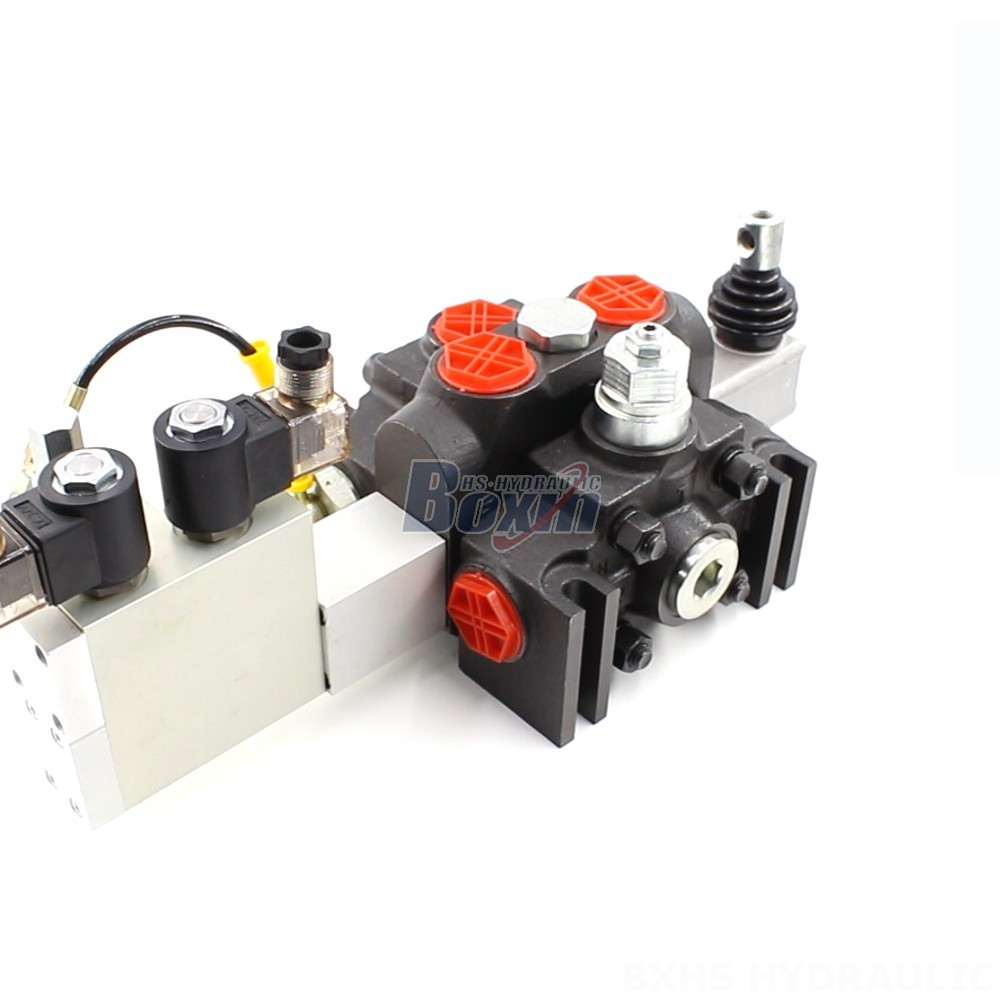

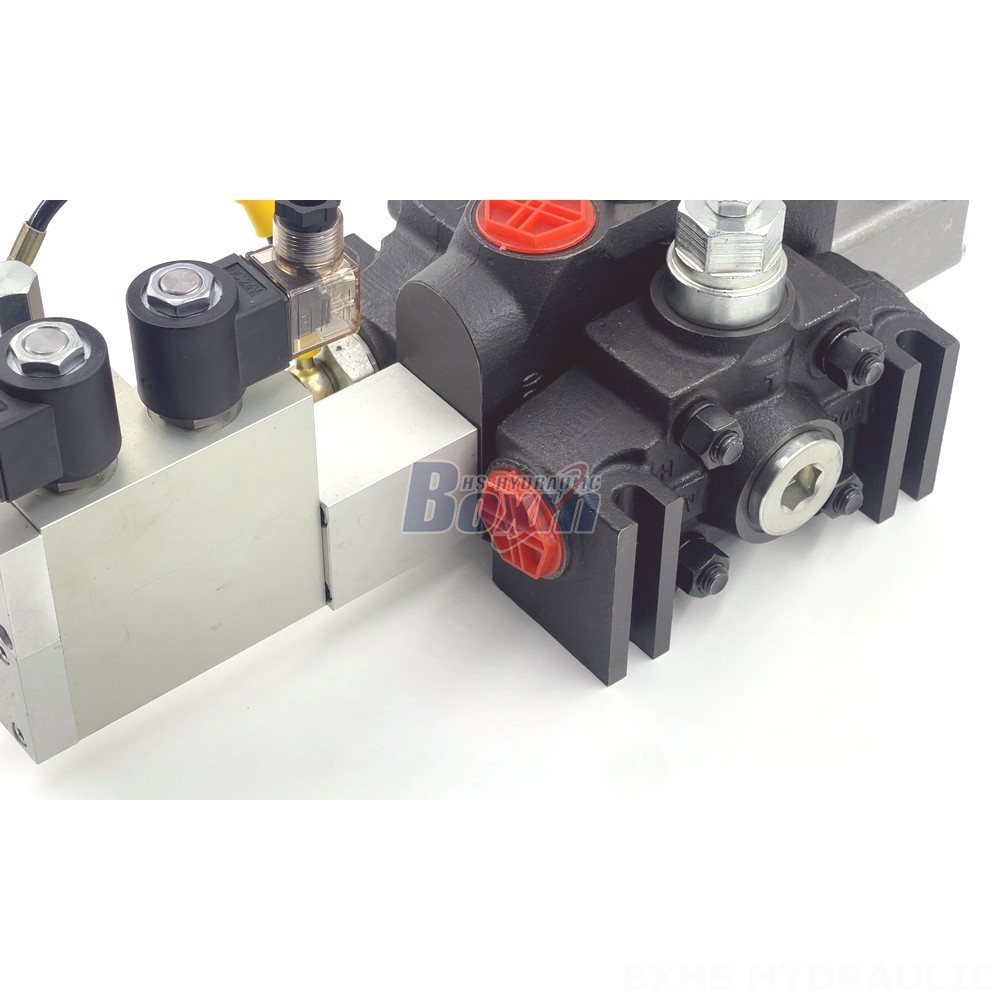

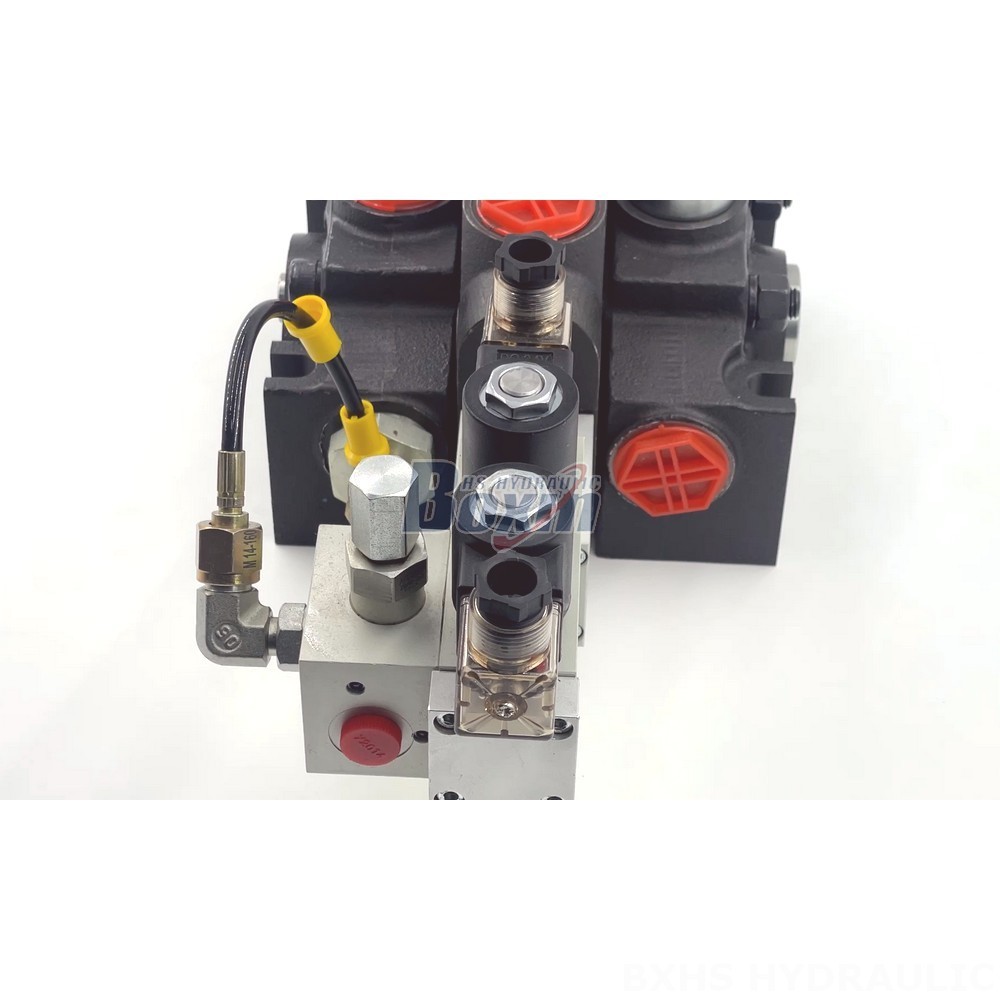

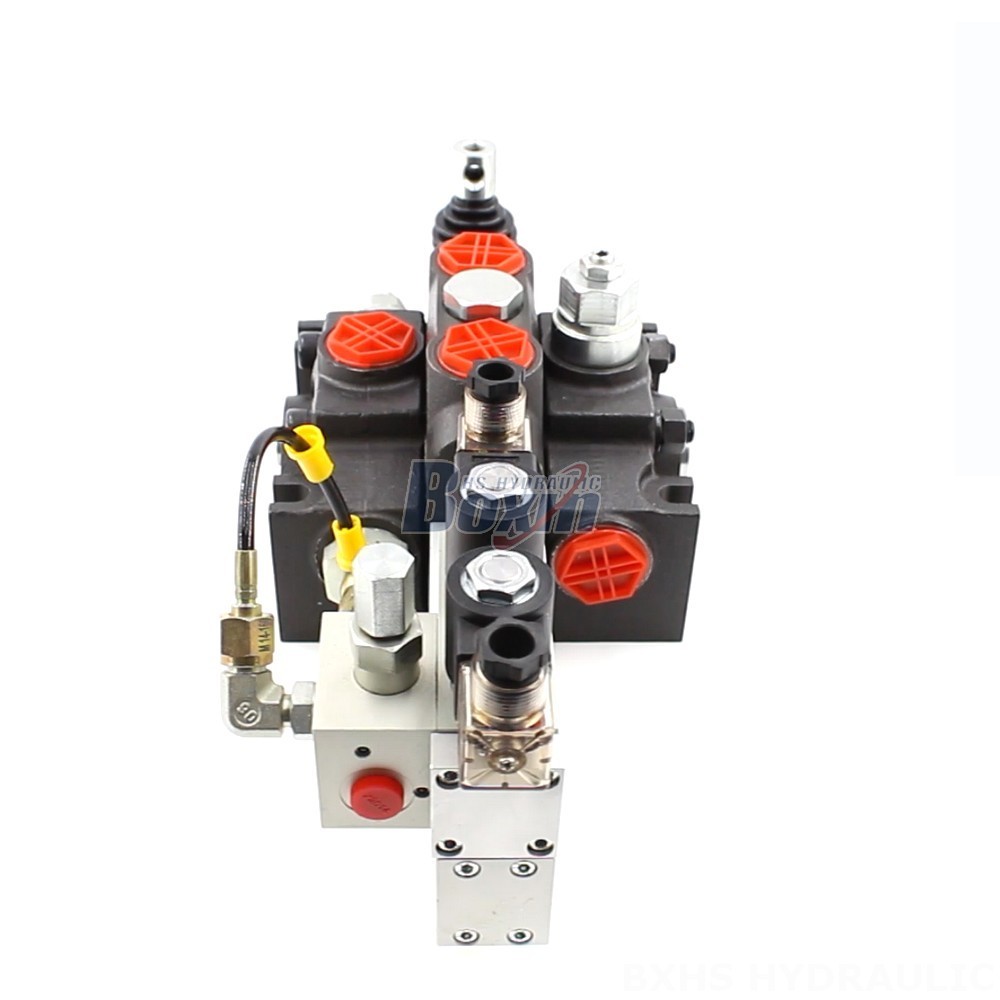

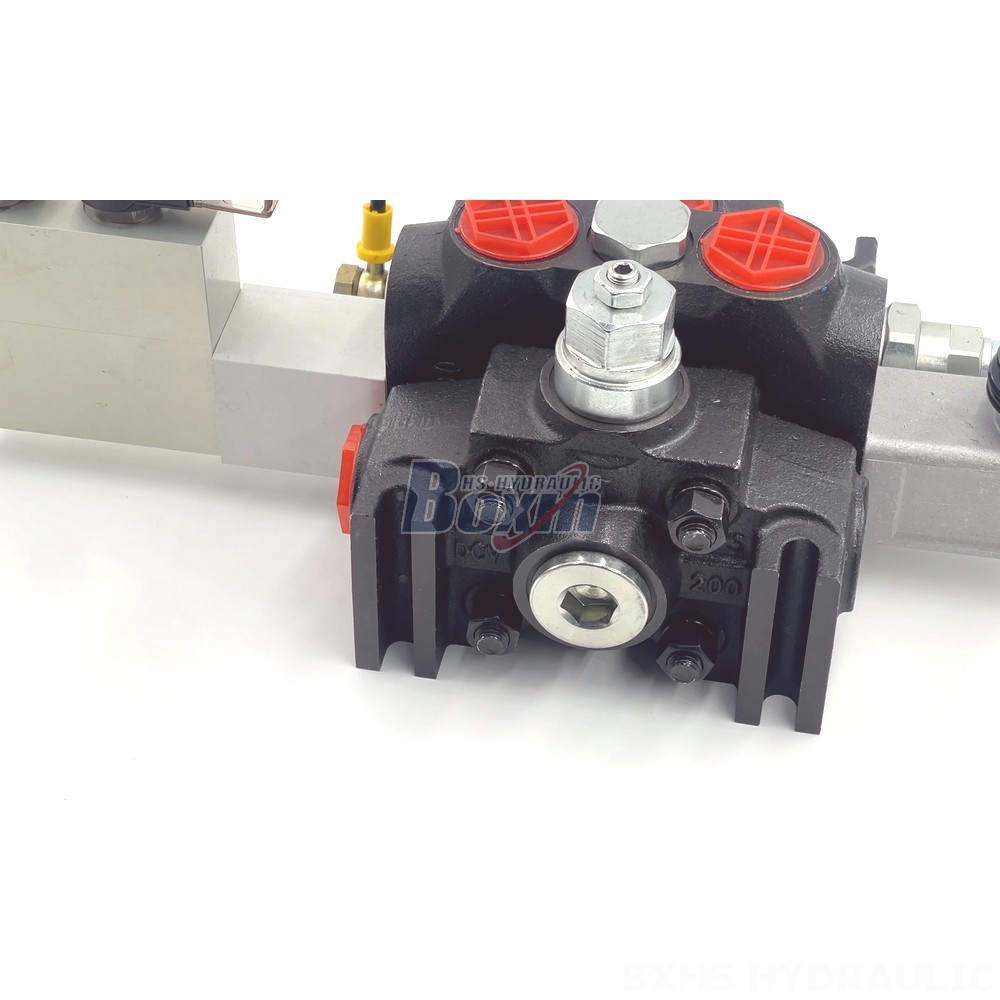

**DCV200 Electro-hydraulic Directional Control Valve**
The DCV200 Electro-hydraulic Directional Control Valve is a 1 section valve with a maximum pressure of 350 bar (5100 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It has an ambient temperature range of -40°C to +80°C (-40°F to +176°F) and is available with 1 spool. The DCV200 is designed for use in a wide range of applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
The DCV200 is also available in a variety of configurations to meet the specific needs of your application. Please contact us for more information.
