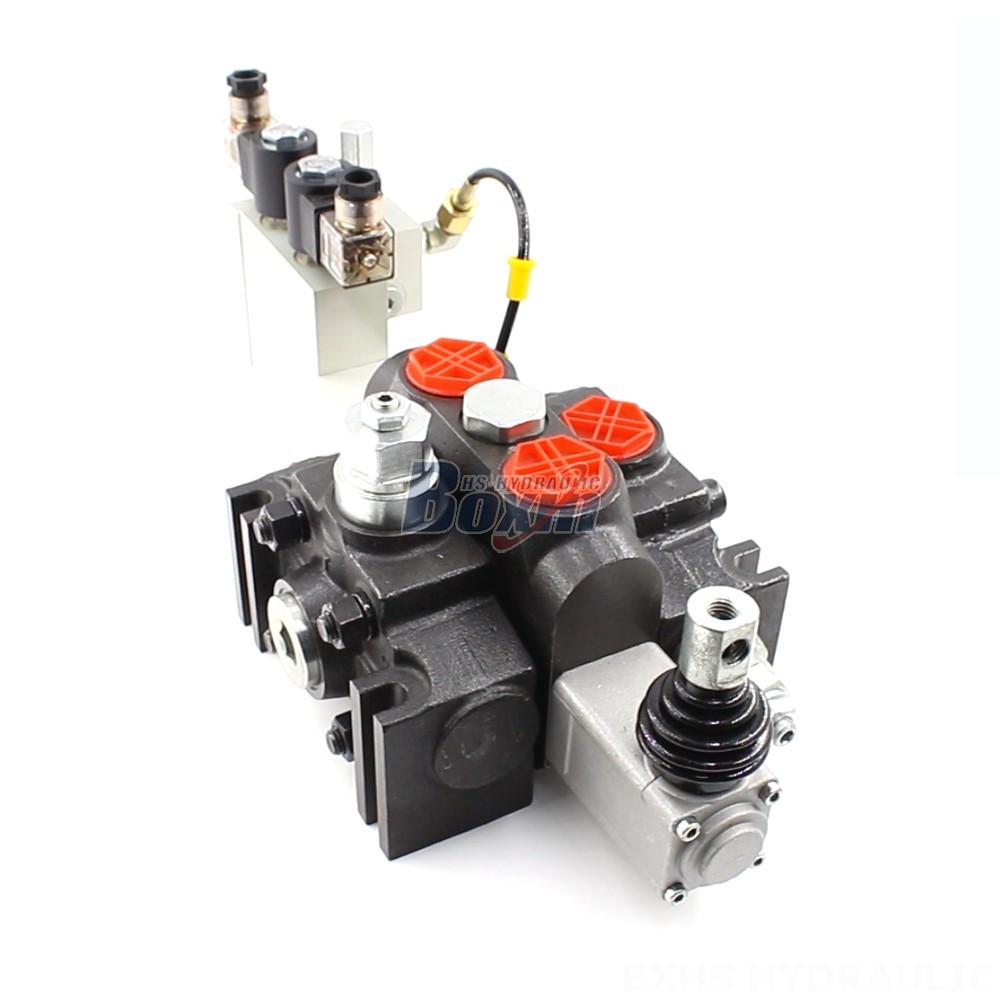

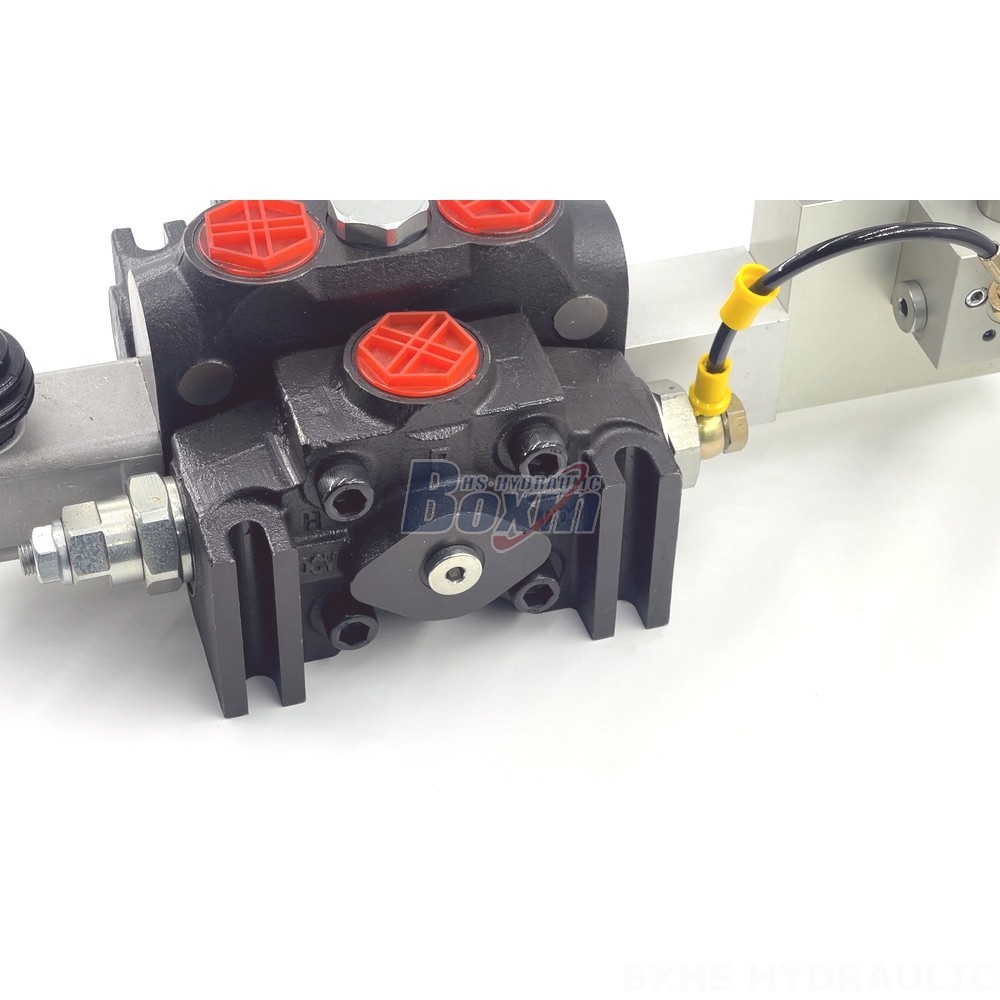

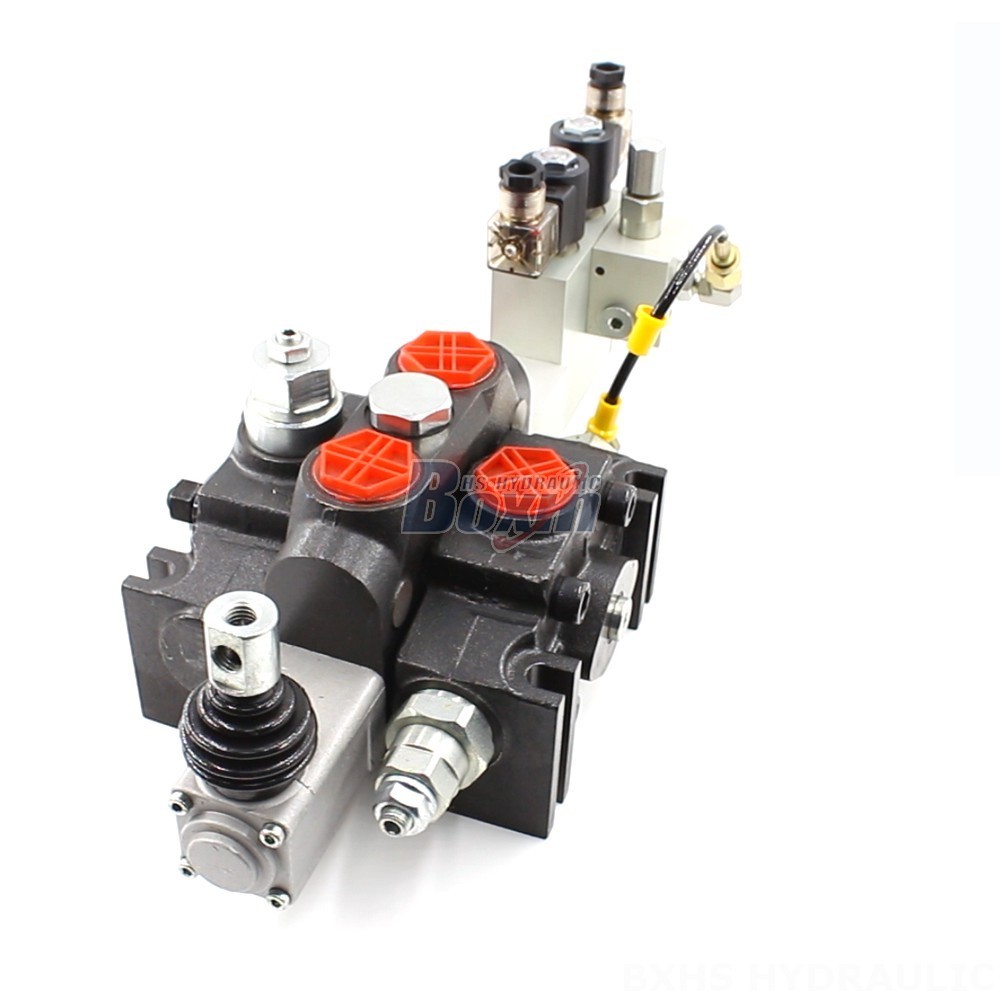

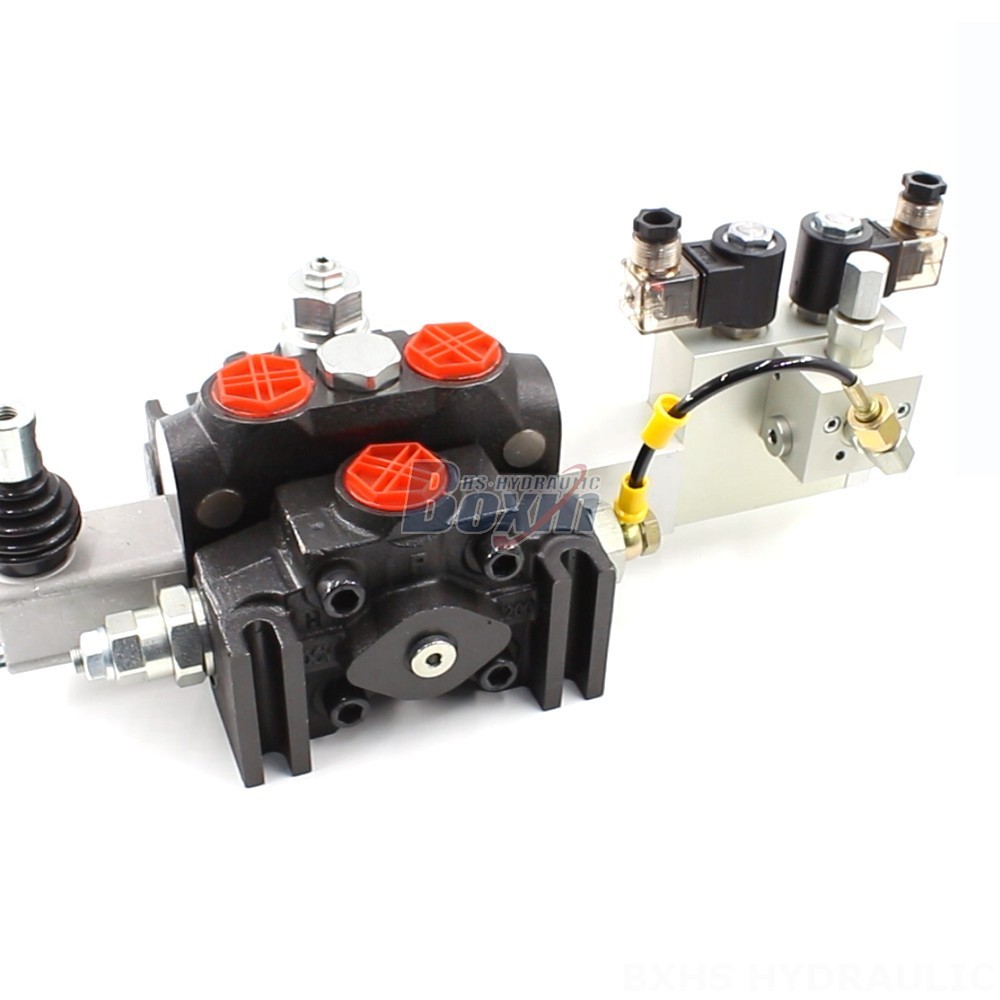

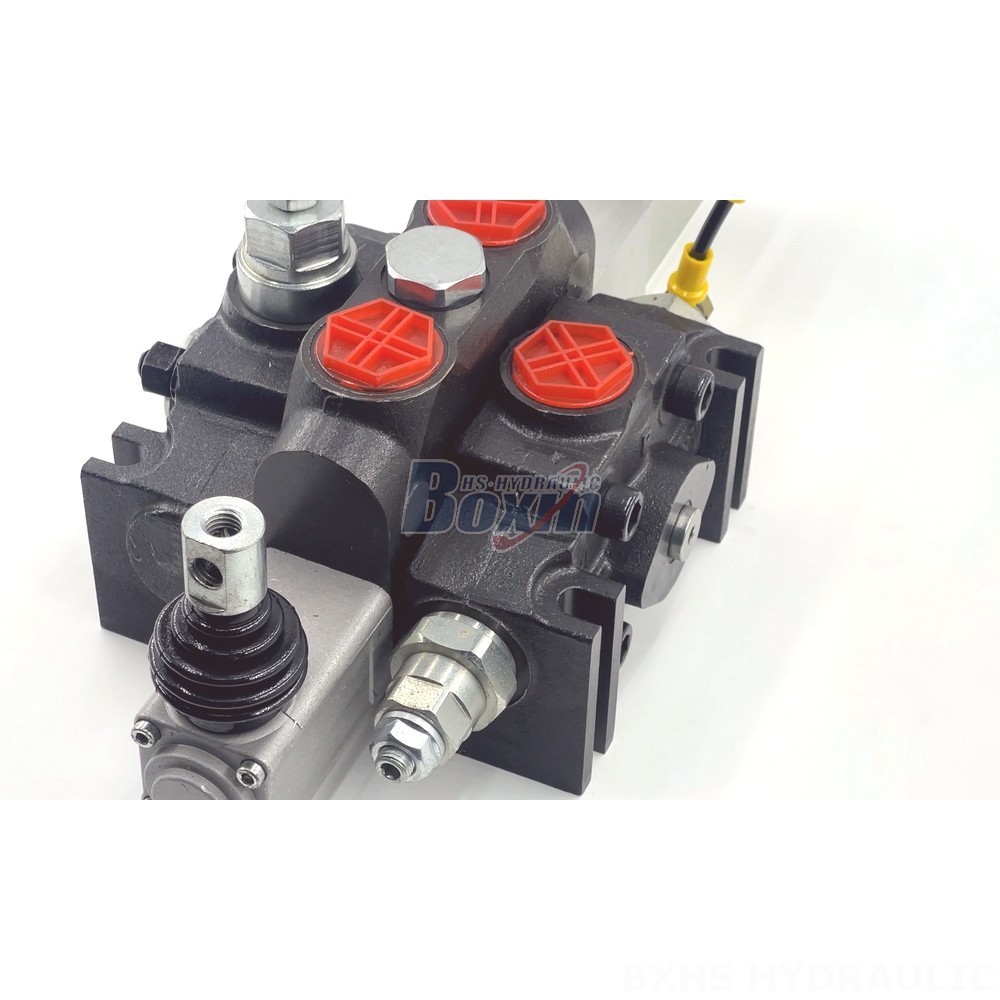

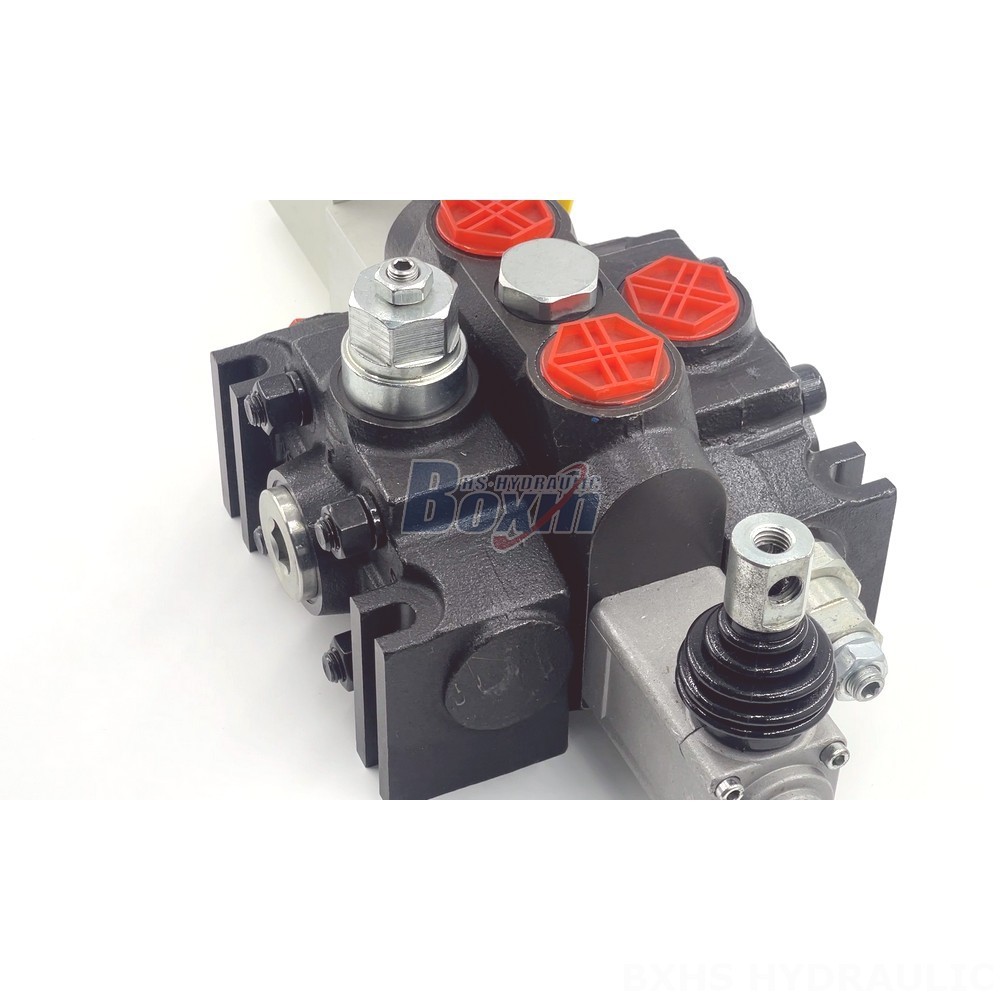

The DCV200 Directional Control Valve is a high-performance, reliable electro-hydraulic valve designed for use in a wide range of construction, industrial, and agricultural applications. This single-section valve is capable of handling pressures up to 350 bar and operates within a broad viscosity range.
| Série DCV200 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette, Manuelle et électro-hydraulique, Moteur électrique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 200 L/min (52 US gal/min) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
| Orifice de sortie | G1, M33×2.0, SAE 16, 1 NPT |
| Dimension du raccord | G3/4, G1, M33×2.0, SAE 16, 3/4 NPT, 1 NPT |
The DCV200 Series Directional Control Valve is a robust and dependable solution for controlling hydraulic systems in various demanding environments. Its electro-hydraulic control method allows for precise and responsive operation. With a maximum pressure rating of 350 bar (5100 psi) and a wide operating viscosity range of 15 to 75 mm²/s, this valve is suitable for use in a variety of applications including material handling, construction and earth moving, agriculture, and industrial vehicles. The DCV200 is engineered to withstand harsh conditions with an ambient temperature range of -40°C to +80°C. Its single-section design and single spool construction provide simplicity and efficiency, making it an ideal choice for a wide range of applications.
