Production & Delivery
15-30 Days Production Lead Time
L'innovation favorise le développement ; la technologie forge l'avenir
982 personnes consultent ce produit

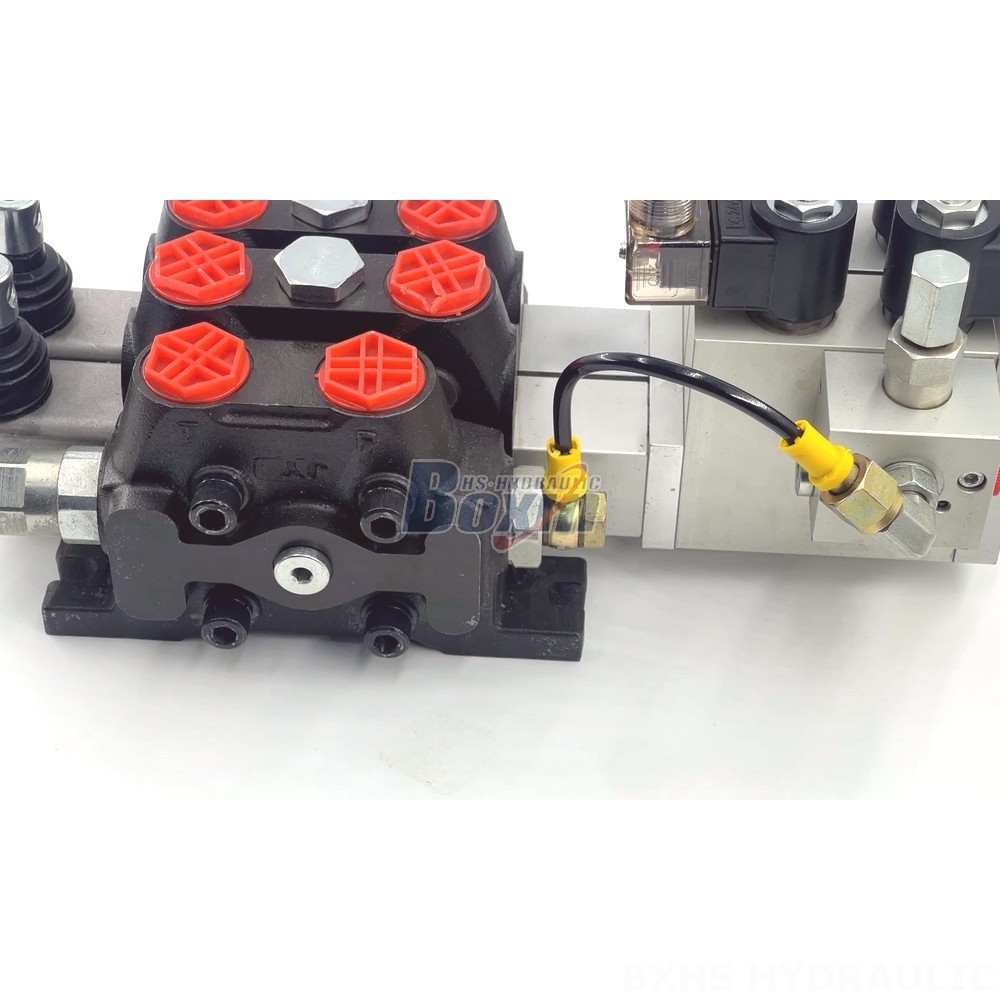

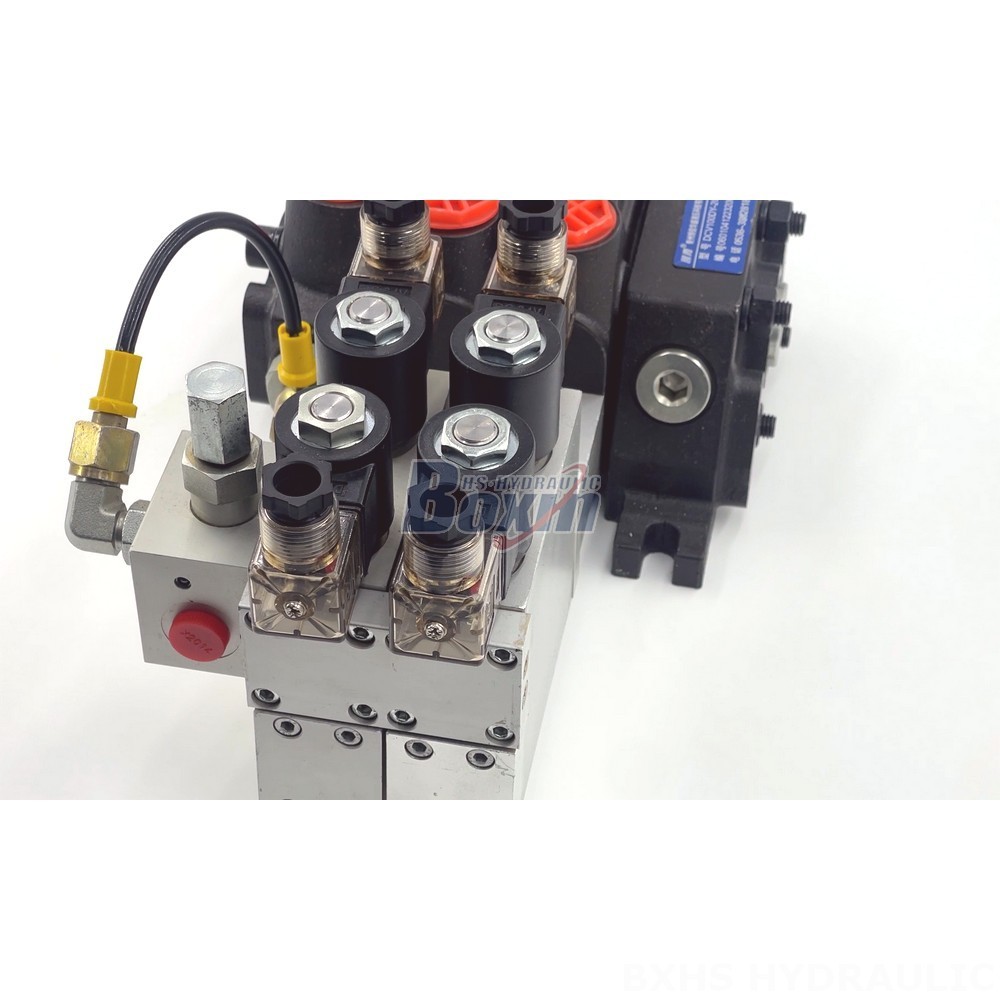

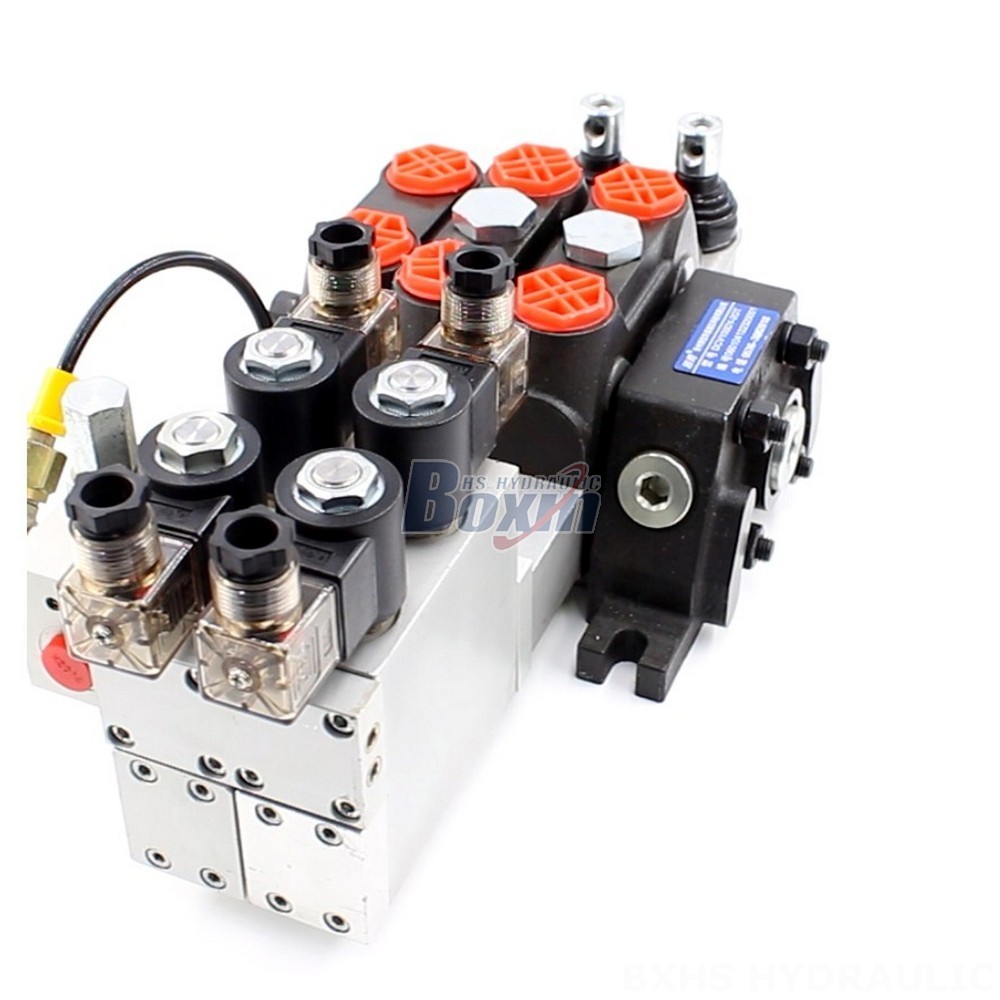

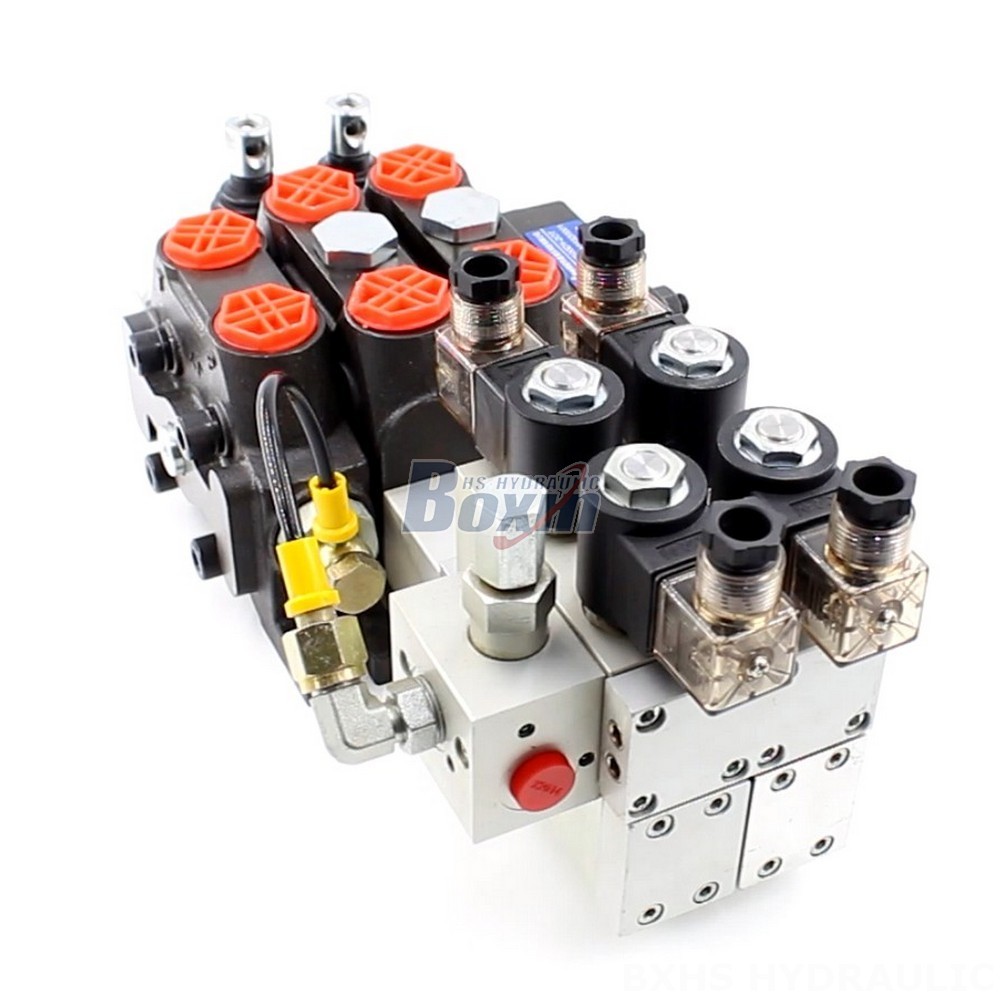

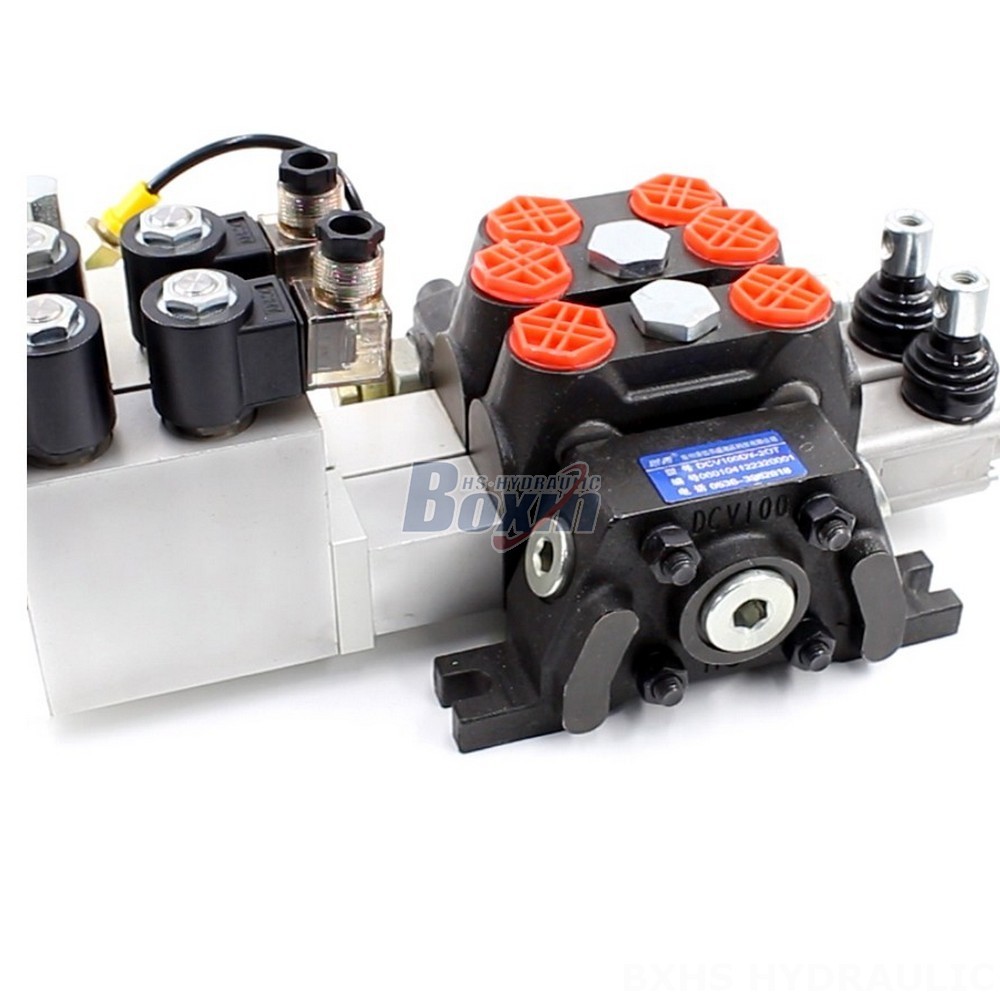

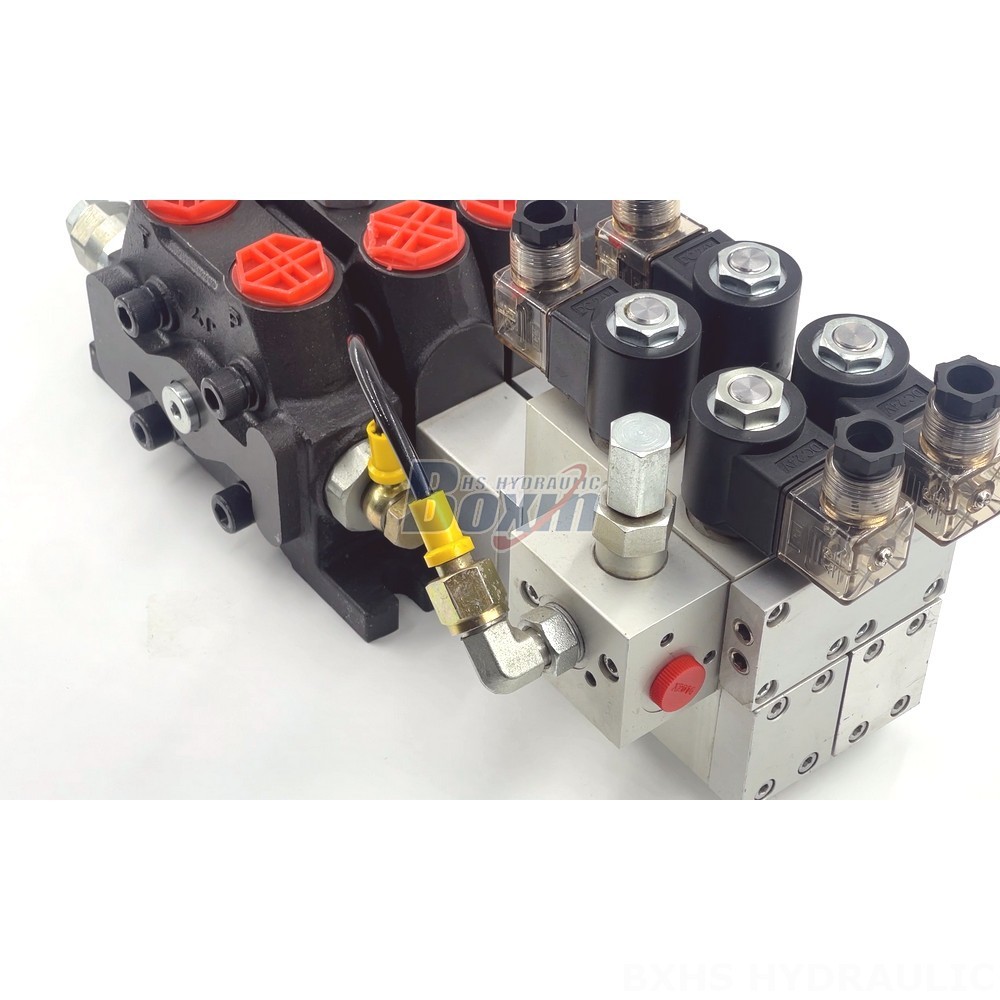

The DCV100 Electro-hydraulic 2 Spool Sectional Directional Valve is a versatile and high-performing valve designed for demanding hydraulic applications in various industries. With its robust construction, electro-hydraulic control, and high flow and pressure capabilities, this valve offers precise and reliable operation in challenging conditions.
| Série DCV100 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Câble, Manette, Manuel et manette, Manuelle et électro-hydraulique, Moteur électrique, Électro-hydraulique et solénoïde |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 100 L/min (26,5 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Orifice de sortie | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Dimension du raccord | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**Key Features:**
- Electro-hydraulic control for precise and responsive operation
- Sectional design allows for easy customization and integration
- 2 spool configuration for versatile flow control
- High flow rate of 100 L/min (26.5 US gpm) for efficient operation
- Maximum pressure of 350 bar (5100 psi) for demanding applications
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for adaptability to various fluids
- Ambient temperature range of -40°C to +60°C (-40°F to +140°F) for operation in harsh environments
**Applications:**
The DCV100 Electro-hydraulic 2 Spool Sectional Directional Valve finds application in a wide range of industries, including:
- Material Handling: Telehandlers, Forklifts, Stackers, Aerial Platforms
- Construction and Earth Moving: Excavators, Skid Steer Loaders, Motor Graders
- Agriculture: Tractors, Harvesters, Sprayers
- Industrial Vehicles: Cranes, Loaders, Sweepers
