The SD5 Series Single Hydraulic Valve is a robust and versatile monoblock valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, and private label options, enabling you to customize the valve to meet your specific requirements.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

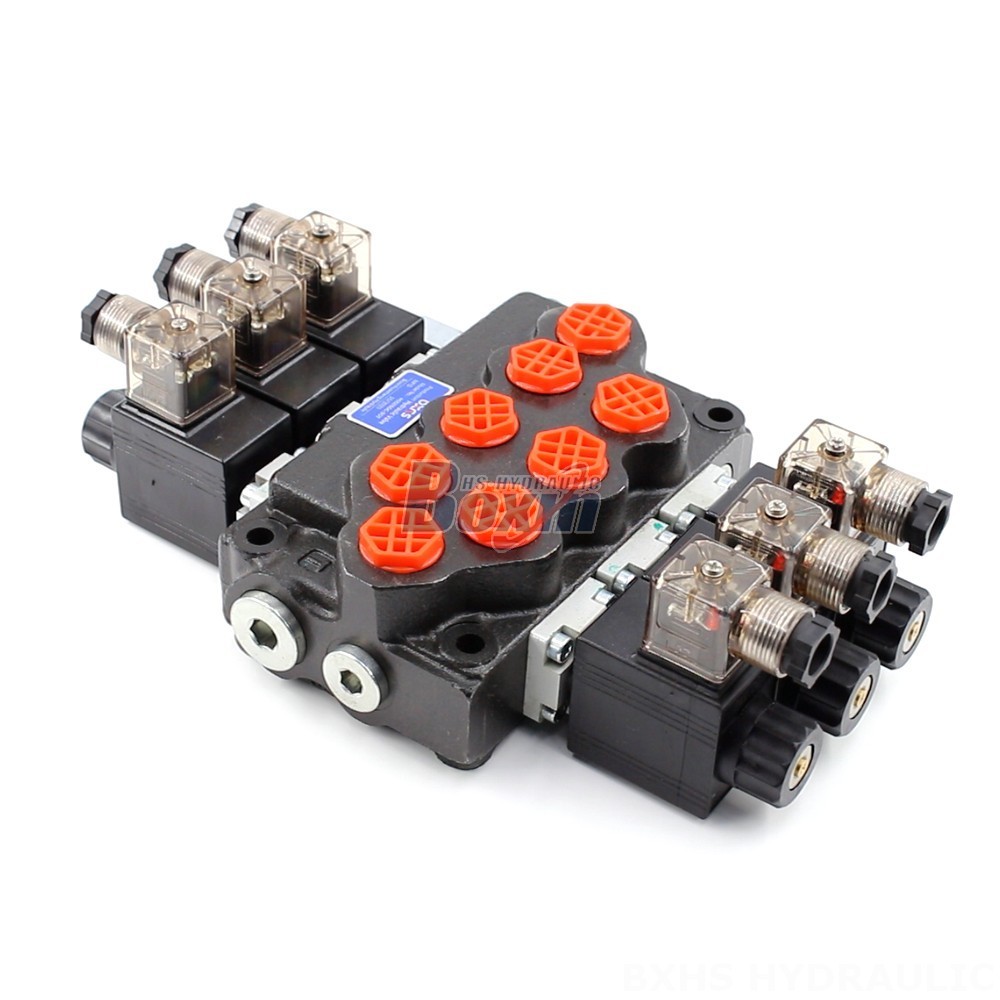

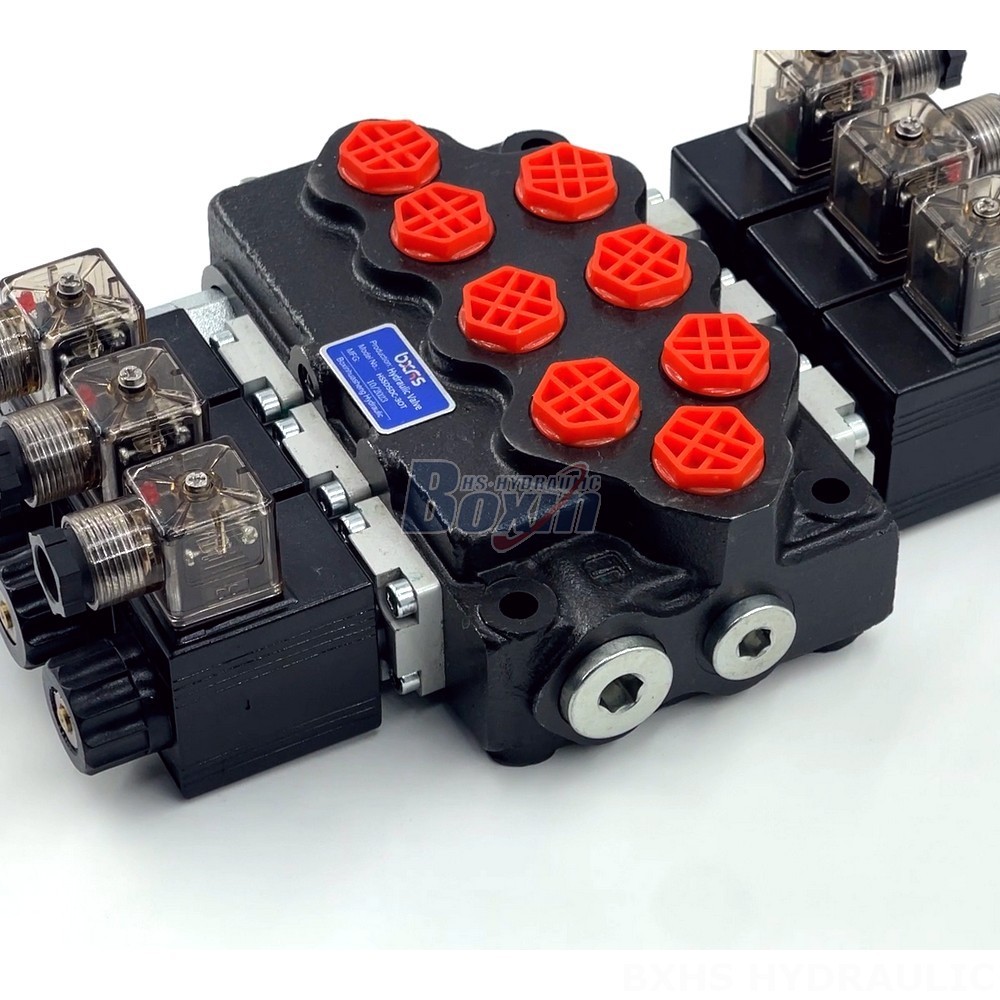

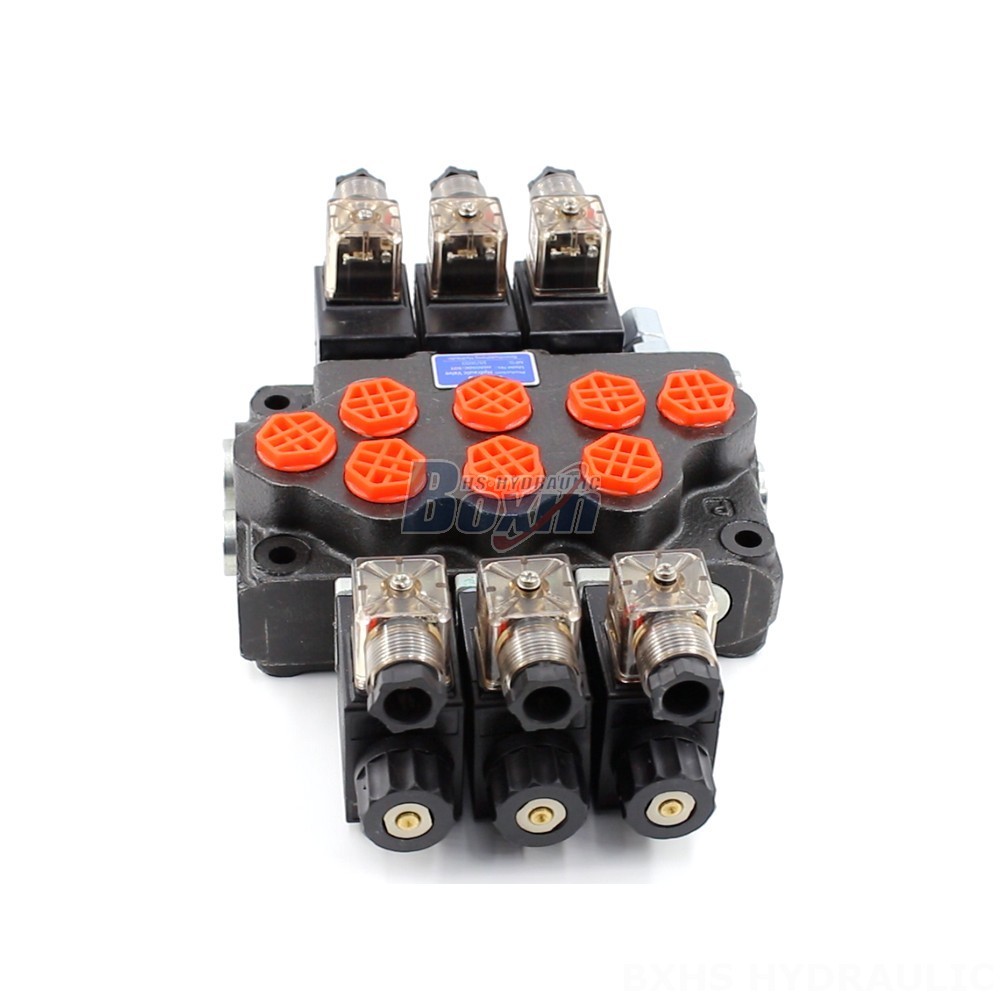

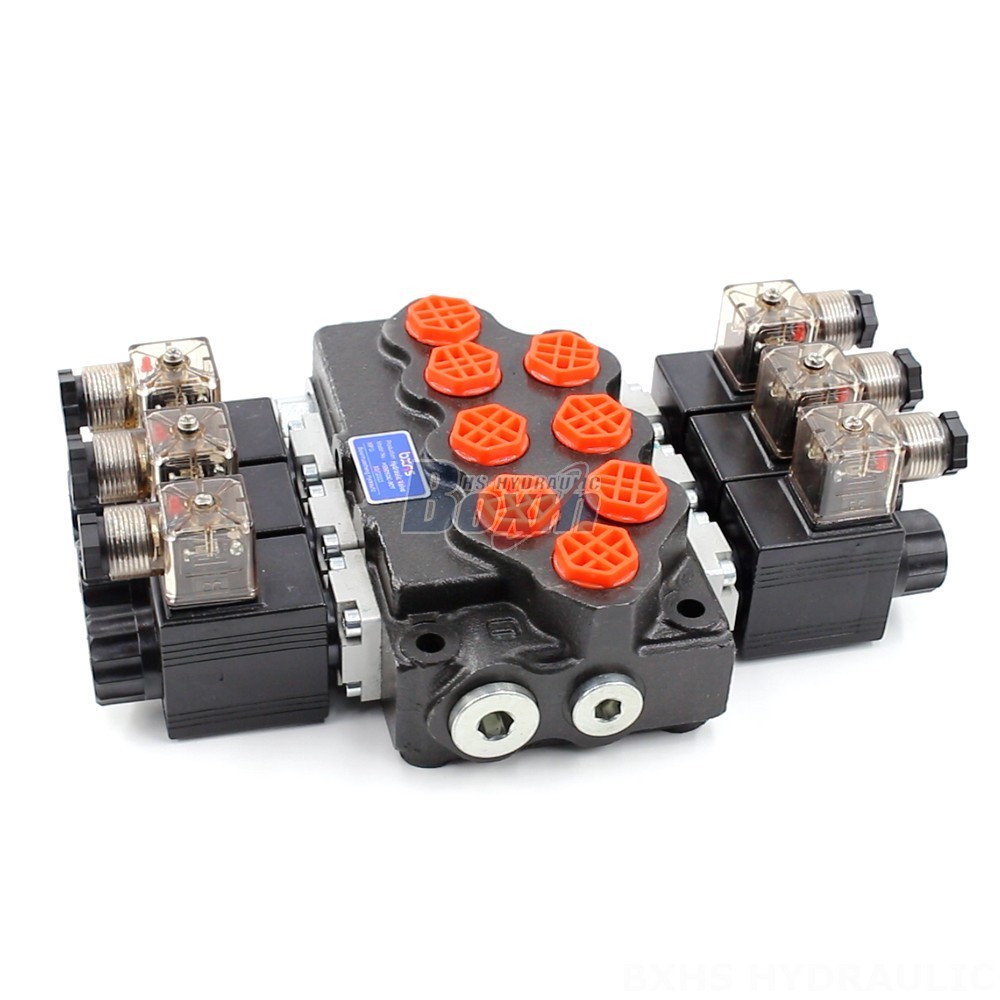

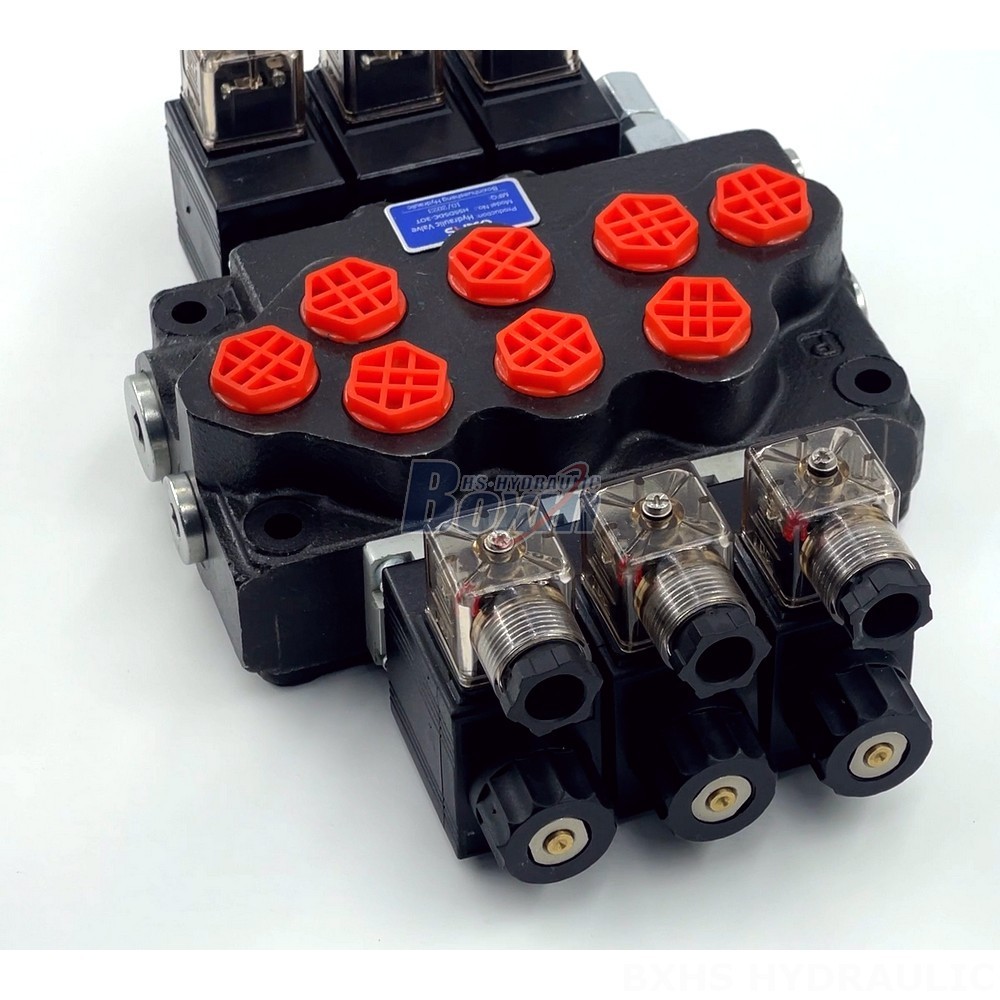

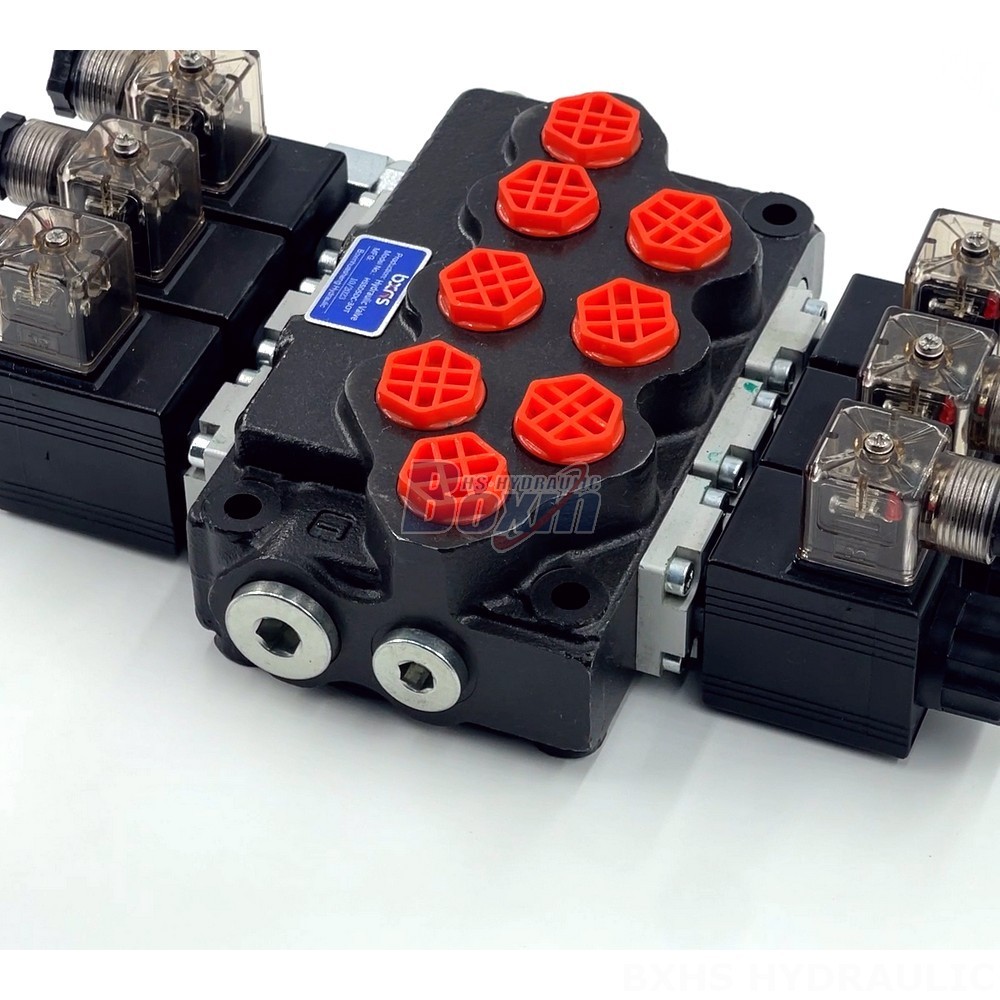

This 3-section solenoid-controlled valve features a rated flow of 40 L/min and a maximum pressure of 305 bar. With its 3 spool design, the SD5 Series valve provides precise control for various hydraulic systems. Our manufacturing expertise allows us to offer OEM, ODM, and private label services, enabling you to tailor the valve to your exact specifications. Whether you need a customized valve for a telehandler, forklift, or any other industrial equipment, our team can deliver a solution that meets your specific needs. We also offer wholesale options for distributors, wholesalers, and traders seeking high-quality hydraulic valves.
