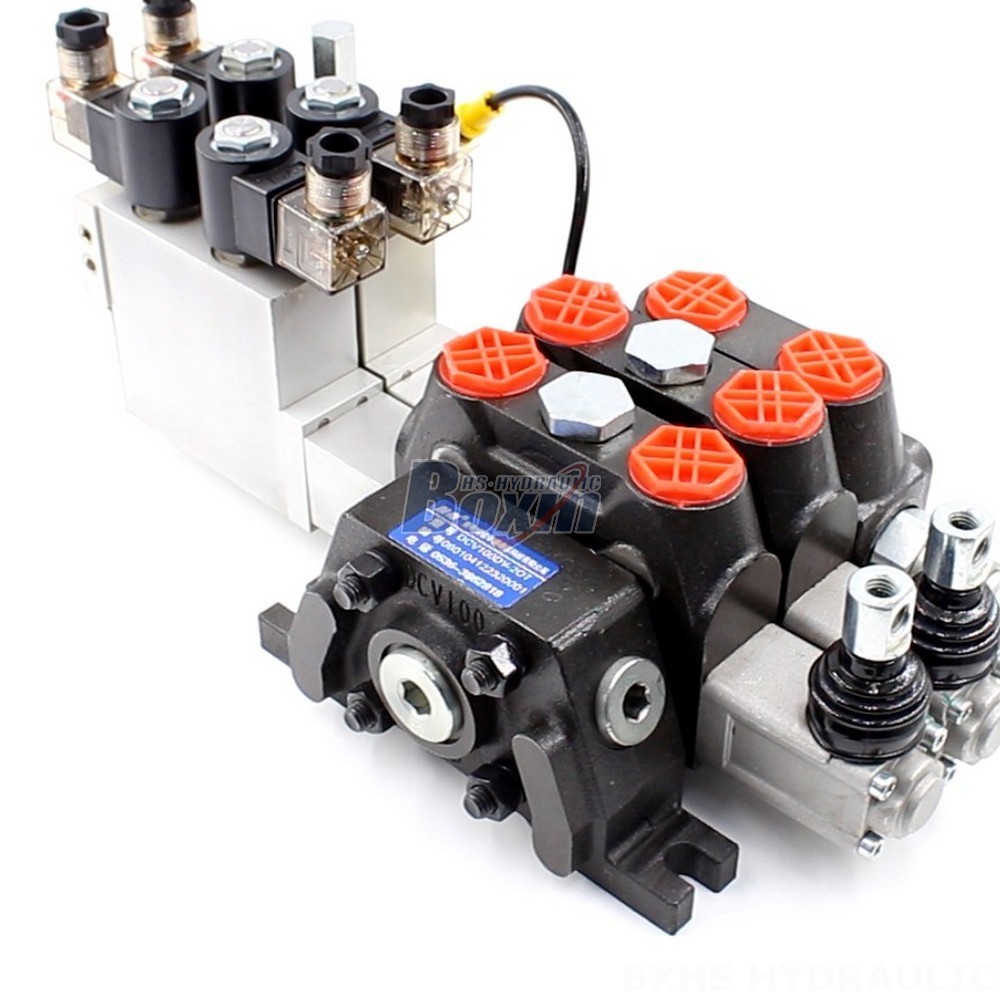

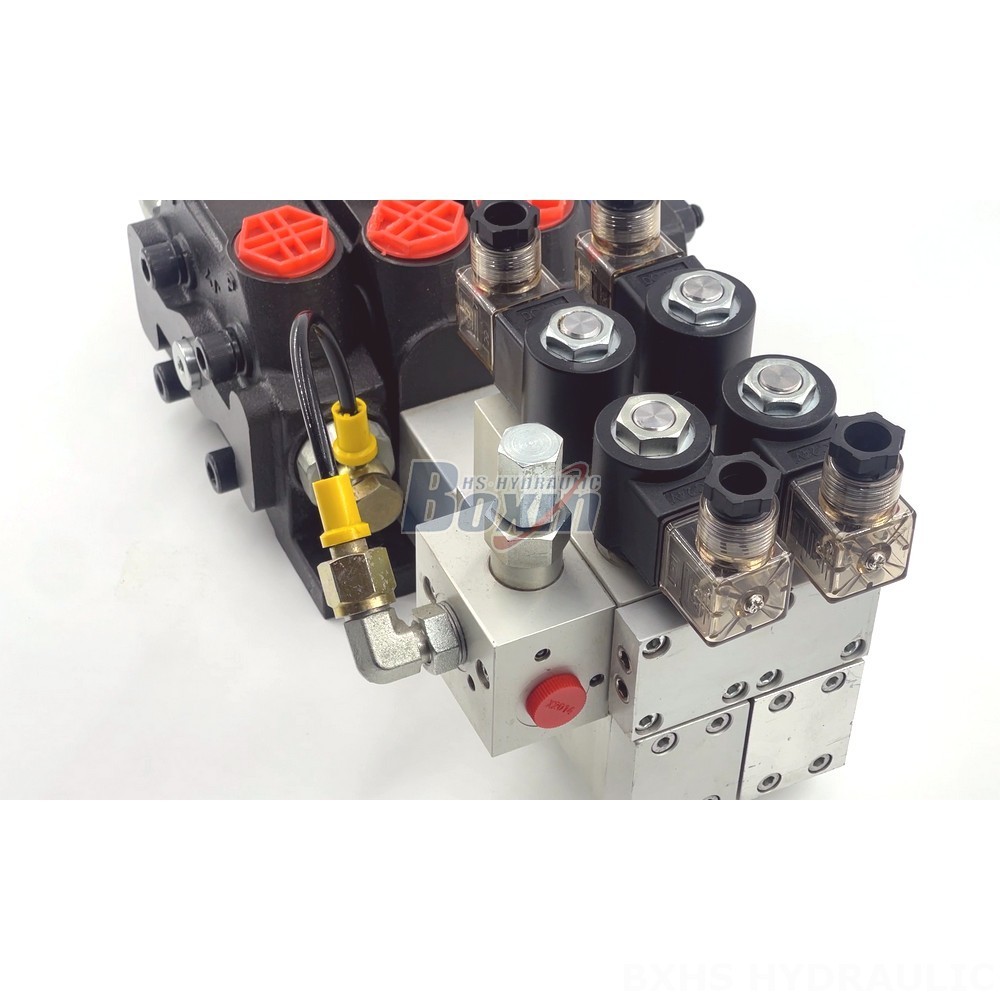

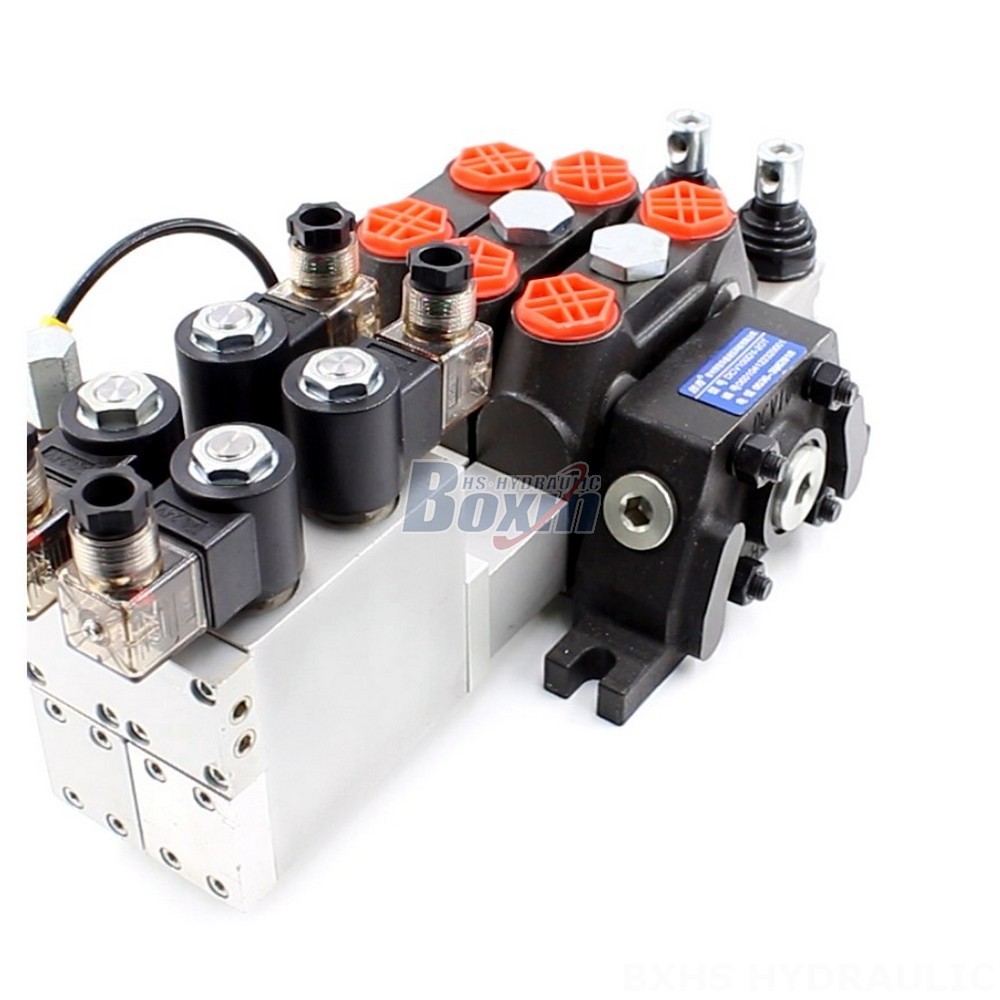

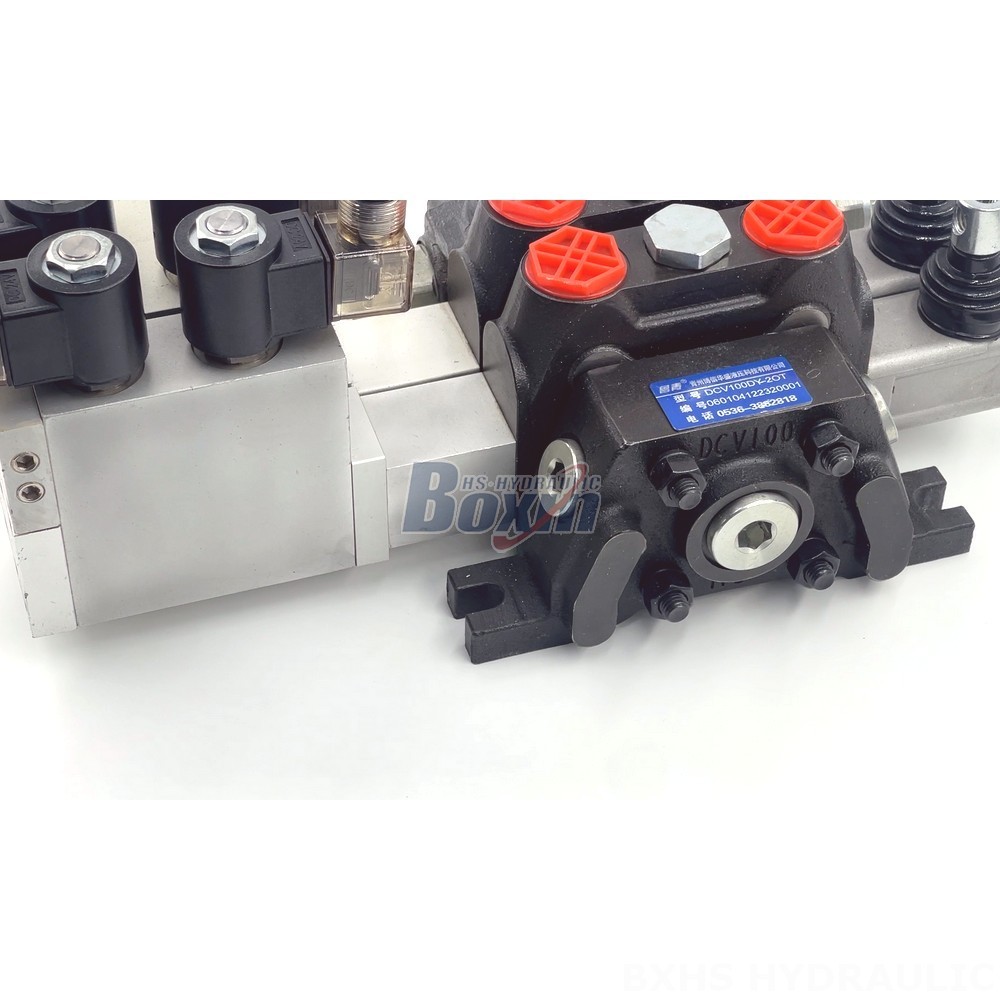

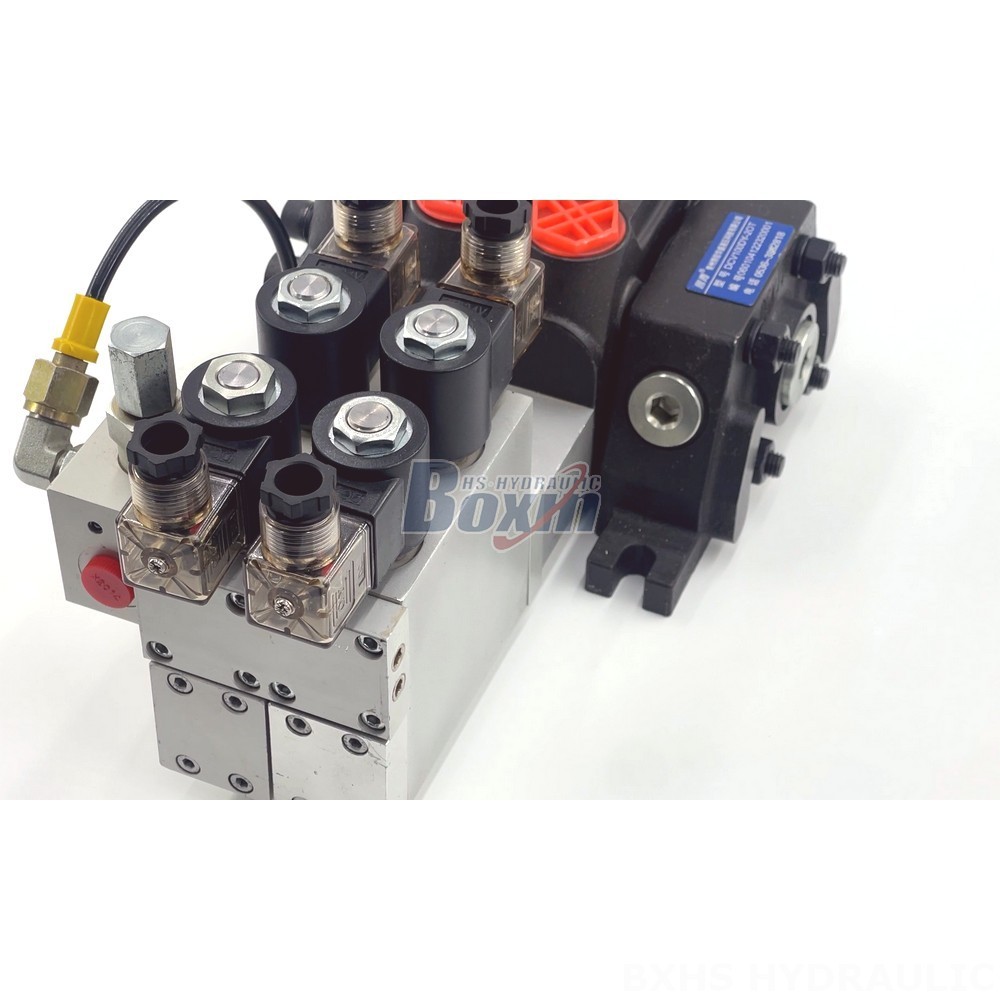

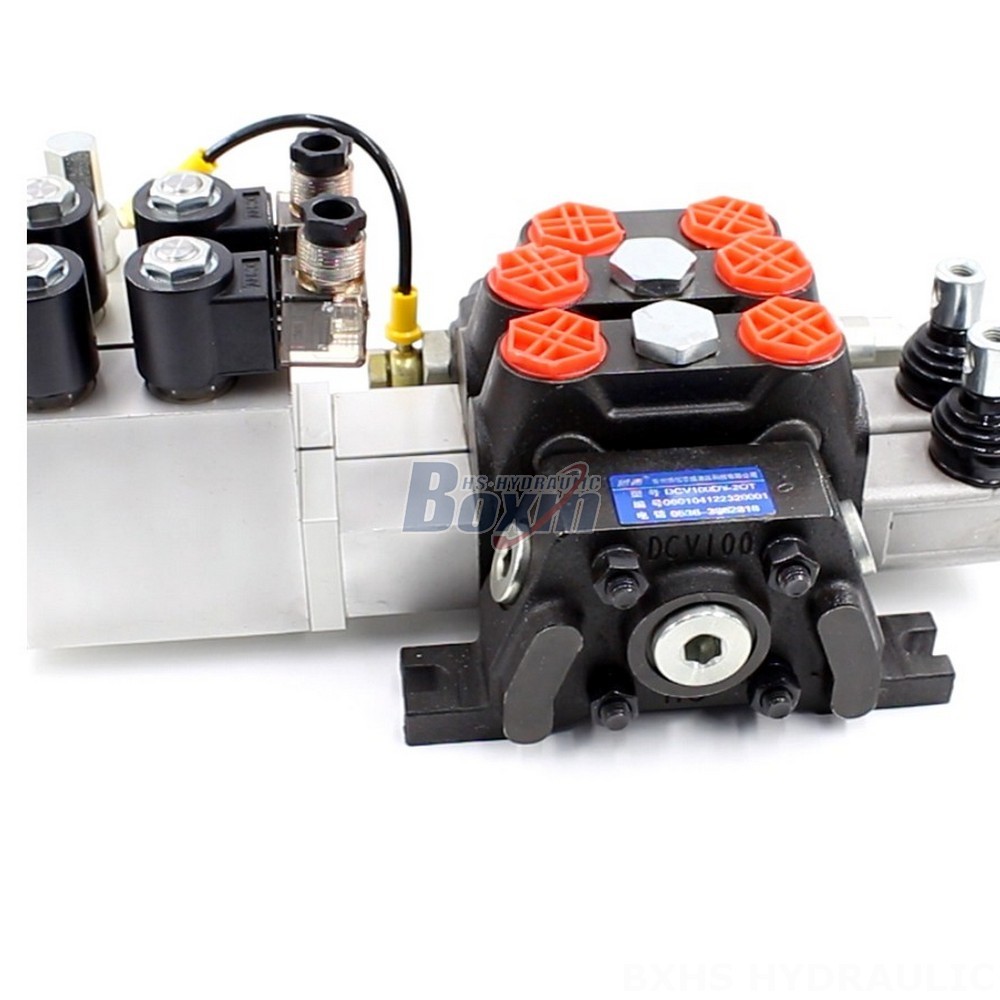

This is a high-performance, customizable electro-hydraulic 2-spool sectional directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 100 L/min and a maximum pressure of 350 bar, making it suitable for a wide range of heavy-duty machinery.
| Série DCV100 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Câble, Manette, Manuel et manette, Manuelle et électro-hydraulique, Moteur électrique, Électro-hydraulique et solénoïde |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs, 11 tiroirs, 12 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections, 11 sections, 12 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 100 L/min (26,5 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Orifice de sortie | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Dimension du raccord | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
This 2-section sectional valve features a robust design and reliable performance. Its electro-hydraulic control method ensures precise and responsive operation. The valve is rated for a maximum flow rate of 100 L/min (26.5 US gpm) and a maximum pressure of 350 bar (5100 psi), making it suitable for a variety of heavy-duty applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable operation in a wide range of temperature conditions. The valve is designed for use in a variety of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, and skid steer loaders. Its compact size and modular design make it easy to install and integrate into existing systems.
