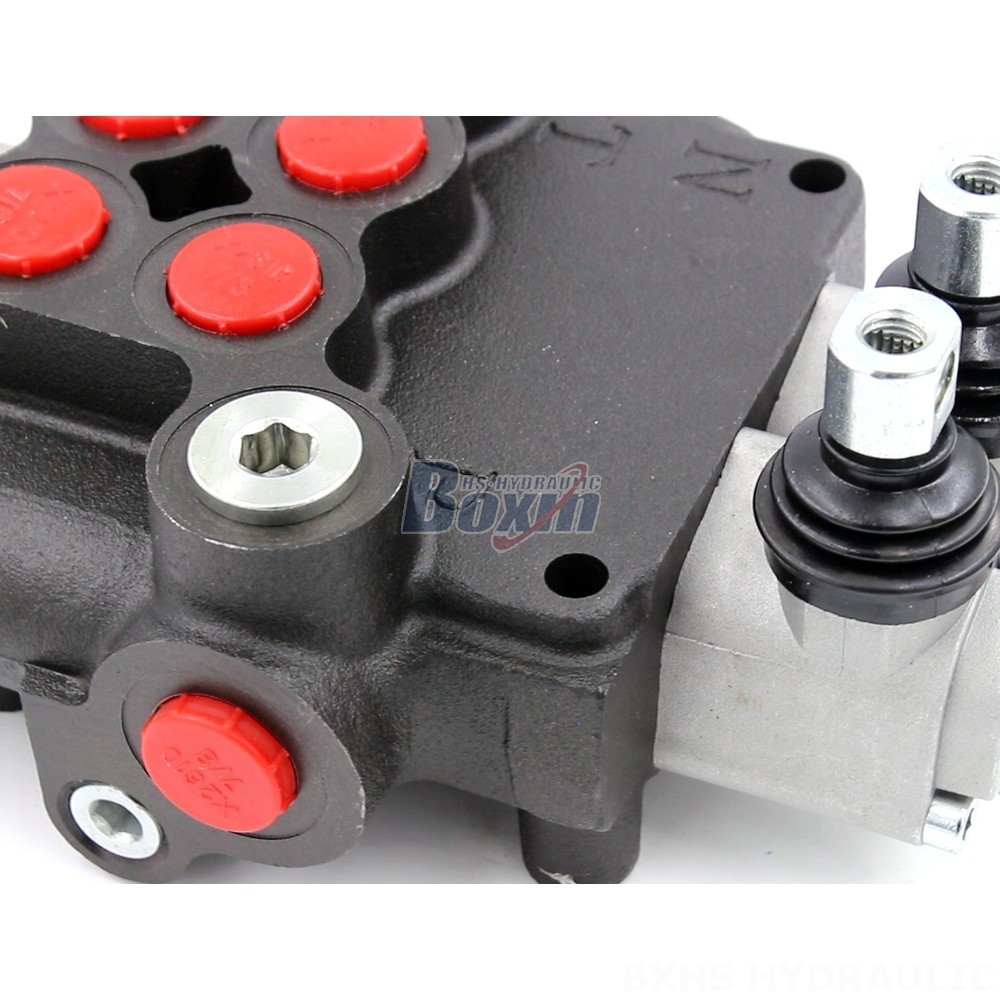

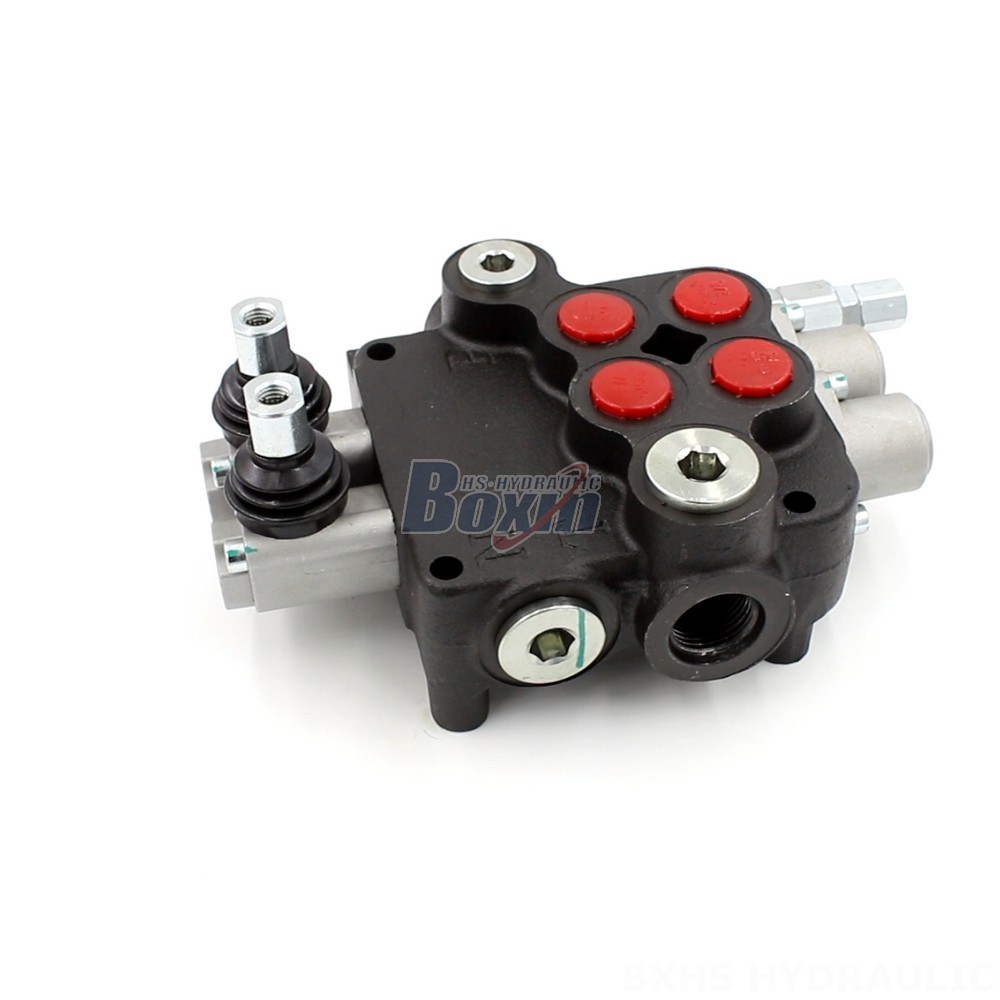

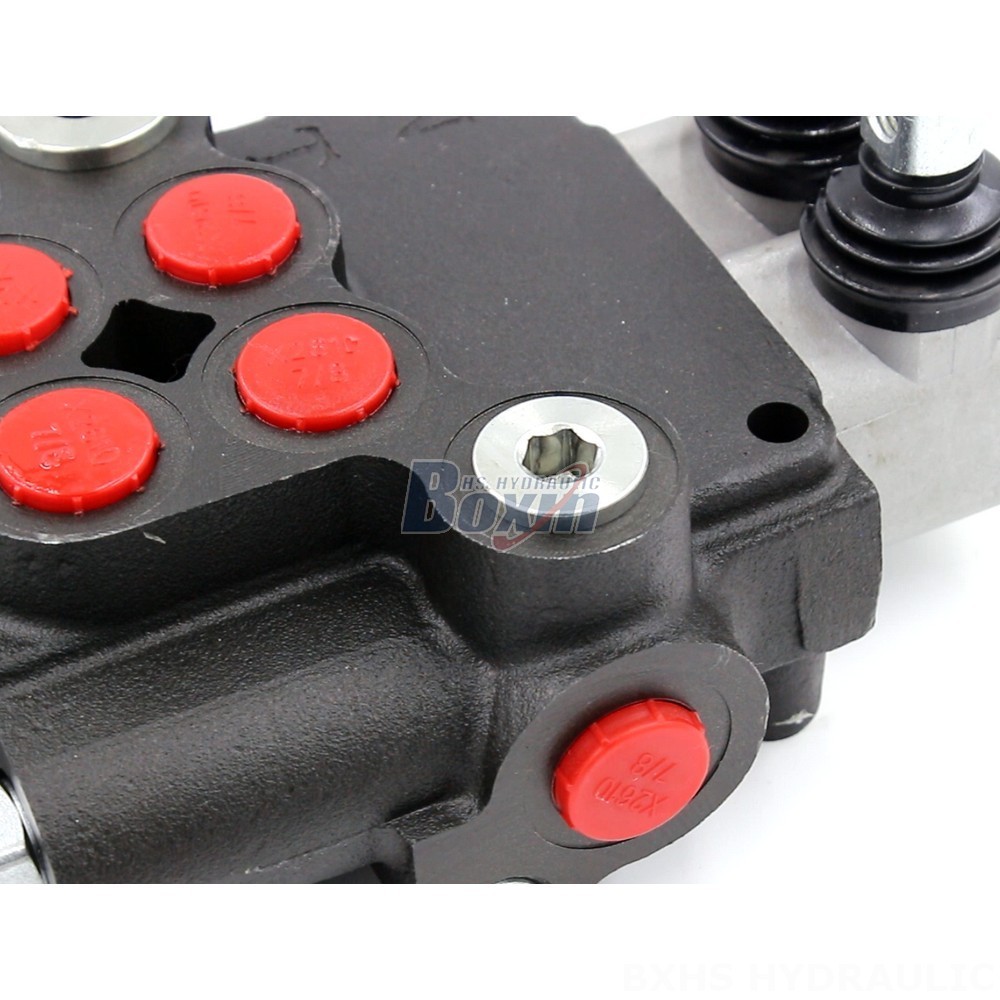

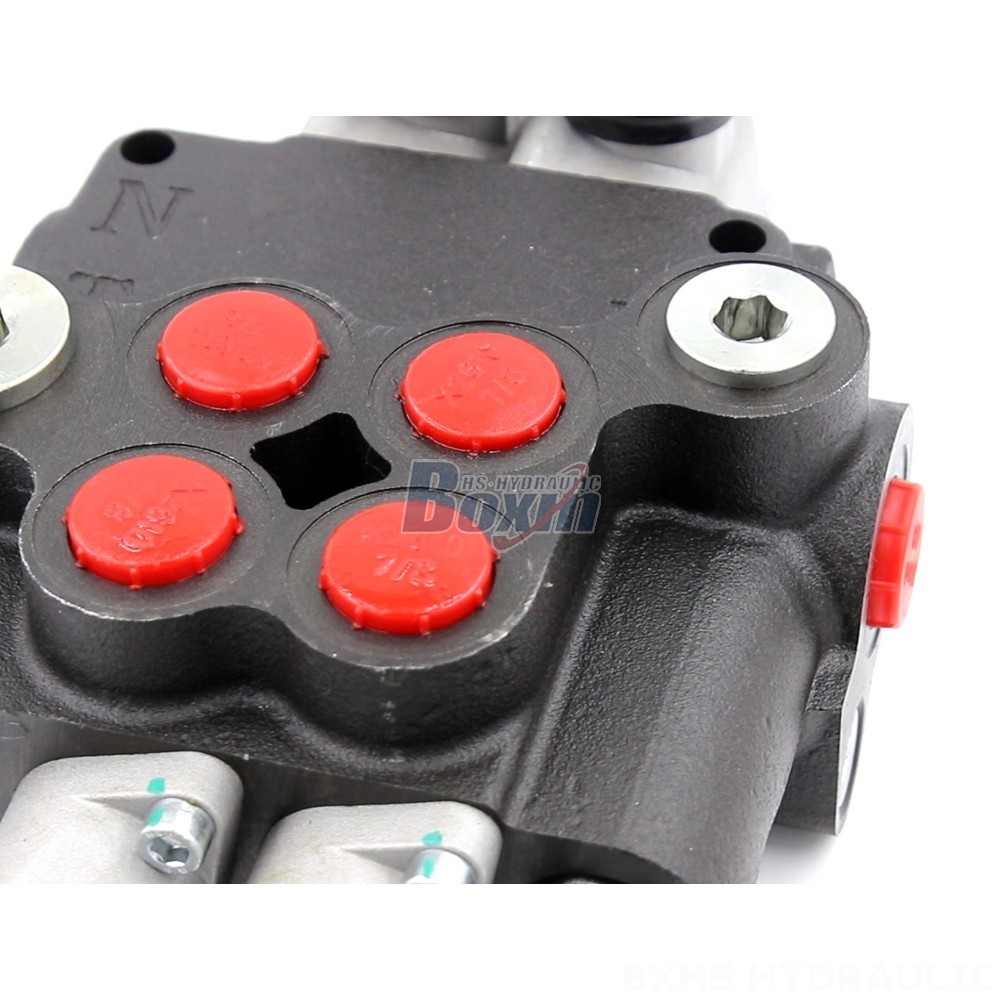

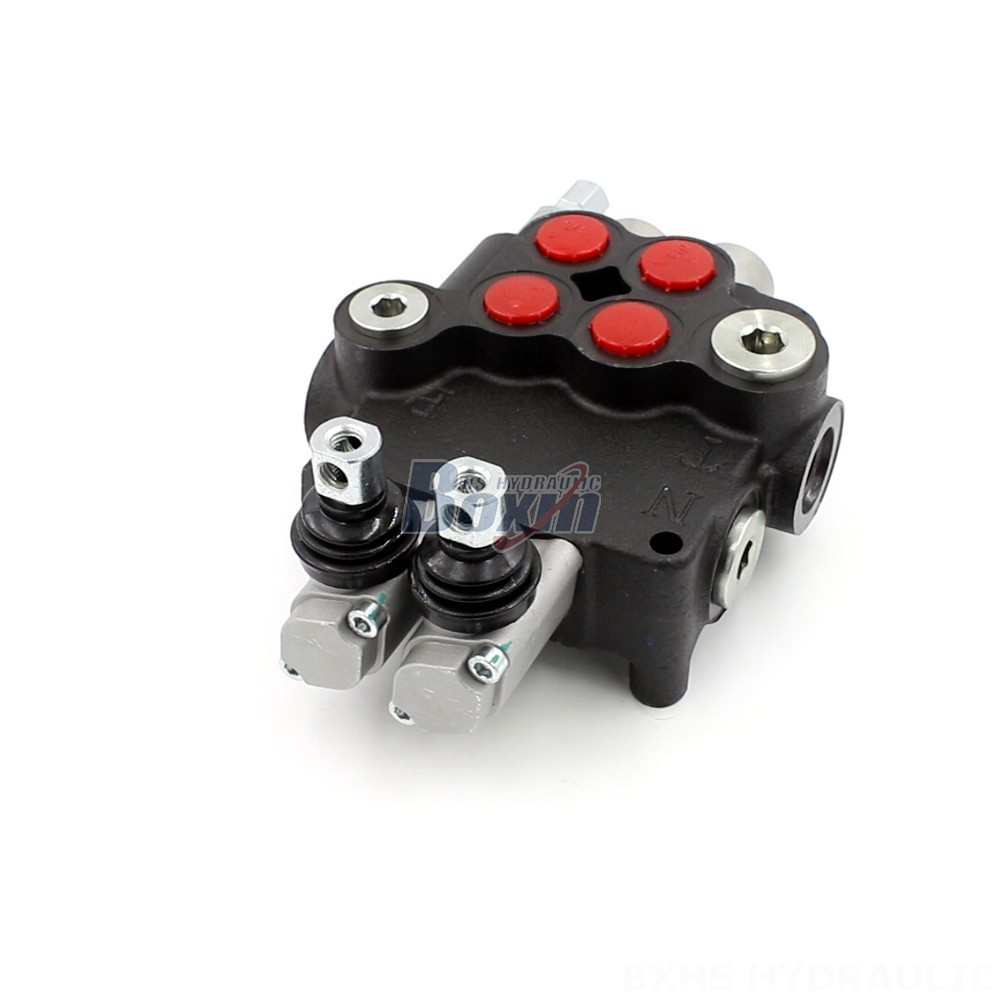

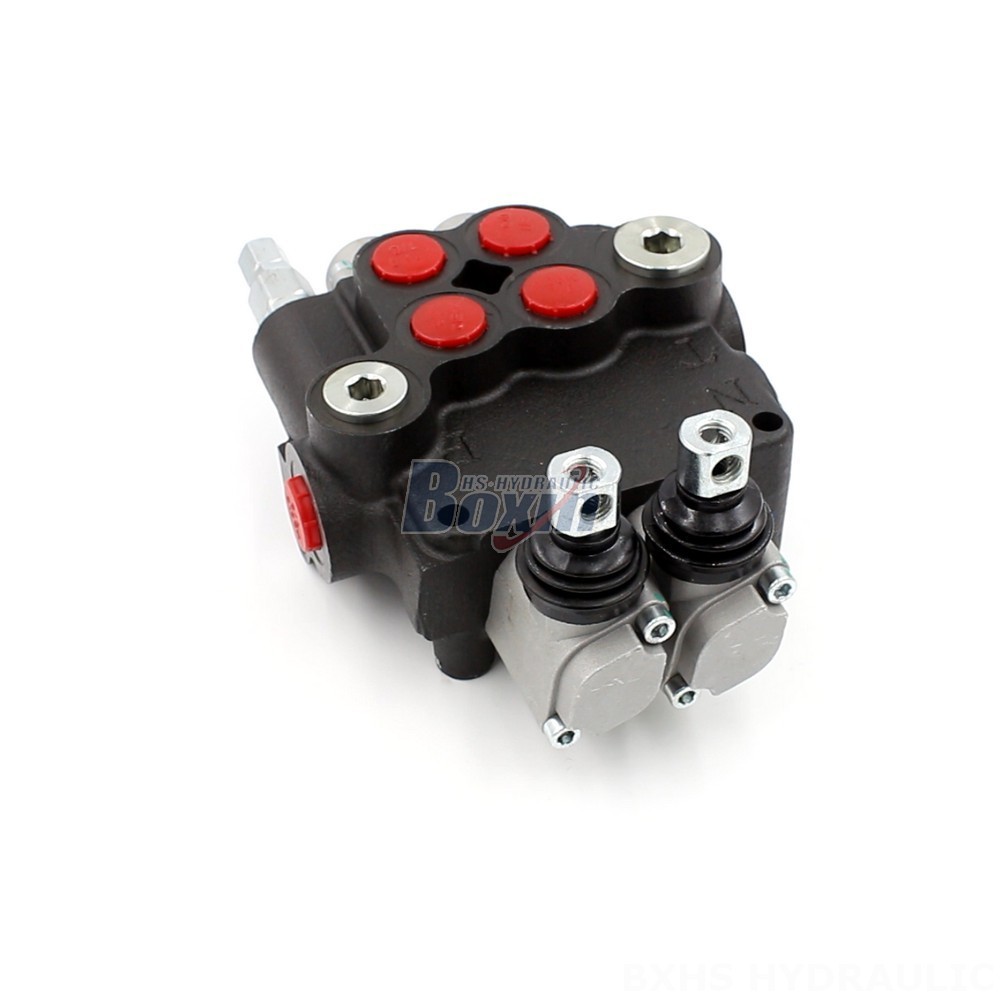

Our Customizable Hydraulic Valves: P80 Monoblock Series are designed for various applications in material handling, construction, agriculture, and industrial vehicles. These valves offer precise control, reliability, and durability, meeting the specific requirements of your hydraulic systems.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**Key Features**:
- Customizable design to meet specific application requirements
- Manual control for precise operation
- 2 section design for efficient flow management
- Monoblock valve construction for compactness and reduced leakage
- 80 L/min rated flow for high-performance applications
- 250 bar max pressure for demanding hydraulic systems
- 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
- -40°C to +80°C ambient temperature range for harsh operating conditions
- 2 spool design for increased control options
- P80 Series for proven reliability and durability
