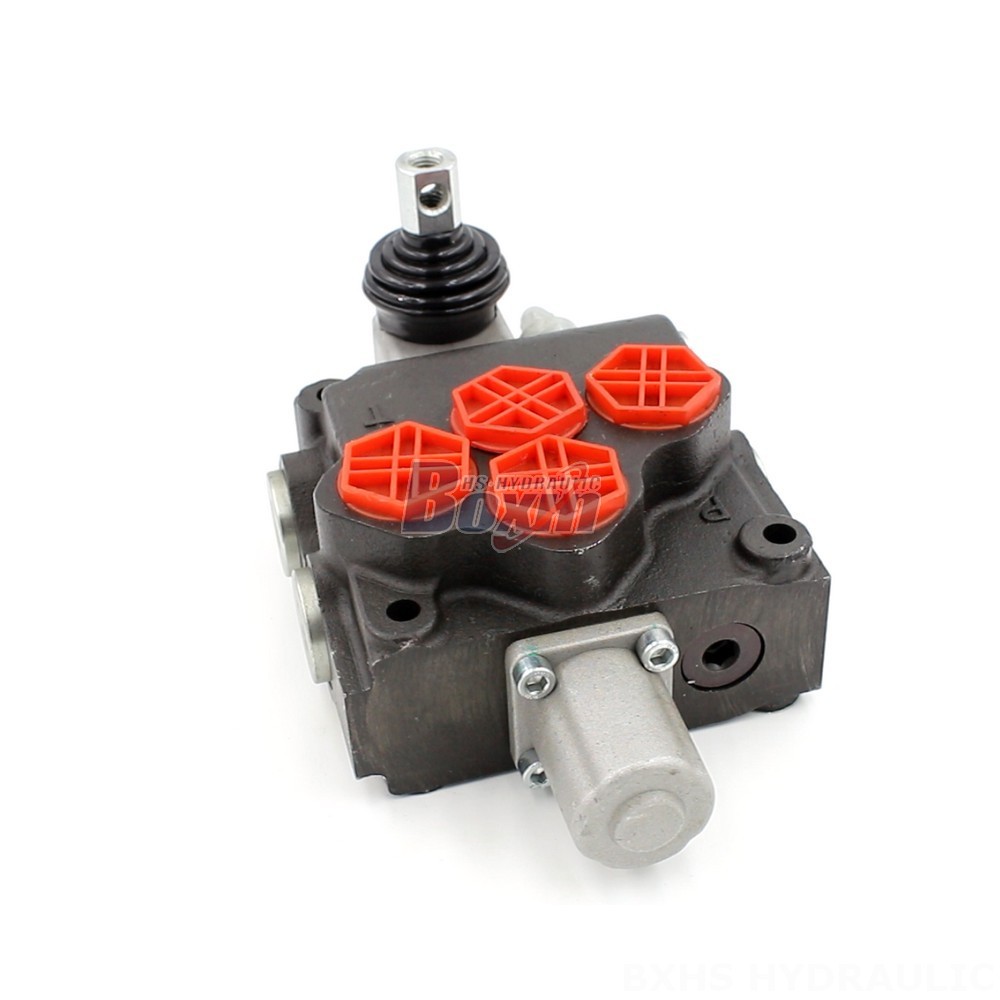

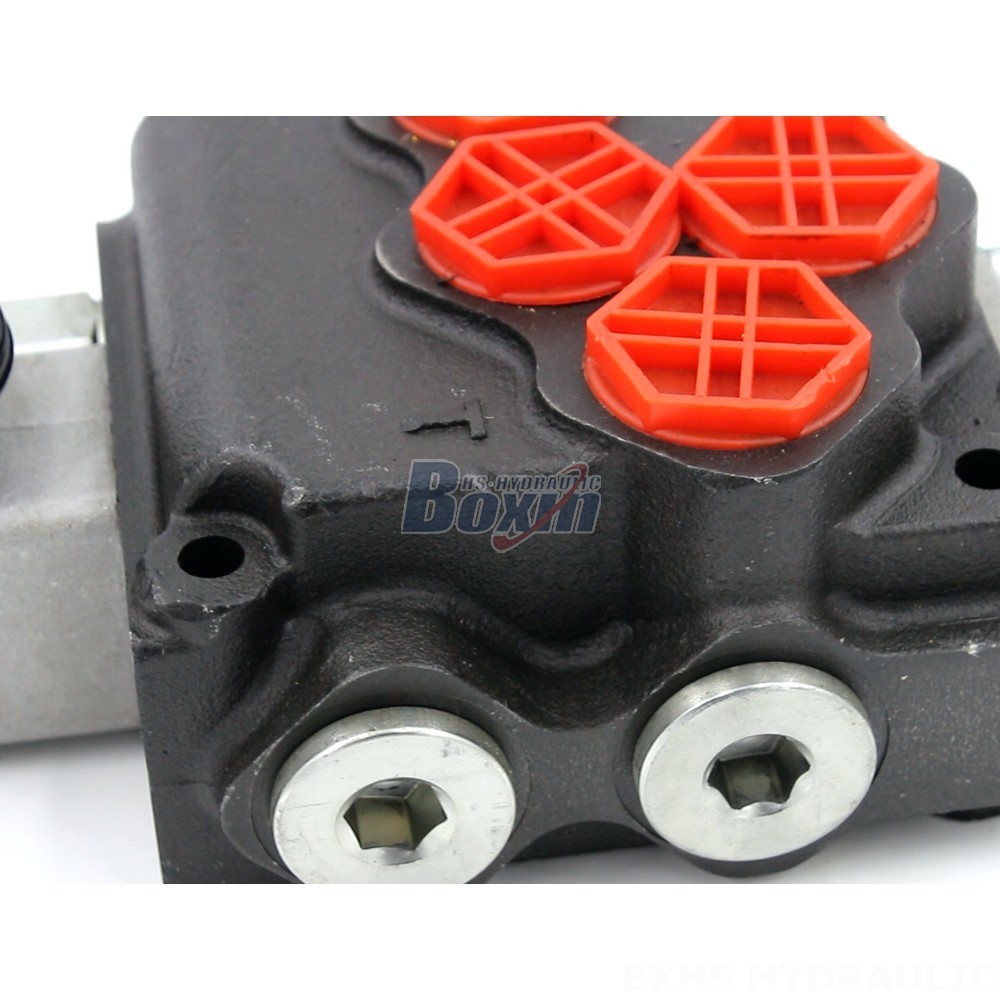

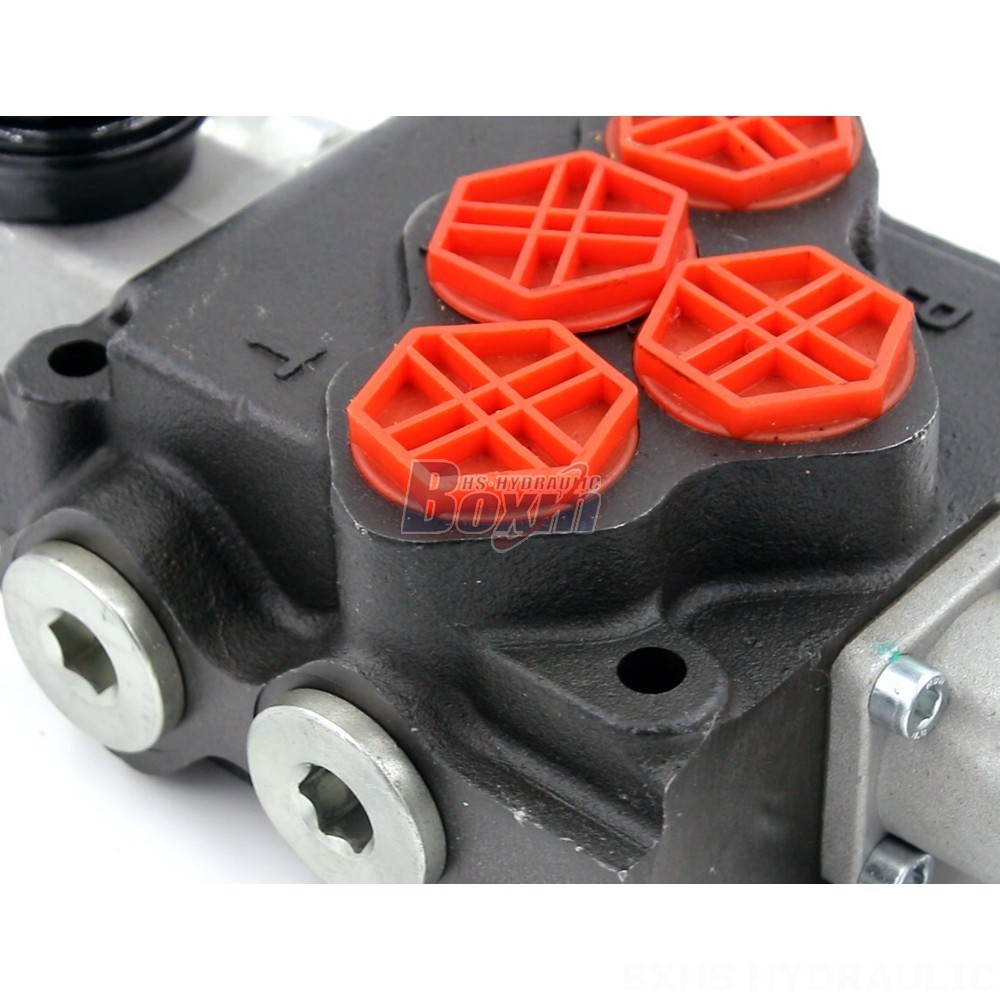

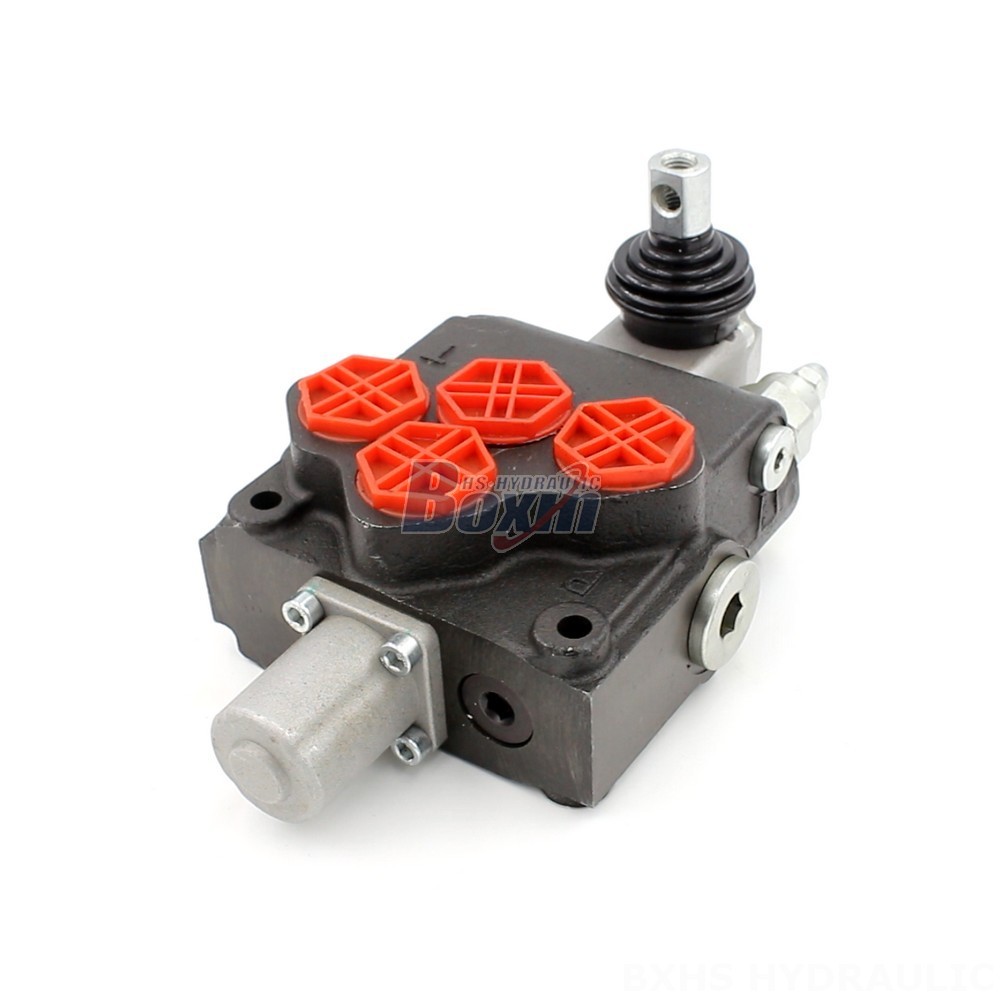

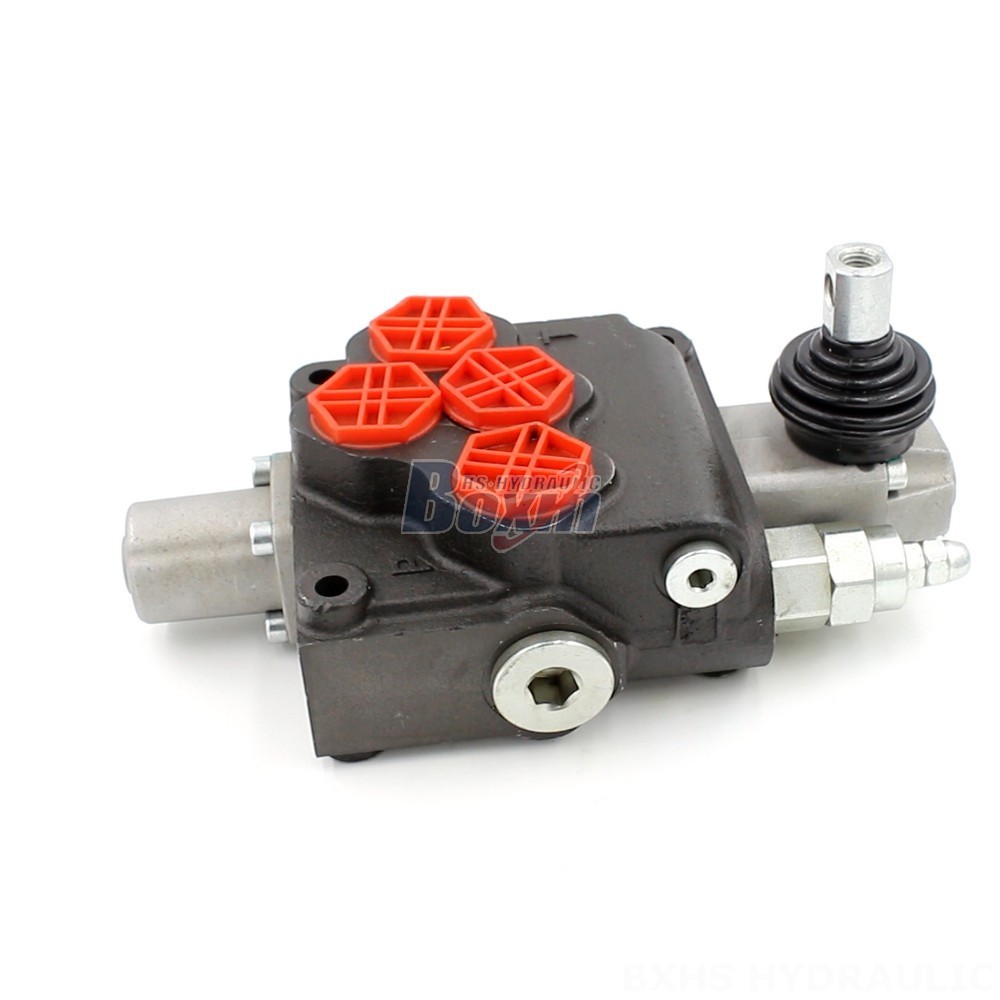

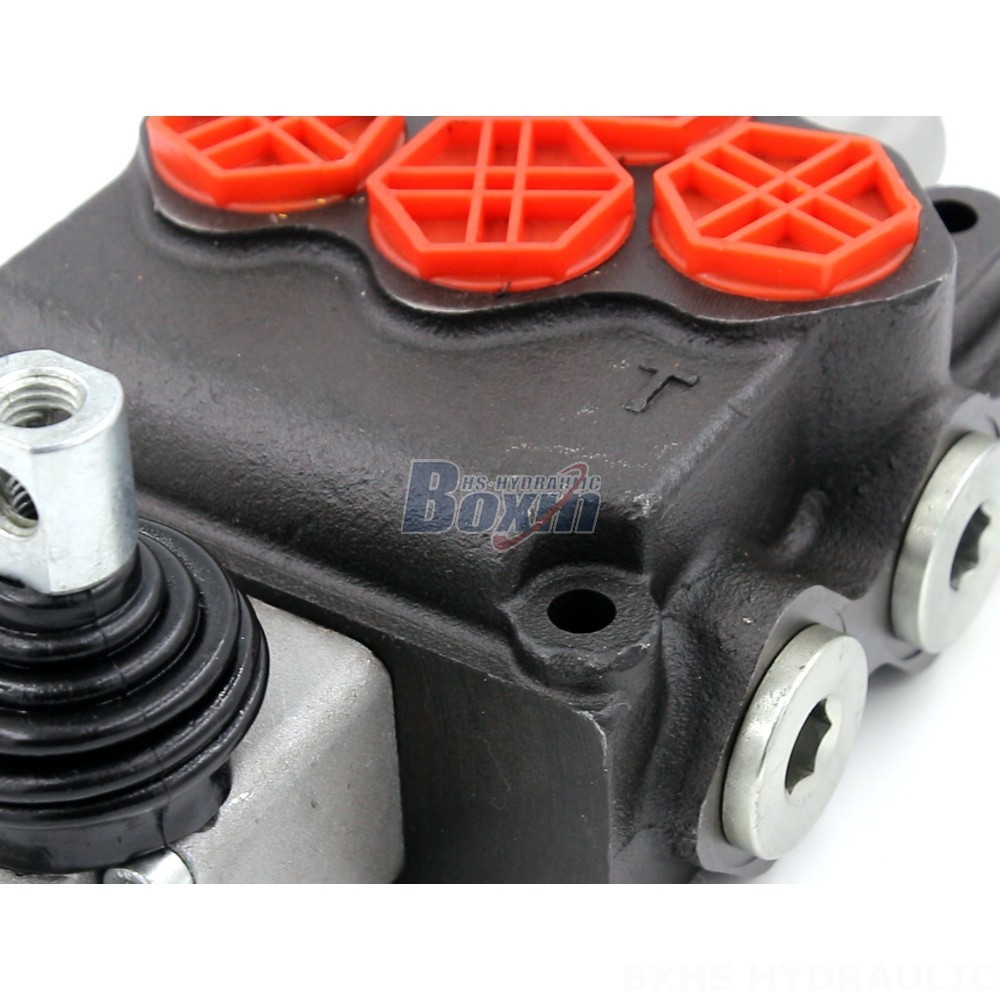

The P120-G1 Monoblock Valve is a customizable 3 position 4 way hydraulic control valve designed for a variety of applications, including material handling, construction, and agriculture. This valve is rated for a flow rate of 120 L/min and a maximum pressure of 250 bar.
| Série P120 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 120 L/min (31.7 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Orifice de sortie | G1, SAE 16, 1 NPT, M36×2 |
| Dimension du raccord | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
The P120-G1 is a robust and reliable hydraulic control valve, featuring a monoblock design and a 120 L/min flow rate. It operates at a maximum pressure of 250 bar and is suitable for use in a wide range of temperatures, from -40°C to +80°C. This valve is ideal for applications in material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. The P120-G1 is customizable to meet specific application needs, making it a versatile and valuable component for your hydraulic system.
