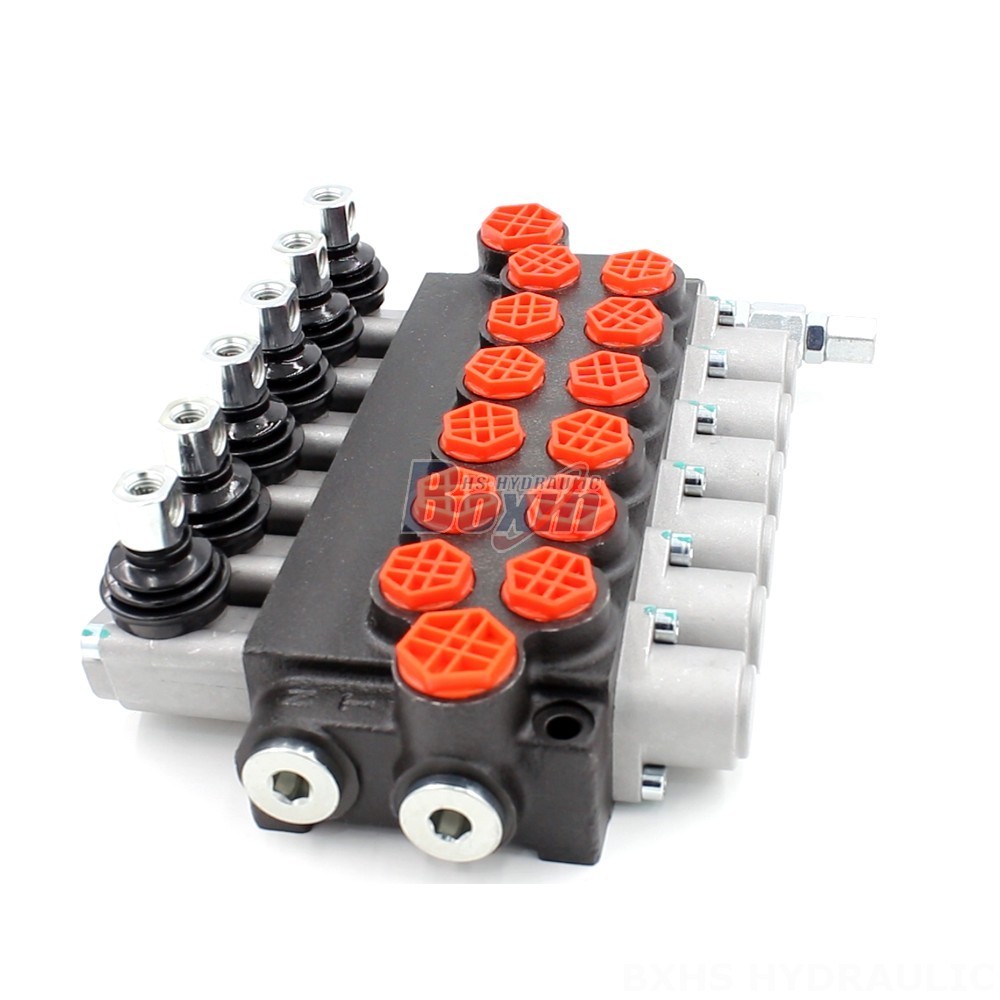

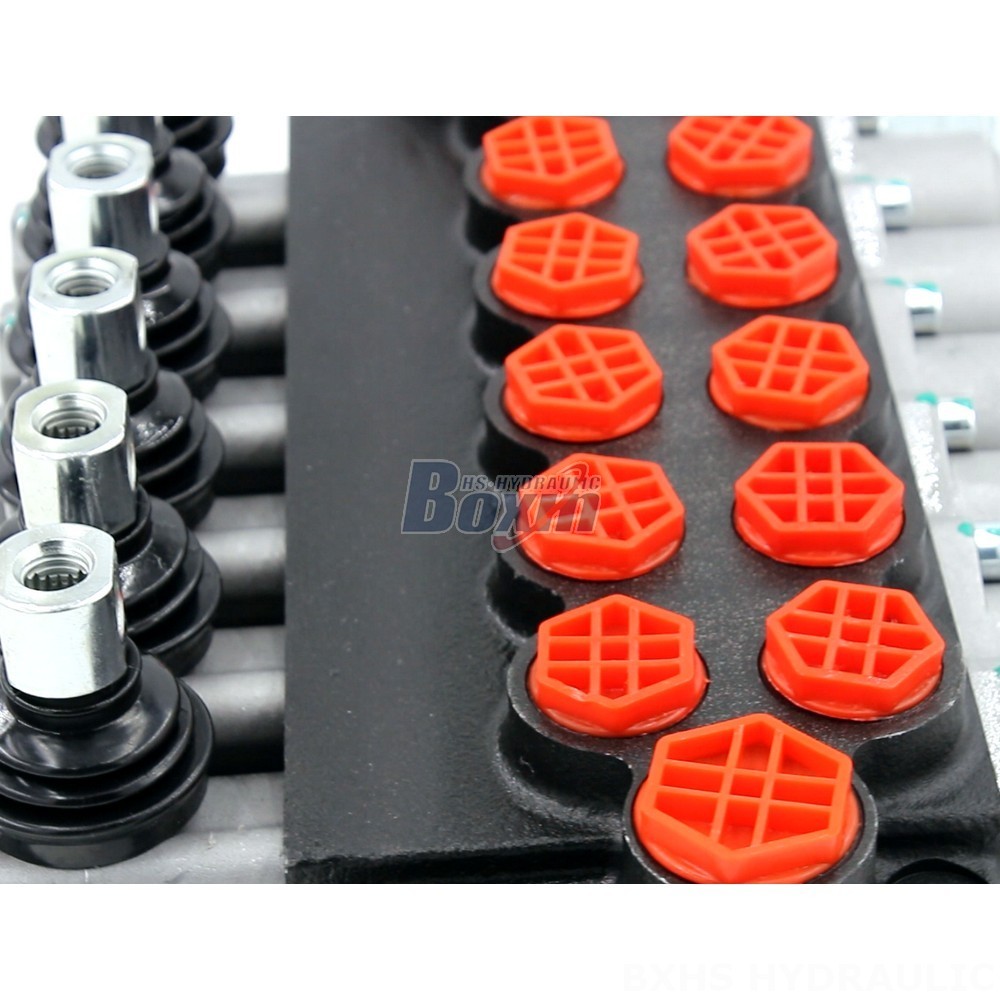

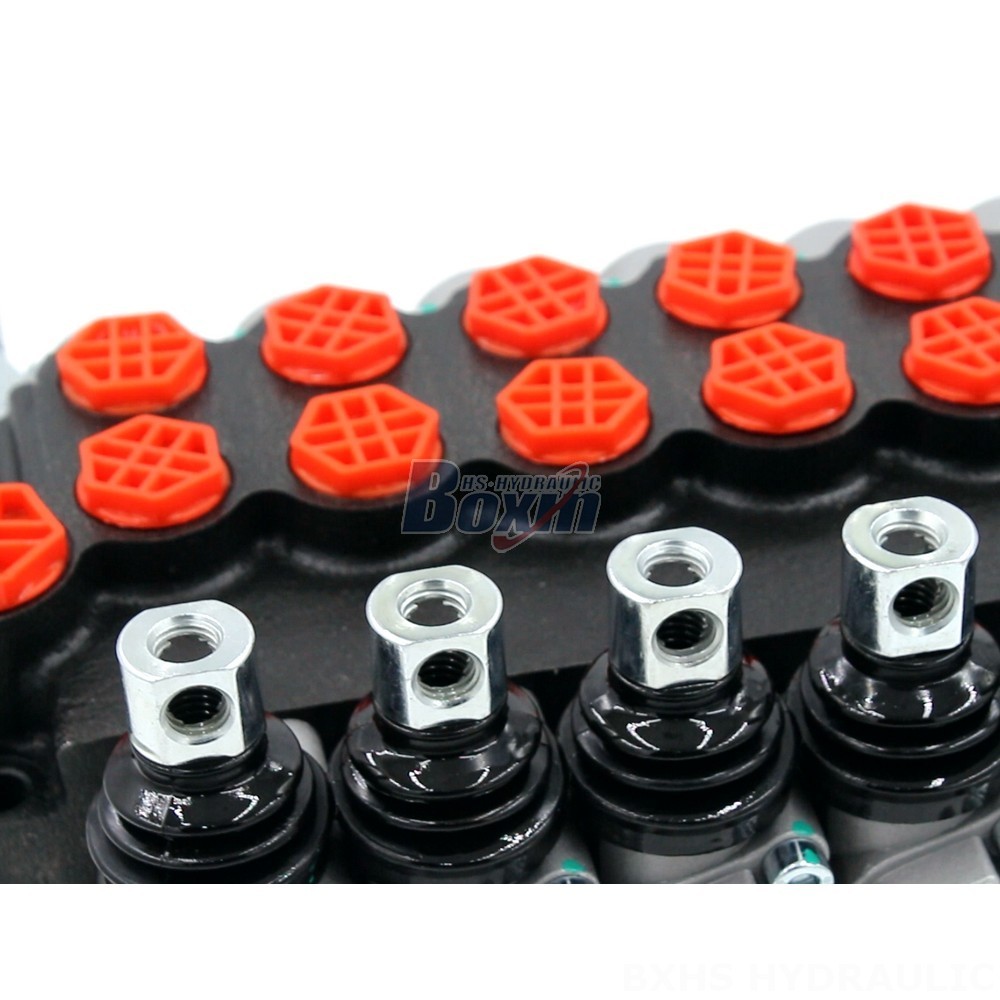

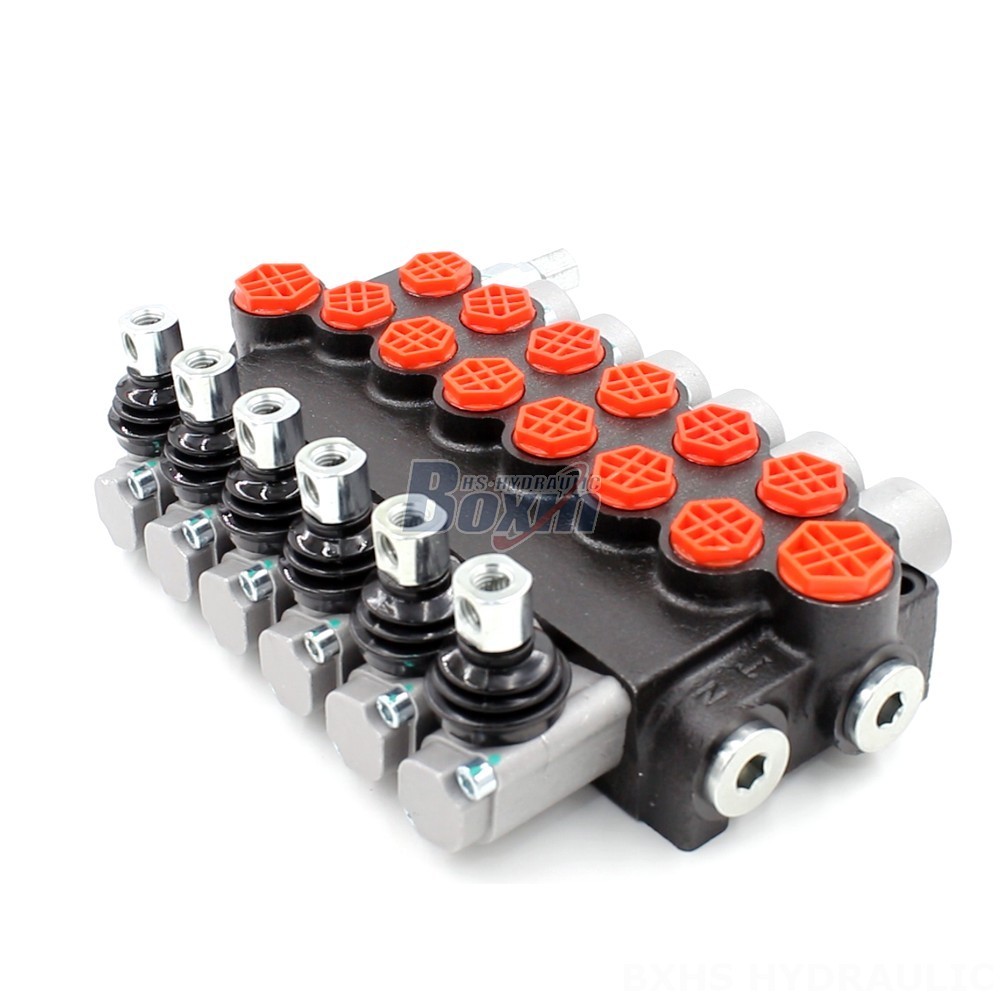

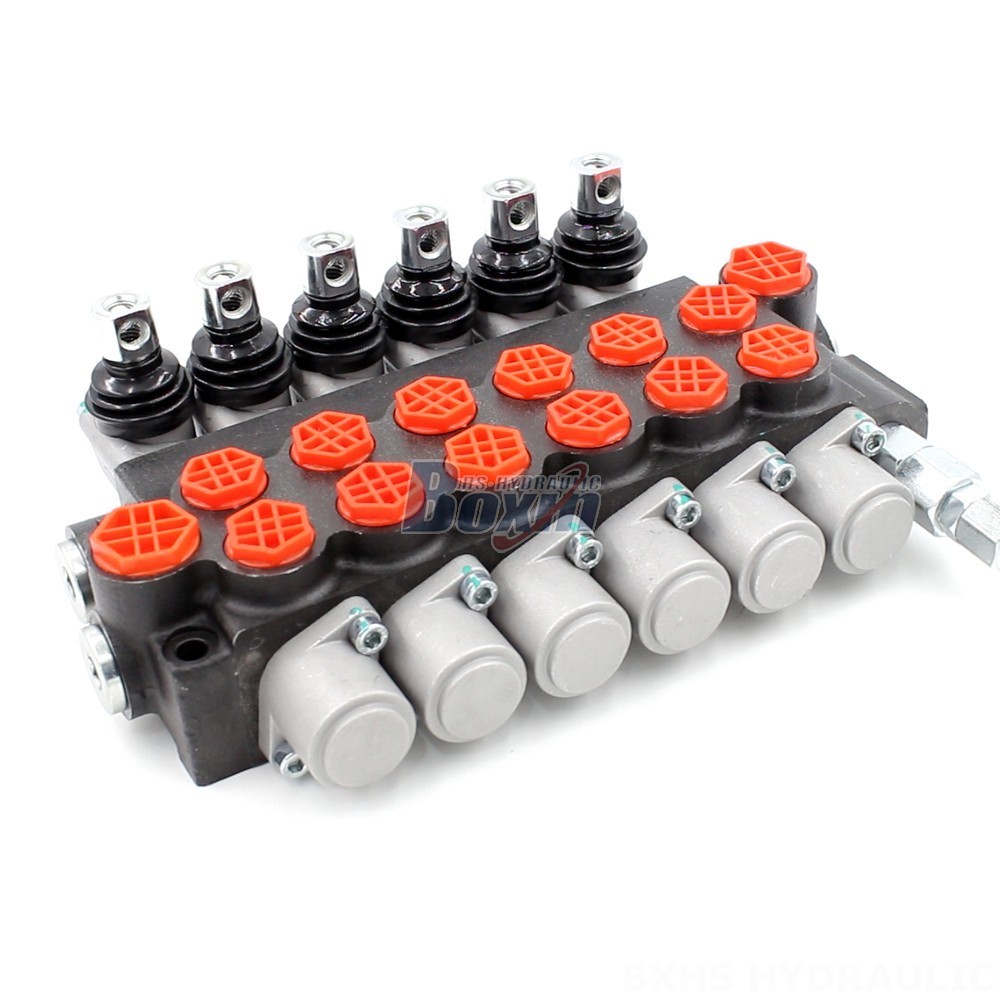

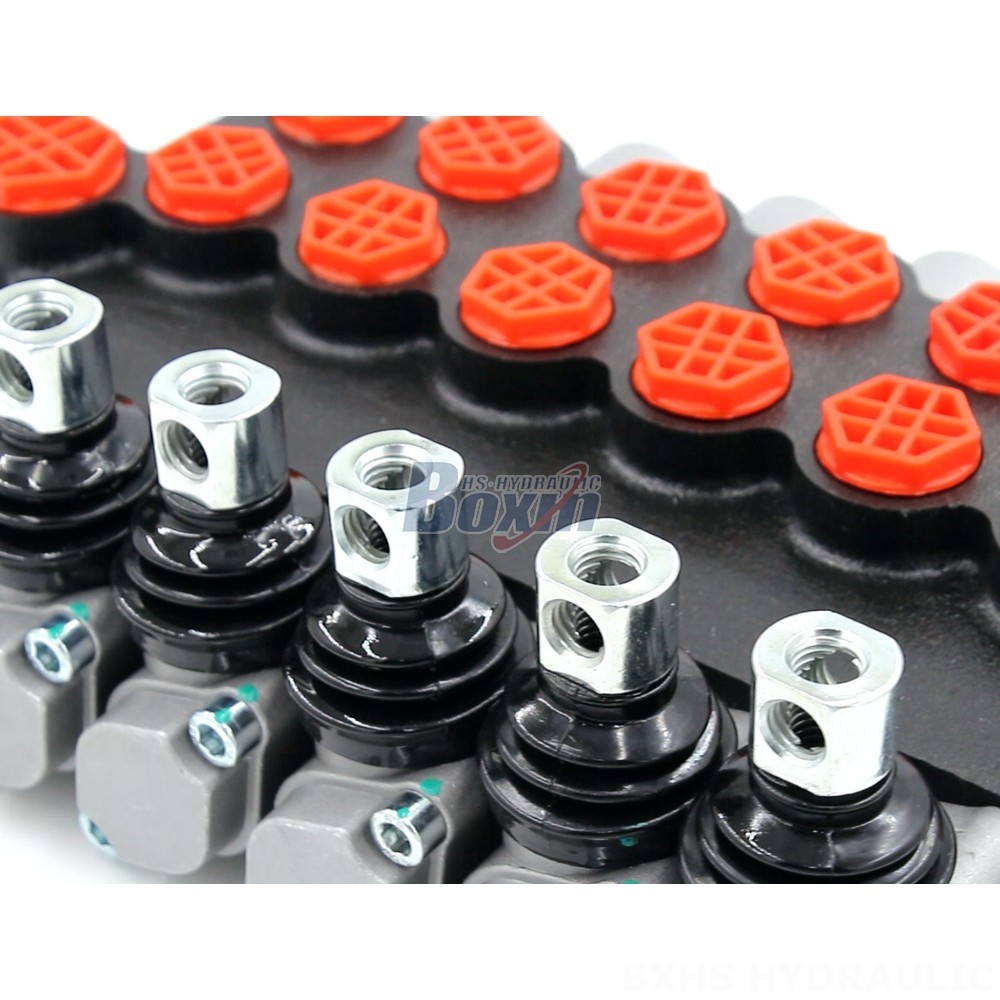

This product is a custom hydraulic valve solution: the P40-G12-G38 Directional Valve Modifications. This valve is manually controlled and has 6 sections. It is a monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi).
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Custom Hydraulic Valve Solutions: P40-G12-G38 Directional Valve Modifications**
This custom hydraulic valve solution offers the following features and benefits:
* Manual control
* 6 sections
* Monoblock valve
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 6 spool
* P40 Series
* Applications in material handling, construction and earth moving, agriculture, and industrial vehicles
* Applicable models include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders
This valve is ideal for various hydraulic applications that require precise and reliable flow control. Its compact design and rugged construction ensure durability and long-lasting performance.
