Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1035 personnes consultent ce produit

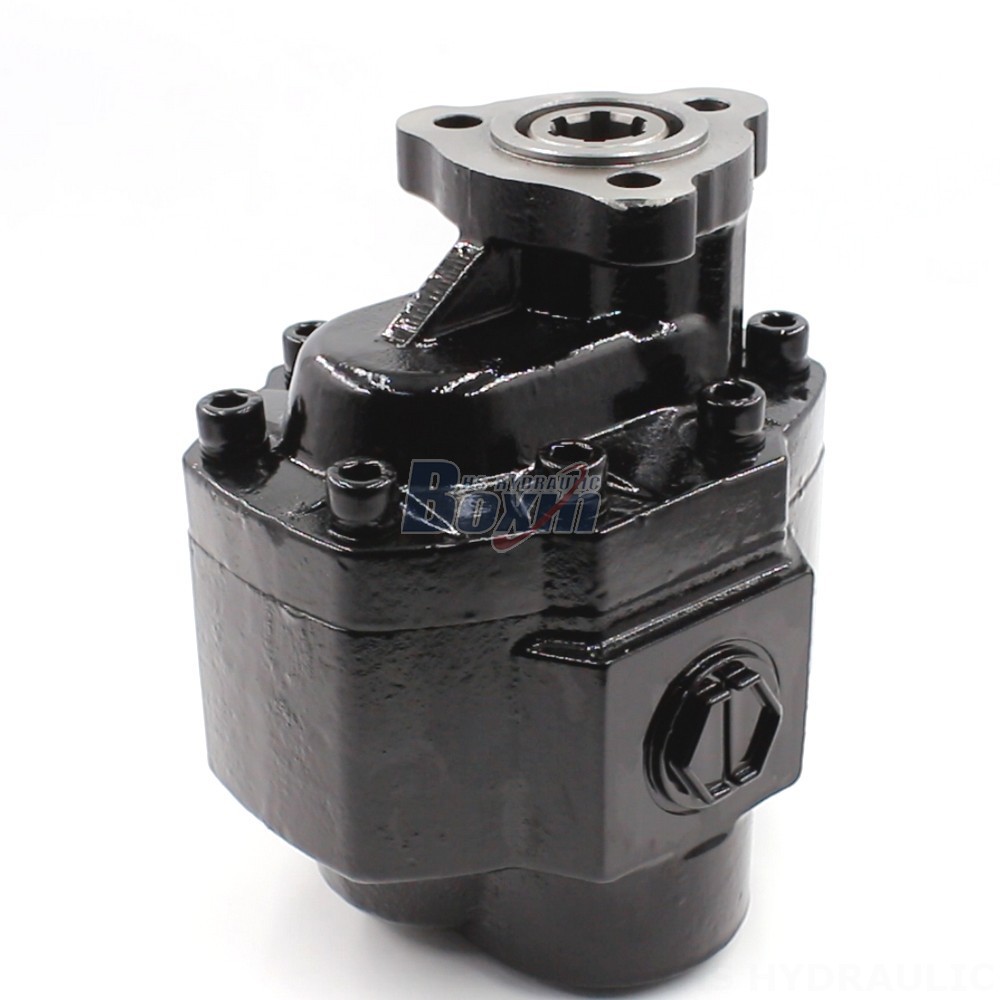

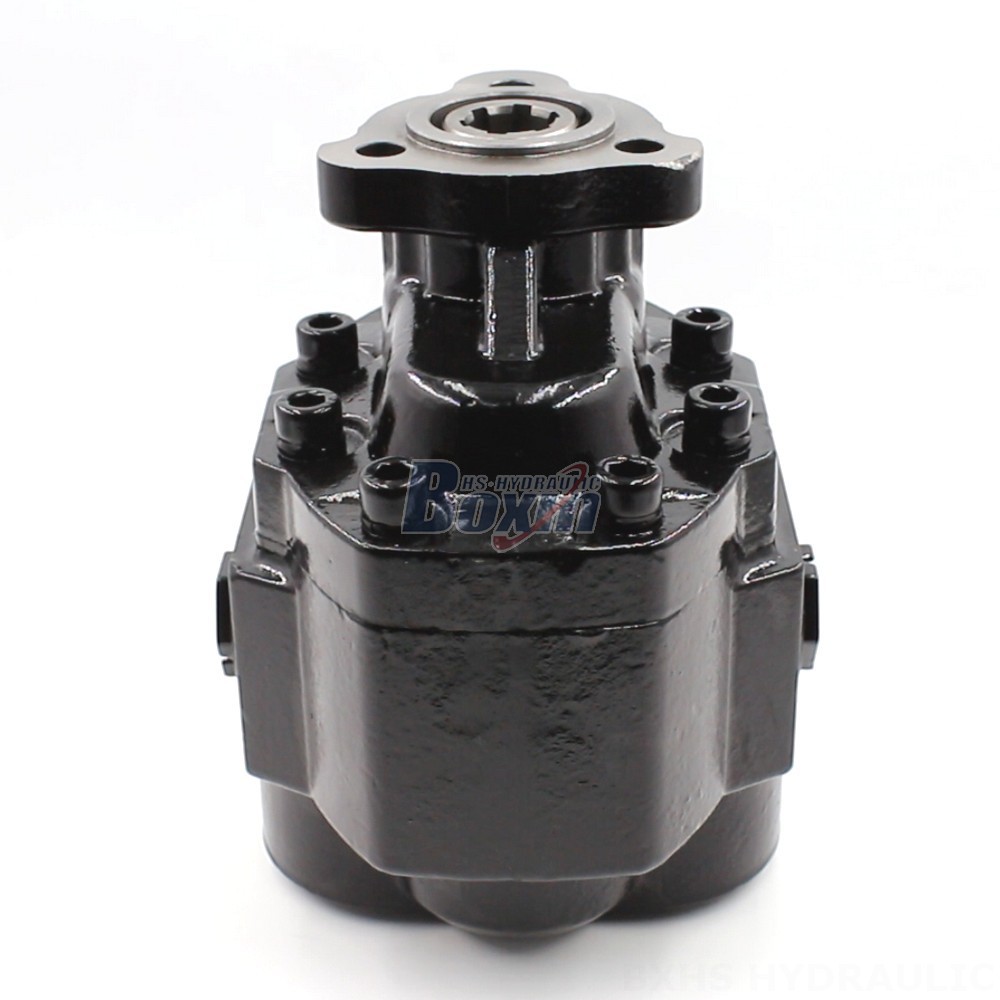

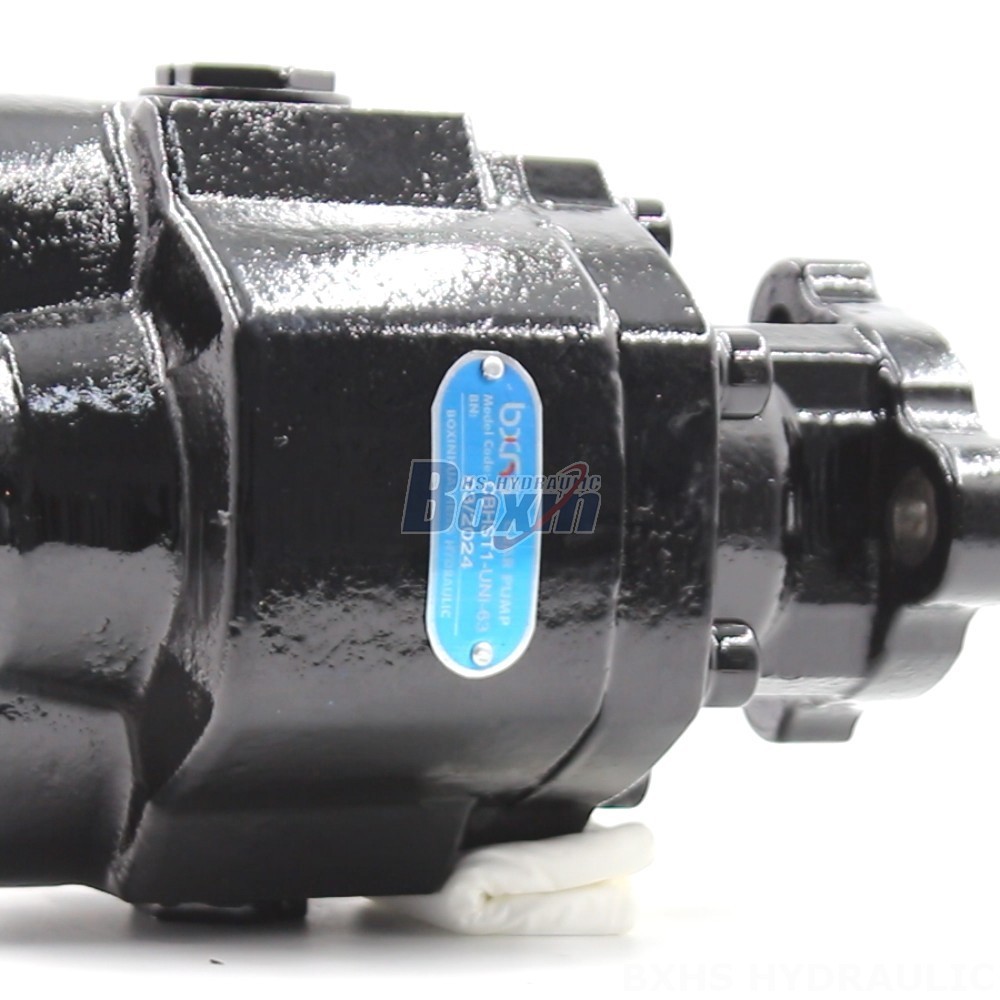

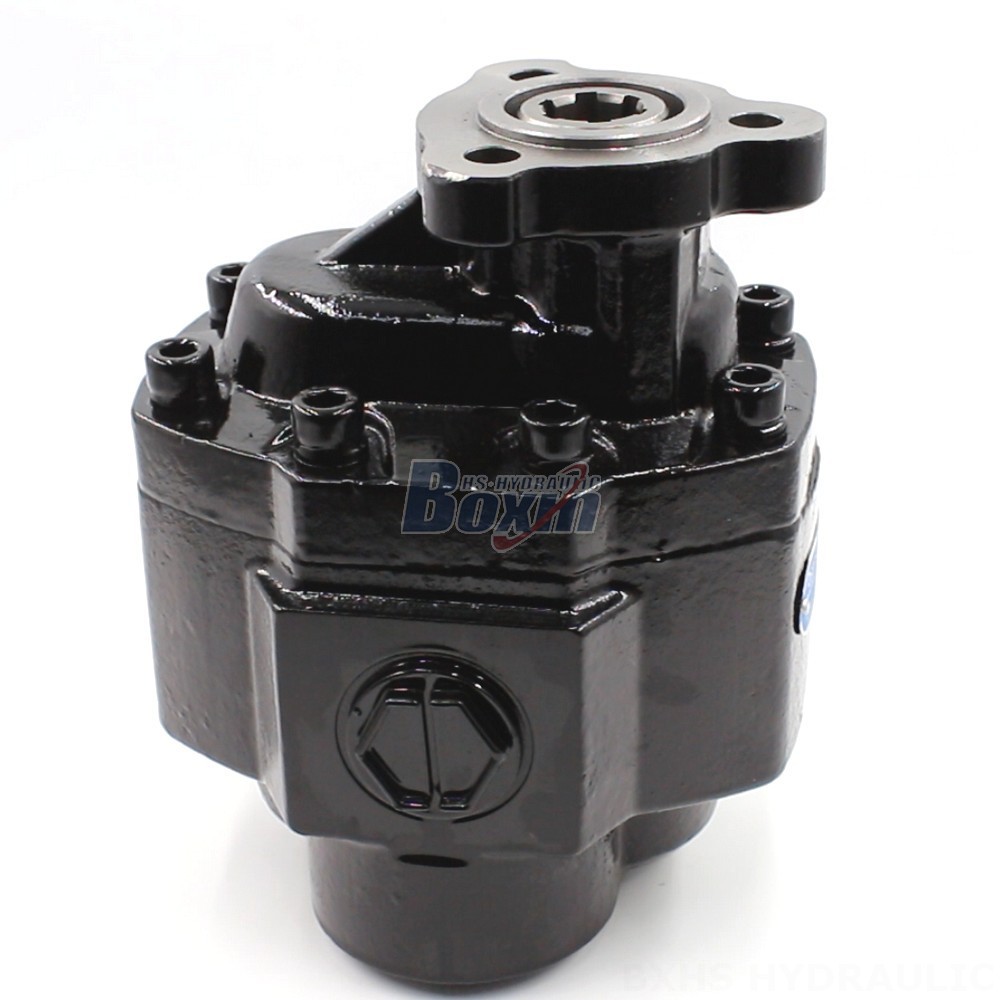

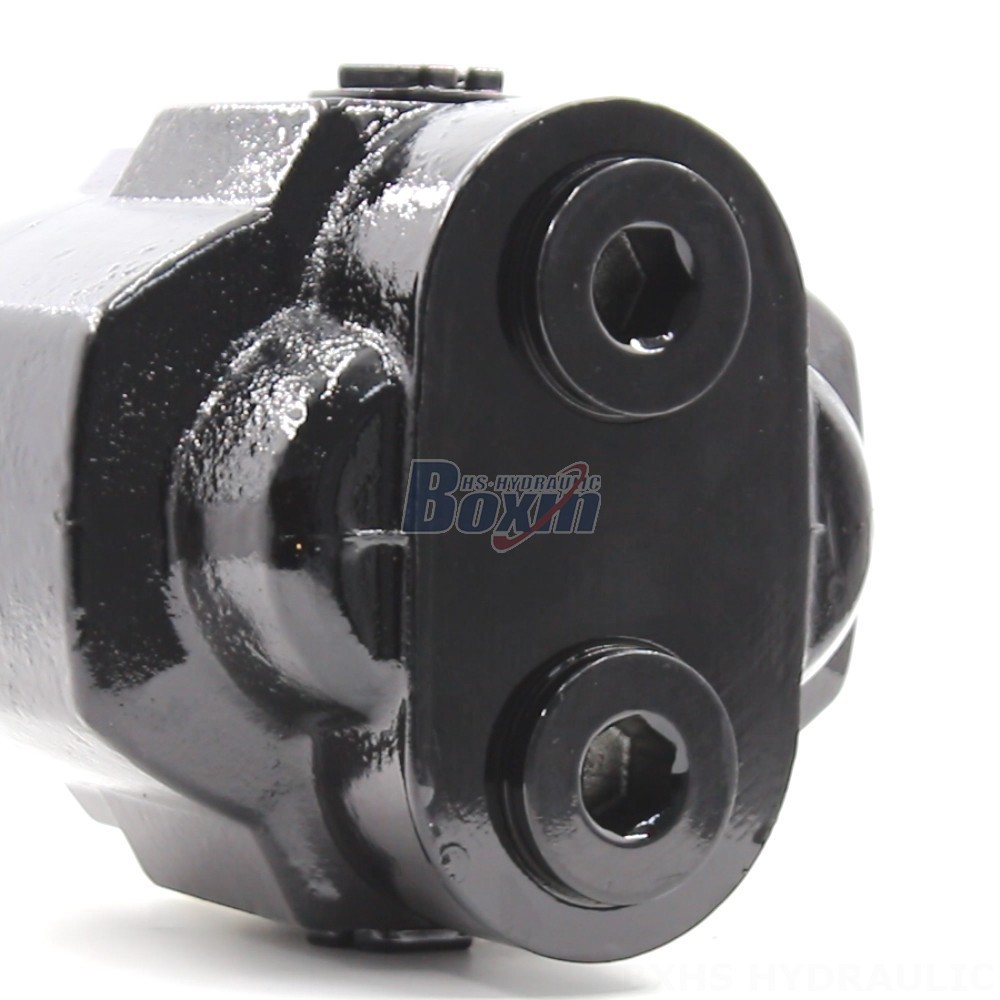

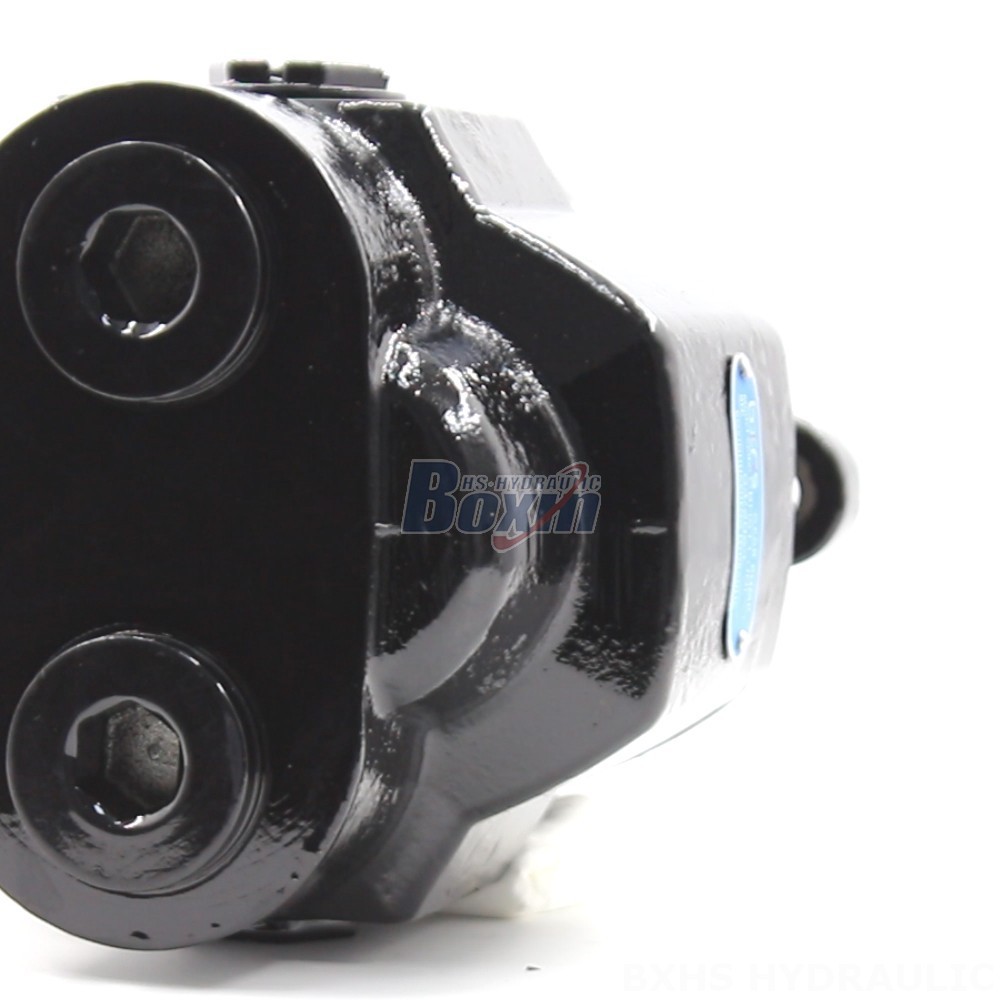

High-quality CBHST1-UNI-63 Hydraulic Gear Pump for global markets. Factory direct supply and support for distributors, wholesalers, agents, and traders. Customize and OEM services available.
| Série CBHST1-UNI Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 32 cc/tr, 40 cc/tr, 50 cc/tr, 63 cc/tr, 80 cc/tr, 100 cc/tr, 34 cc/tr, 43 cc/tr |
| Pression nominale | 23 MPa (3335 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 2 500 tr/min |
| Rotation | /: (Bidirectionnel) |
| Structure | Pompe à engrenages externes |
| Matériau | Fonte |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales |
| Version de la bride | Trous de montage UNI-3 |
CBHST1-UNI-63 Hydraulic Gear Pump with customizable displacement (32 cc/rev to 100 cc/rev), rated pressure (23 MPa), and max speed (2000 r/min to 2500 r/min). Bidirectional rotation, swashplate structure, cast iron material, UNI-3 mounting holes, and options for rectangle spline and involute spline shaft types. Ideal for applications in material handling, construction, agriculture, and industrial vehicles. Trusted by manufacturers of telehandlers, forklifts, and other heavy machinery.
