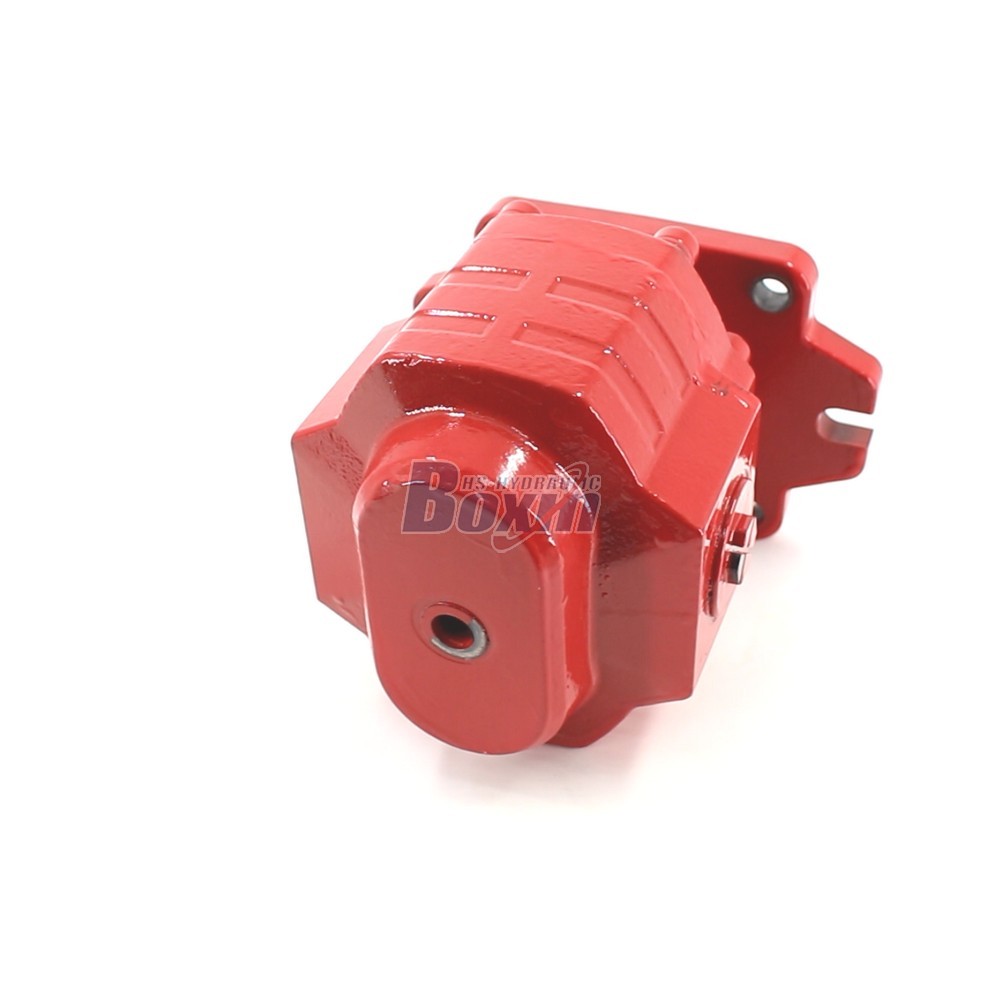

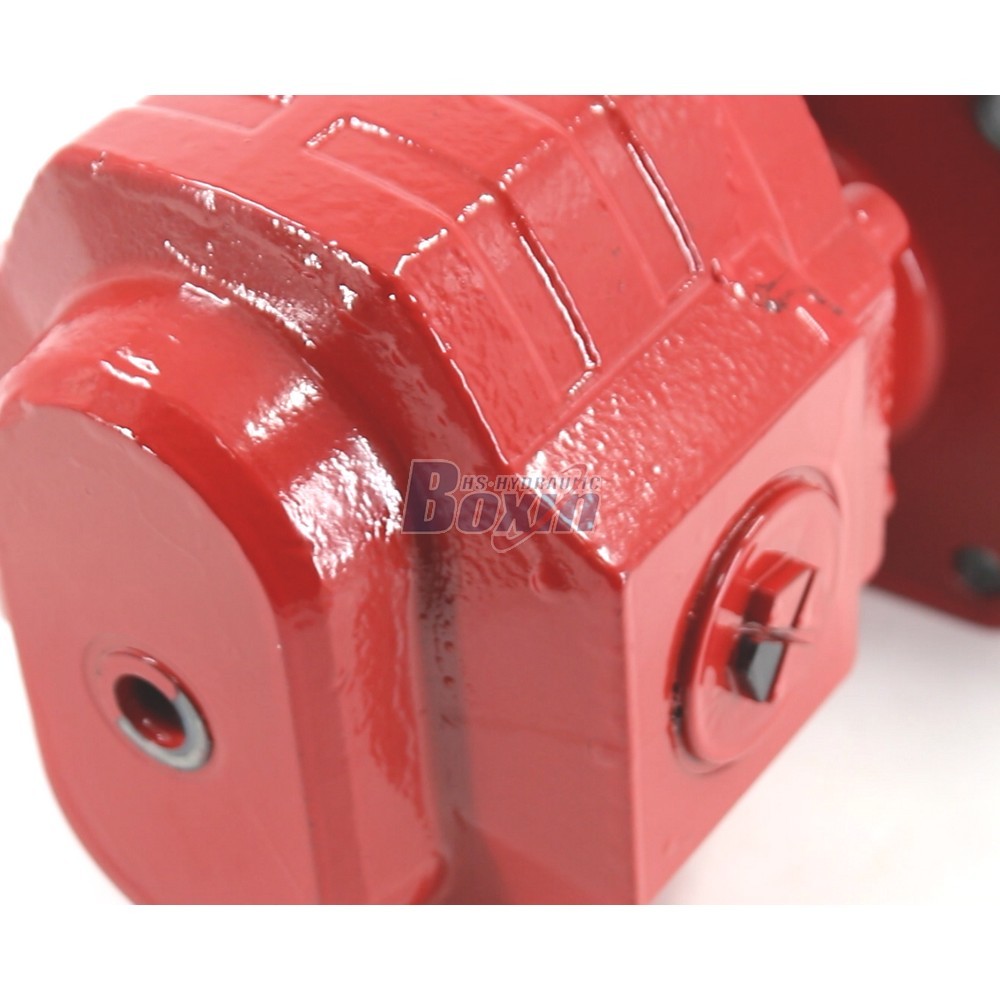

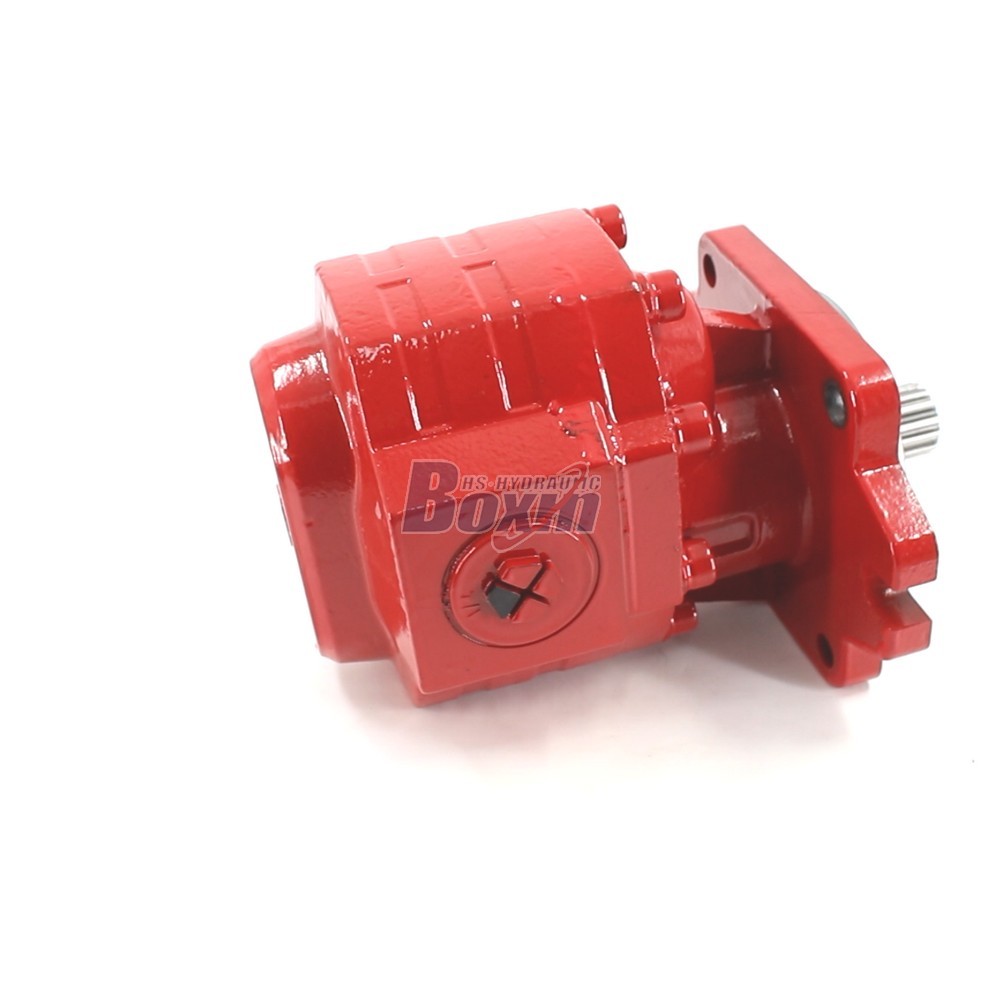

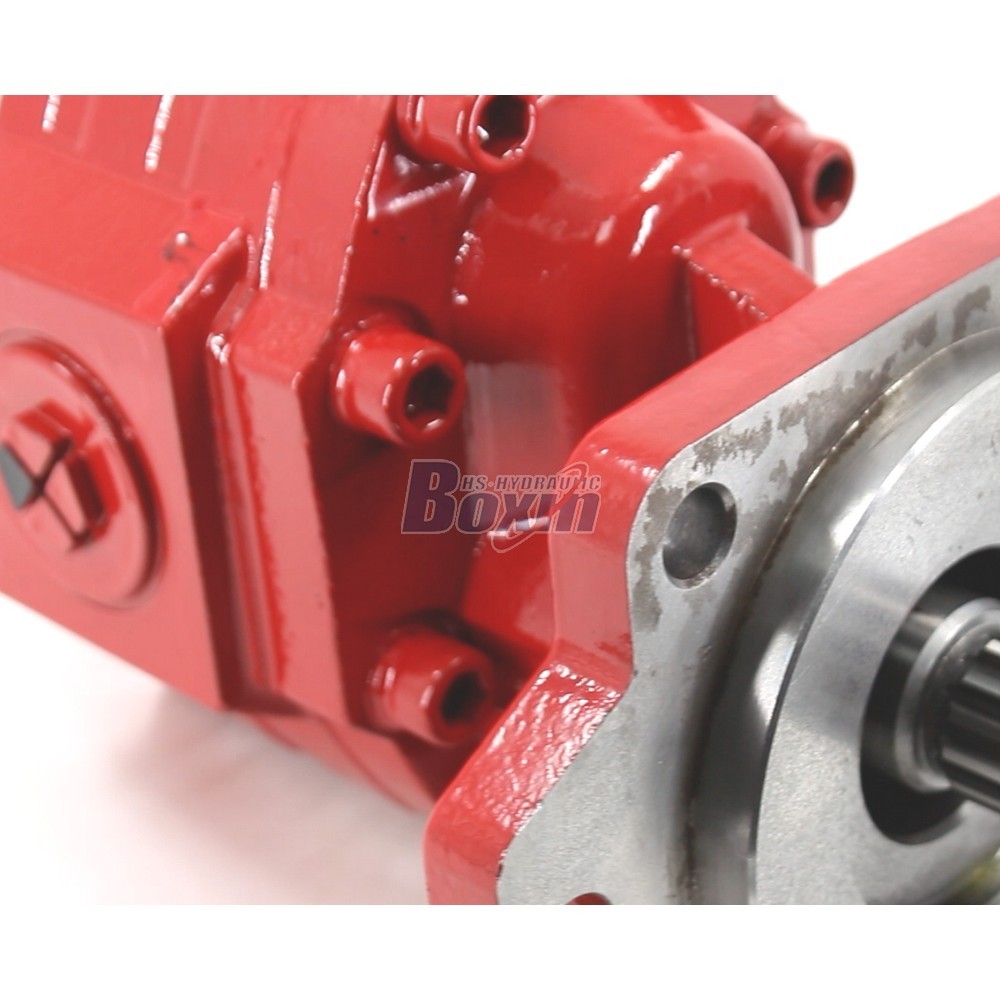

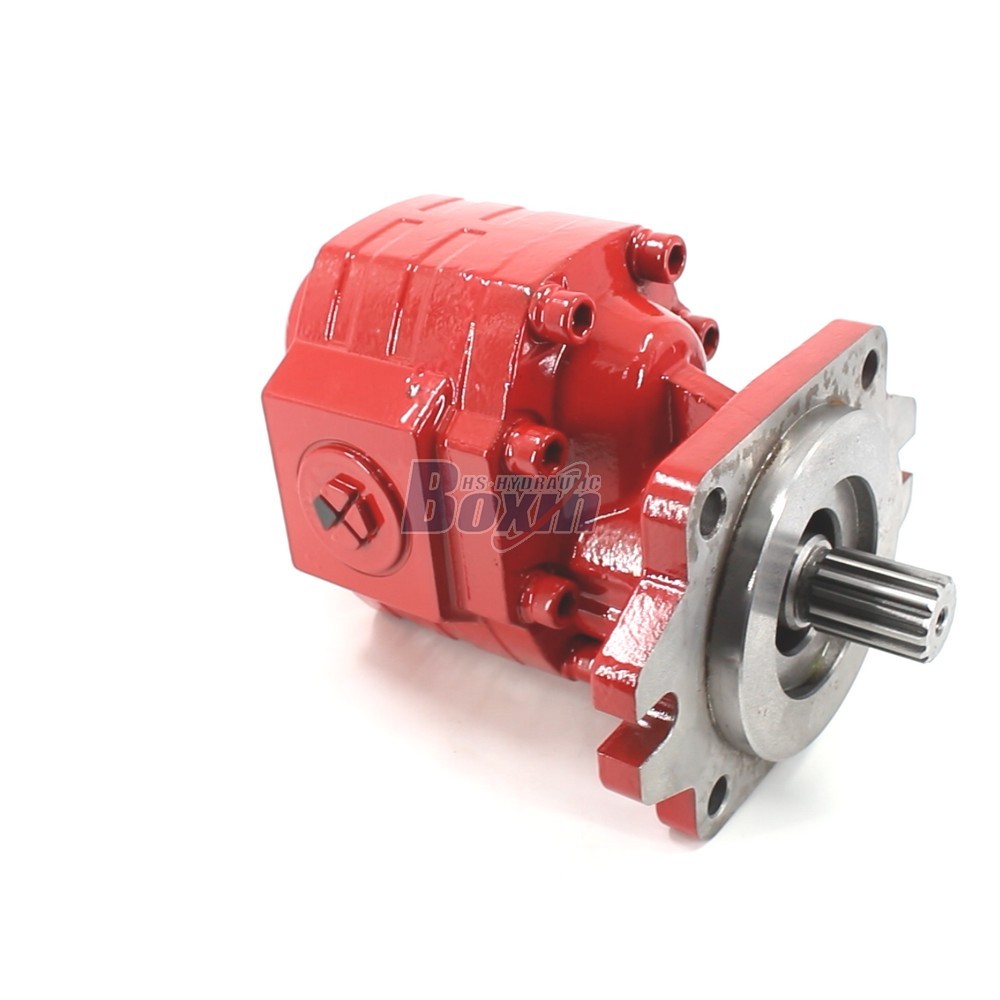

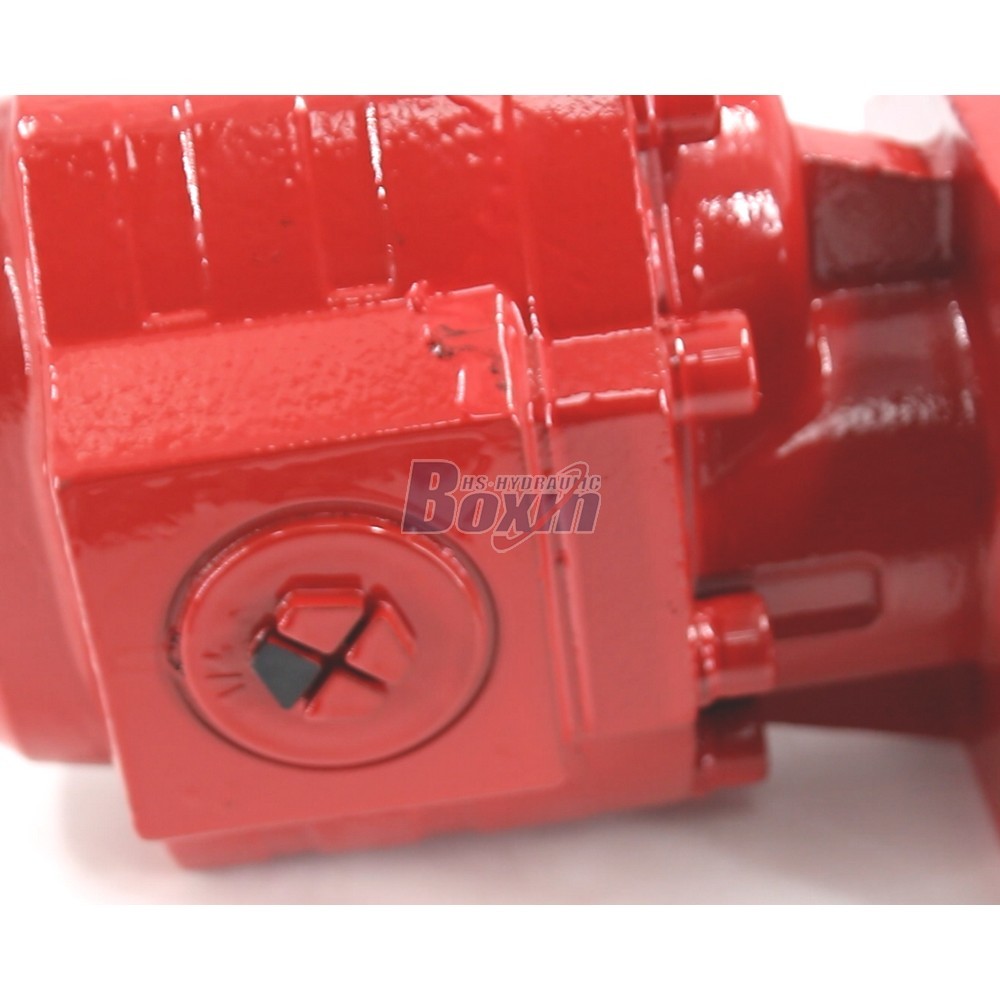

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

Cylindrée:100 cc/tr

Pression nominale:20 MPa (2900 psi)

Pression maximale:25 MPa (3625 psi)

Vitesse maximale:2 500 tr/min

Rotation:R : Droite (horaire)

Marque:BXHS

Type de produit:Pompe hydraulique à engrenages

Série de produits:Série CBHS-T3 Pompe hydraulique à engrenages

Taille de l'emballage:31*23*25

Poids brut:17.60 kg

Disponibilité: En stock

164 personnes consultent ce produit

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification

CBHS3100 100 cc/rev Hydraulic Gear Pump Unit Specification drawing image

The CBHS3100 hydraulic gear pump is a high-performance, 100 cc/rev unit engineered for demanding applications in construction, agriculture, and material handling, offering reliable power density and robust pressure ratings for diverse machinery.

Série CBHS-T3 Pompe hydraulique à engrenages Paramètres
Cylindrée 100 cc/tr
Pression nominale 20 MPa (2900 psi)
Pression maximale 25 MPa (3625 psi)
Vitesse nominale 2 000 tr/min
Vitesse maximale 3 000 tr/min
Rotation L : Gauche (antihoraire), R : Droite (horaire)
Structure Pompe à engrenages externes
Matériau Fonte
Version de la bride B - Bride carrée
Type d'arbre H : Cannelures droites, X : Cannelures hélicoïdales

As a prominent hydraulic component manufacturer, we specialize in the production of the CBHS3100 hydraulic gear pump, featuring a 100 cc/rev displacement and a maximum pressure capacity of 25 MPa. This unit is designed for durability in heavy-duty machinery including forklifts, wheel loaders, tractors, and excavators. We provide comprehensive manufacturing services, including OEM, ODM, and private labeling, tailored to meet specific project requirements. Our facility is equipped to handle large-scale production, offering competitive factory-direct wholesale pricing to support your business. We are actively seeking long-term partnerships with global distributors, wholesalers, procurement agents, and international traders. By choosing our factory-direct supply, you gain access to high-quality hydraulic solutions, flexible customization options, and reliable technical support. Contact us to discuss bulk orders or custom design requirements for your hydraulic systems.
