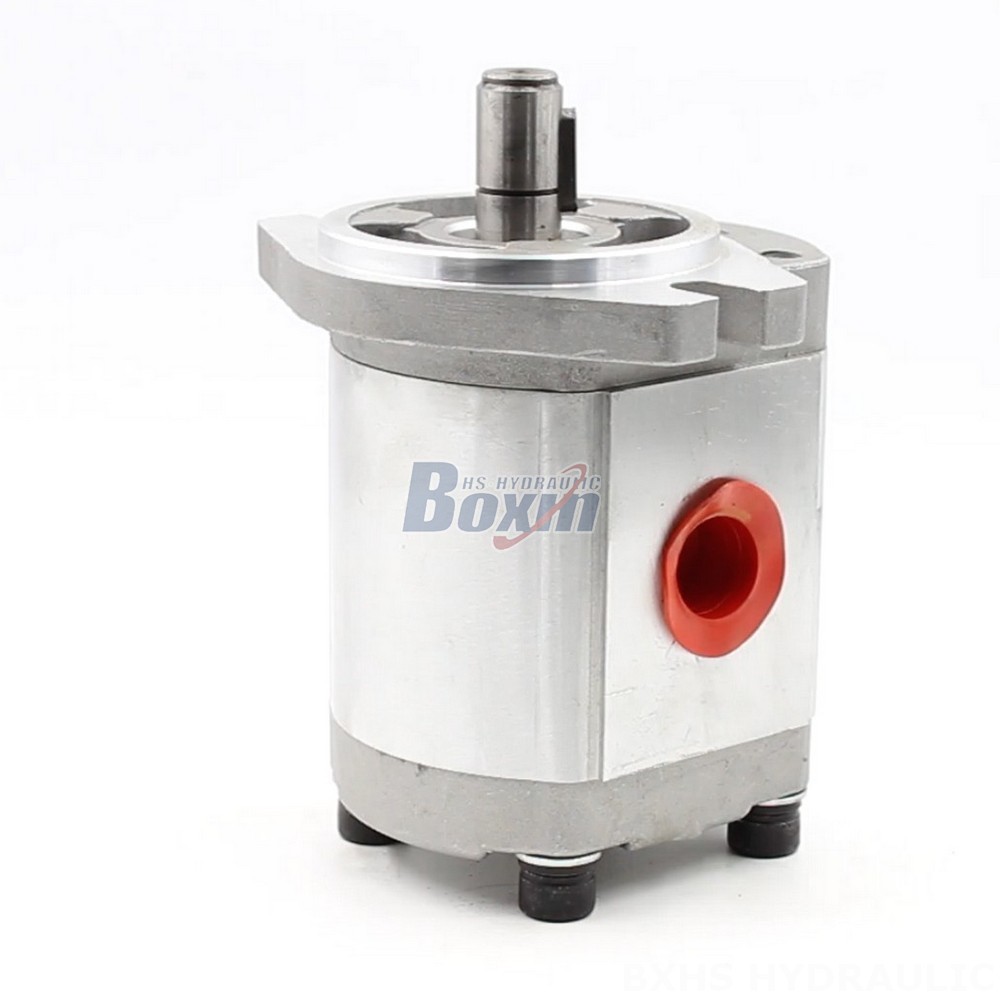

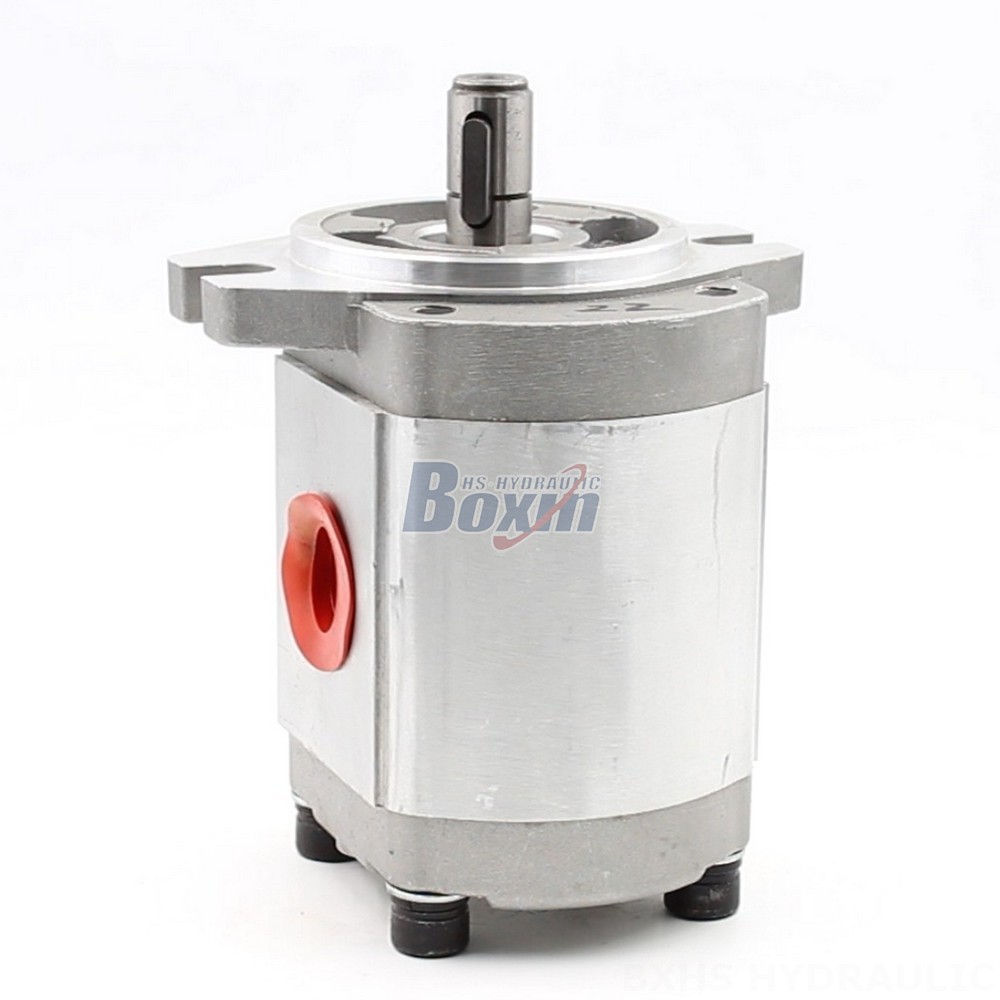

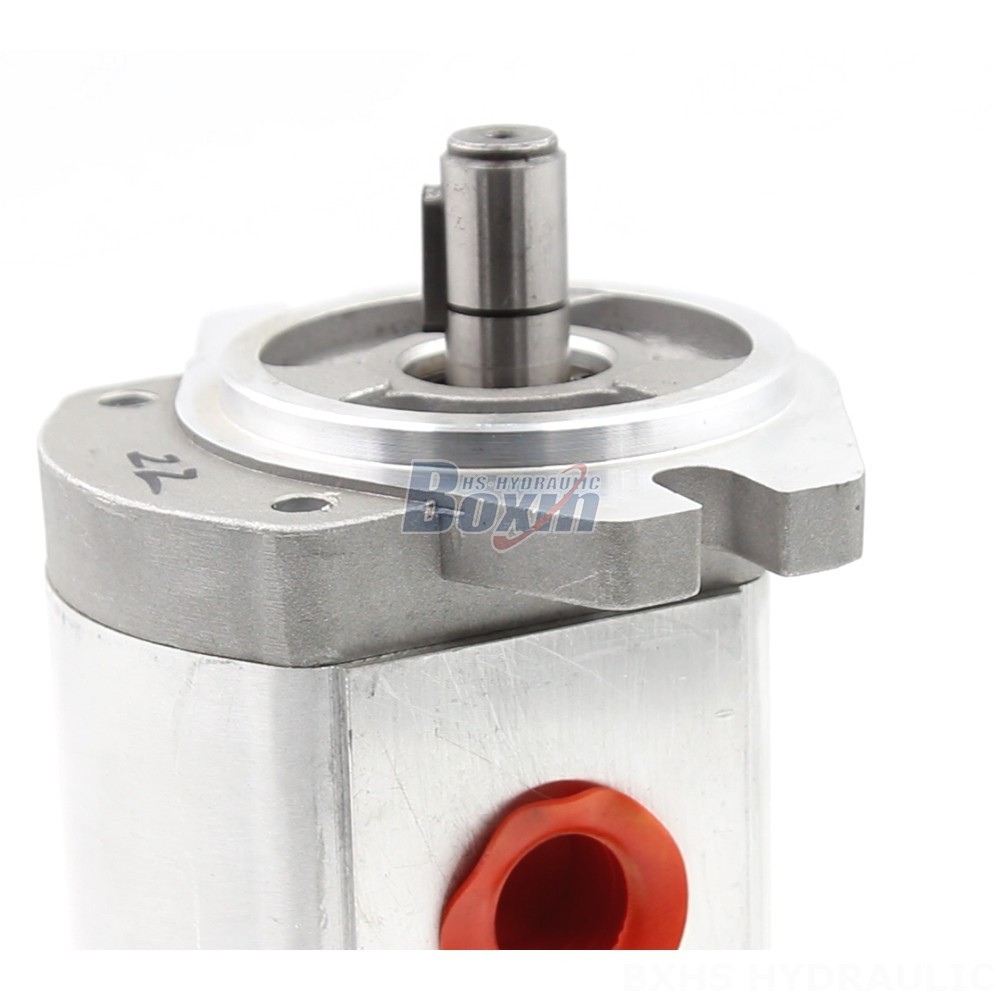

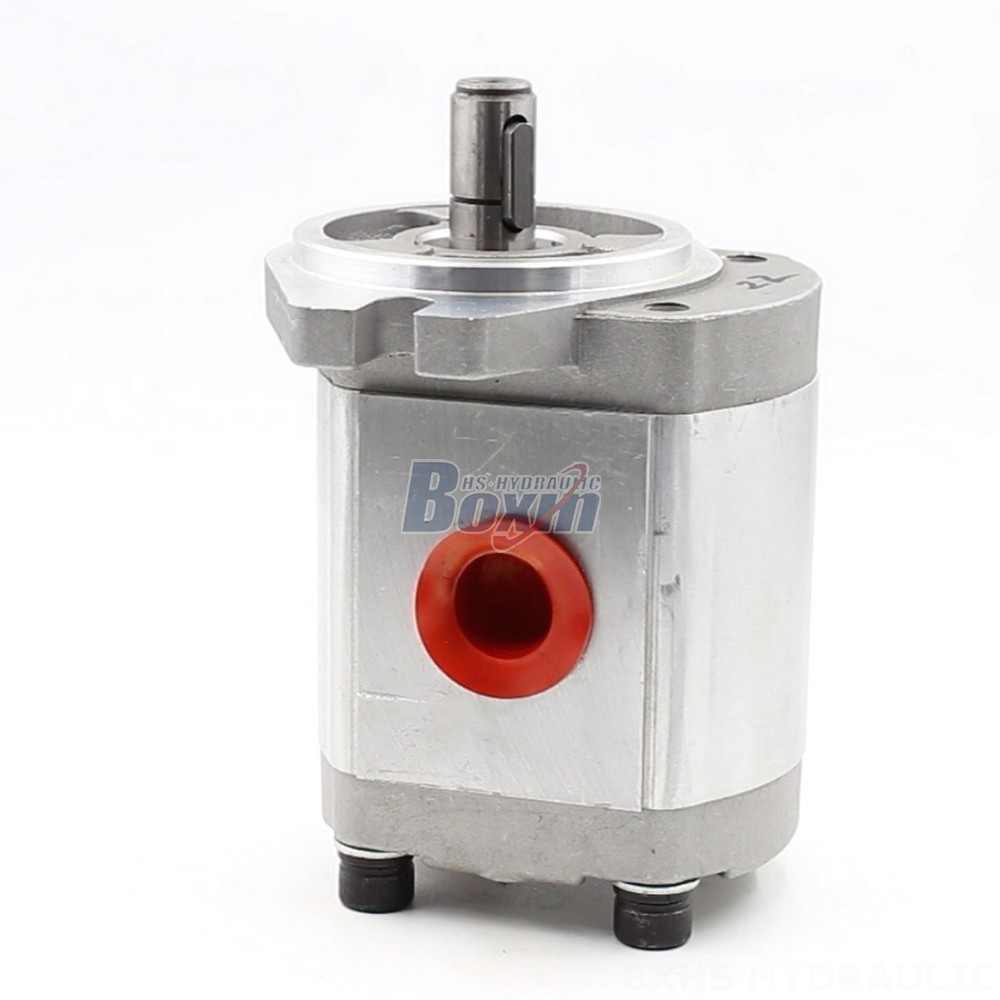

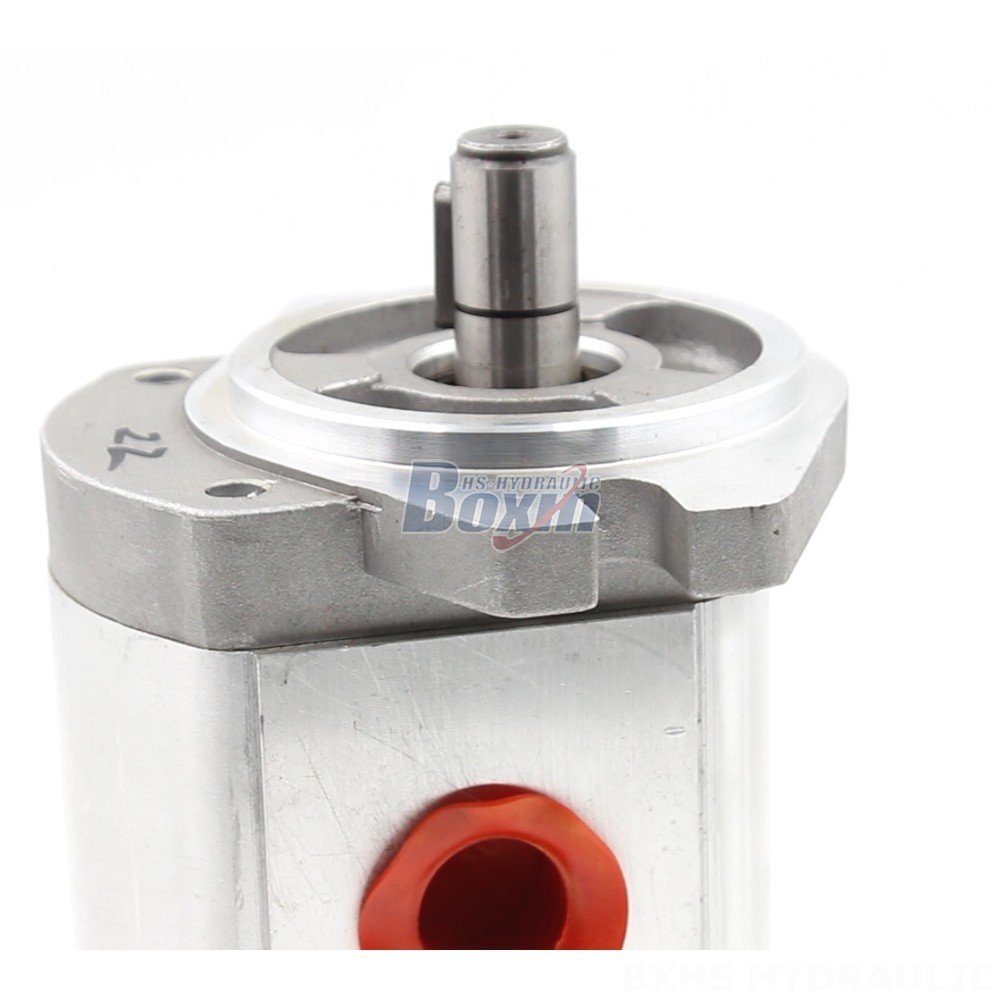

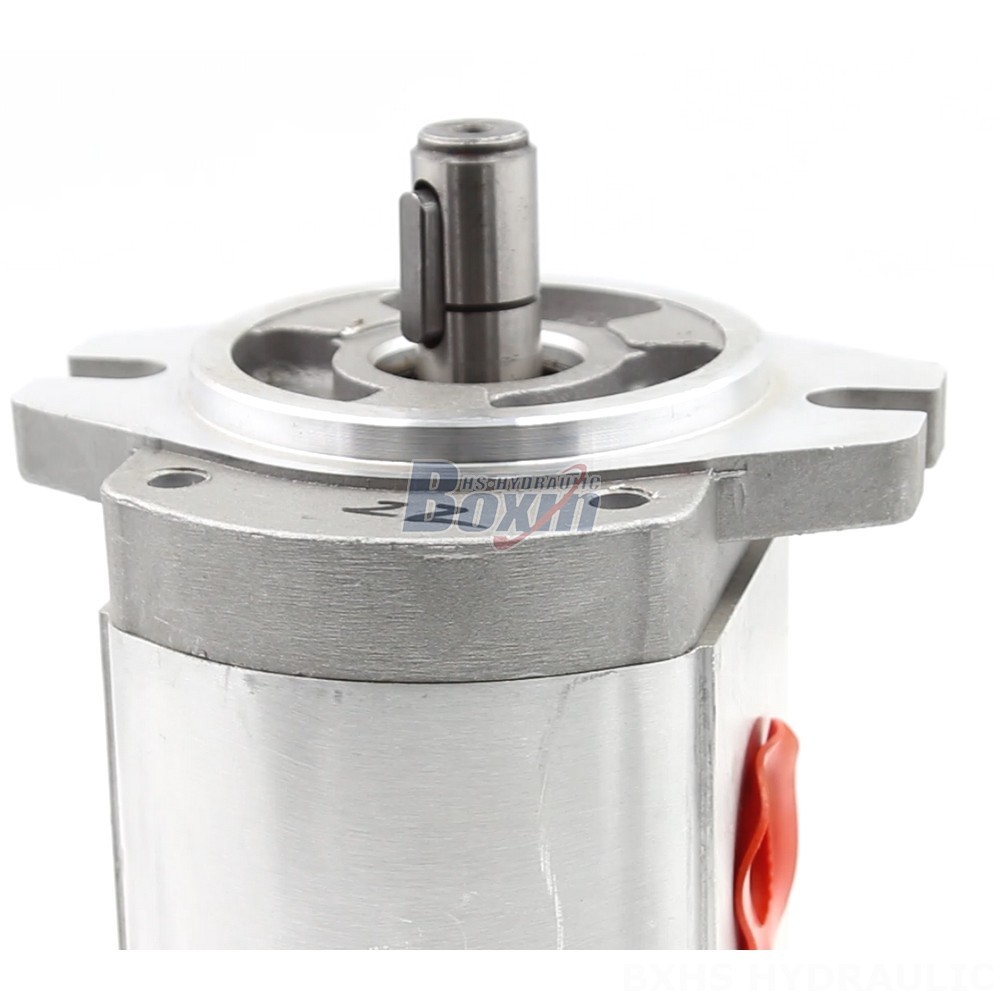

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance pump designed for a variety of applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump is built to handle demanding tasks with ease.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
The CBHS-FL304 is an internal gear pump made of aluminium with an A-Oval flange and a plain key shaft. It is part of the CBHS-FL3 Series and is designed for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump has a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The maximum speed is 3000 r/min. The pump is available in left (counter-clockwise) and right (clockwise) rotation configurations. This pump is manufactured and supplied globally, and we are looking for distributors, wholesalers, agents, and traders to join our network.
