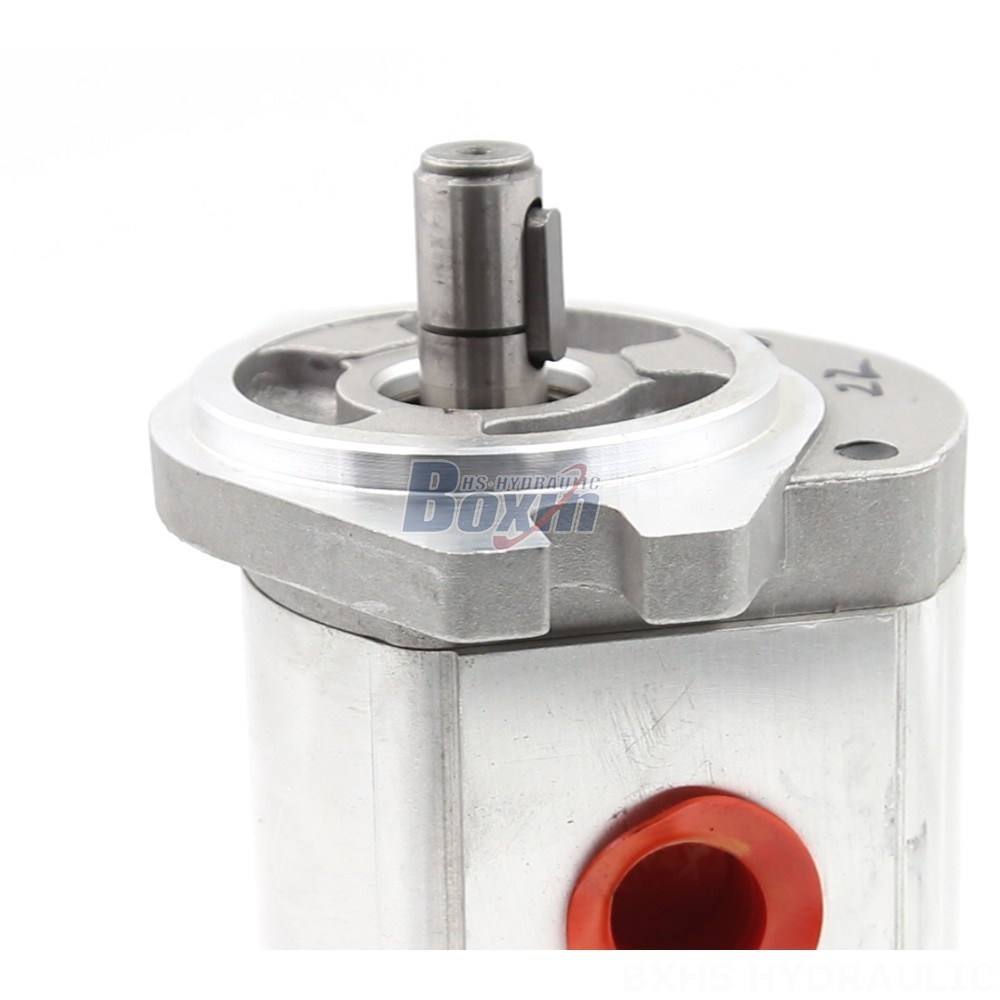

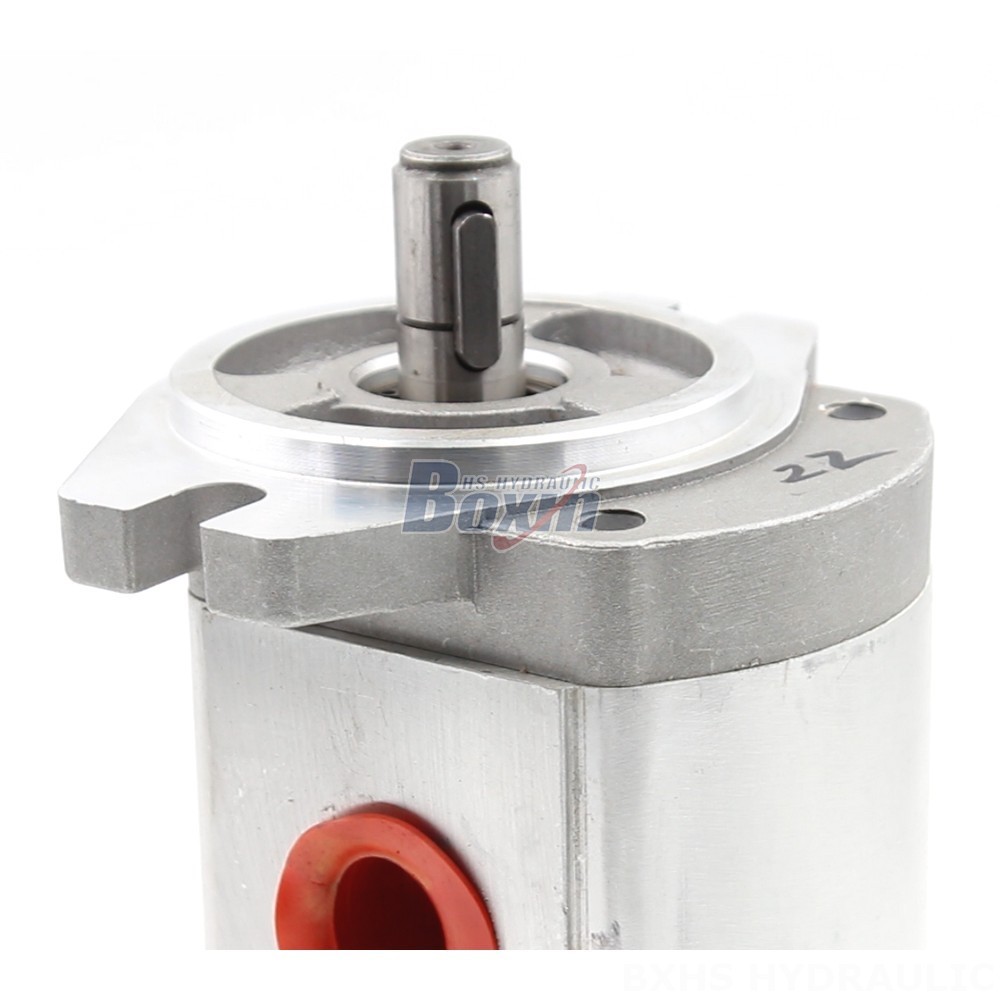

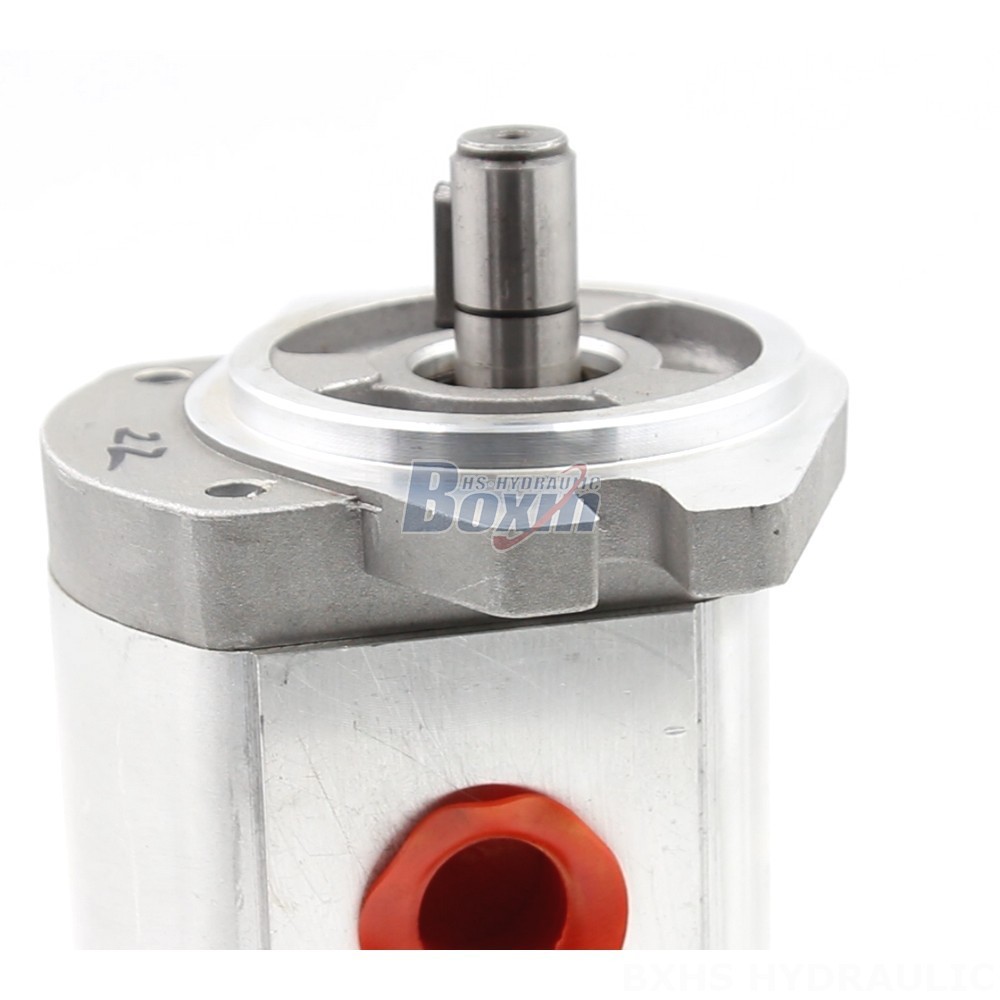

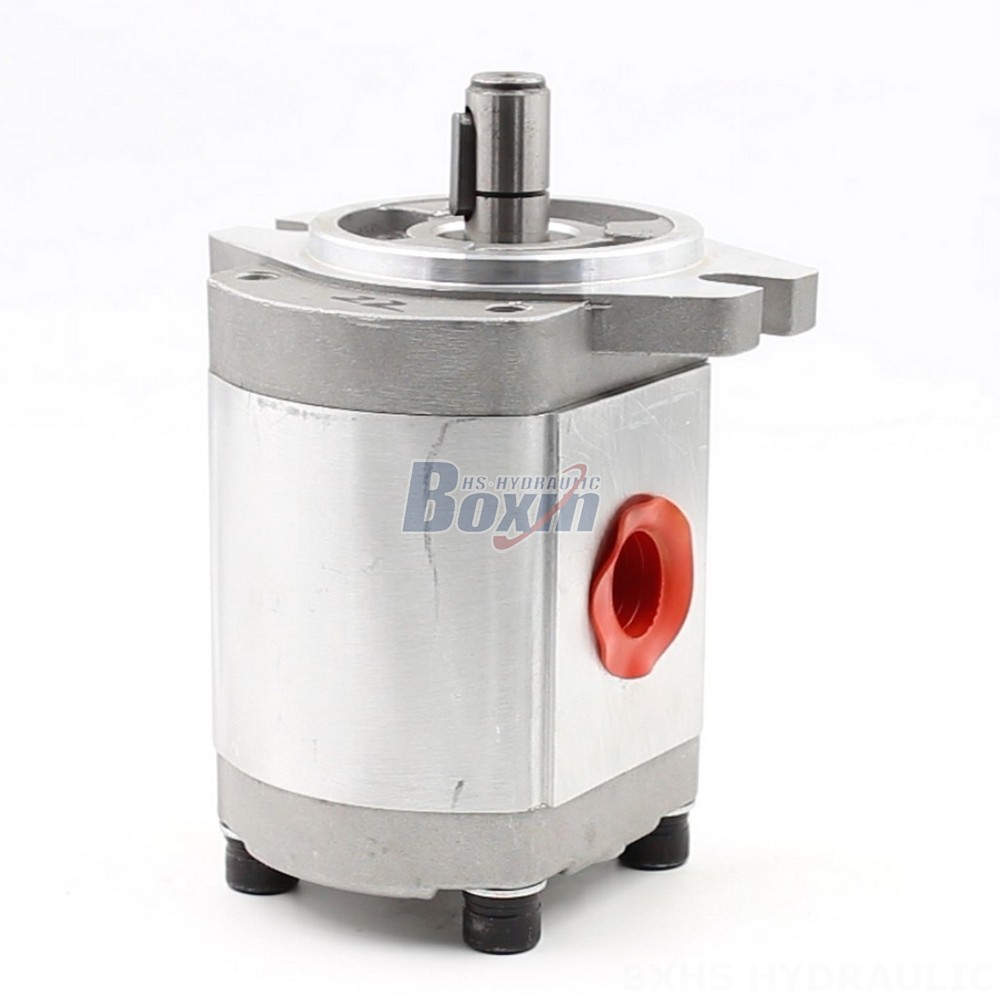

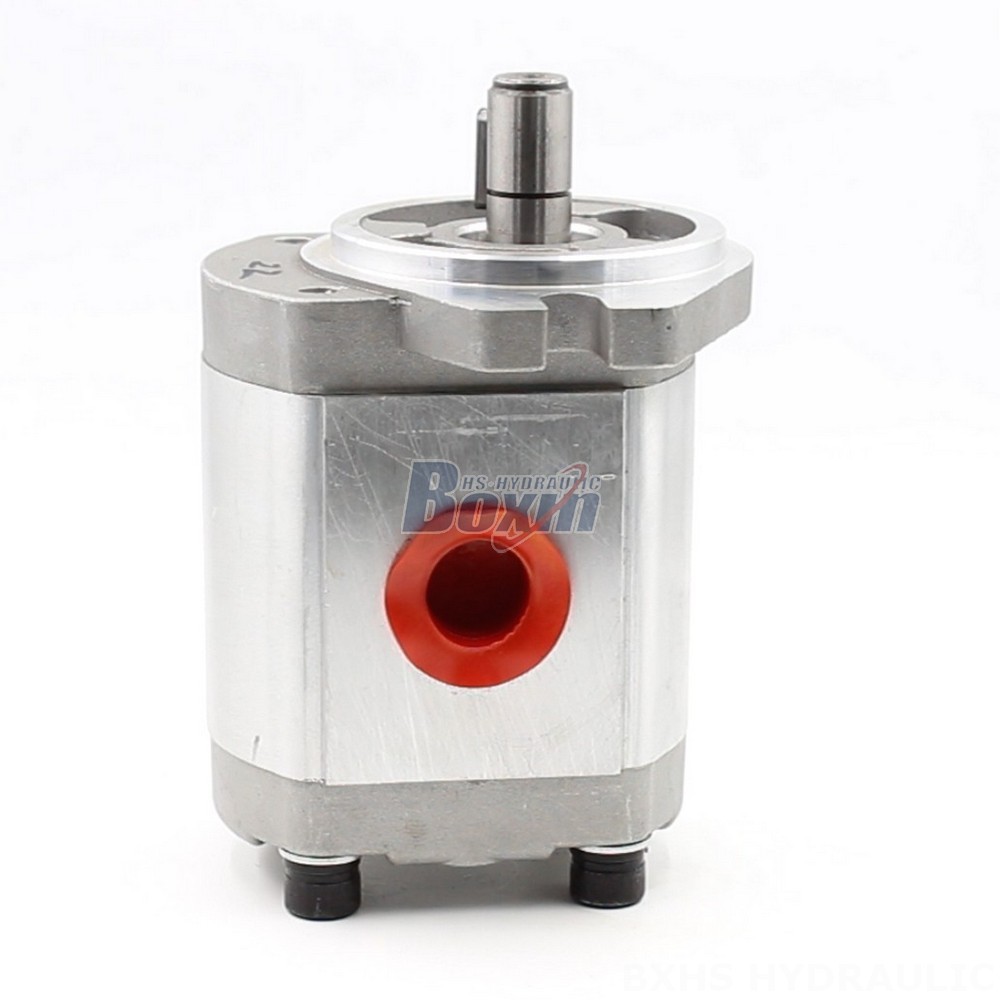

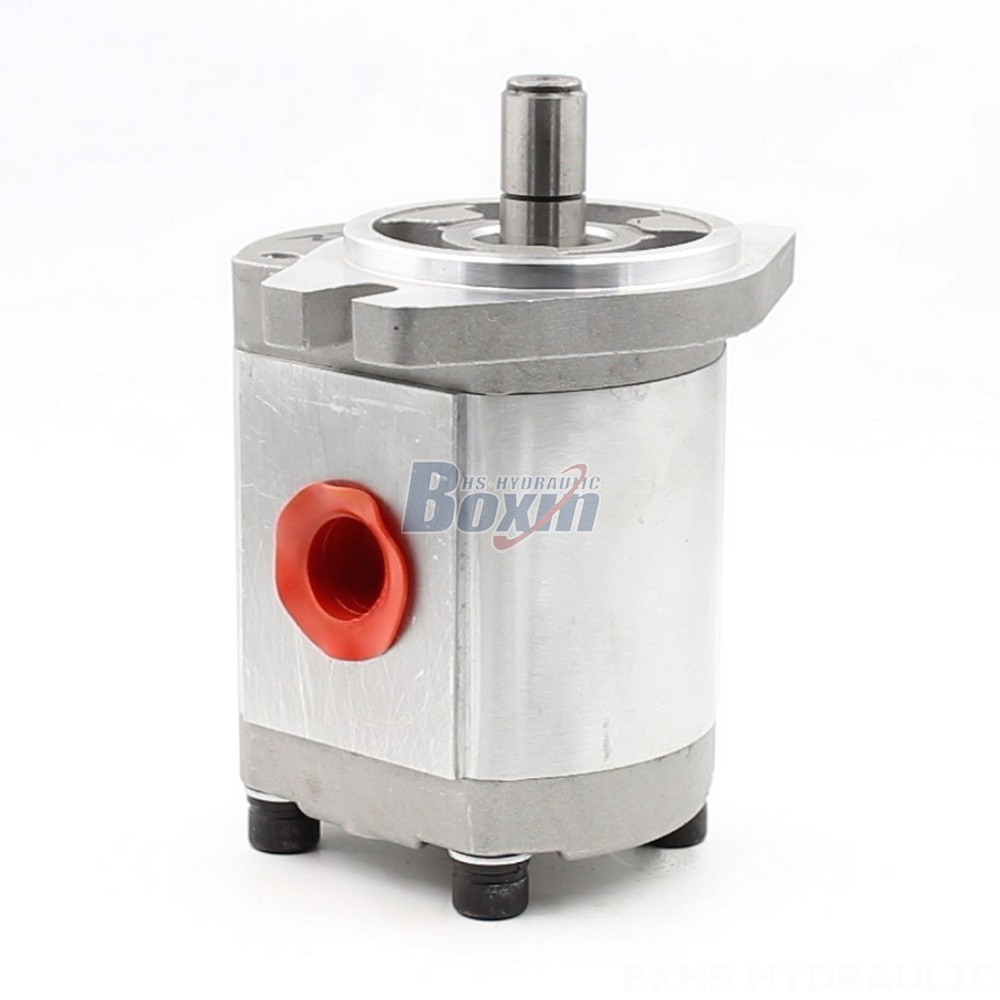

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable, and reliable pump designed for various applications in construction, agriculture, industrial vehicles, and material handling. It features a 10 cc/rev displacement, 20 MPa (2900 psi) rated pressure, and 2000 r/min rated speed, making it ideal for demanding environments.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and efficient internal gear pump, manufactured with high-quality aluminum material. It features an A-Oval flange design and a plain key shaft, making it compatible with various machinery. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump delivers exceptional performance in demanding applications such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump is also customizable to meet specific requirements. As a manufacturer, we provide manufacturing, OEM, private label, and customization services, along with global distribution network support.
