Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1010 personnes consultent ce produit

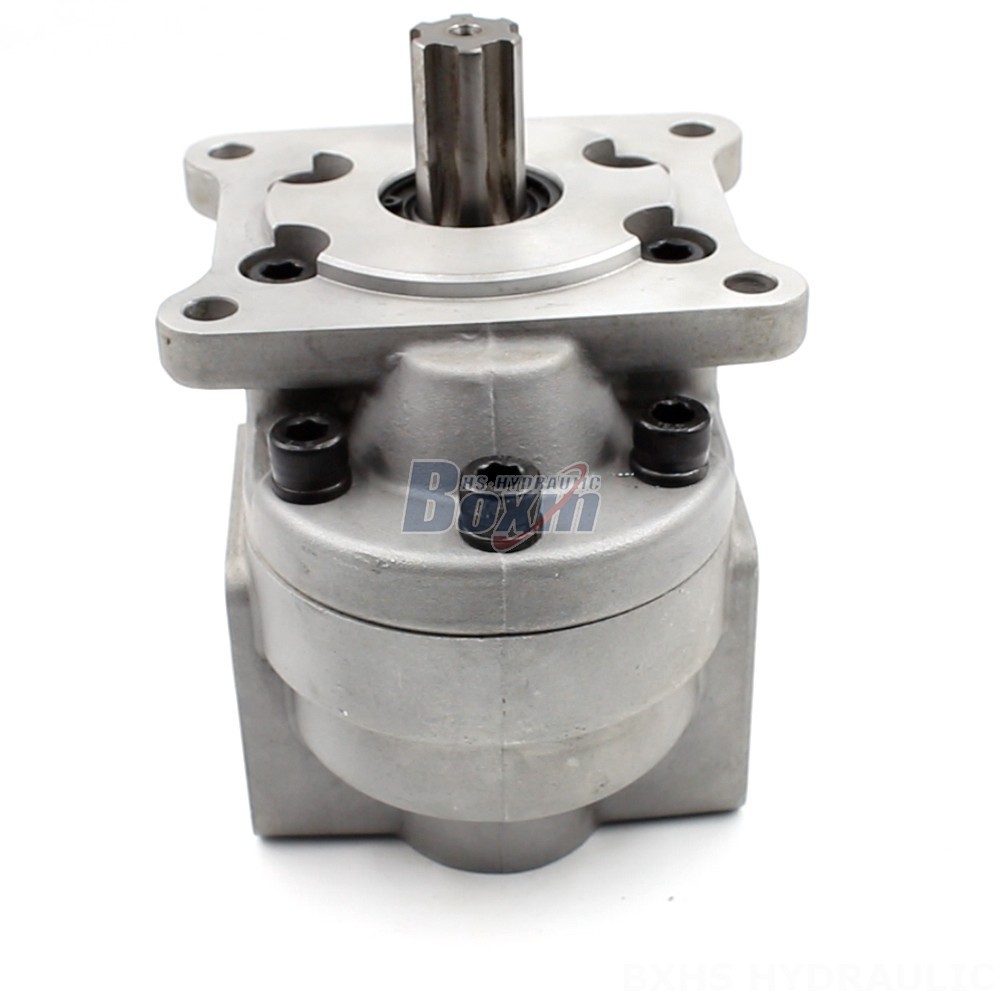

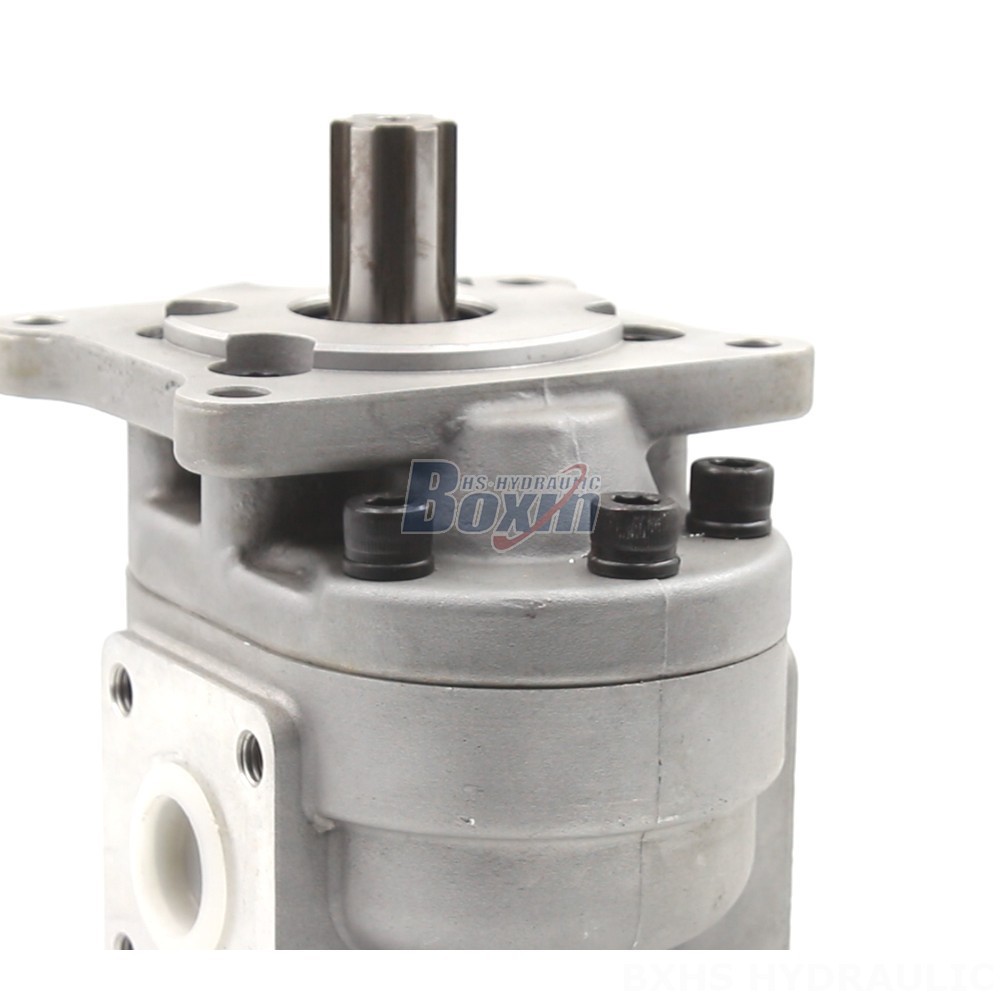

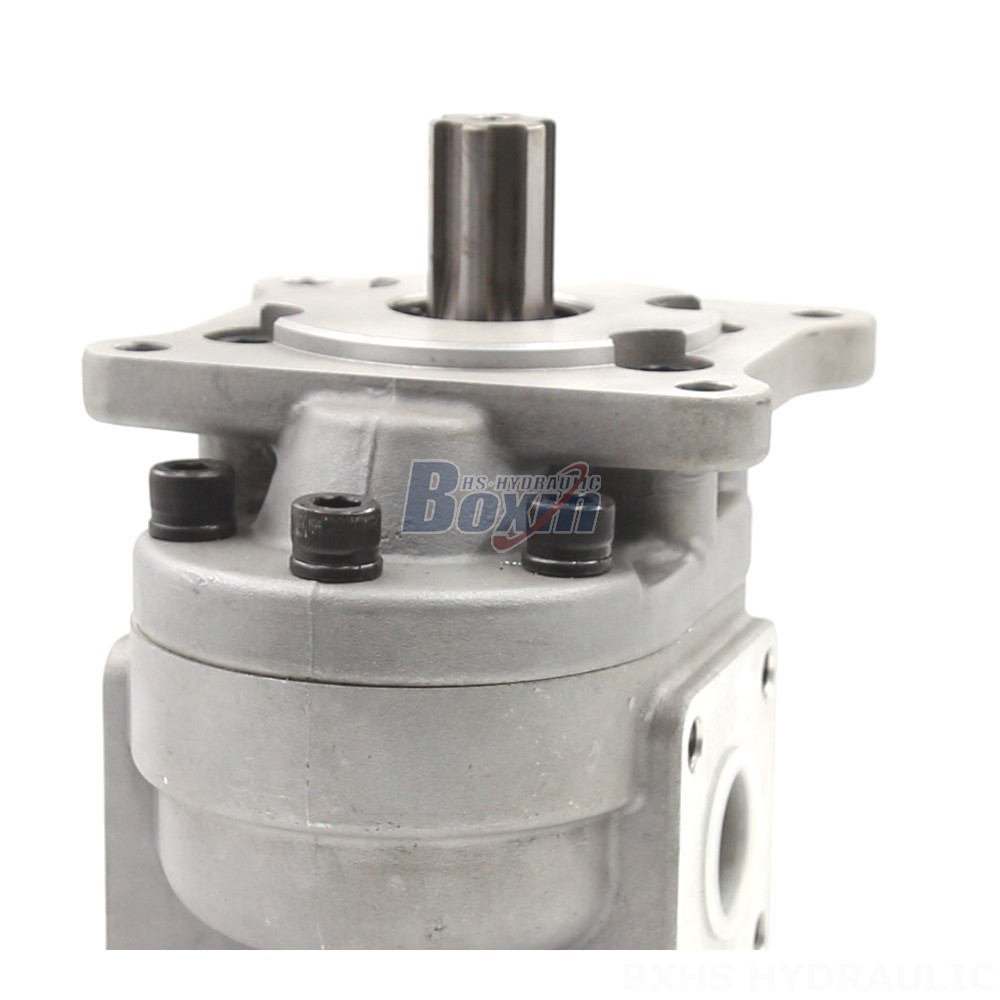

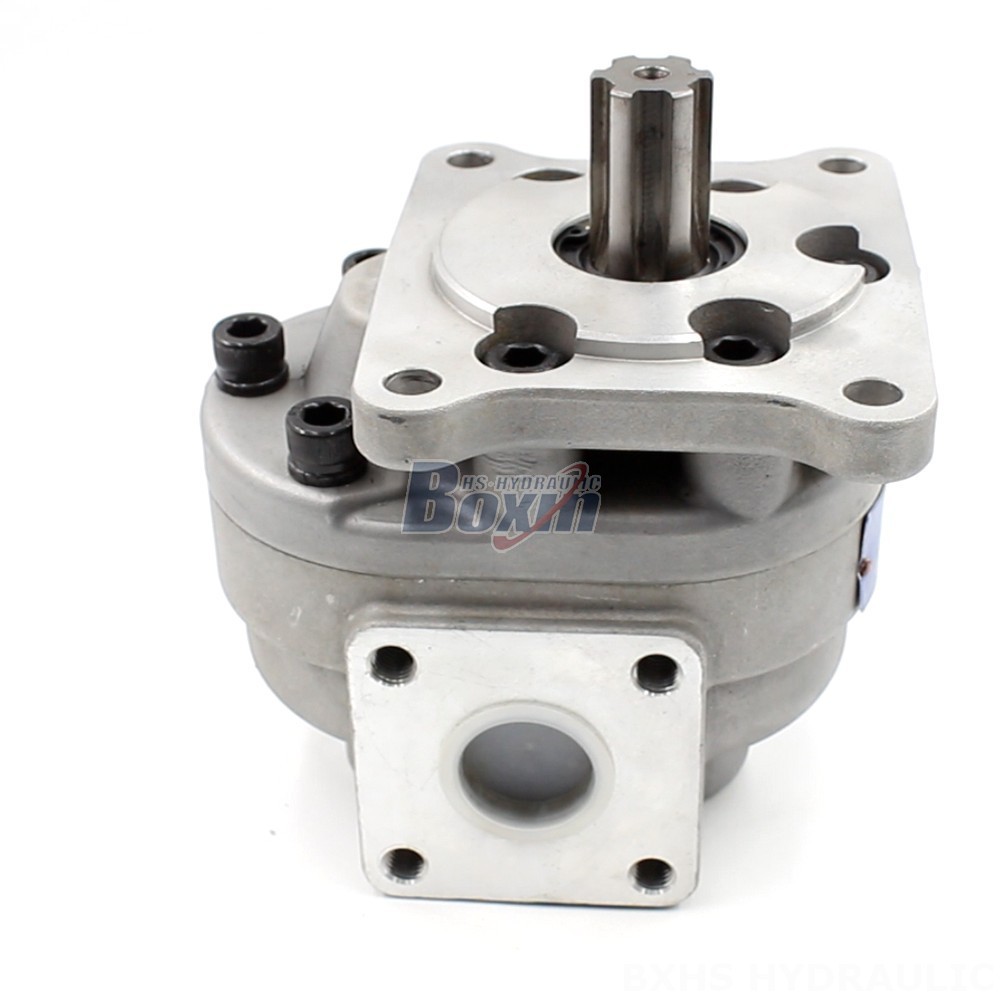

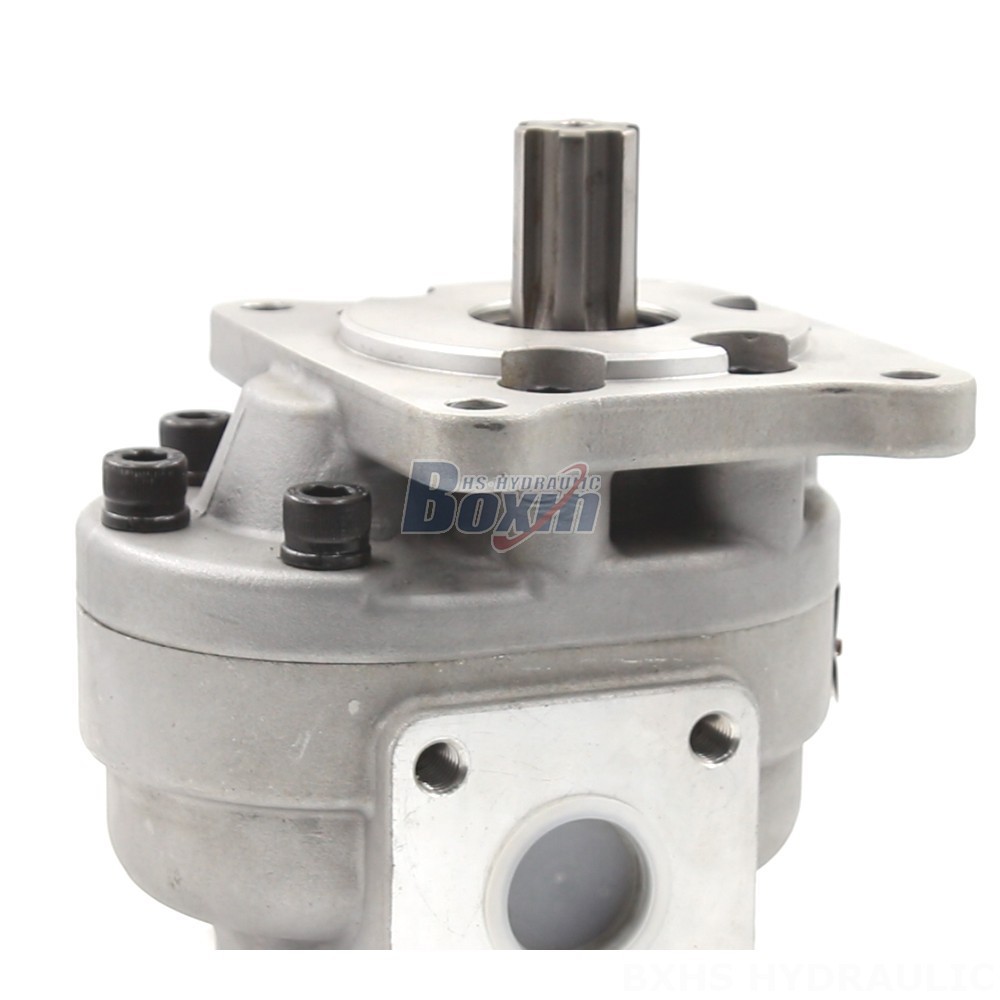

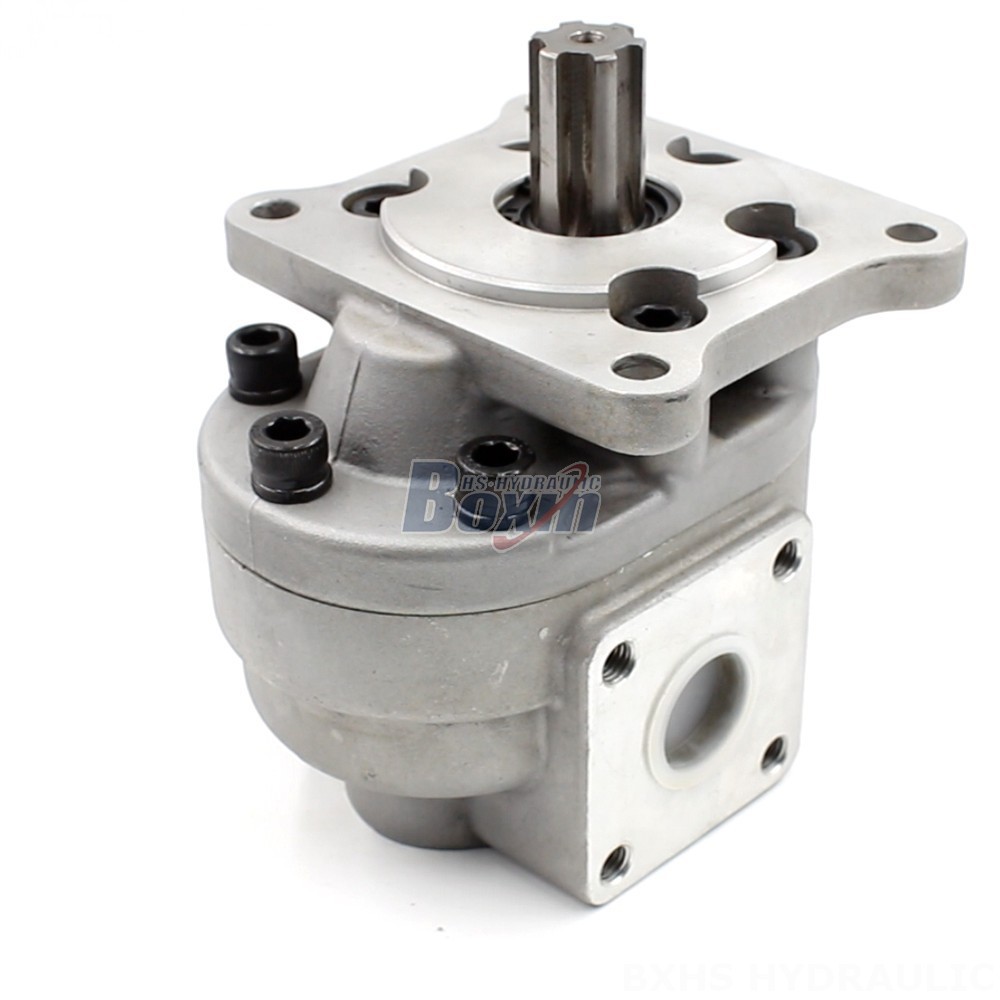

The CBHS-F550 Hydraulic Gear Pump, part of the CBHS-F5 Series, is a highly adaptable and efficient component designed for a wide range of applications in industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. With a displacement of 32 cc/rev, 50 cc/rev, or 63 cc/rev, a rated pressure of 20 MPa (2900 psi), a rated speed of 2000 r/min, and a maximum speed of 2200 r/min, this pump delivers exceptional performance under various operating conditions.
| Série CBHS-F5 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 32 cc/tr, 50 cc/tr, 63 cc/tr, 20 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 2 500 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Fonte |
| Structure | Pompe à engrenages externes |
| Version de la bride | B - Bride carrée |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
**Product Details of the CBHS-F550 Hydraulic Gear Pump:**
* **Displacement:** 32 cc/rev, 50 cc/rev, 63 cc/rev
* **Rated Pressure:** 20 MPa (2900 psi)
* **Rated Speed:** 2000 r/min
* **Max Speed:** 2200 r/min
* **Rotation:** Left (counter-clockwise), Right (clockwise)
* **Structure:** Internal Gear Pump
* **Material:** Cast Iron
* **Flange Version:** B-Square Flange
* **Shaft Type:** Plain Key (P), Rectangle Spline (H), Involute Spline (X)
* **Product Series:** CBHS-F5 Series
* **Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* **Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
