Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1272 personnes consultent ce produit

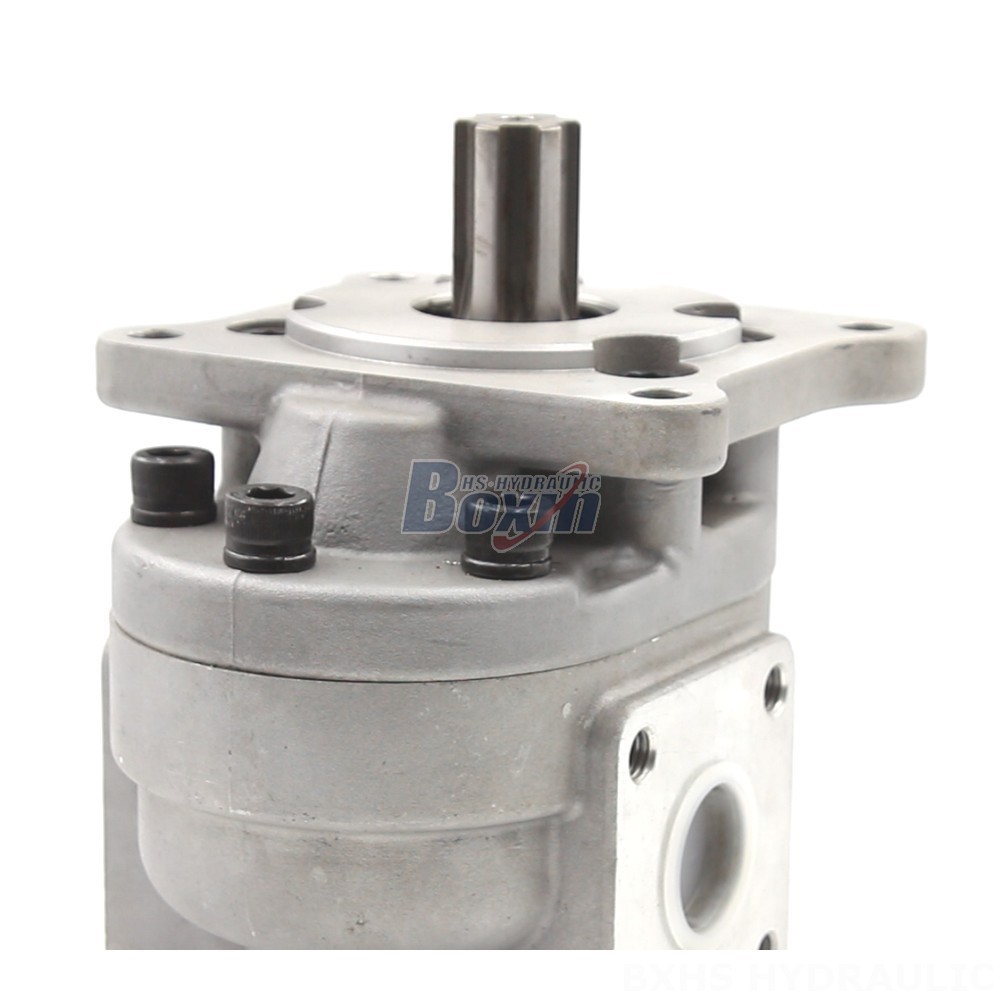

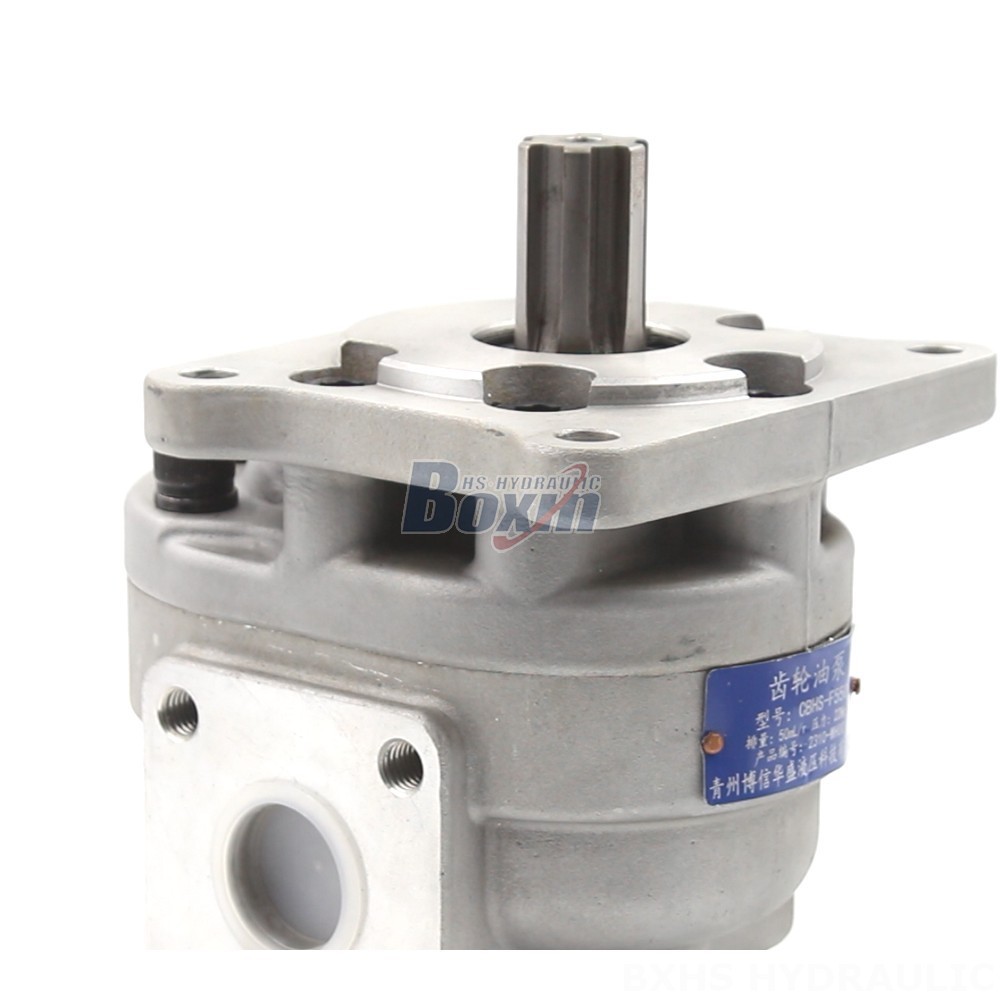

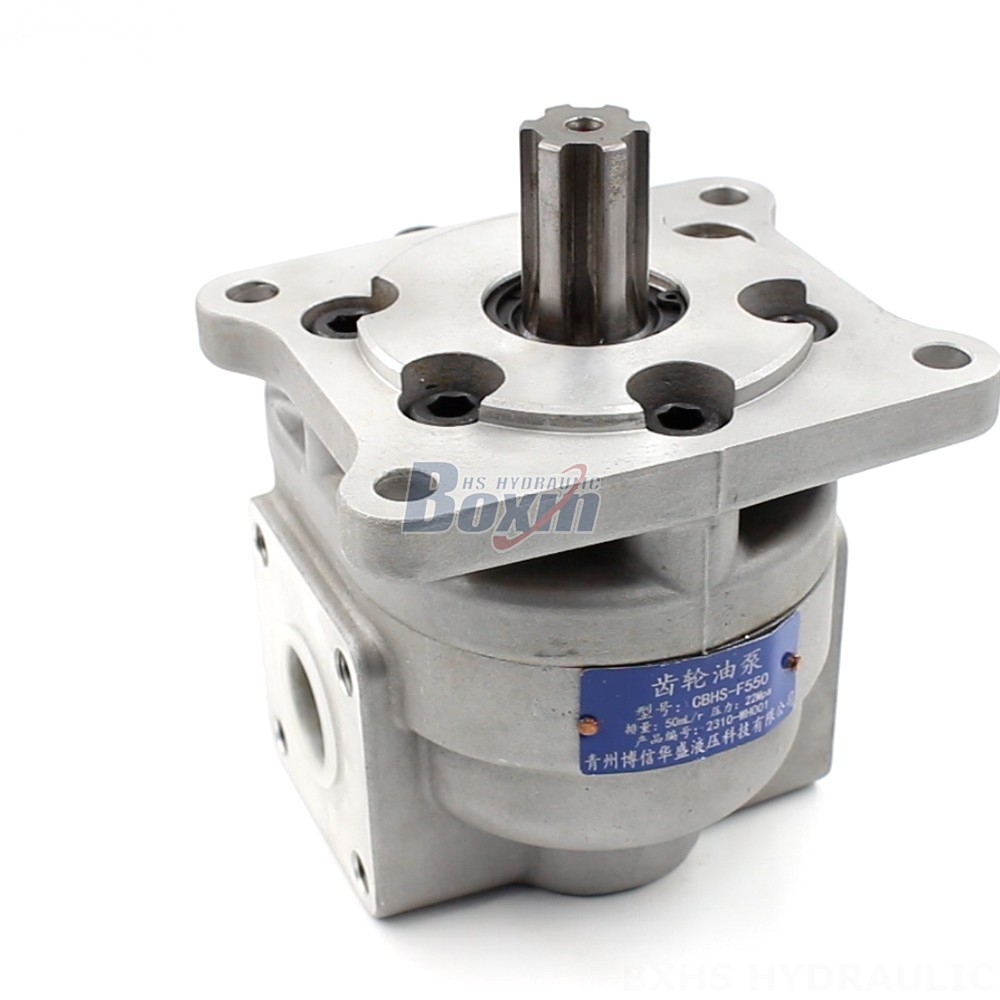

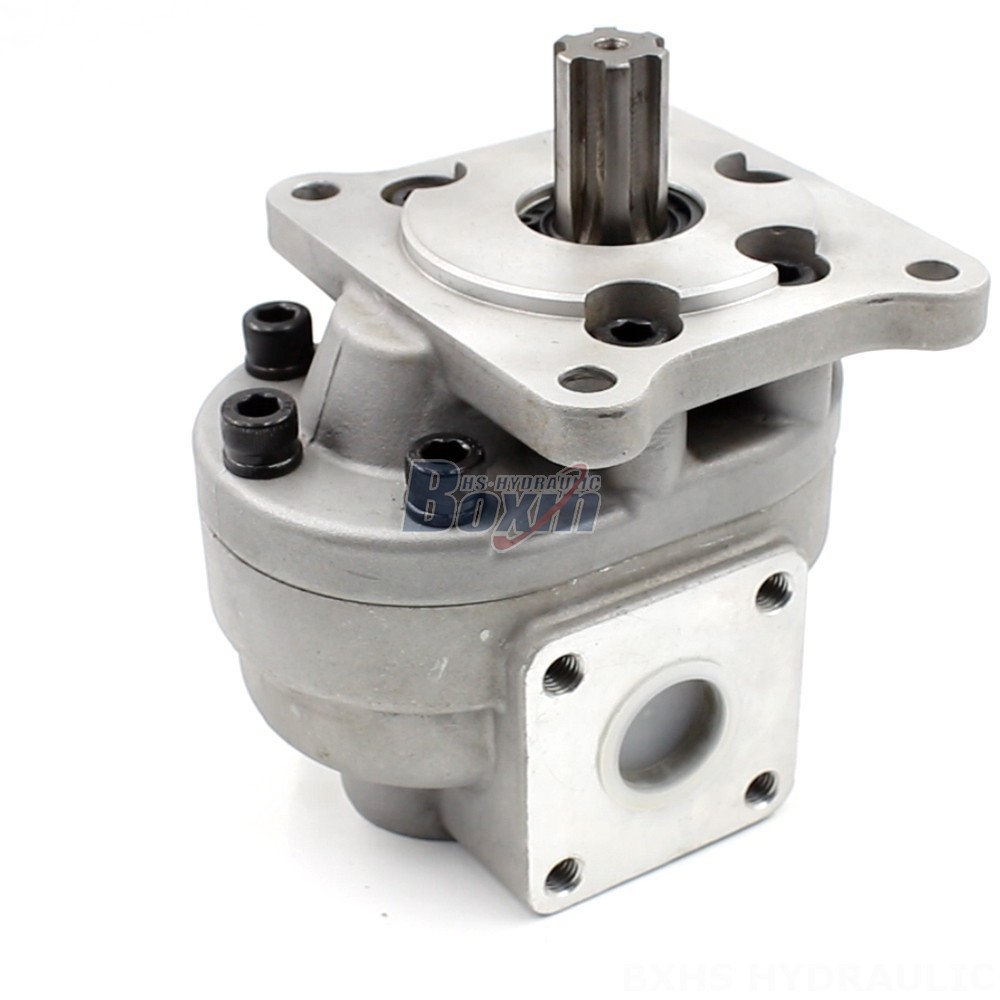

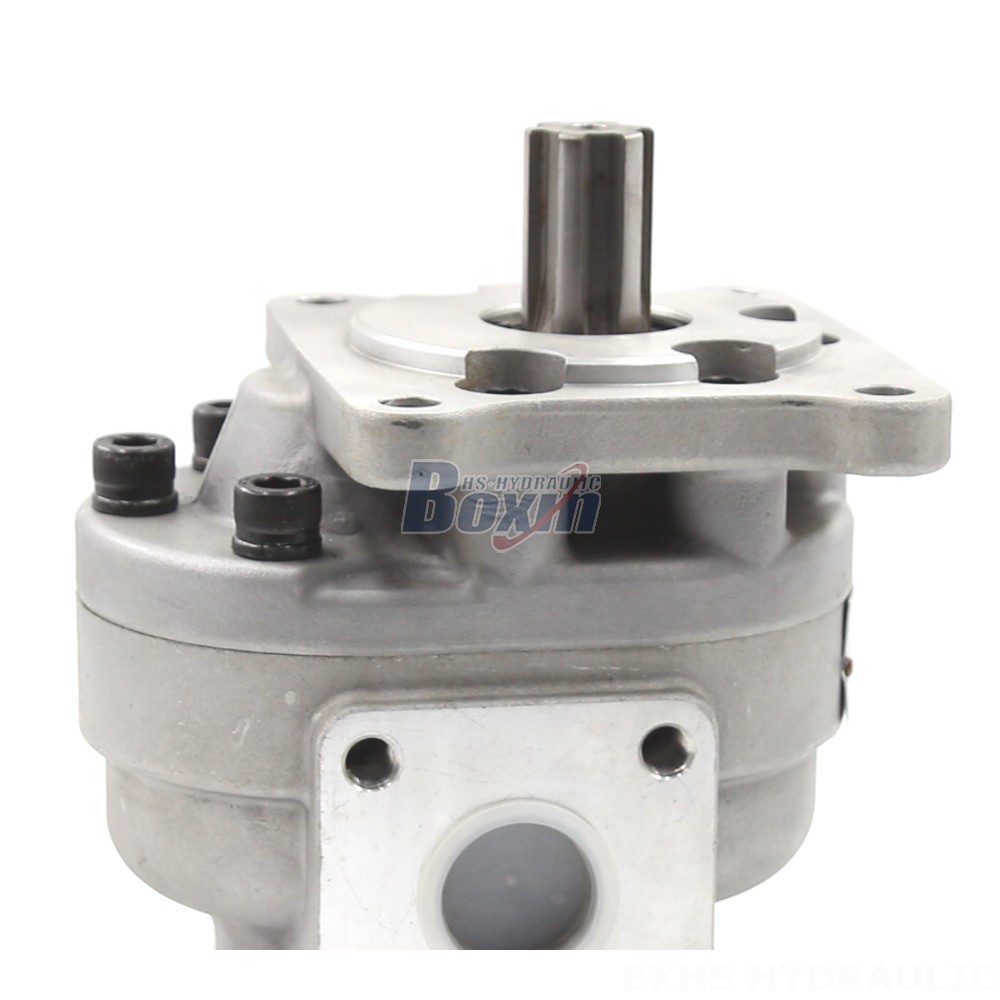

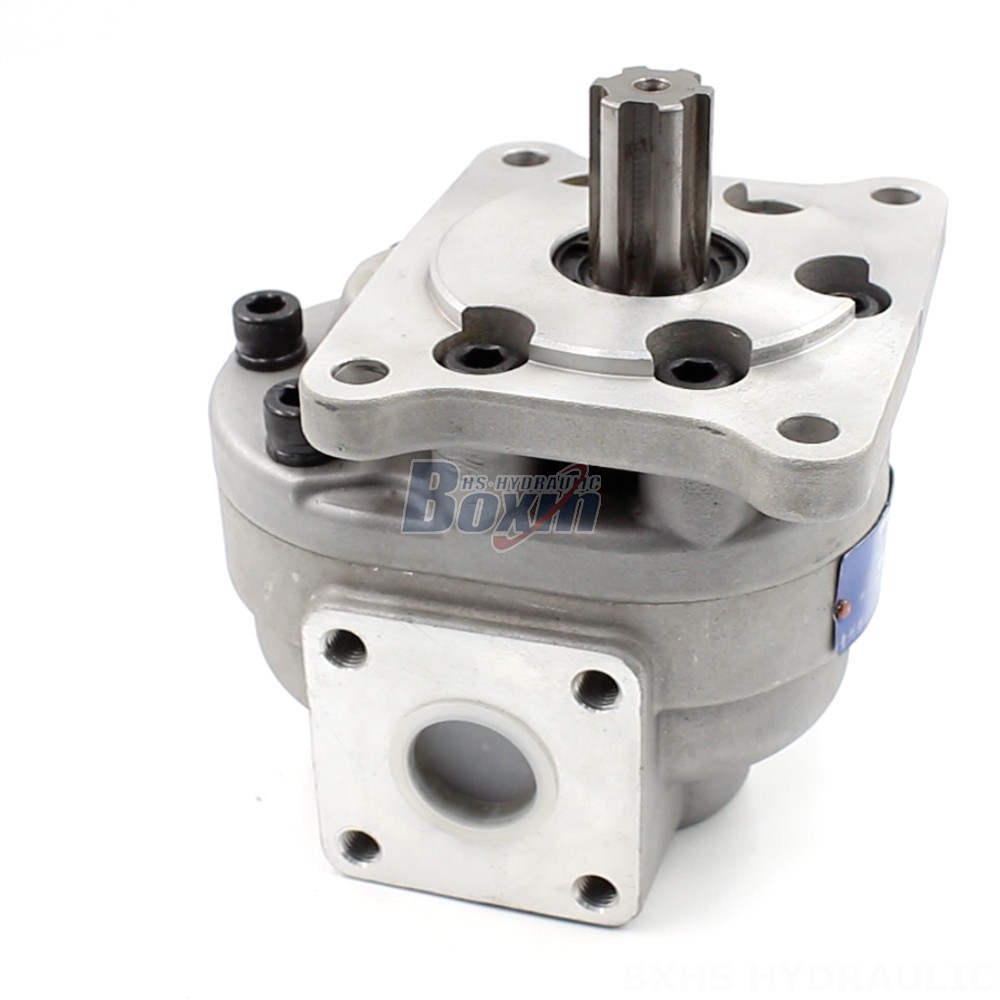

The CBHS-F550 50 cc/rev Gear Pump is an innovative hydraulic solution for a wide range of applications. With a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, this pump delivers reliable performance in demanding operating conditions. Its cast iron construction ensures durability, while the B-Square flange provides secure and easy mounting.
| Série CBHS-F5 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 32 cc/tr, 50 cc/tr, 63 cc/tr, 20 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 2 500 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Fonte |
| Structure | Pompe à engrenages externes |
| Version de la bride | B - Bride carrée |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
**CBHS-F550 50 cc/rev Gear Pump: Innovative Hydraulic Solutions**
**Key Features:**
- Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
- Rated Pressure: 20 MPa (2900 psi)
- Rated Speed: 2000 r/min
- Max Speed: 2200 r/min
- Rotation: L: Left (counter-clockwise), R: Right (clockwise)
- Structure: Internal Gear Pump
- Material: Cast Iron
- Flange Version: B-Square Flange
- Shaft Type: P: Plain Key, H: Rectangle Spline, X: Involute Spline
- Series: CBHS-F5 Series
**Applications:**
- Material Handling
- Construction and Earth Moving
- Agriculture
- Industrial Vehicles
**Applicable Models:**
- Telehandler
- Forklift
- All Terrain Crane
- Stacker
- Aerial Platform
- Motor Grader
- Midi-Excavator
- Mini-Excavator
- Skid Steer Loader
- Compact Wheel Loader
