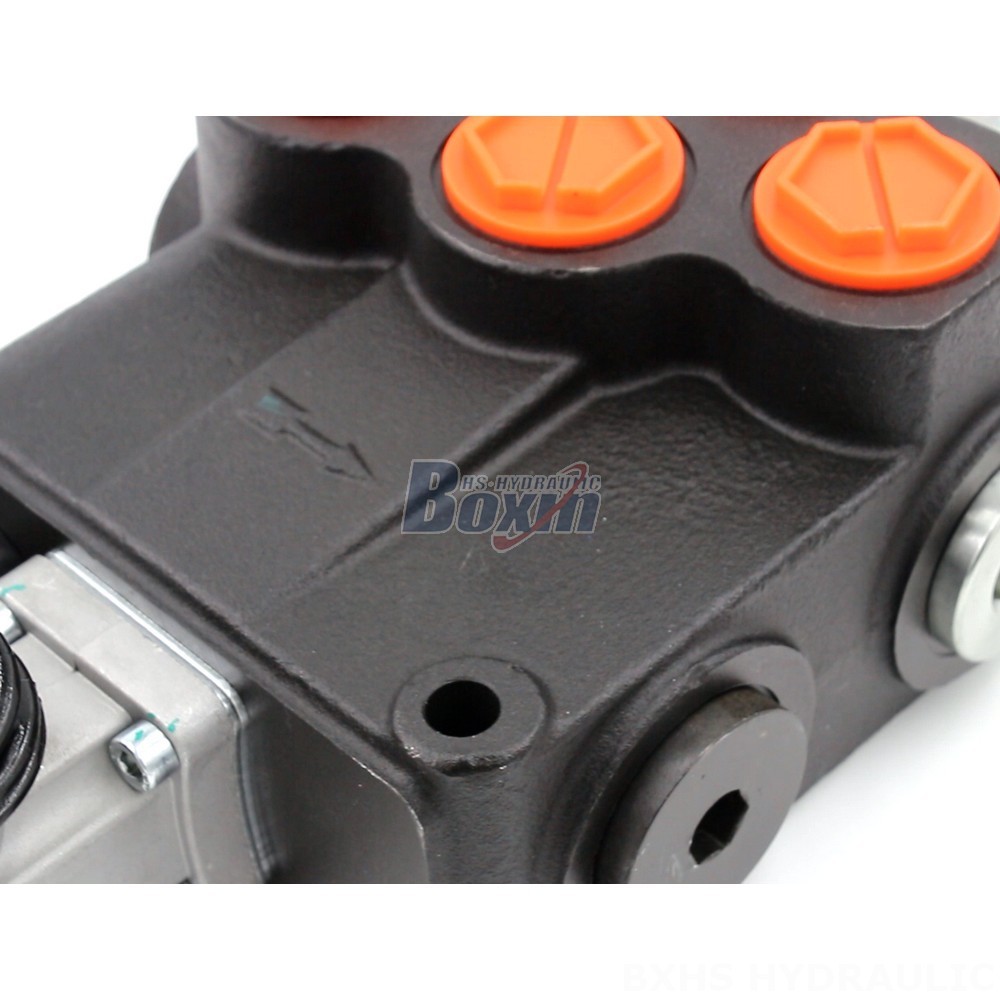

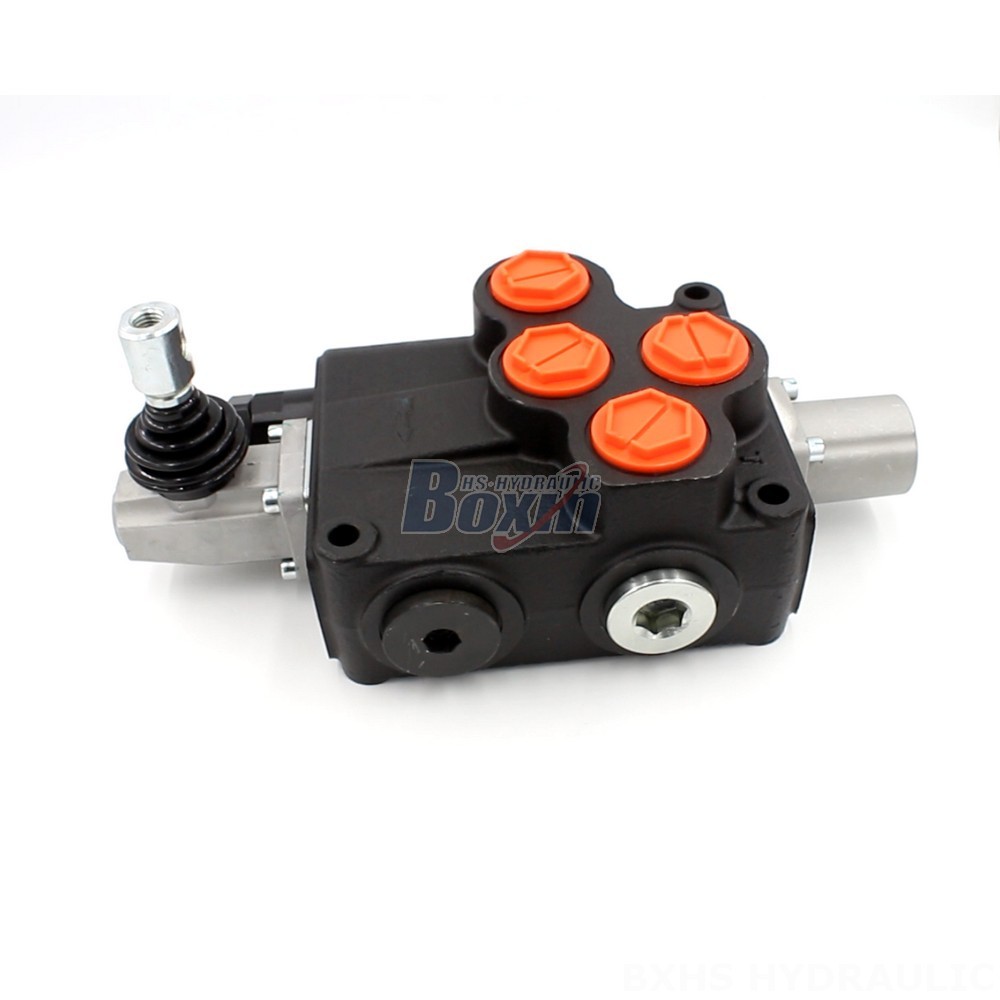

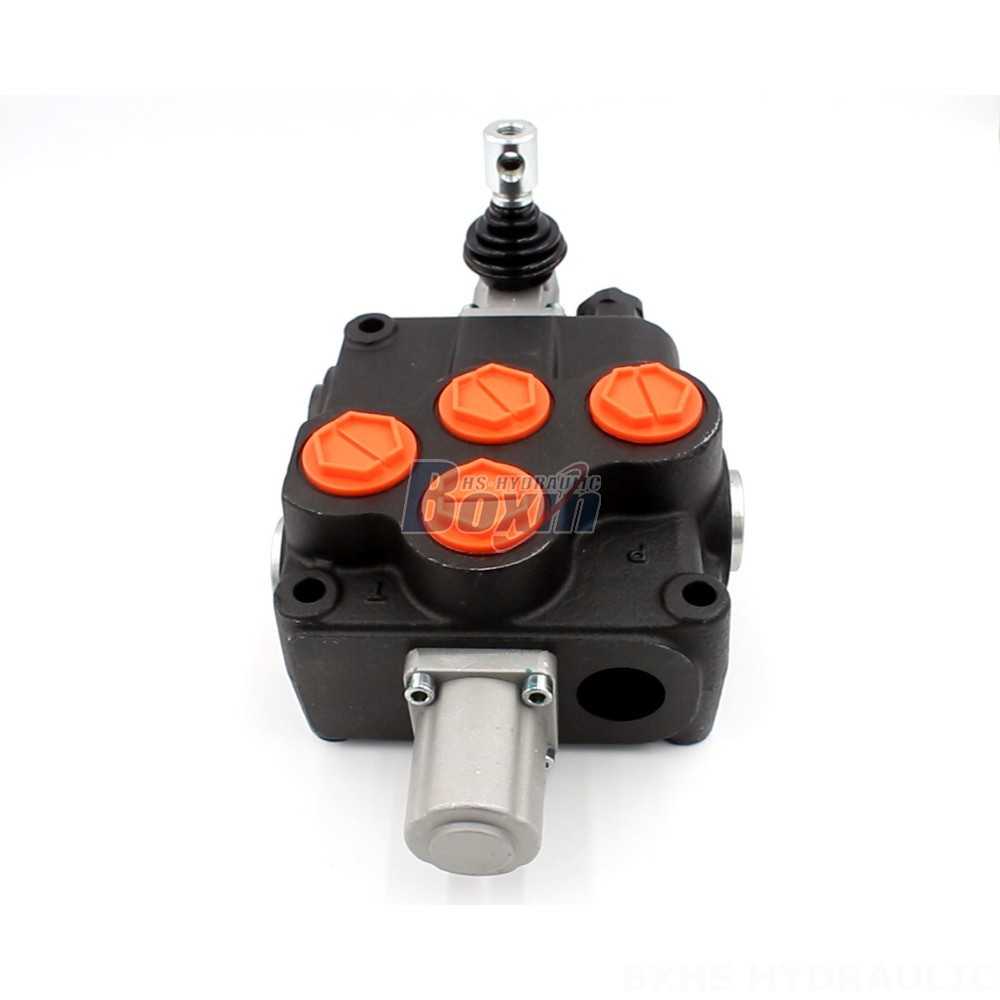

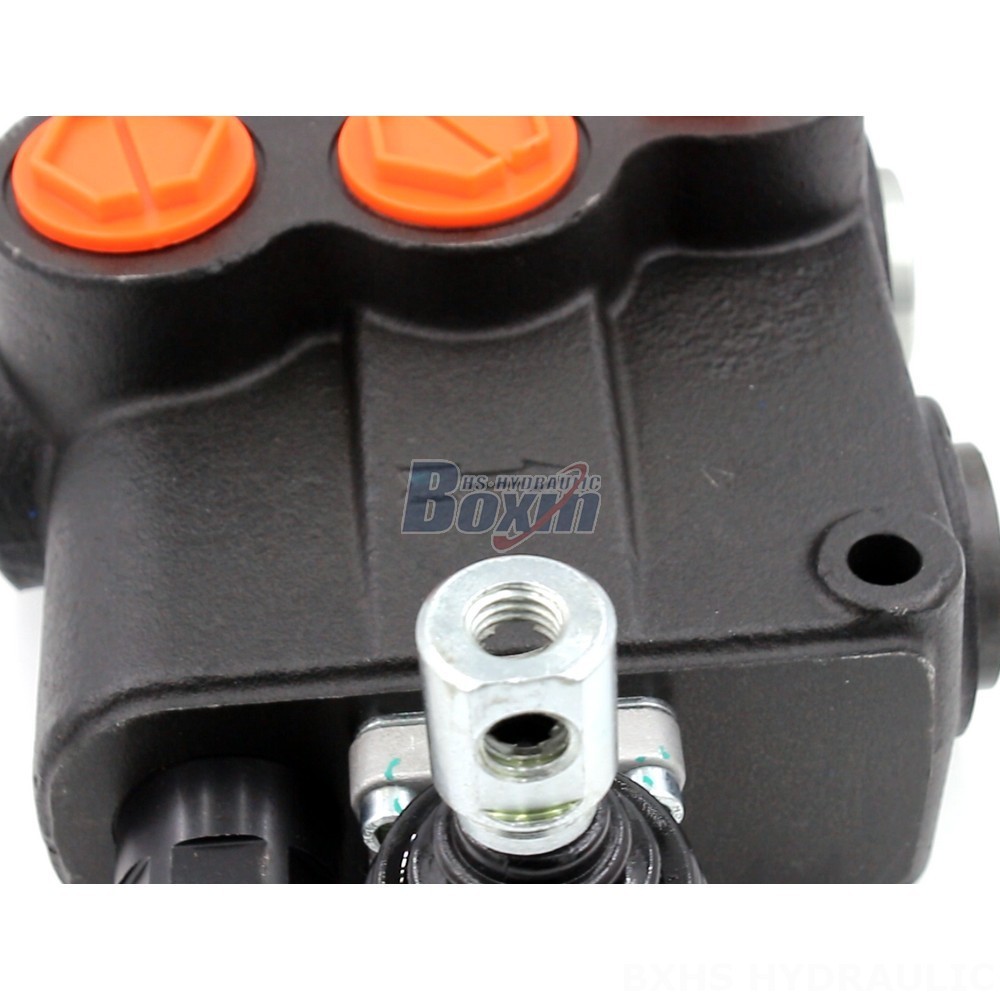

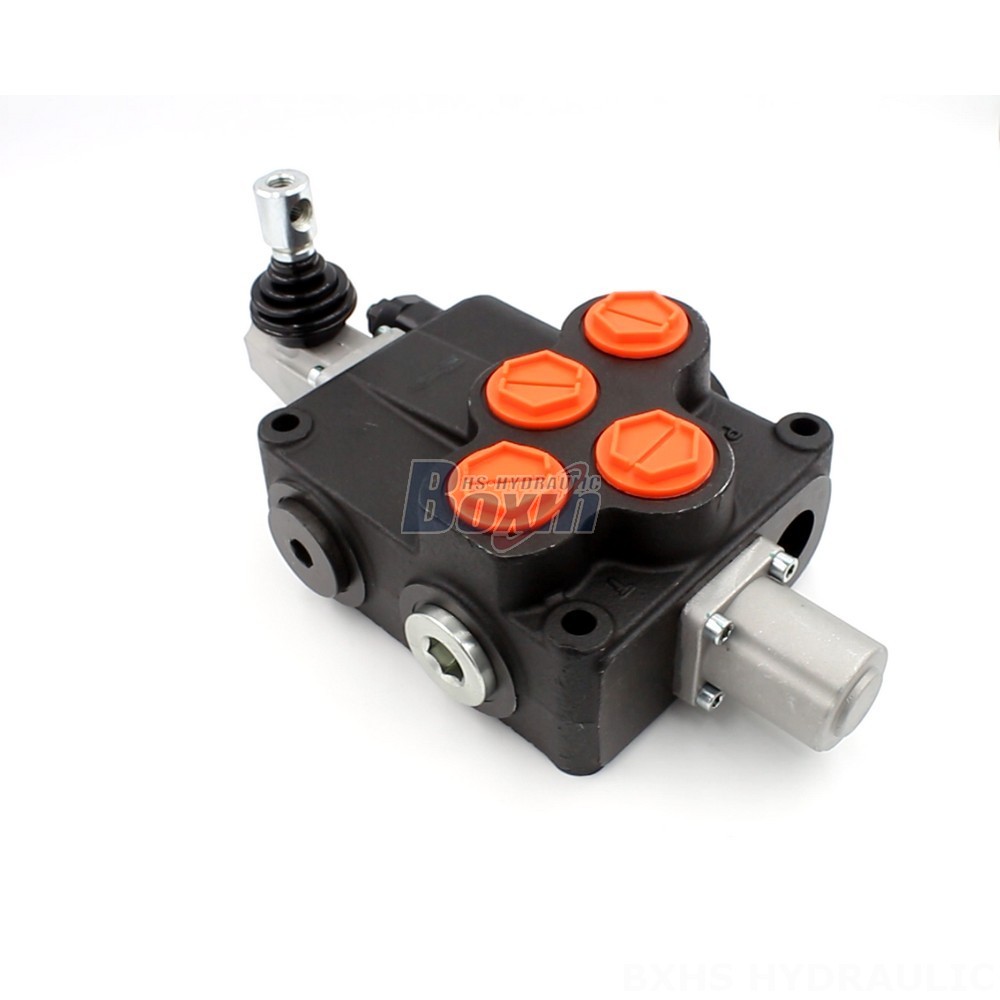

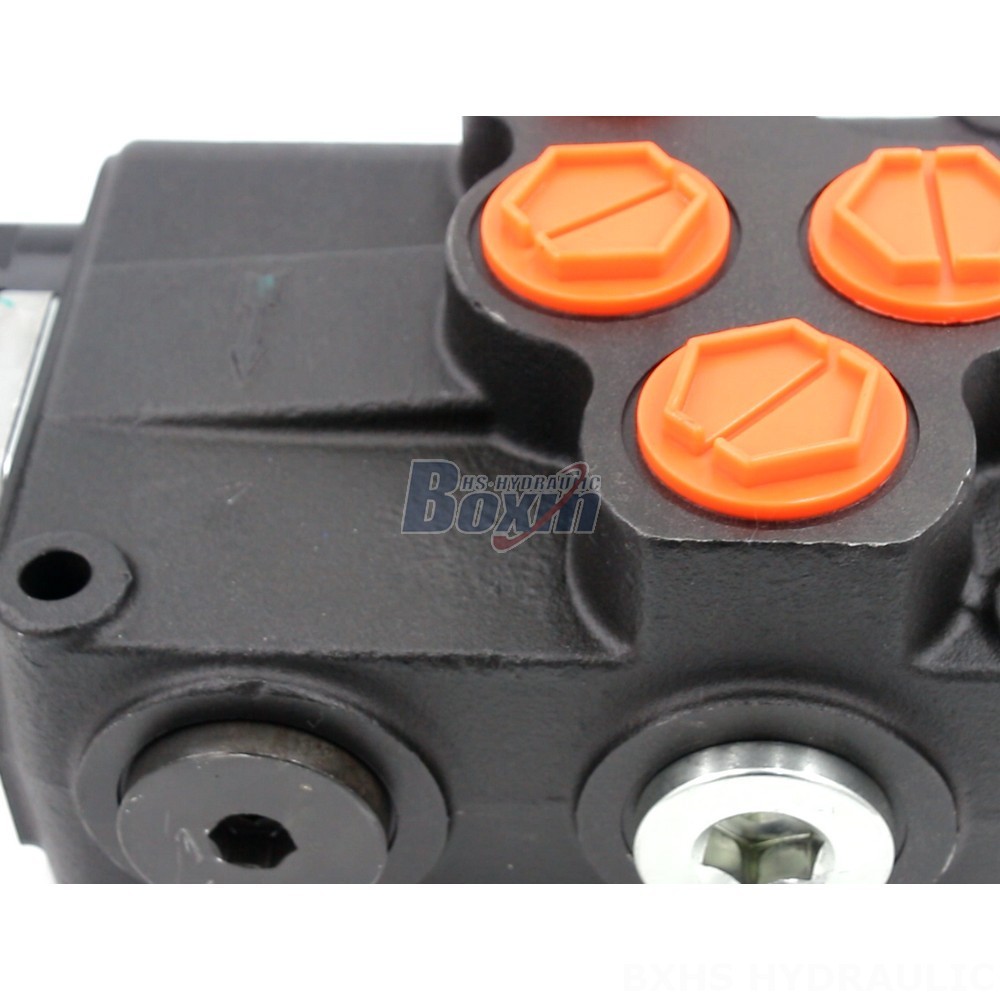

P120-G1-OT Directional Valve is a bespoke hydraulic valve tailored to your specific requirements. With a rated flow of 120 L/min and a max pressure of 250 bar, this valve is suitable for various applications in the material handling, construction, earth moving, agriculture, and industrial vehicles industries.
| Série P120 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 120 L/min (31.7 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Orifice de sortie | G1, SAE 16, 1 NPT, M36×2 |
| Dimension du raccord | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
The P120-G1-OT Directional Valve is a monoblock valve with a single section and a single spool. It features manual control and is designed to operate within an ambient temperature range of -40°C to +80°C. The valve is suitable for applications requiring a rated flow of up to 120 L/min and a maximum pressure of 250 bar. **OEM, ODM, and customization services are available to meet your specific requirements.** The valve is widely used in various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, harvesters, bale wrappers, and seeding machines.
