The SD5 Series Directional Control Valves are customizable hydraulic solutions designed for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. We offer OEM, ODM, and private label services to meet your specific needs.
| Série SD5 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +60 °C (-40 °F à +140 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Dimension du raccord | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

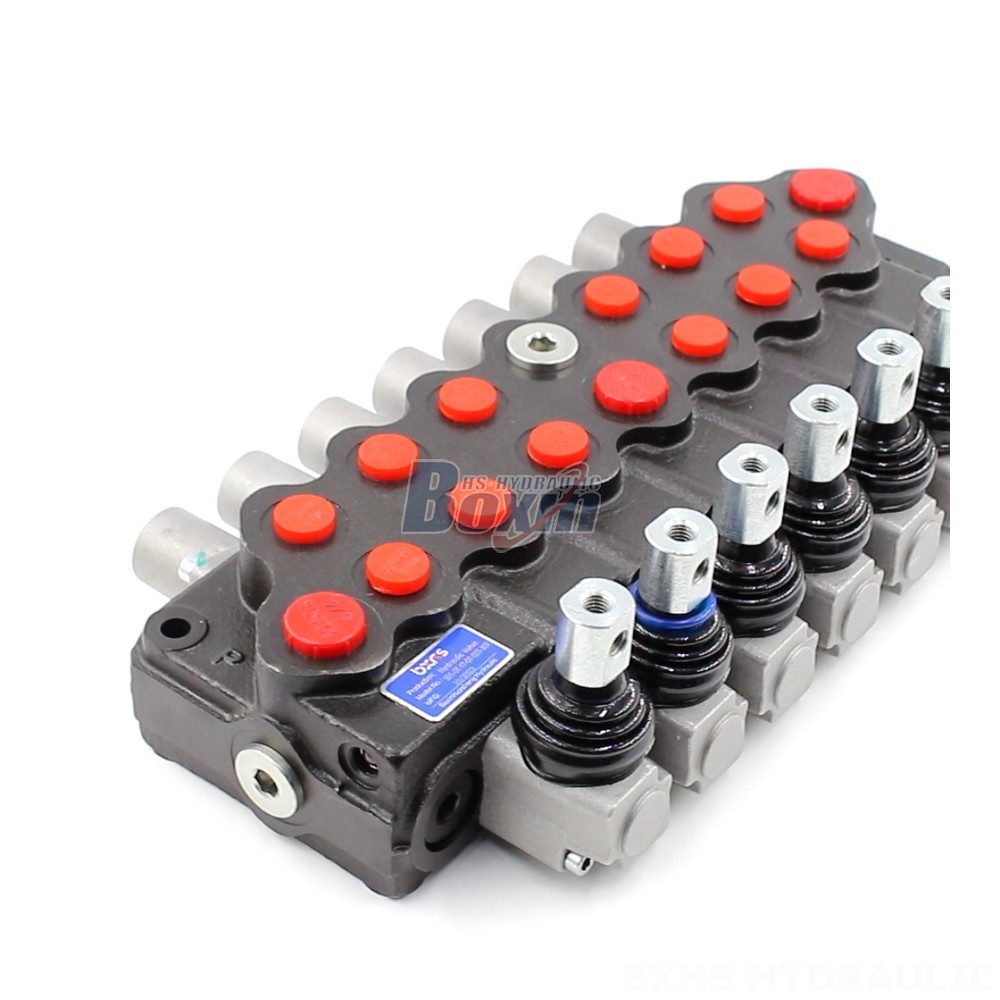

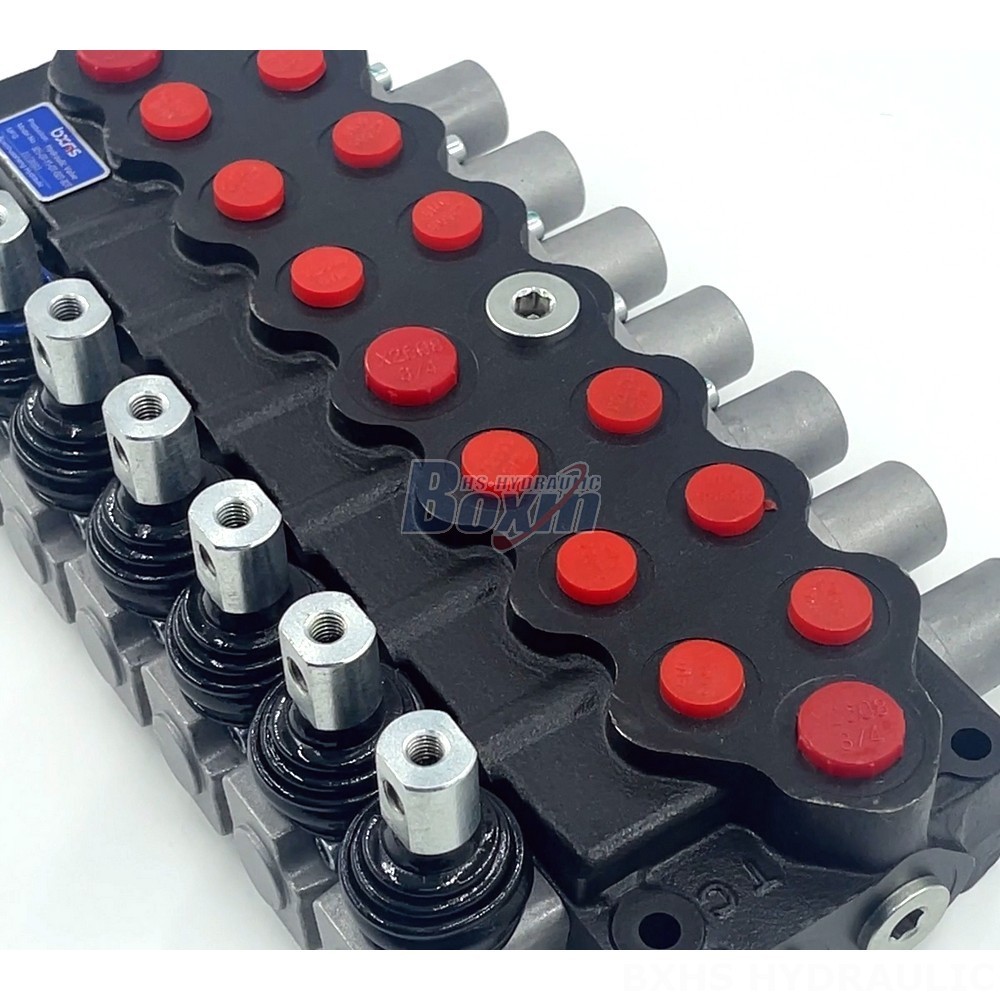

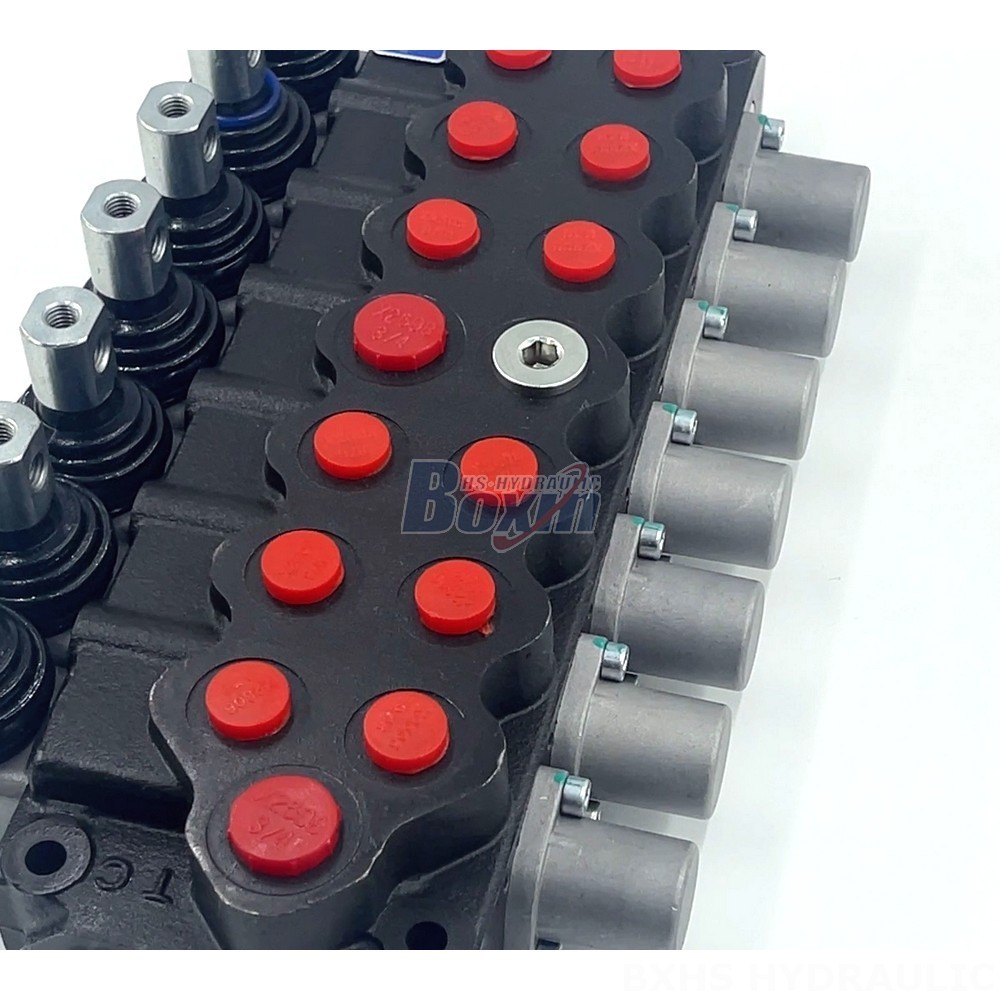

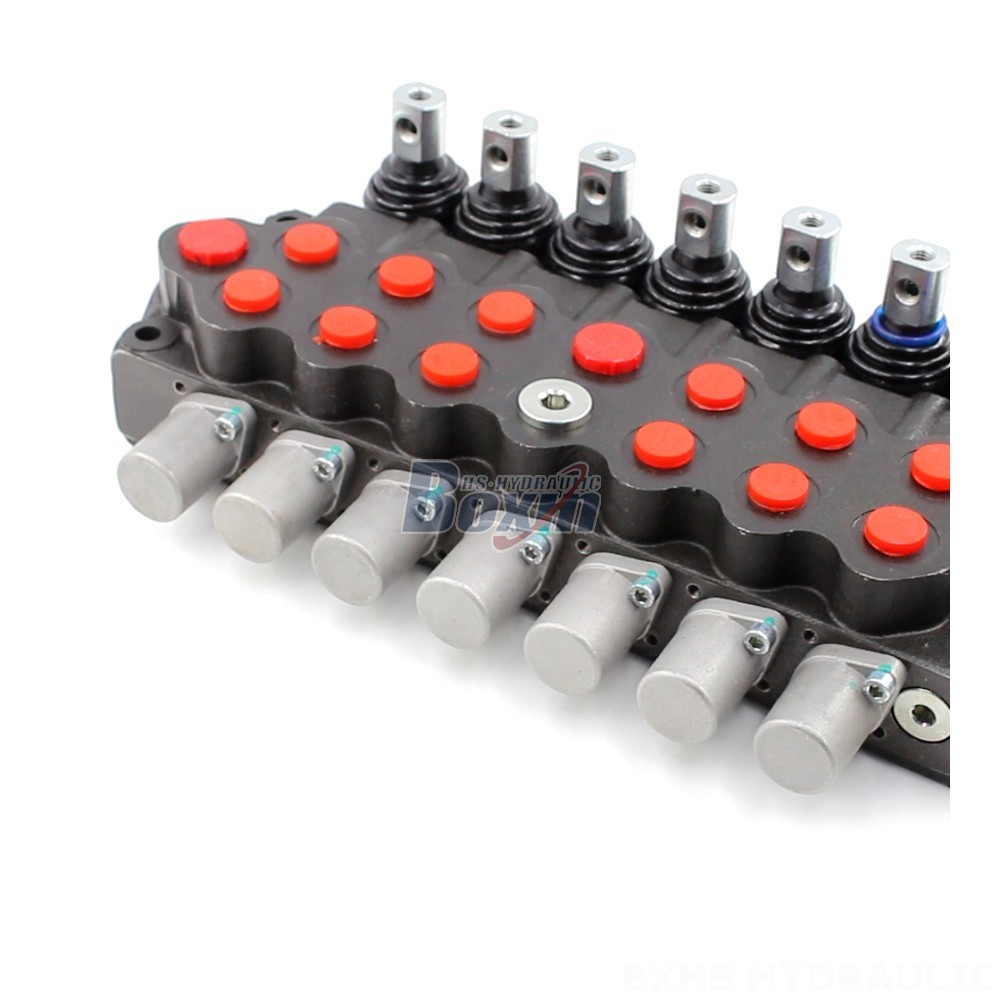

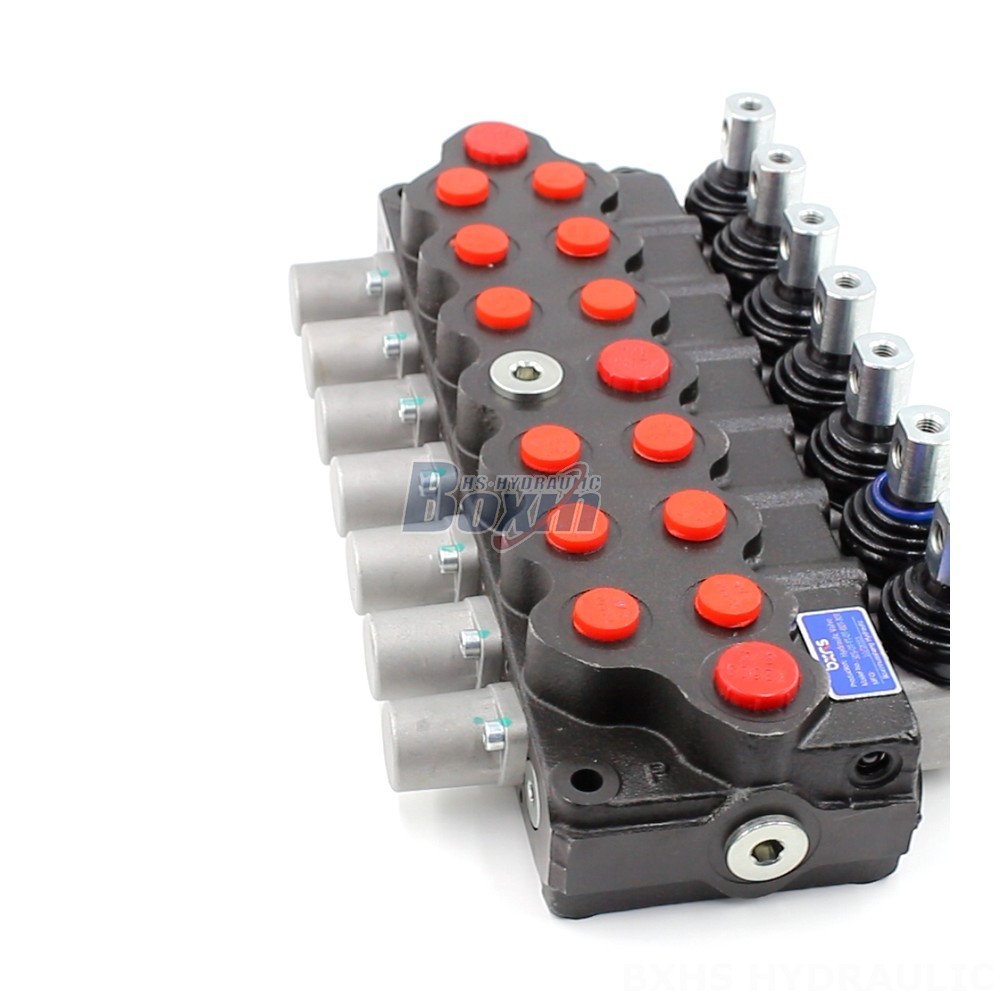

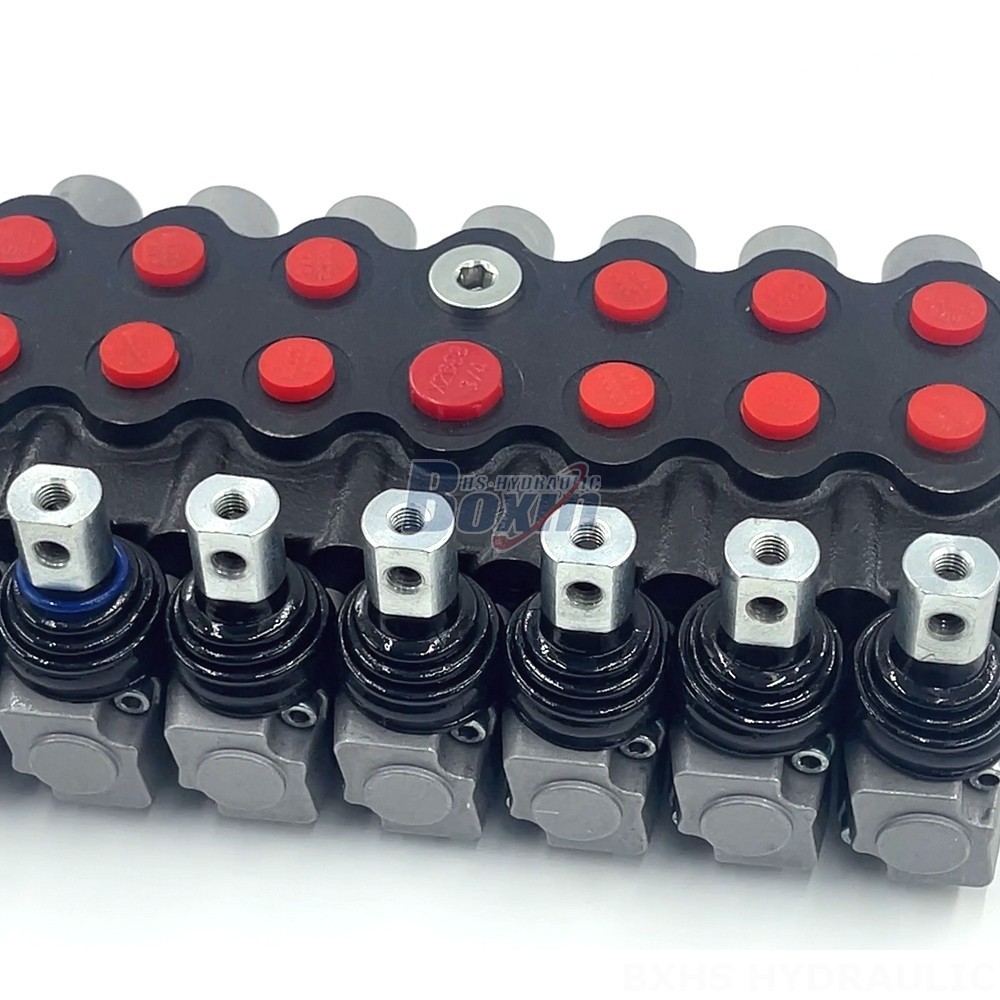

Our SD5 Series Directional Control Valves are high-performance, manual control valves built with a 7-section monoblock structure. Featuring a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi), these valves are suitable for diverse applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters. We offer bespoke solutions, customization options, and manufacturing services to suit your unique requirements. Whether you need OEM, ODM, or private label products, our team is ready to collaborate with you to deliver the perfect hydraulic solution for your project.
