Our bespoke hydraulic solutions include the customizable P80-U78-1OT directional control valve, designed to meet the specific requirements of our global customers. This valve offers exceptional performance with a rated flow of 80 L/min, max pressure of 250 bar, and a wide operating viscosity range. It is suitable for various applications in material handling, construction, agriculture, and industrial vehicles.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

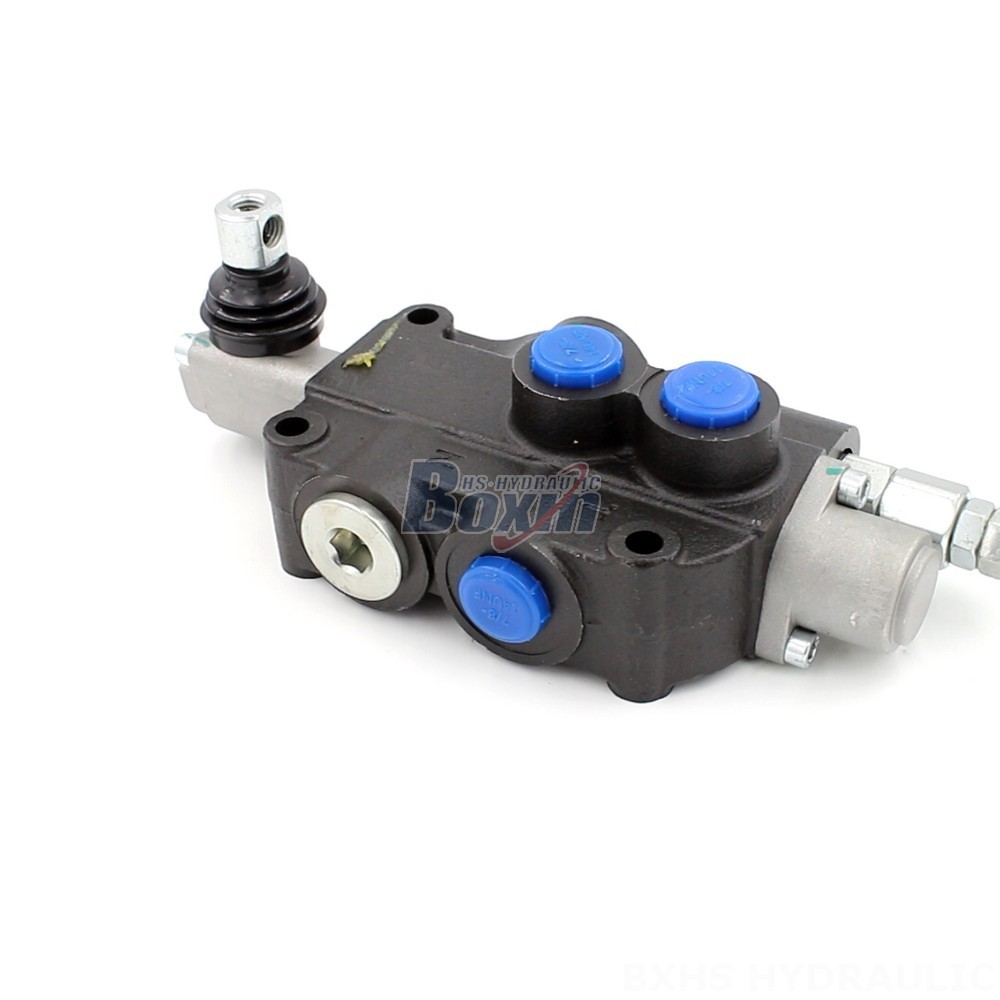

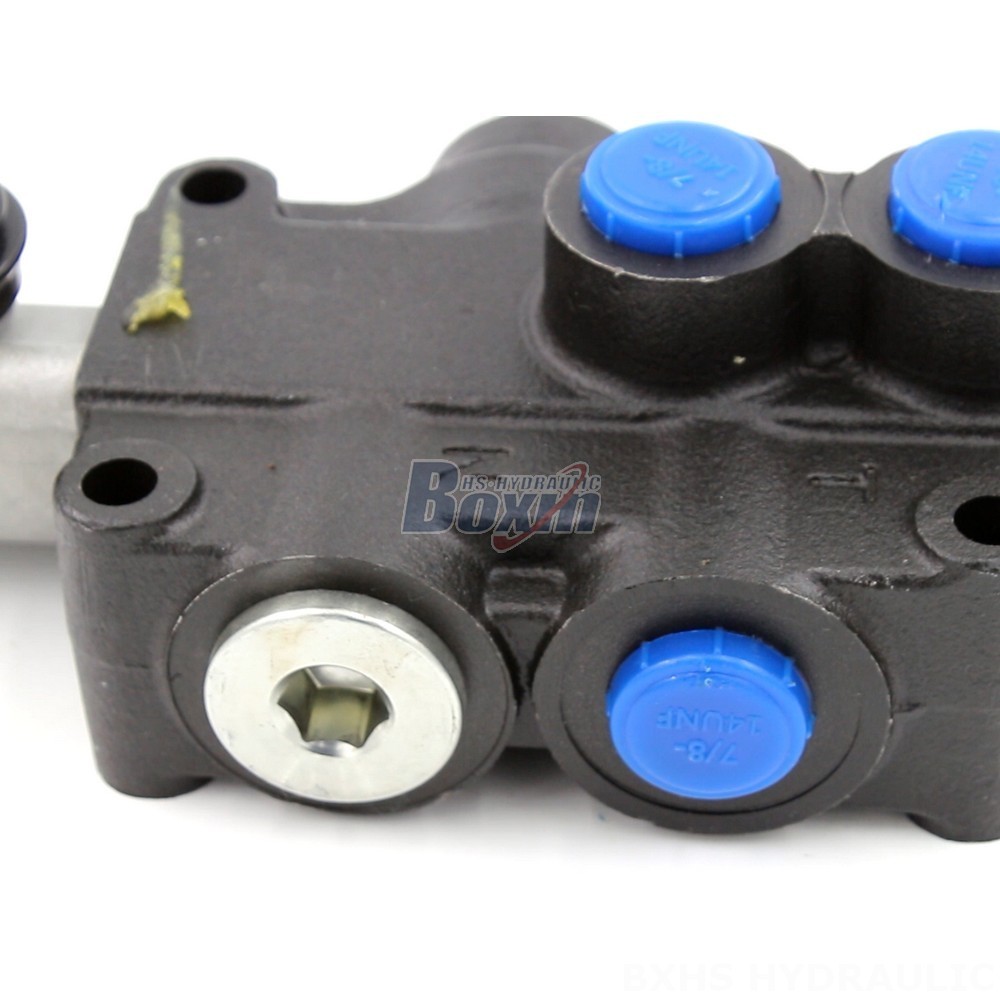

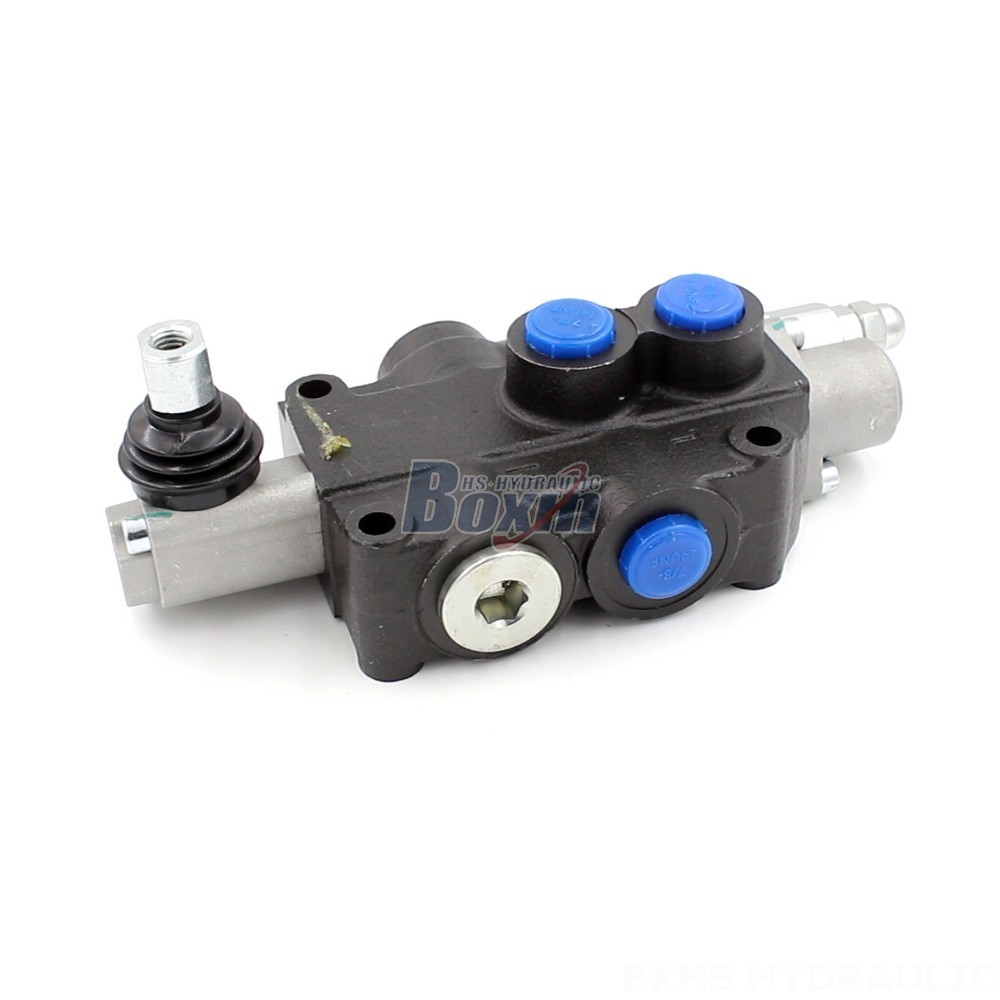

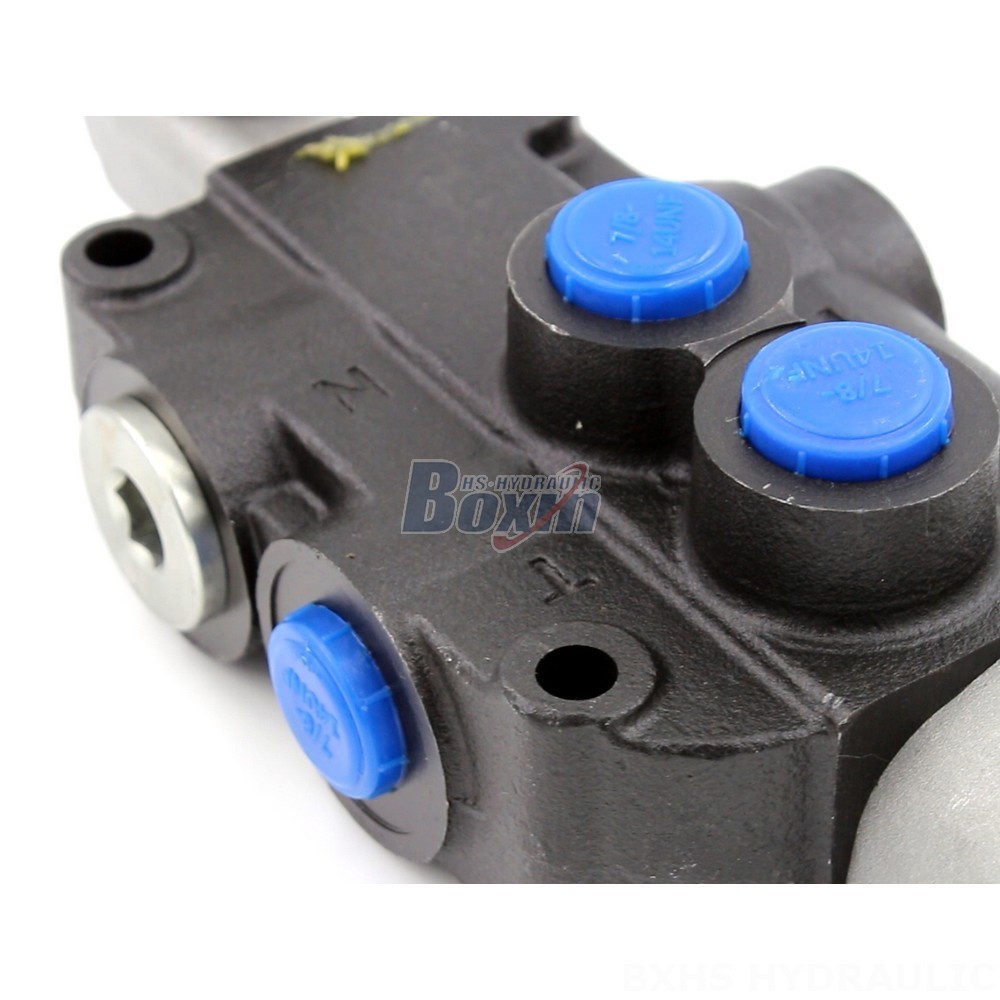

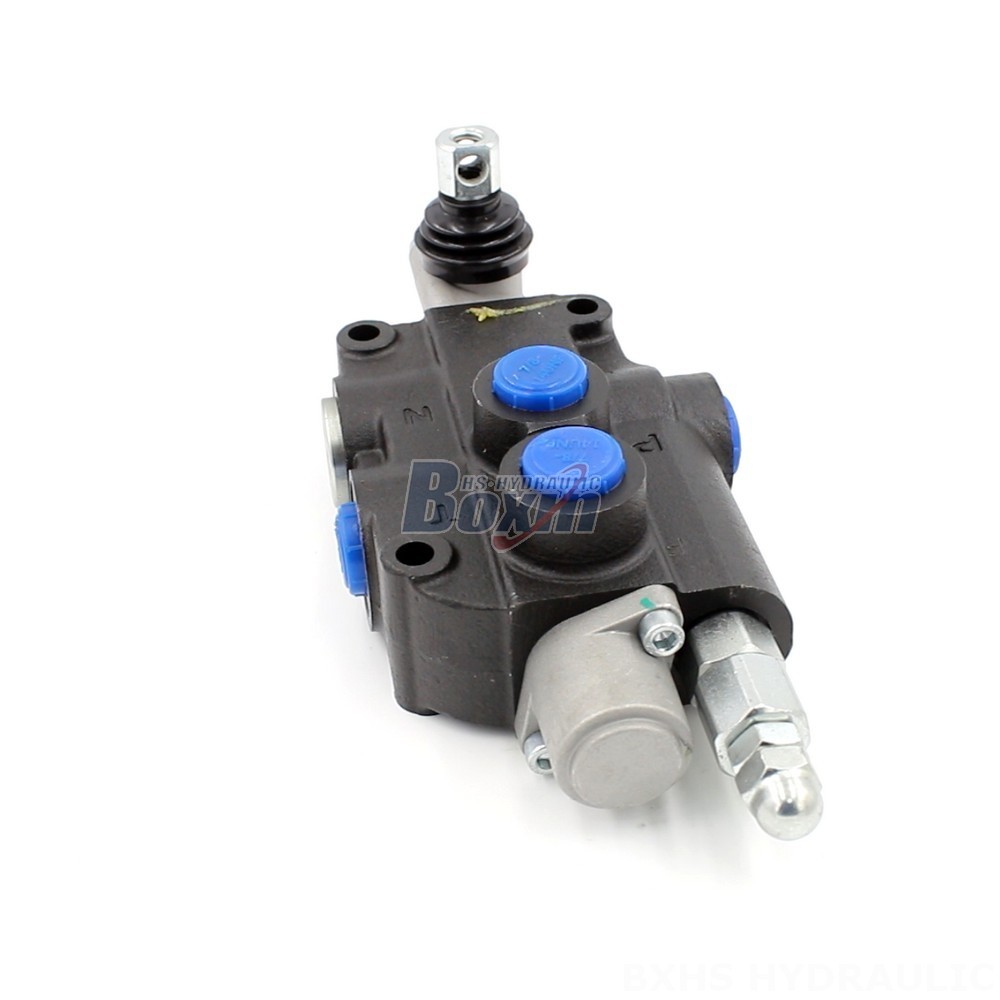

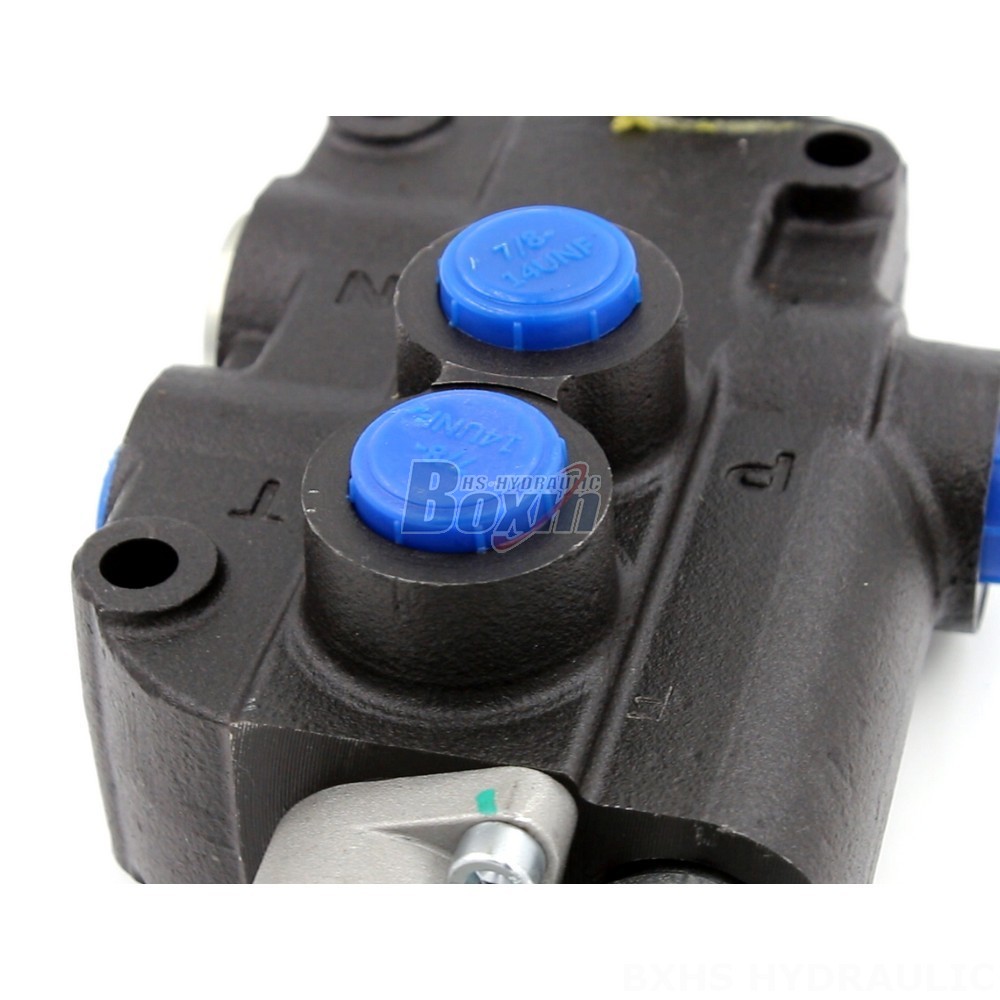

**P80-U78-1OT Directional Control Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series
**Applications:**
The P80-U78-1OT directional control valve is widely used in various applications, including:
- Material Handling: Telehandlers, forklifts, stackers, aerial platforms
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders, compact wheel loaders
- Agriculture: Tractors, harvesters, sprayers
- Industrial Vehicles: Cranes, aerial work platforms, mining equipment
**OEM/ODM/Private Label Services:**
We offer flexible OEM/ODM/Private Label services to meet the unique requirements of our customers. We can customize the P80-U78-1OT directional control valve according to your specifications, including:
- Custom porting configurations
- Specific pressure and flow requirements
- Integration with other hydraulic components
- Your company logo and branding
Our team of experienced engineers will work closely with you to develop a customized hydraulic solution that meets your exact needs and exceeds your expectations.
