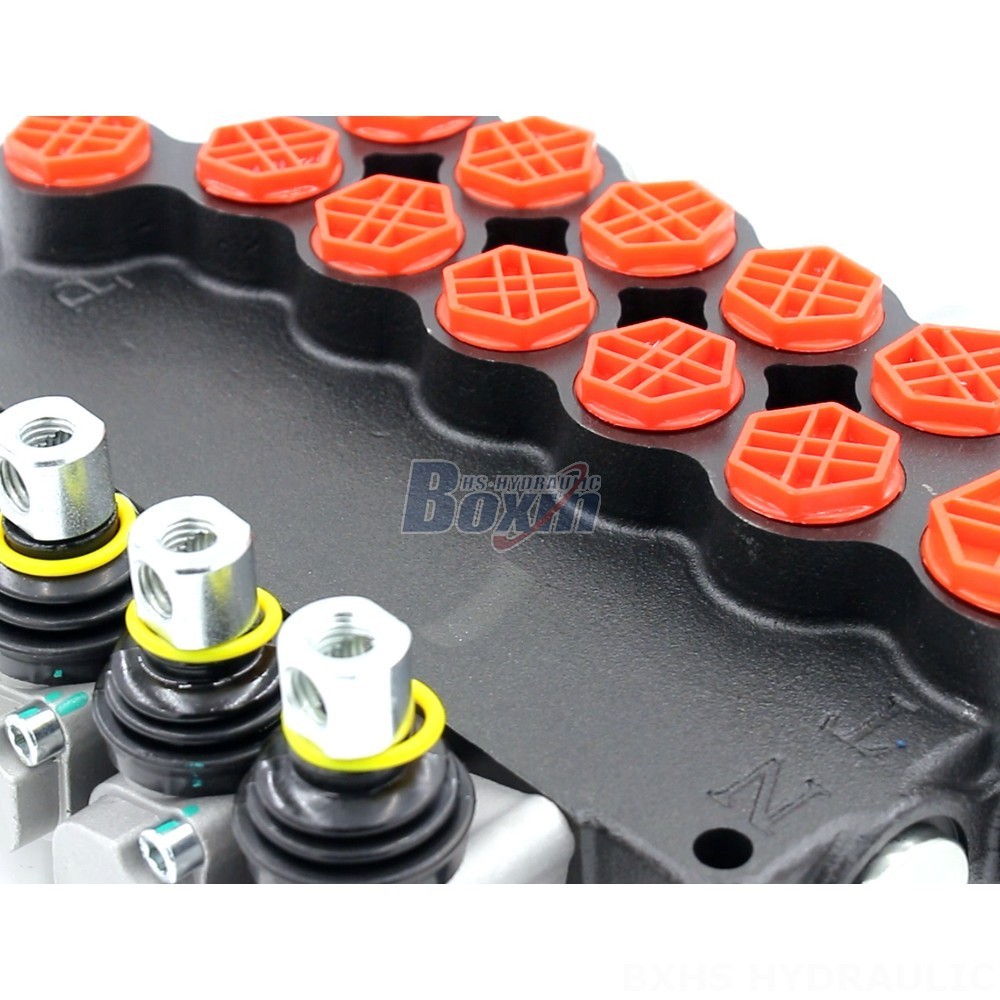

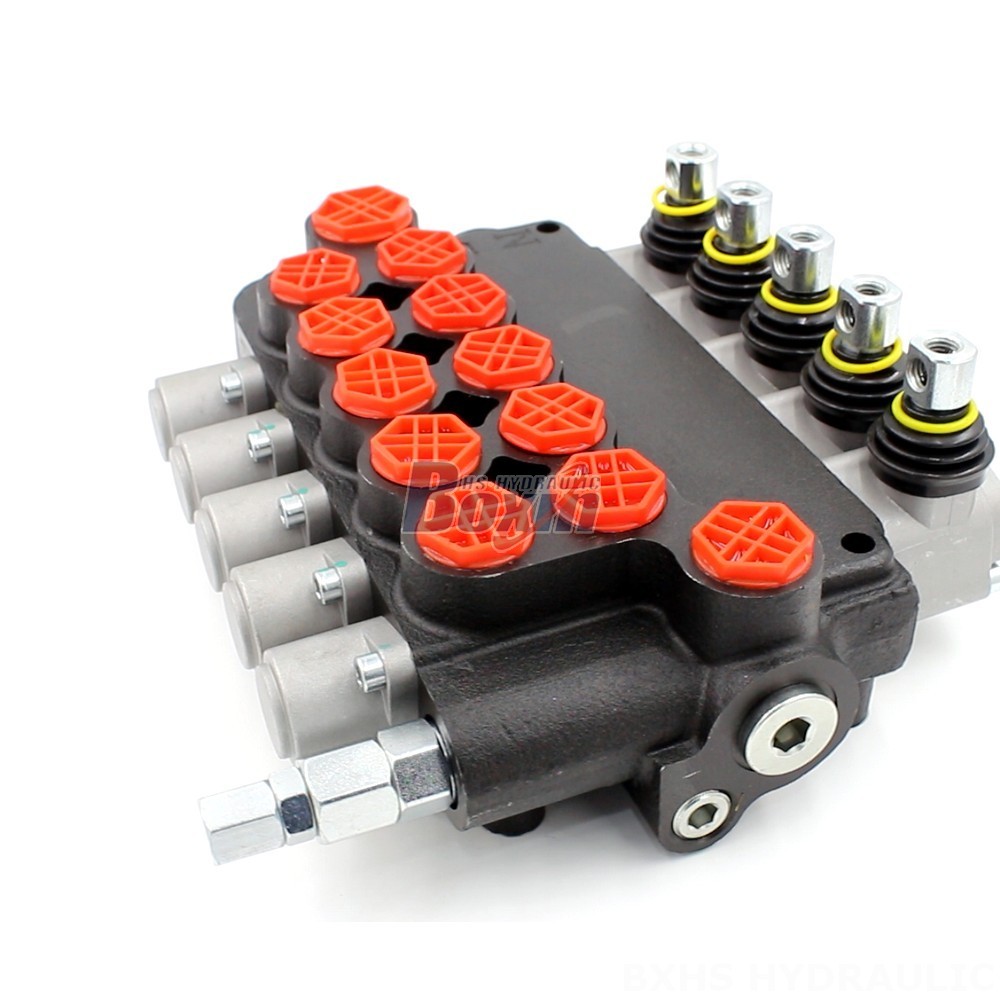

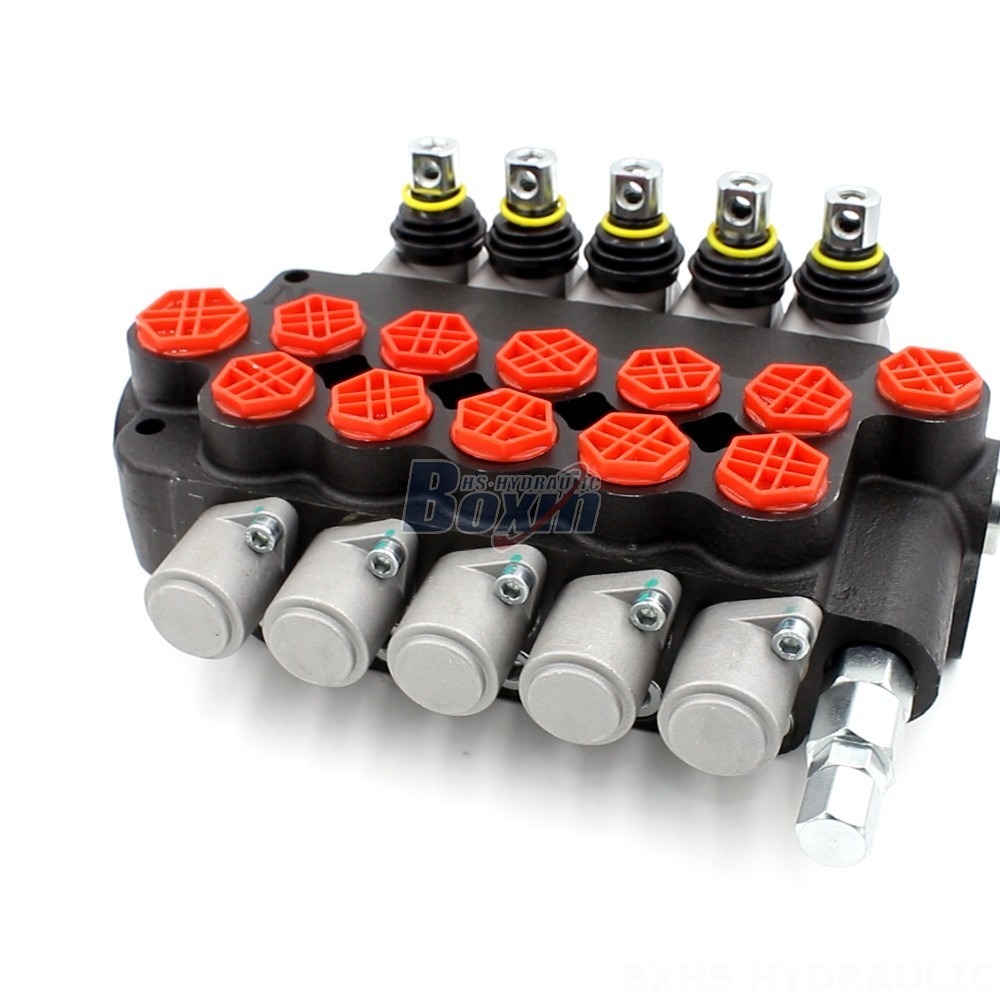

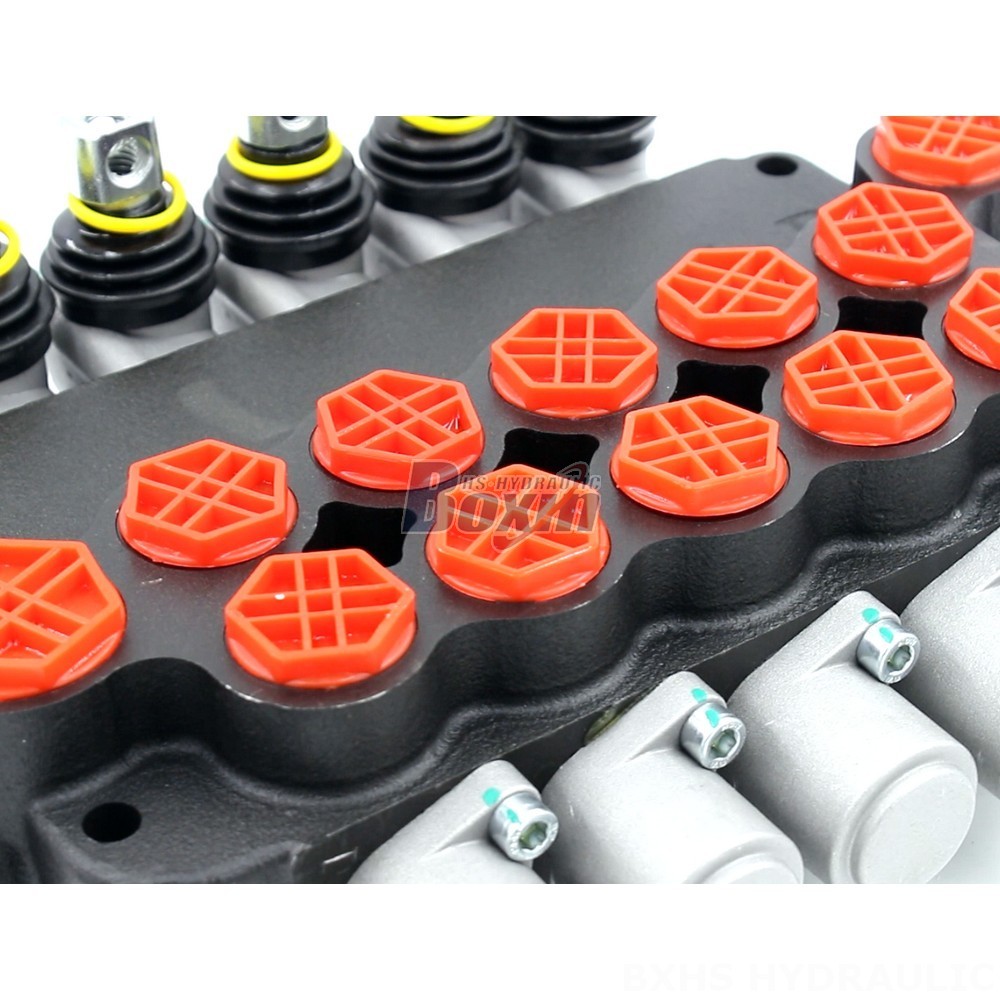

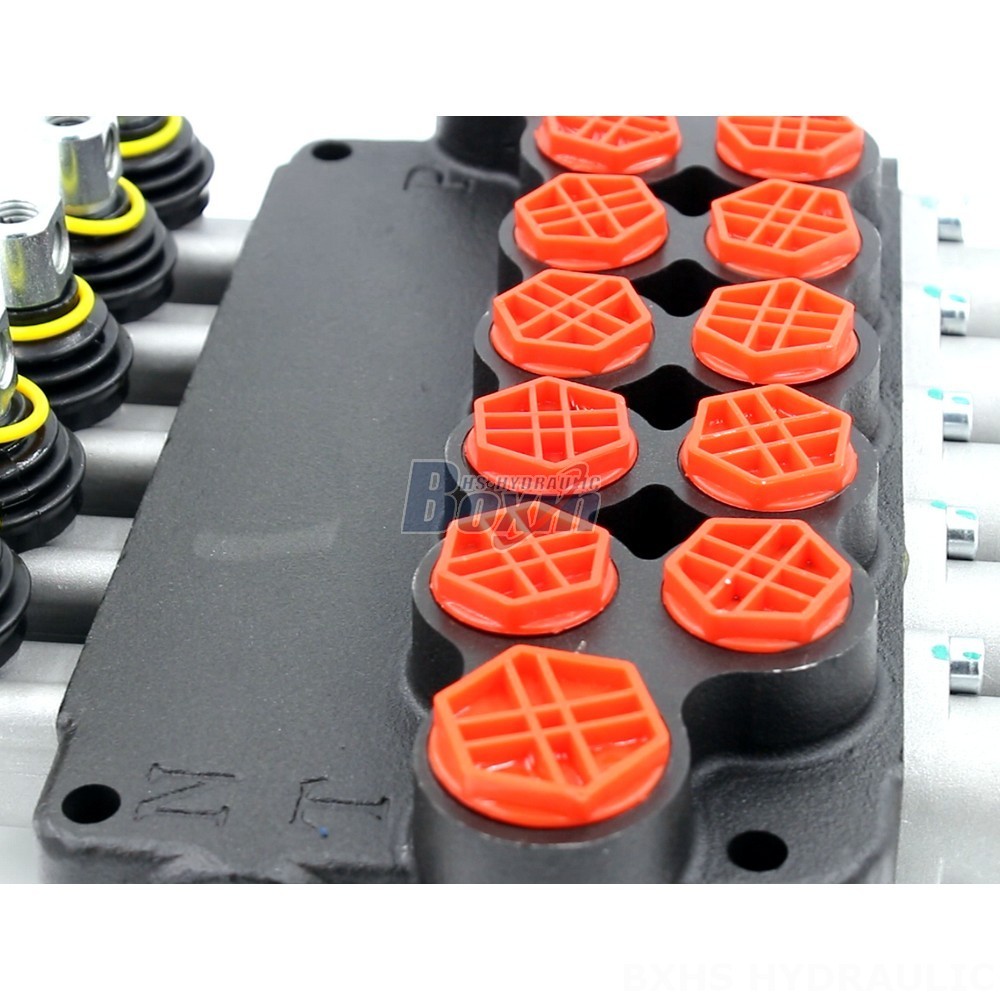

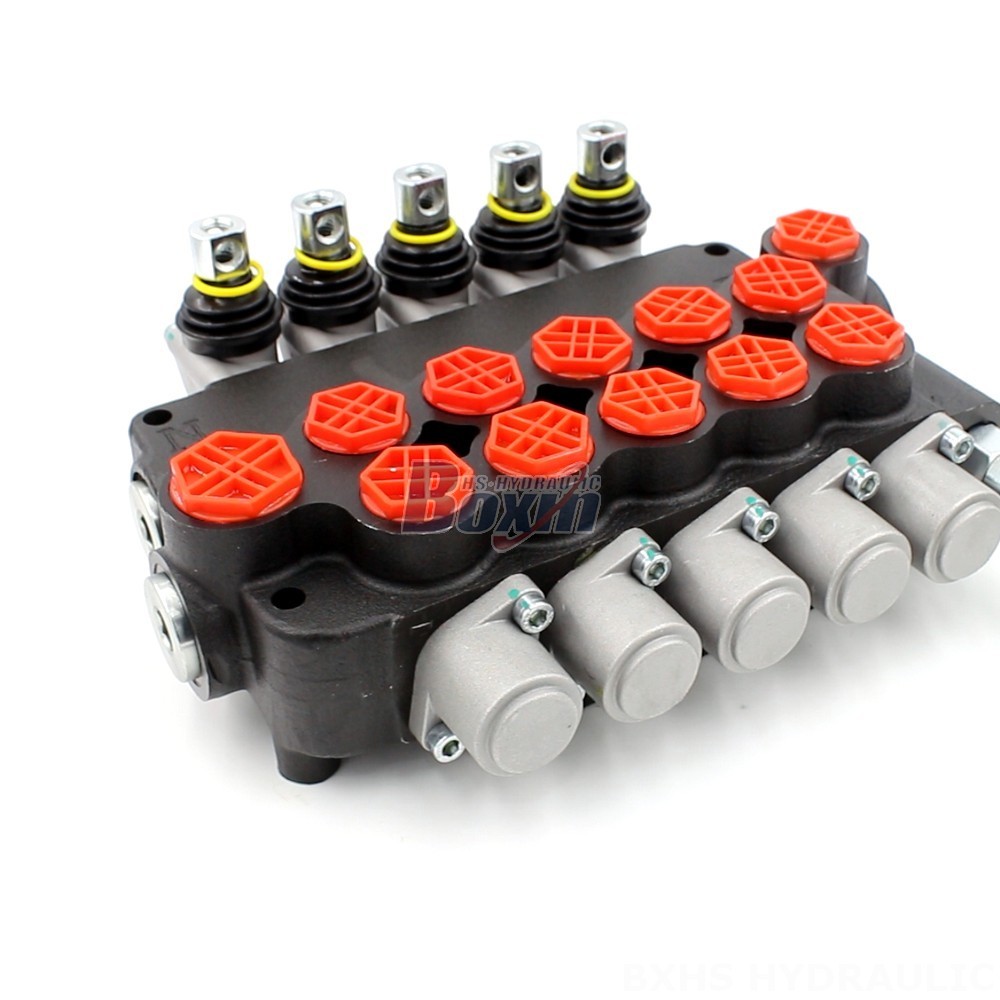

Introducing Bespoke Hydraulic Solutions: P80-G12-G38-OW 5 Spool Directional Control Valves, meticulously engineered to meet your specific hydraulic system requirements. Our valves are highly customizable, allowing you to tailor them to your unique application needs. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), these valves provide exceptional performance and durability.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80 Series Directional Control Valves are designed with a monoblock structure, ensuring superior strength and reliability. They feature a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F), making them suitable for use in demanding environments. We offer a comprehensive range of customization options, including spool configurations, pressure settings, and porting arrangements. Whether you require OEM, ODM, or private label services, our team of experts is dedicated to working closely with you to deliver the perfect solution. Contact us today to discuss your specific requirements and experience the Bespoke Hydraulic Solutions difference.
