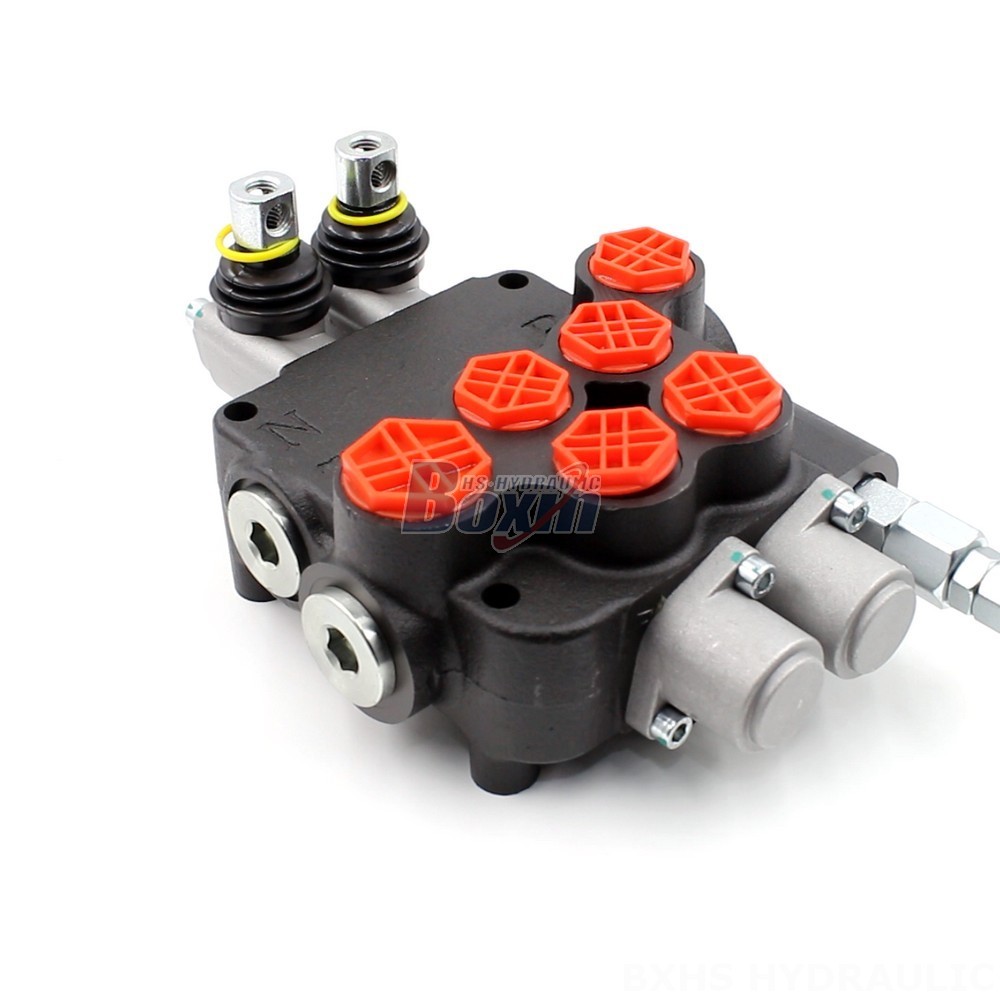

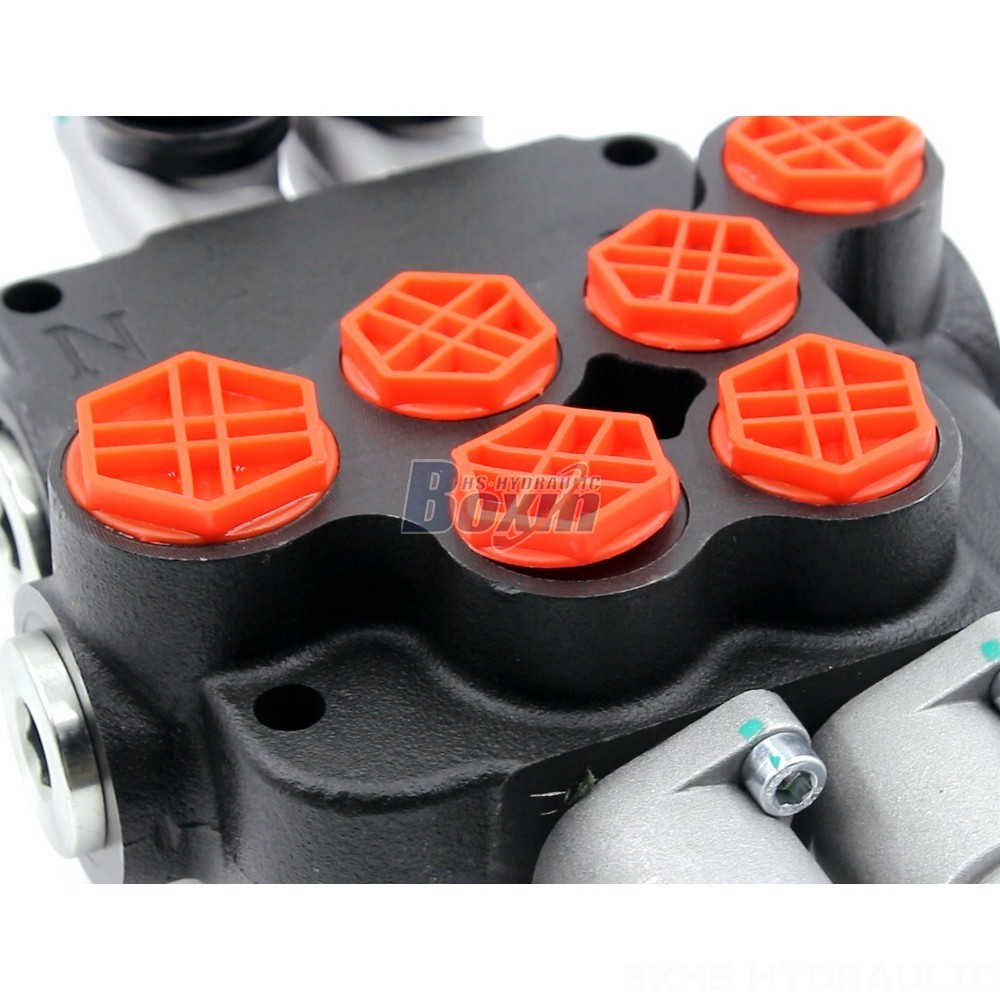

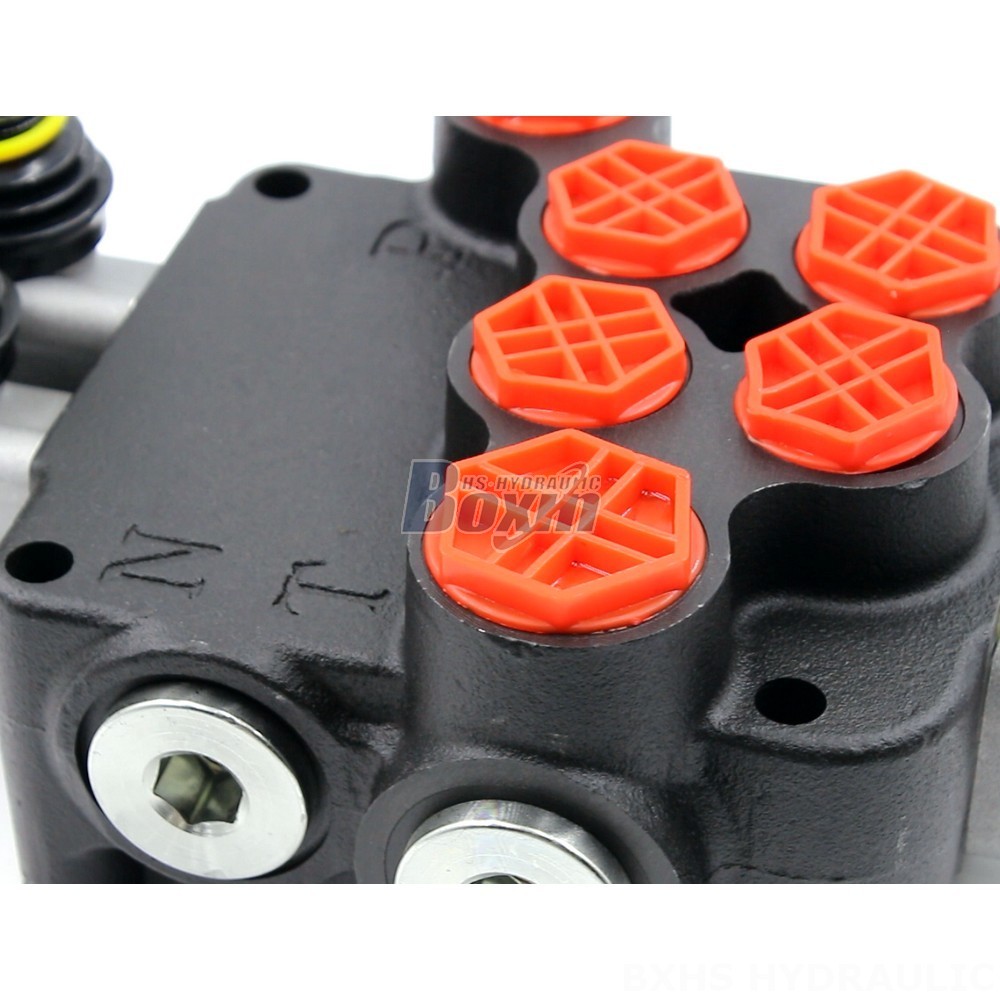

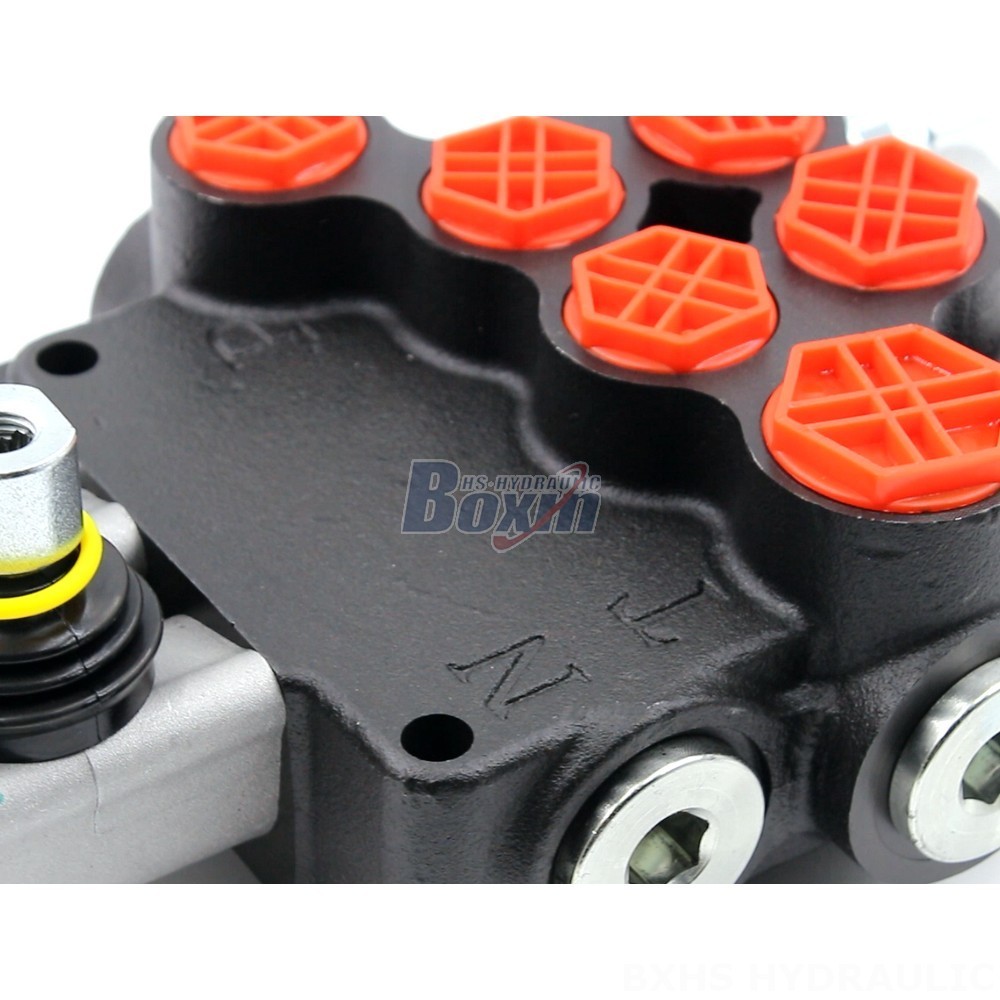

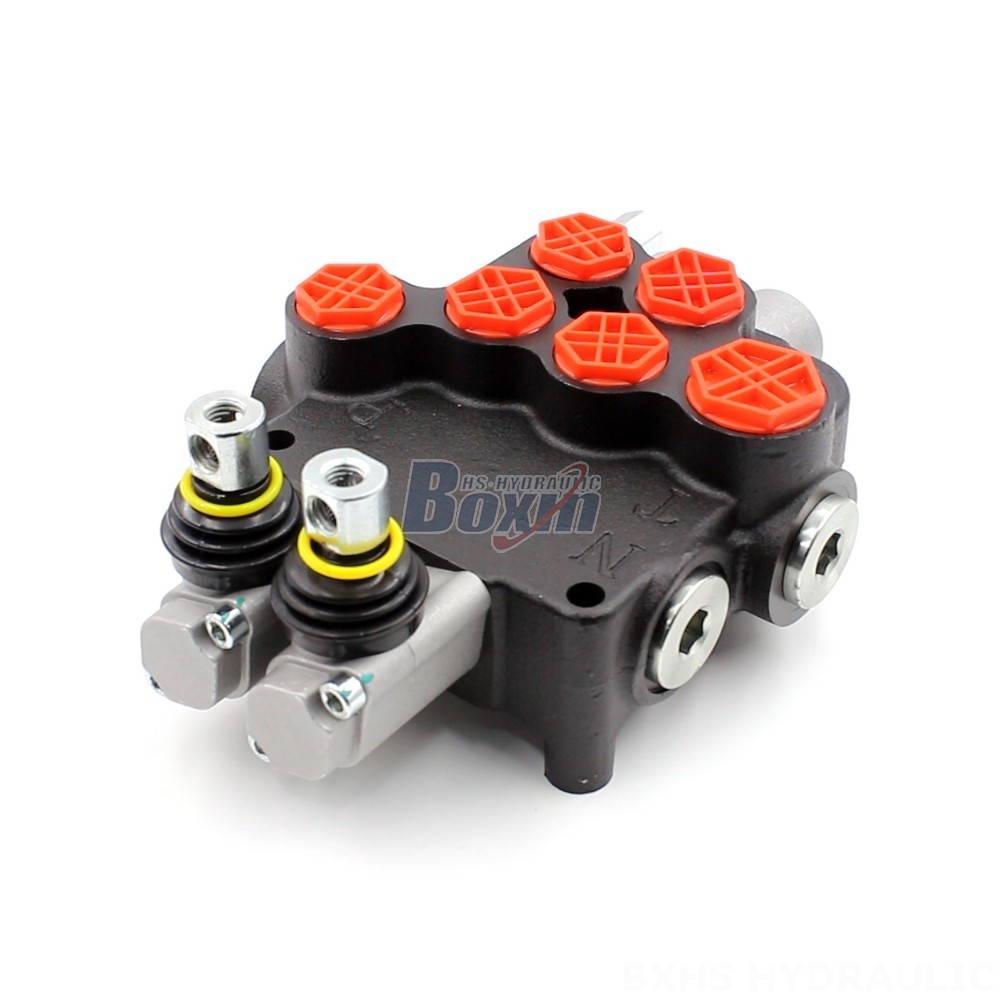

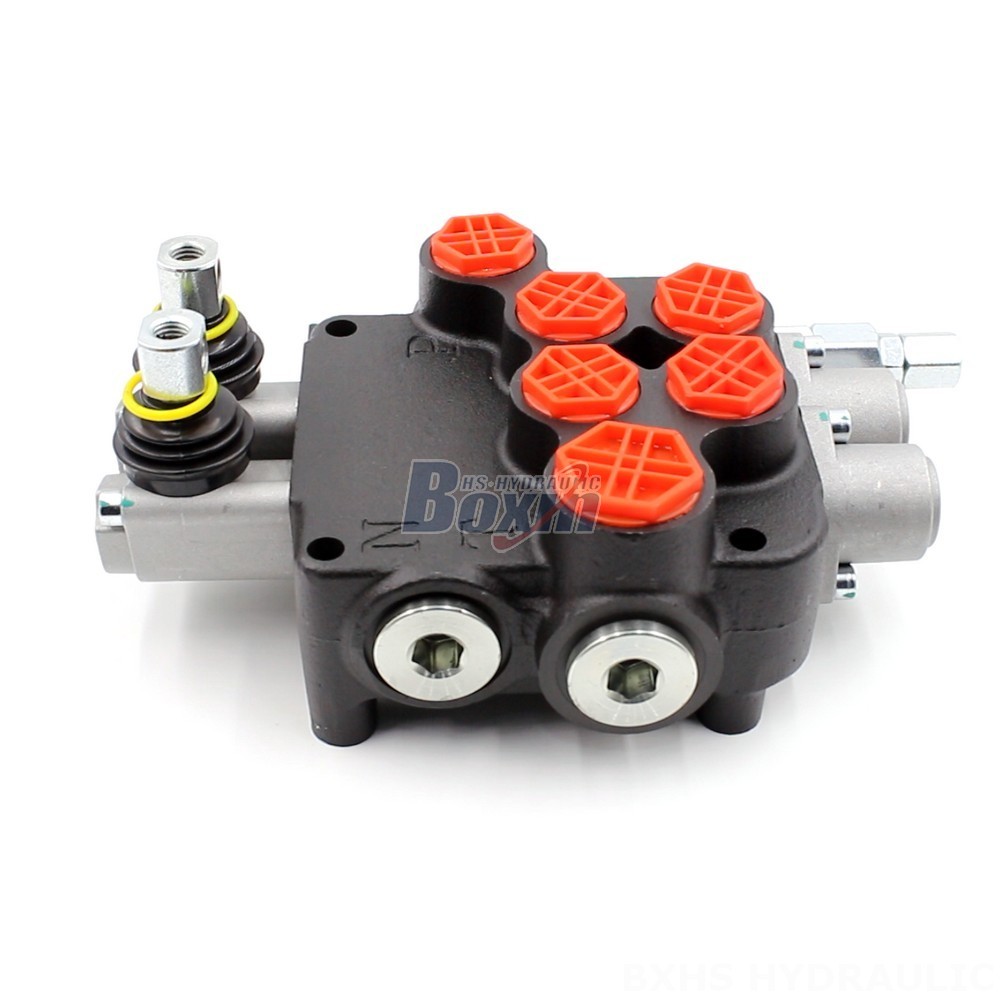

Introducing our Bespoke Hydraulic Solutions: P80-G12-G34-OW Directional Control Valves, meticulously designed and manufactured to meet your unique hydraulic system requirements. These high-performance valves are customizable to fit your specific application, ensuring optimal control and efficiency.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80 Series Customizable Directional Control Valves**
**Key Features:**
- Manual control for precise operation
- Monoblock valve construction for durability and compactness
- Rated flow of 80 L/min (21.2 US gpm) for efficient hydraulic fluid flow
- Maximum pressure of 250 bar (3600 psi) for demanding applications
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for versatility
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for wide-ranging operation
**Applications:**
- Material Handling: Telehandlers, Forklifts
- Construction and Earth Moving: All Terrain Cranes, Stackers, Motor Graders
- Agriculture: Tractors, Harvesters
- Industrial Vehicles: Aerial Platforms, Skid Steer Loaders
Our P80 Series Directional Control Valves are meticulously engineered to provide exceptional performance and reliability, making them the ideal choice for a wide array of mobile hydraulic applications.
