Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1088 personnes consultent ce produit

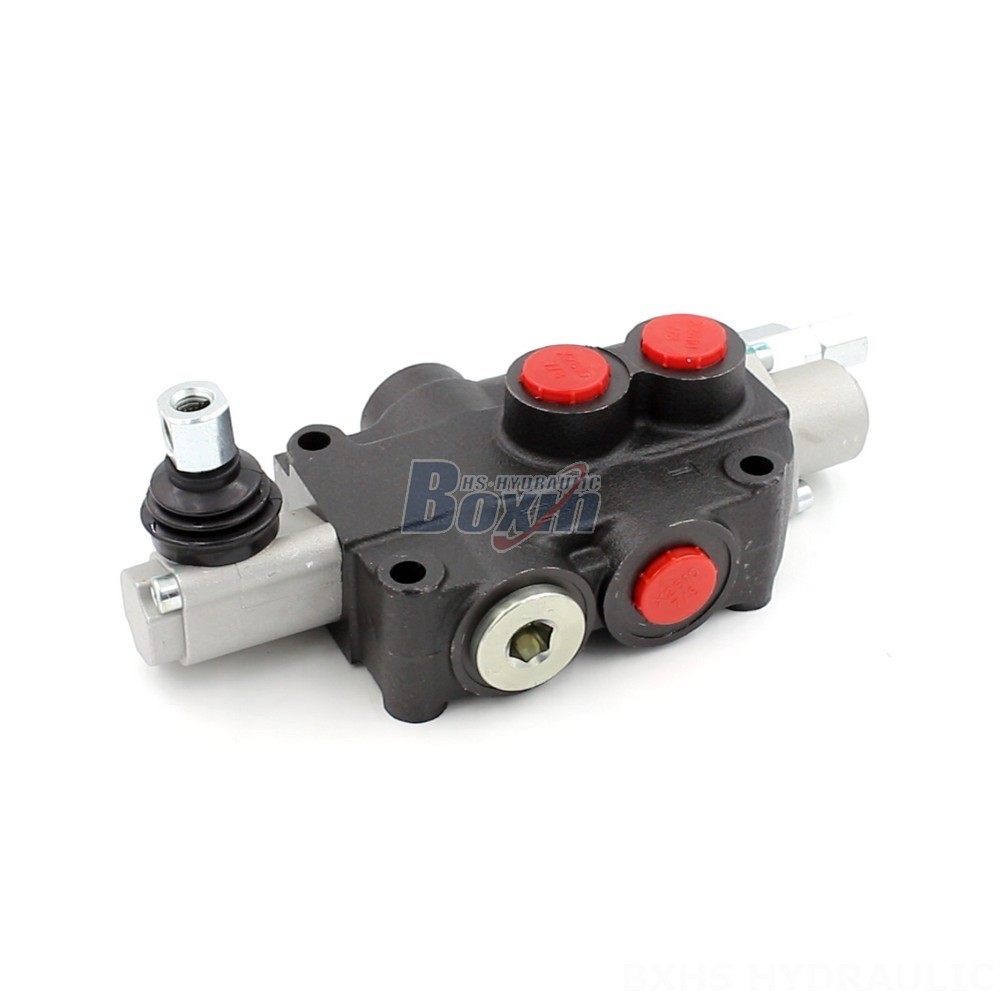

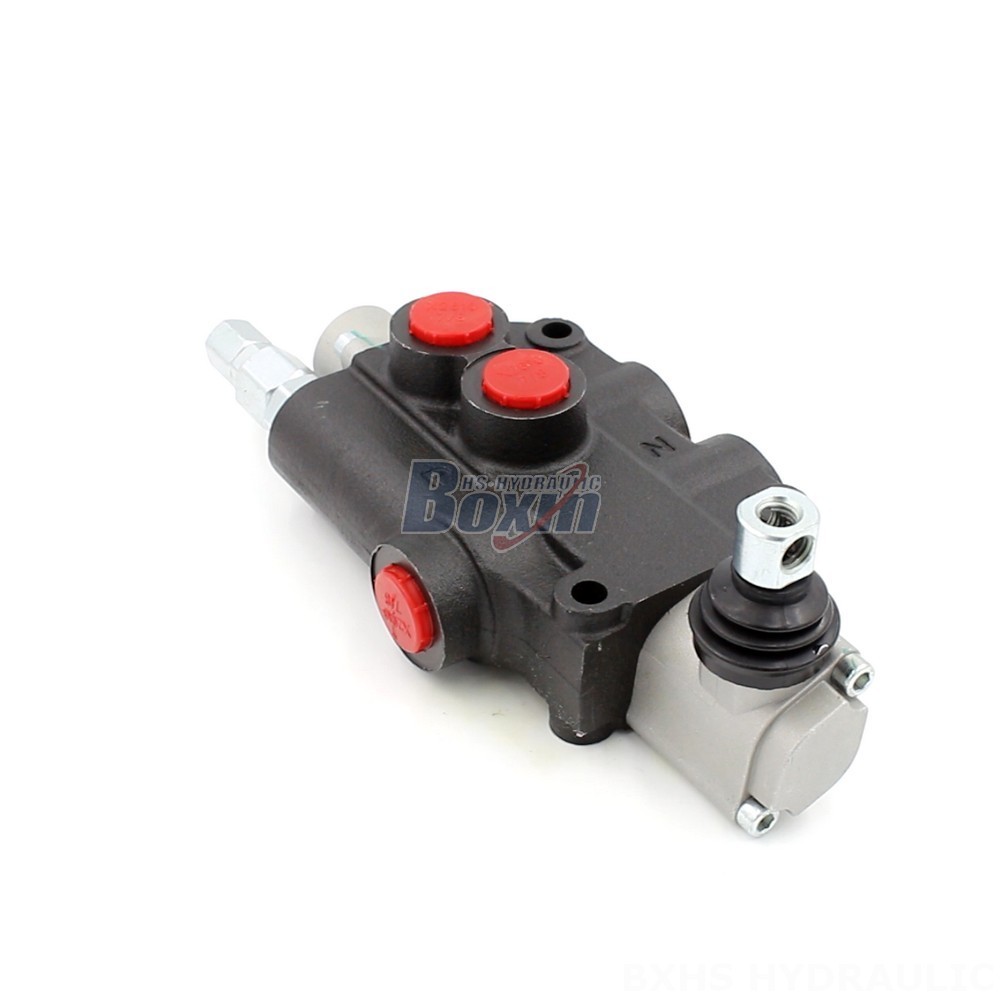

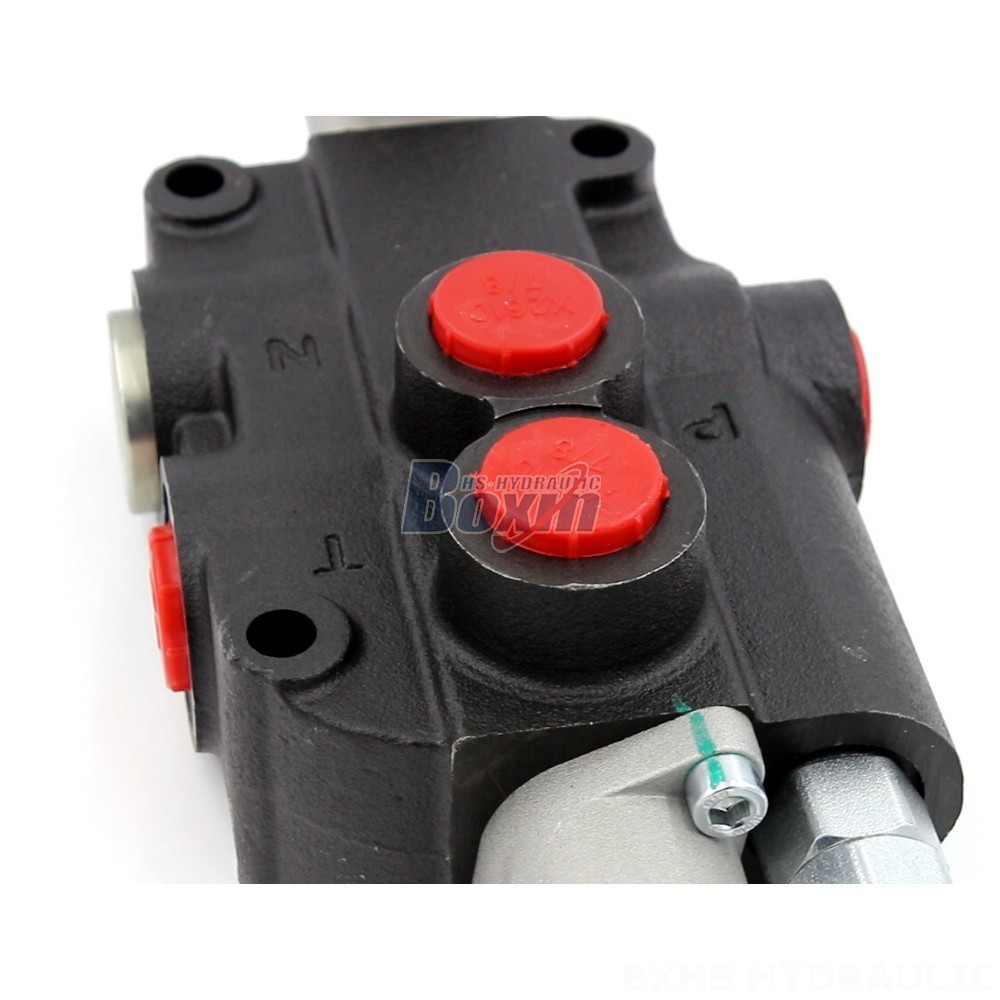

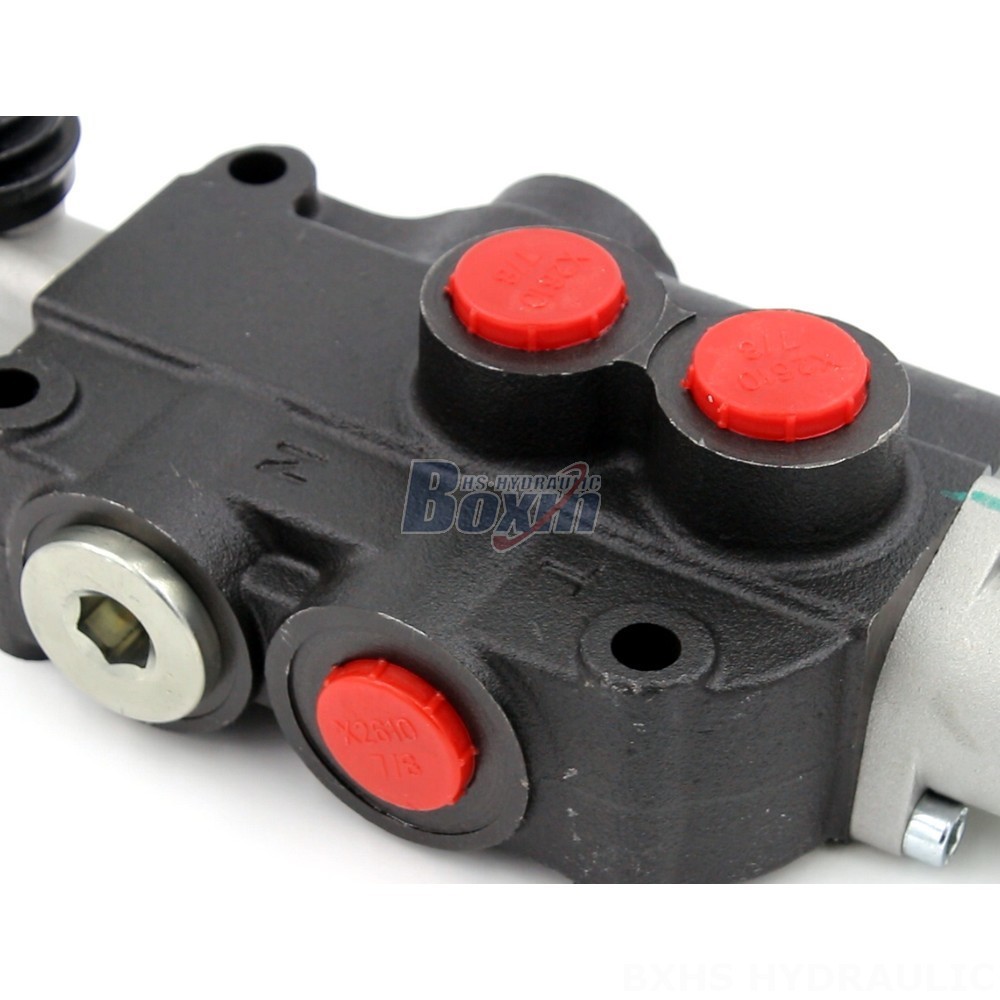

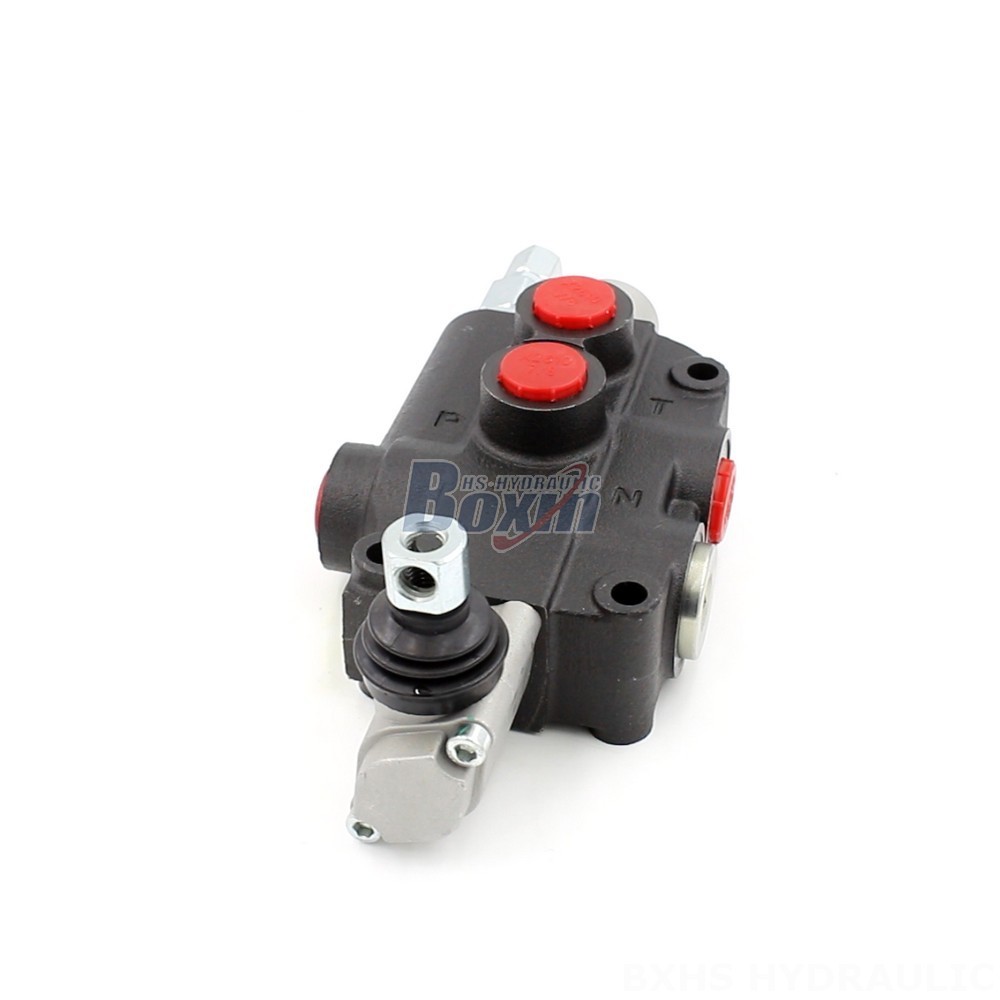

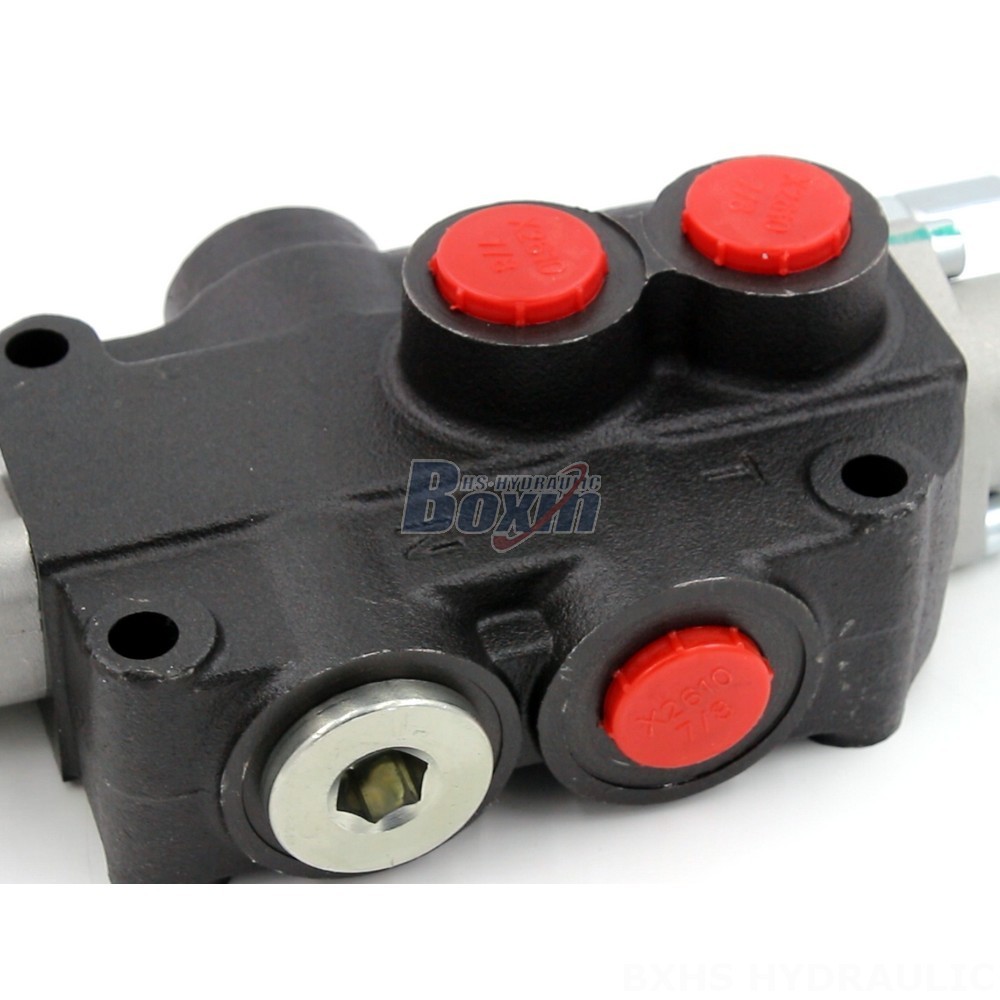

P80-U78-OT Directional Control Valves are bespoke hydraulic components designed to meet specific application requirements. With a manual control method, monoblock valve structure, 80 L/min (21.2 US gpm) rated flow, and 250 bar (3600 psi) max pressure, these valves are ideal for MATERIAL HANDLING applications, particularly in FORKLIFTs.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our bespoke hydraulic components offer a range of benefits, including:
* **Customization:** We can tailor our products to your specific requirements, ensuring a perfect fit for your application.
* **OEM and ODM services:** We offer both OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services, providing flexibility in product development.
* **High quality:** Our products are manufactured to the highest standards, ensuring reliability and durability.
* **Global distribution:** We have a network of distributors, wholesalers, agents, and traders worldwide, ensuring easy access to our products.
P80-U78-OT Directional Control Valves are just one example of our bespoke hydraulic component offerings. Contact us today to discuss your specific requirements and how we can provide a customized solution for your application.
