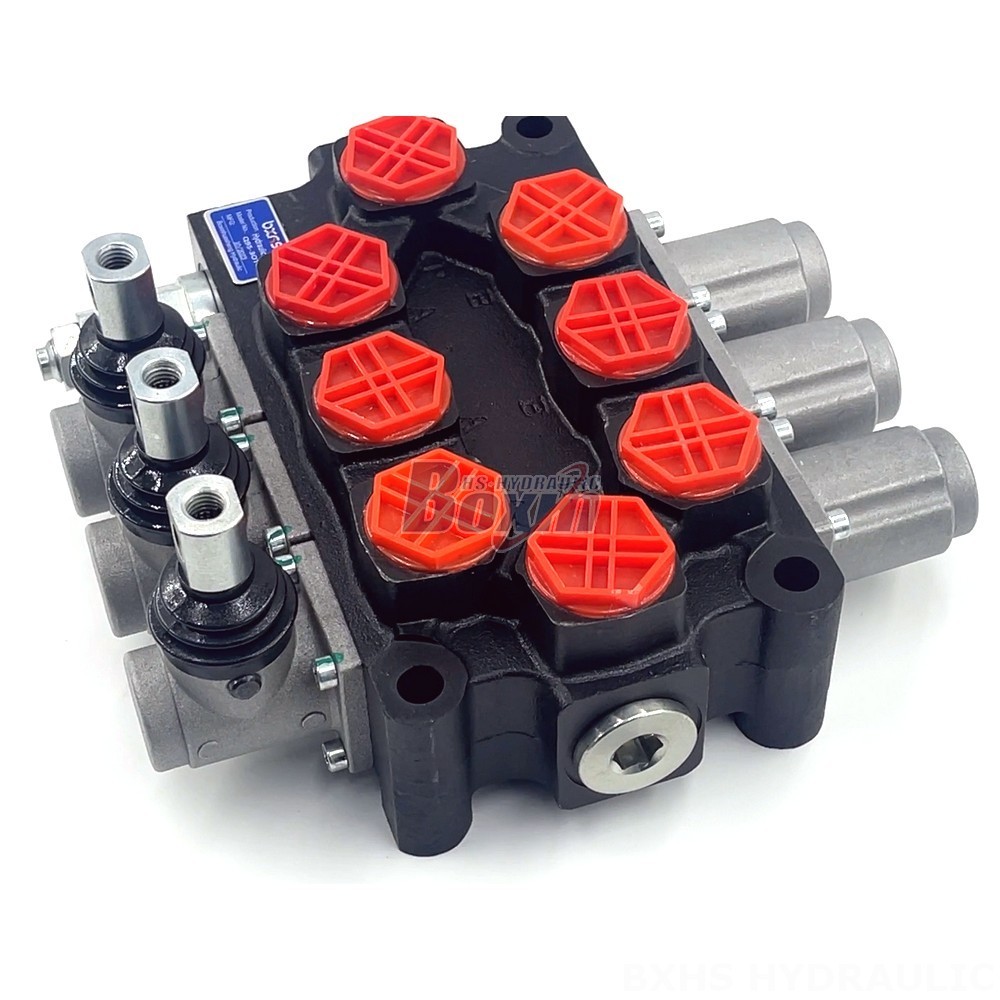

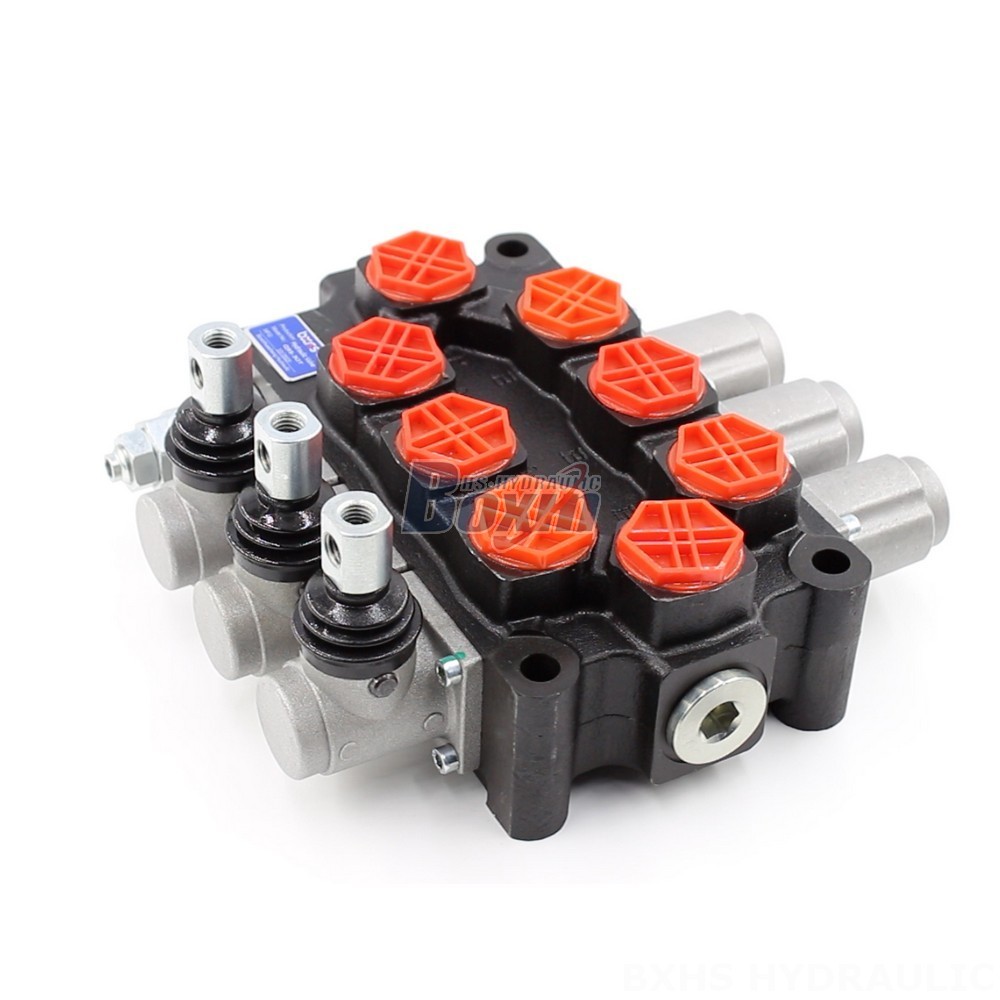

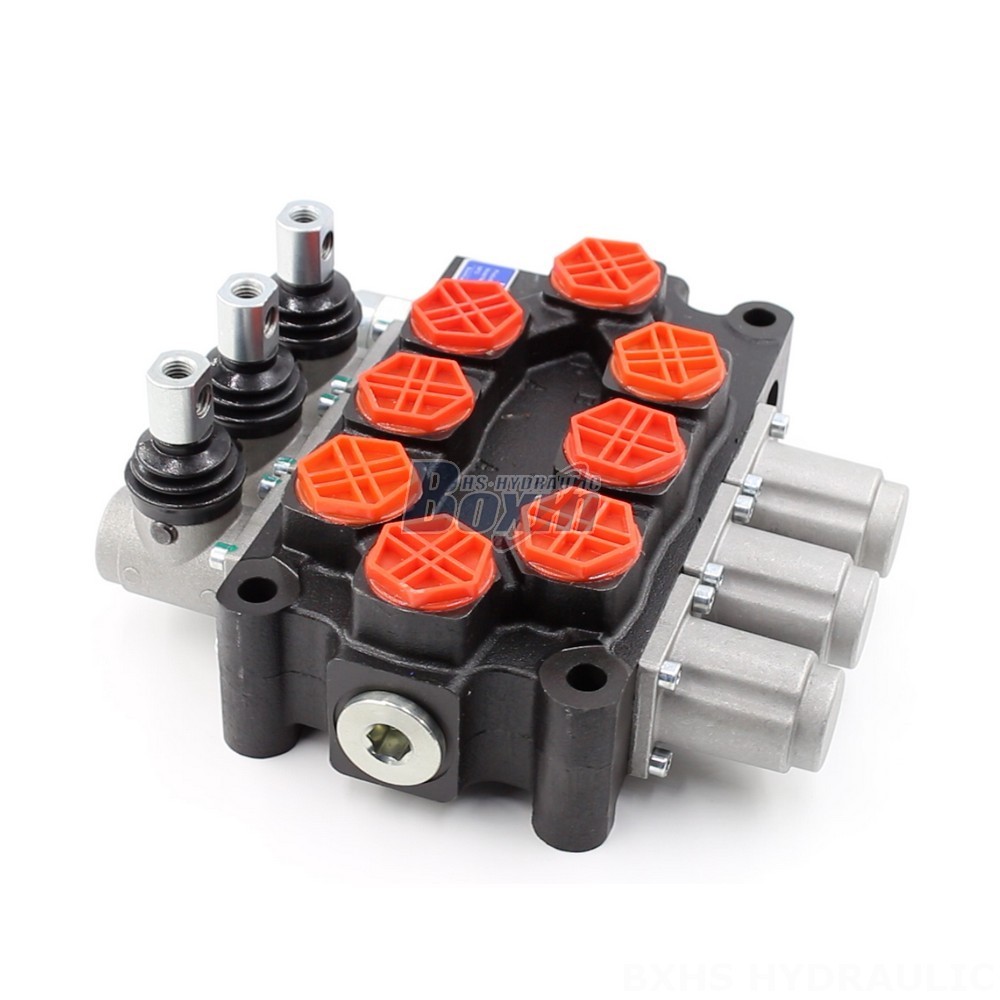

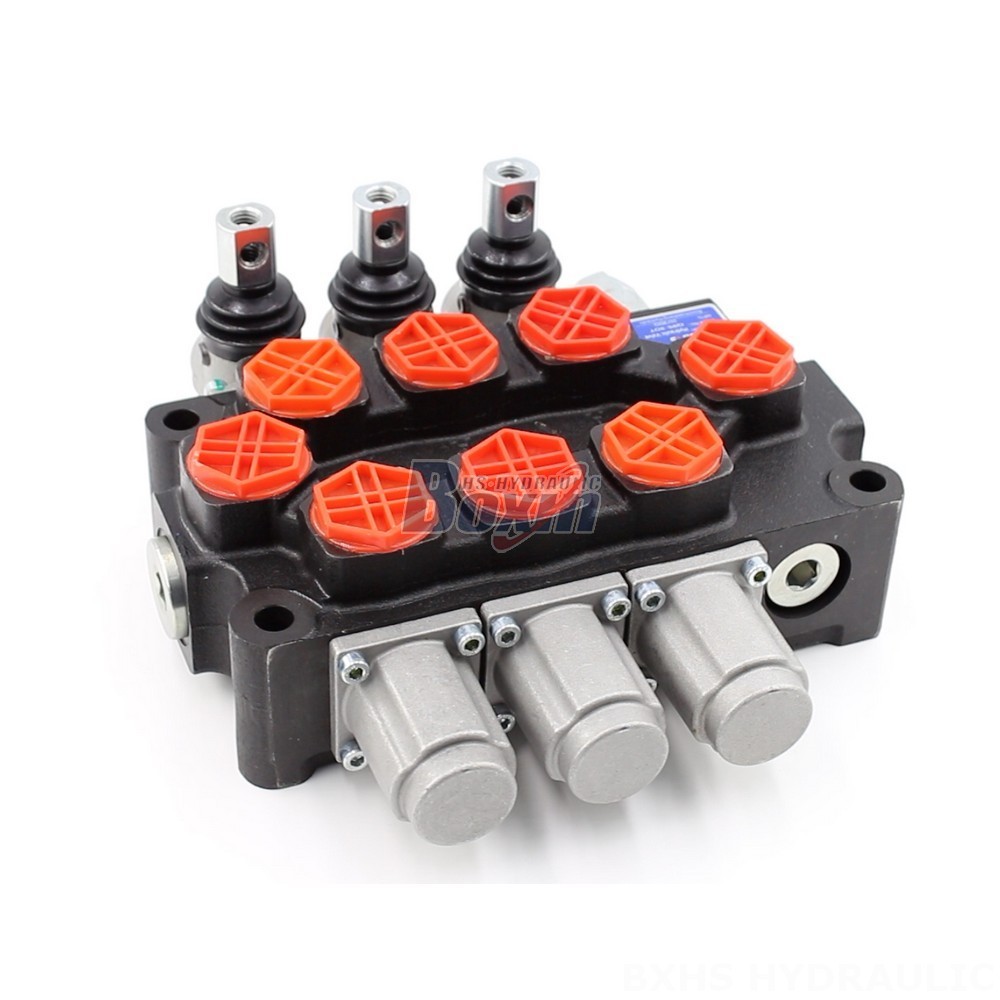

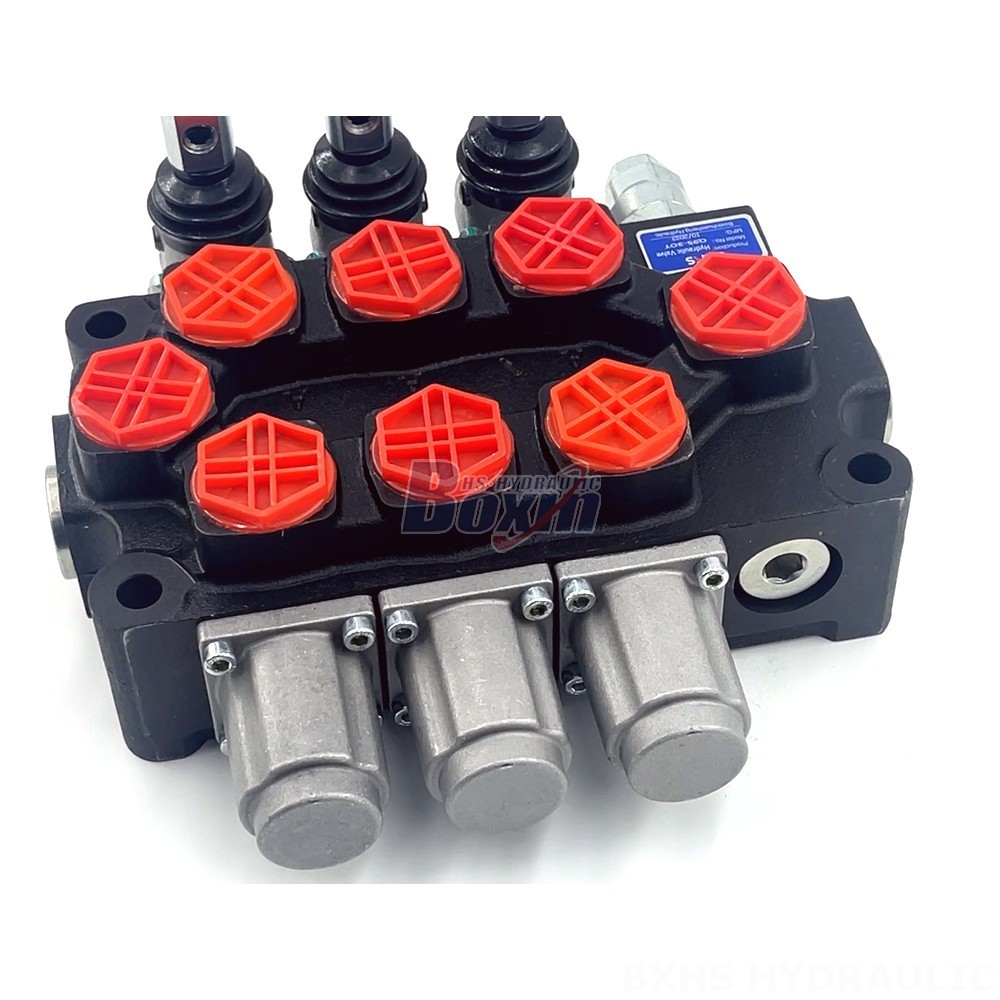

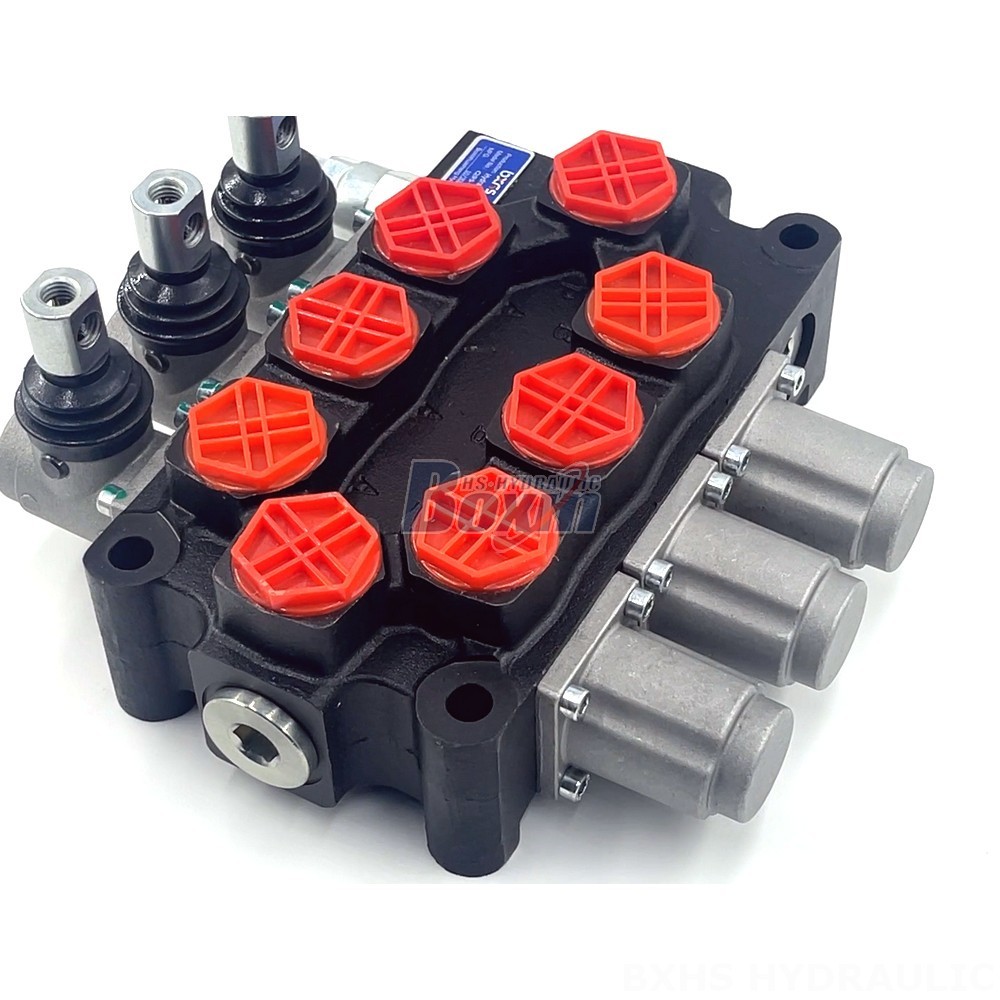

The Q95 Valve from Advanced Hydraulic Solutions is an exceptional directional control valve engineered to deliver unmatched performance and reliability in demanding hydraulic applications. It features a robust monoblock design, a rated flow of 95 L/min (25.1 US gpm), and a maximum pressure of 315 bar (4600 psi).
| Série Q95 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Débit nominal | 95 L/min (25,1 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G3/4 |
| Orifice de sortie | G3/4 |
| Dimension du raccord | G3/4 |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
**Key Features and Benefits:**
* **Monoblock Valve Construction:** Ensures structural integrity and durability in high-pressure environments.
* **3-Section Design:** Provides independent control of multiple hydraulic functions.
* **High Rated Flow:** 95 L/min (25.1 US gpm) for efficient system operation.
* **Wide Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids.
* **Extended Temperature Range:** -40°C to +80°C (-40°F to +176°F) for operation in extreme conditions.
* **3-Spool Configuration:** Allows for precise and responsive control of hydraulic actuators.
* **Versatile Applications:** Ideal for material handling equipment, construction and earth-moving machinery, agriculture equipment, and industrial vehicles.
