Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1236 personnes consultent ce produit

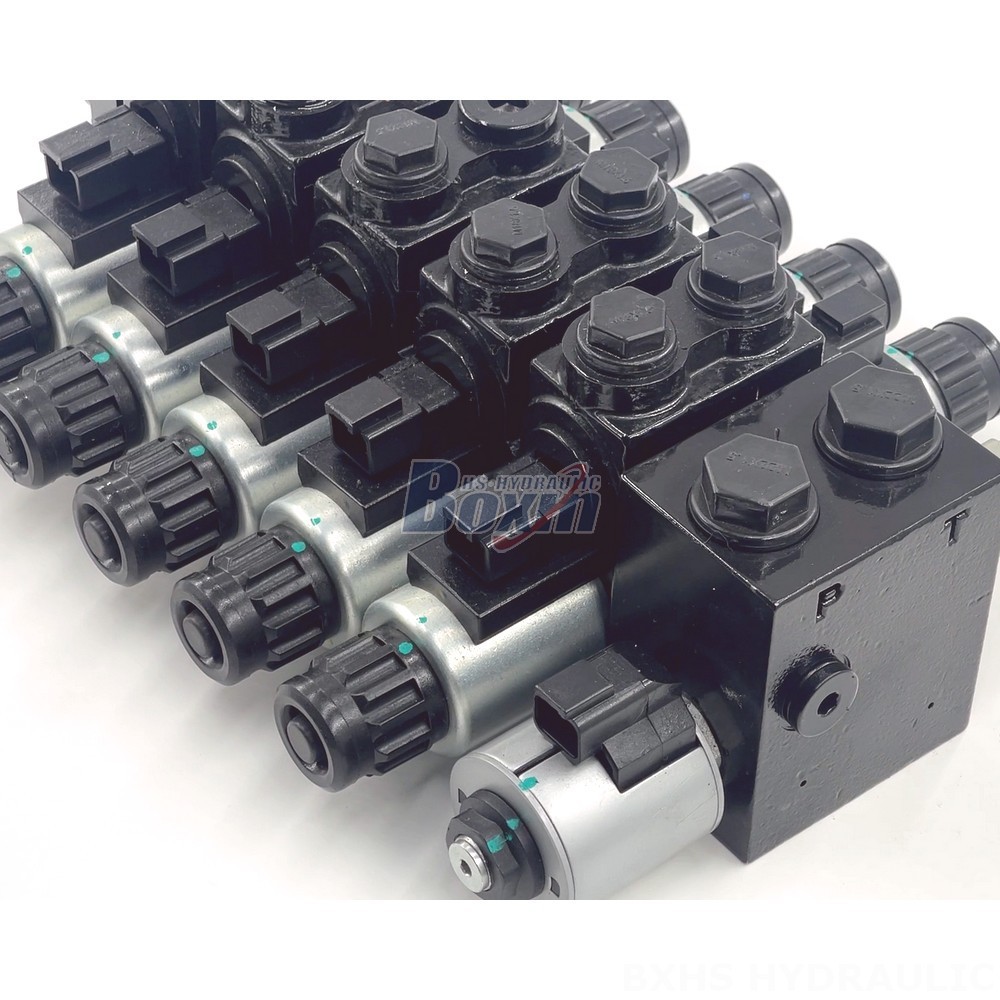

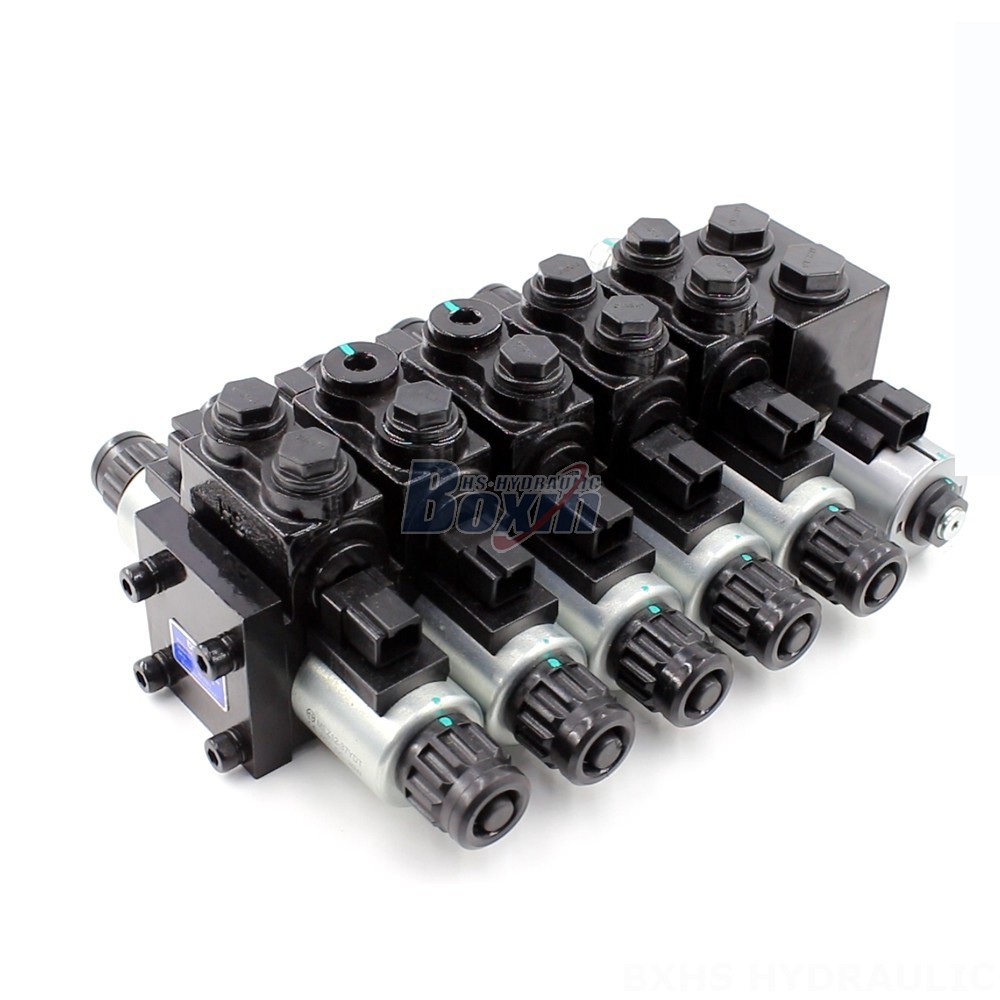

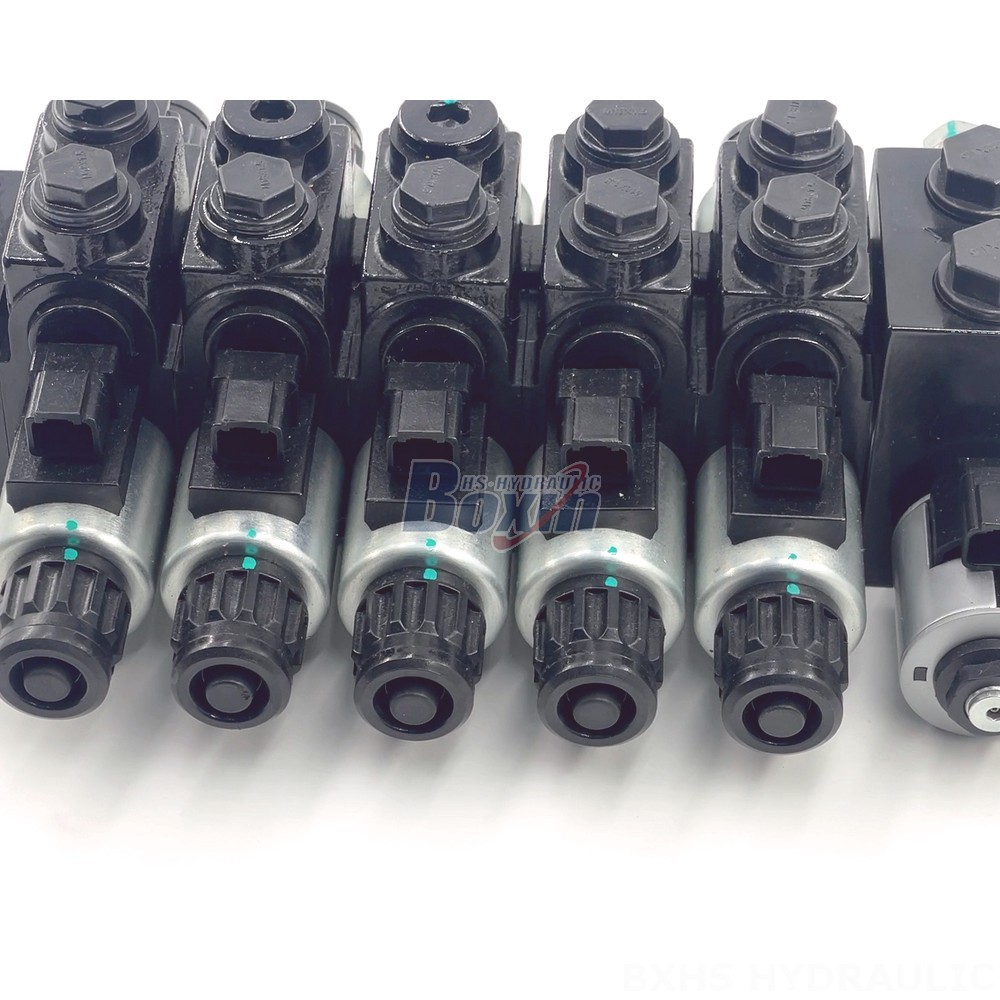

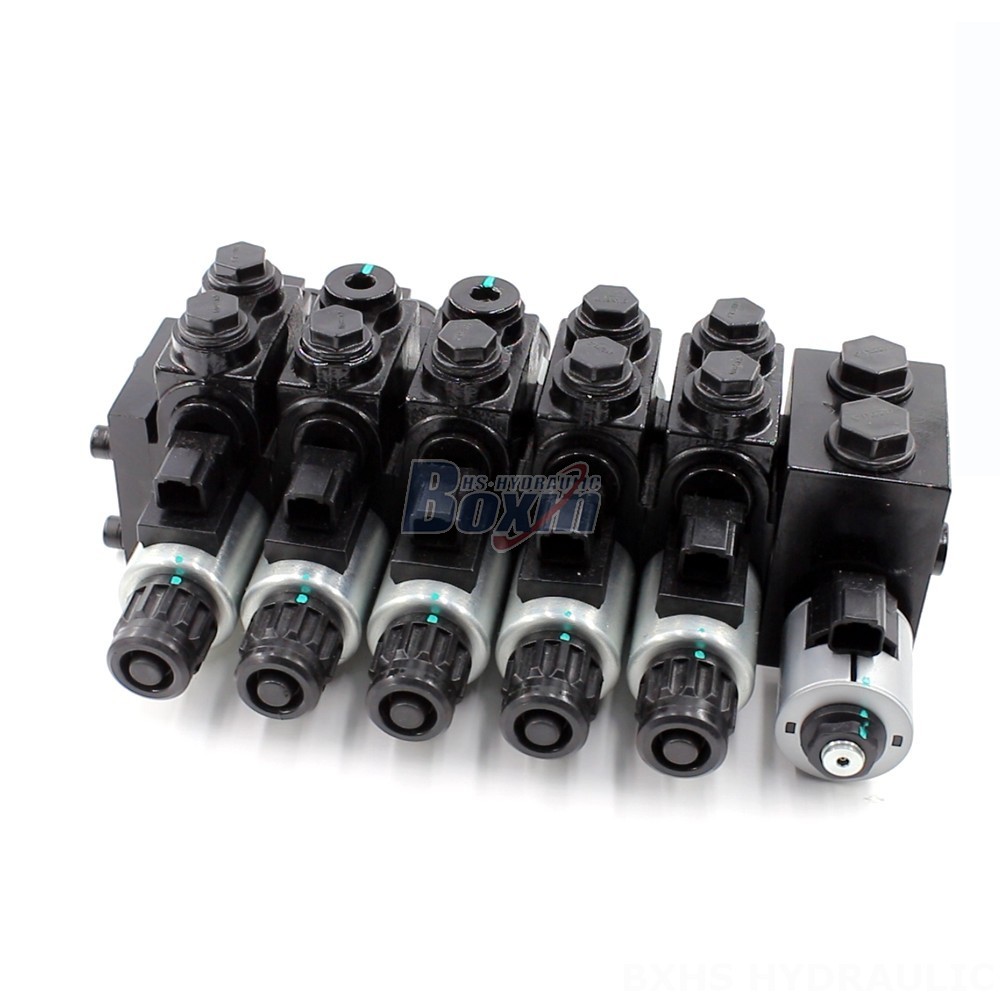

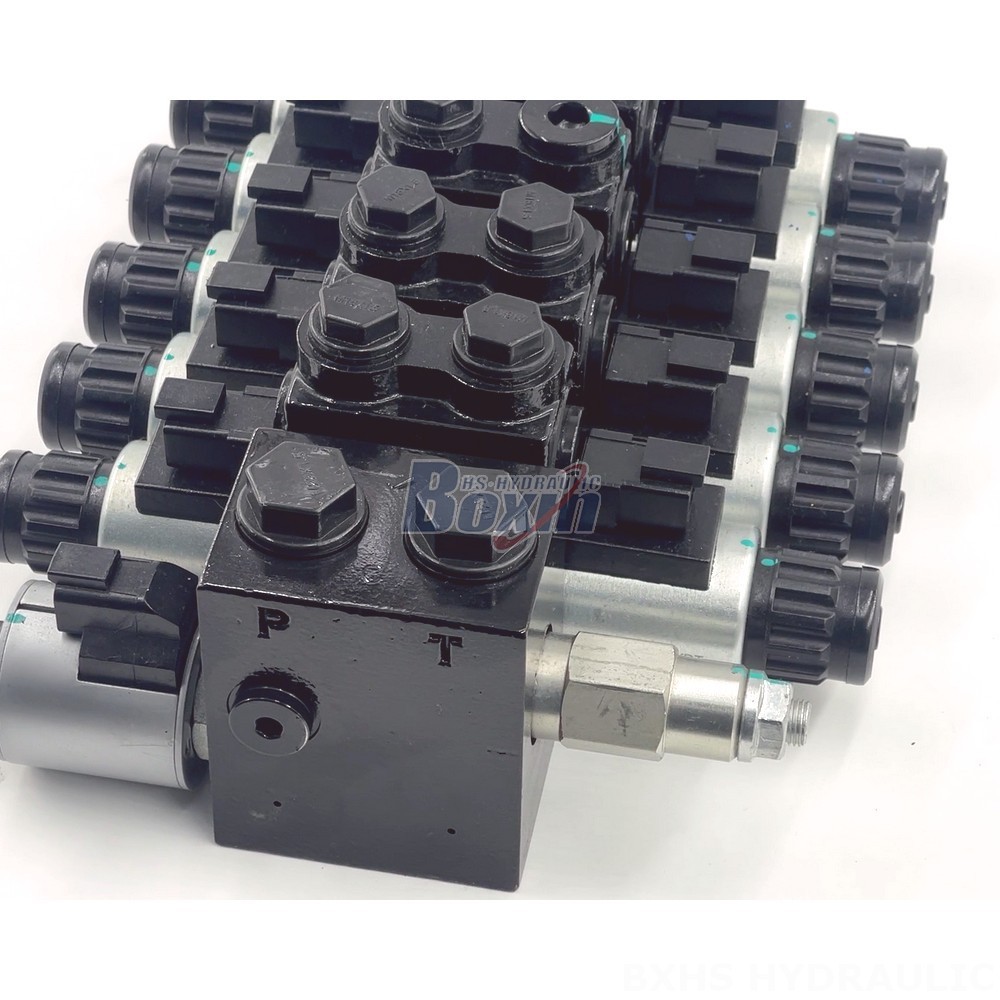

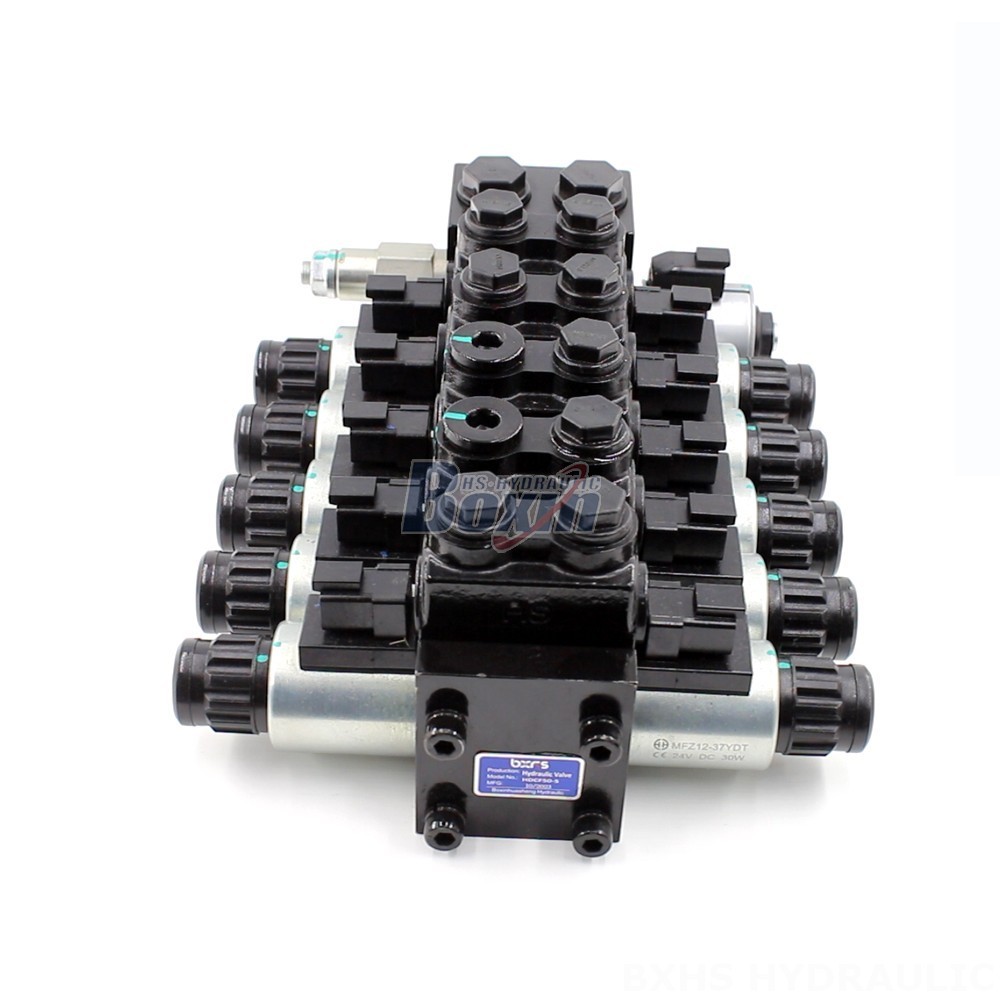

The Advanced HDCF50 Solenoid Control Valve is a high-performance hydraulic valve designed for demanding applications across various industries. With its robust sectional structure, 50 L/min flow capacity, and 160 bar pressure rating, this valve offers exceptional control and reliability.
| Série HDCF50 Soupape de commande à solénoïde Paramètres | |
|---|---|
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs, 8 tiroirs, 9 tiroirs, 10 tiroirs |
| Méthode de contrôle | Solénoïde |
| Dimension du raccord | M22×1.5, SAE 8 |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de températures ambiantes | -20 °C à +80 °C (-4 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Orifice de sortie | M18×1.5, M22×1.5, SAE 8 |
| Pression maximale | 160 bar (2 300 psi) |
| Débit nominal | 50 L/min (13,2 US gpm) |
| Type de structure | Distributeur à clapets |
| Orifice d'entrée | M18×1.5, M22×1.5, SAE 8 |
**Product Name:** Advanced HDCF50 Solenoid Control Valve
**Control Method:** Solenoid
**Section:** 5 Section
**Structure Type:** Sectional Valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 5 Spool
**Voltage:** 12V 24V
**Series:** HDCF50 Series
**Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
**Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Mini-Excavator, Skid Steer Loader, Compact Wheel Loader, Wheel Loader
**Key Features:**
- Advanced design for demanding hydraulic applications
- Sectional valve construction allows for customization and flexibility
- High flow capacity of 50 L/min ensures efficient operation
- Maximum pressure rating of 160 bar for heavy-duty applications
- Wide operating viscosity range from 15 to 75 cSt
- Robust construction with high durability and reliability
- Available in various spool configurations and voltage options
- Suitable for a wide range of hydraulic systems and equipment
- Backed by global manufacturing and support
