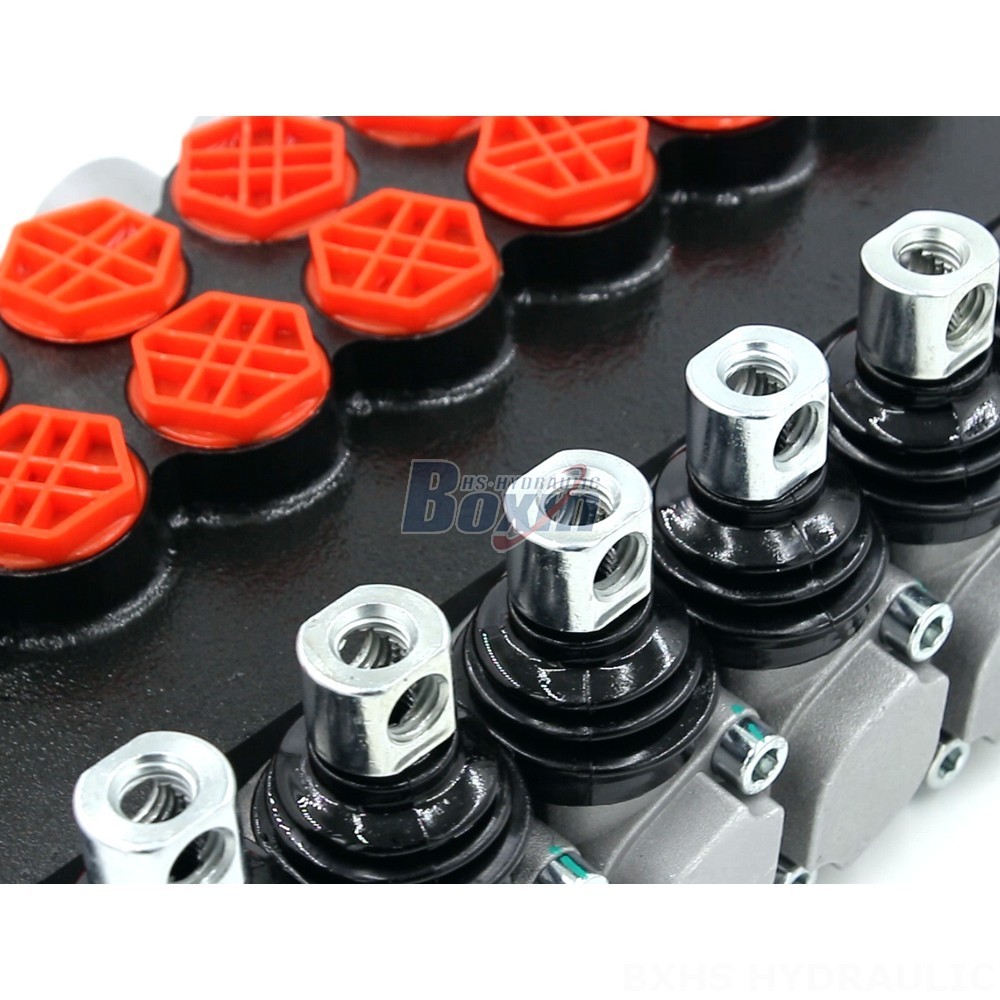

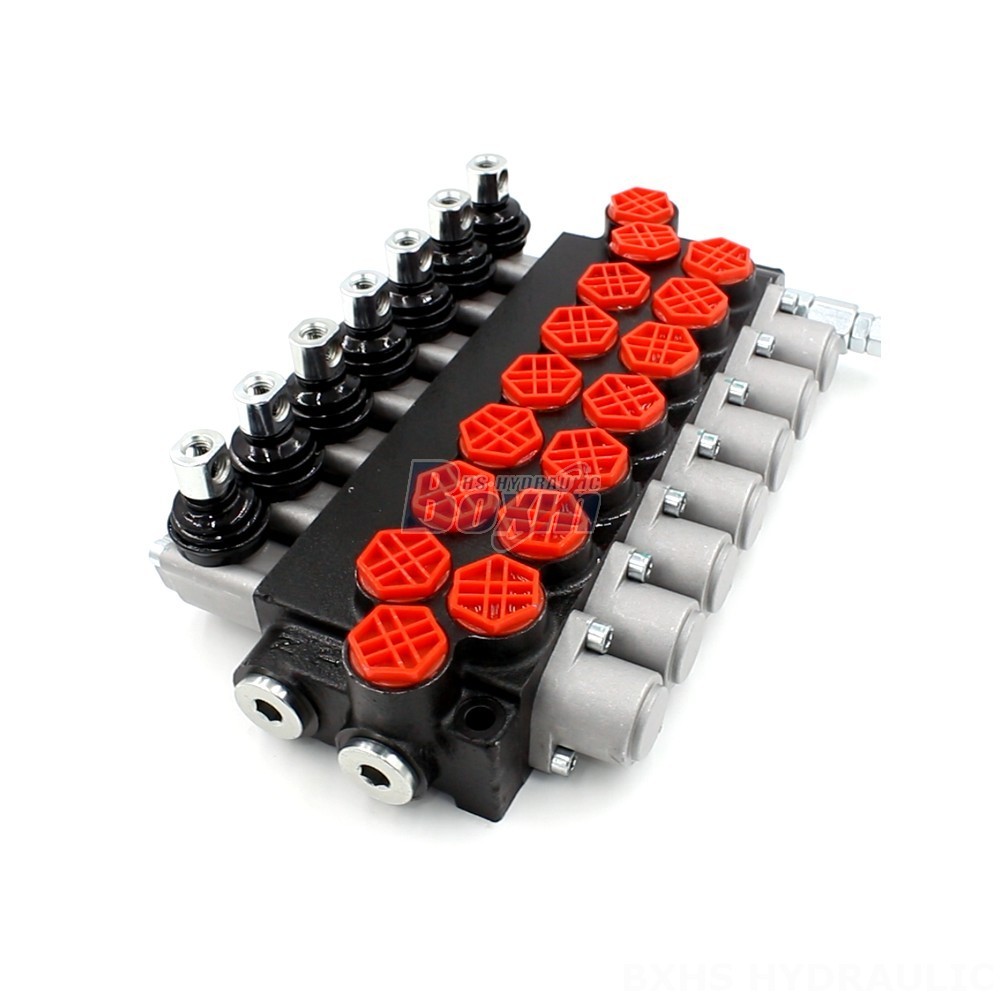

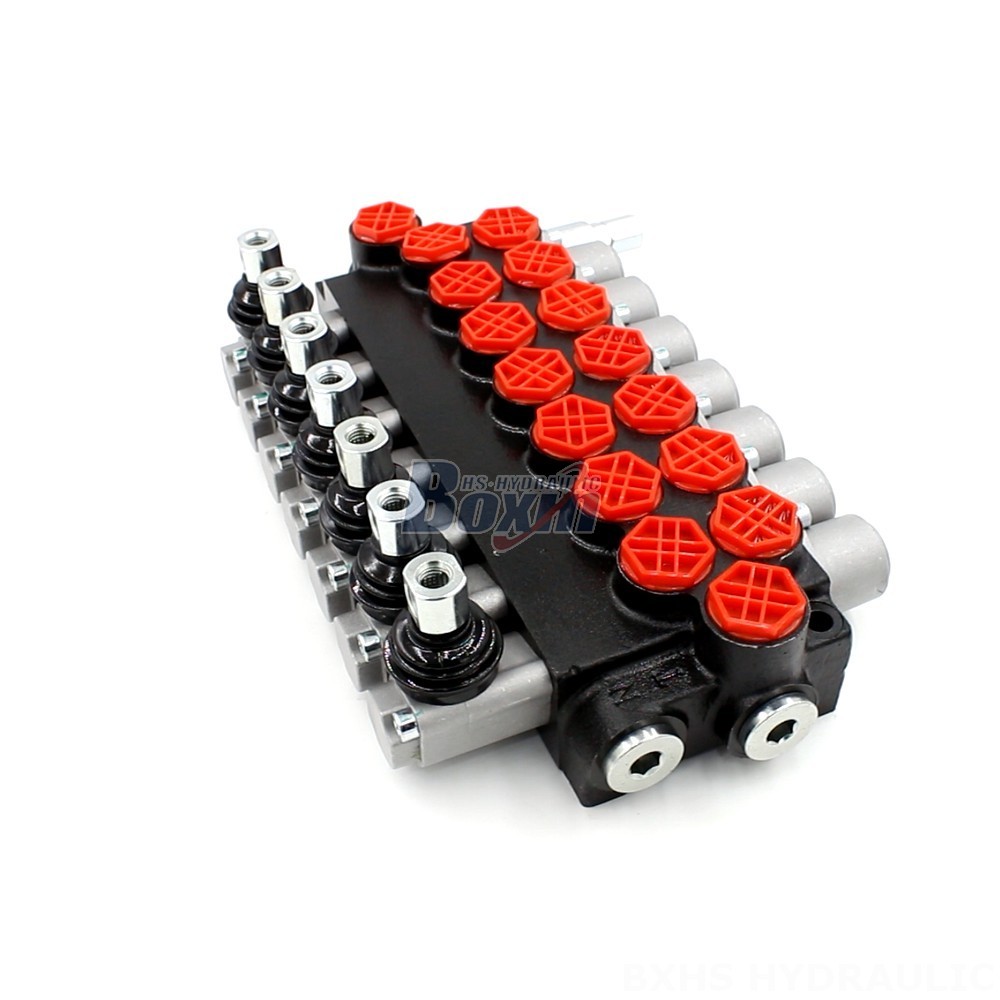

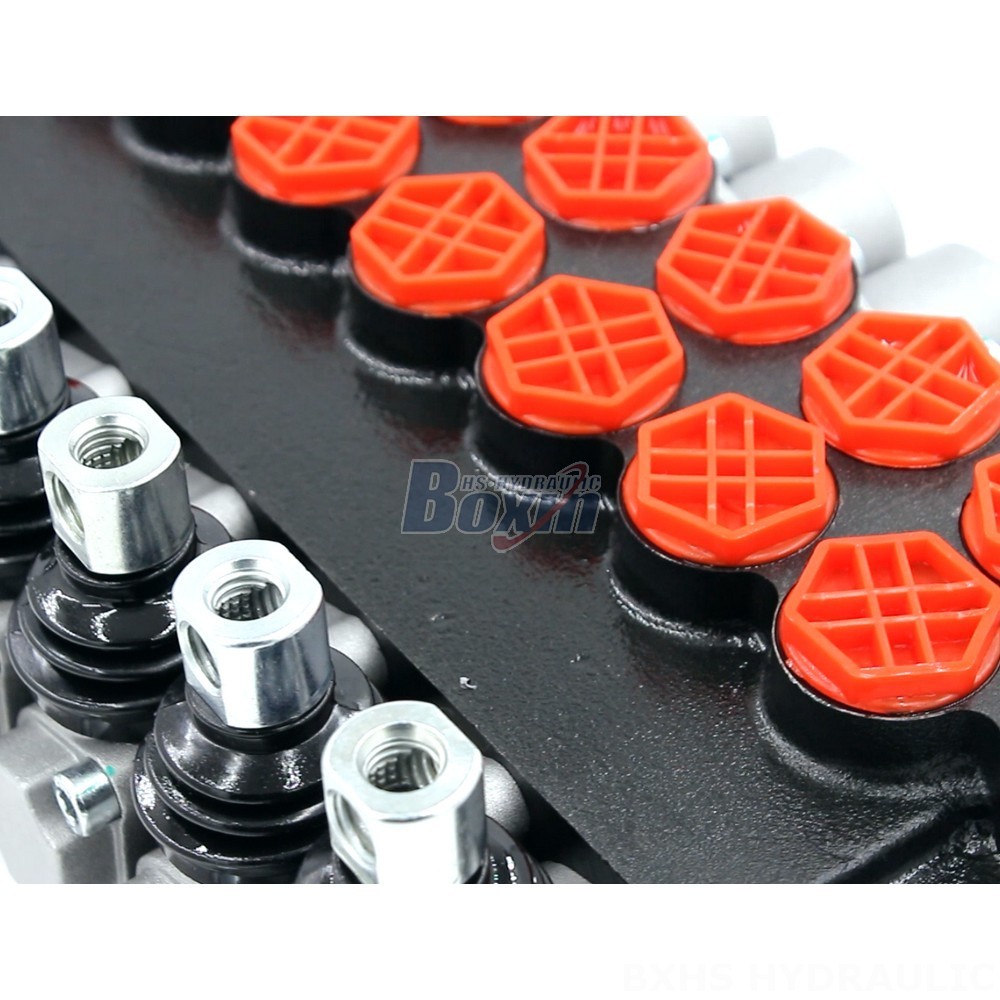

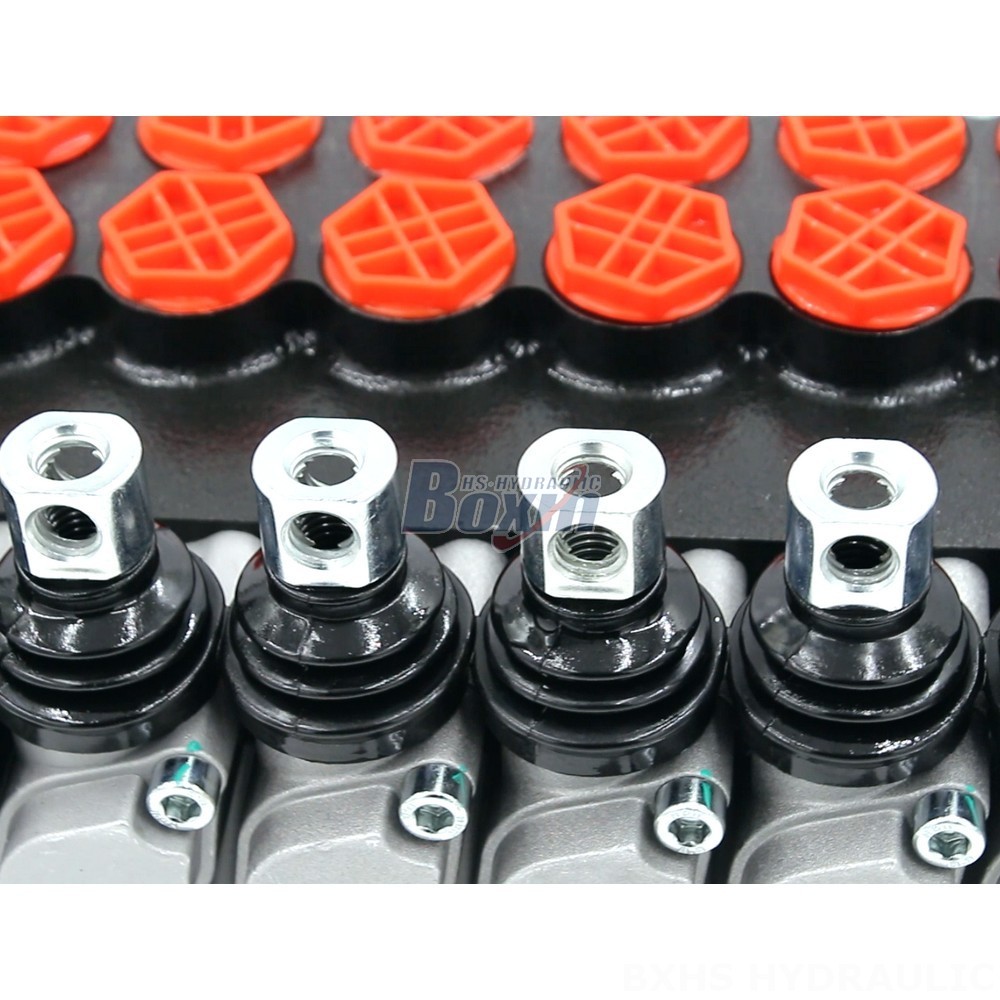

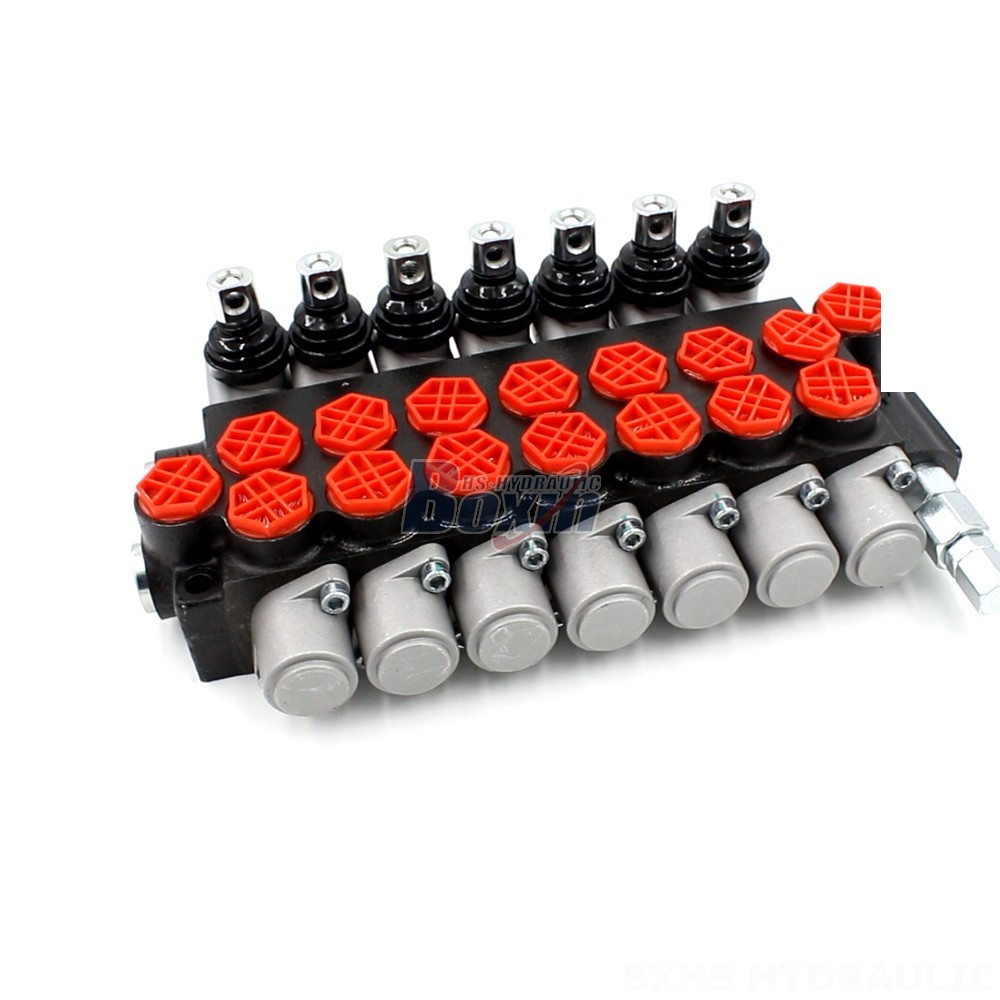

This high-performance 7-spool manual hydraulic directional valve is designed for demanding applications in material handling, construction, and agriculture. Featuring a monoblock structure and rated for 700 Bar (10,000 psi), this valve delivers precision control and exceptional efficiency. It's ideal for applications such as telehandlers, forklifts, and all-terrain cranes.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This robust 7-section manual hydraulic valve provides precise and reliable directional control for demanding applications. With a 40 L/min flow rate, 250 bar pressure rating, and wide operating temperature range, this valve is a reliable solution for various hydraulic systems. Designed for use in material handling, construction, and agricultural equipment, this P40 Series valve is ideal for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders.
