Production et livraison
Délai de production de 15 à 30 jours



This high-quality hydraulic gear pump offers a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in various configurations and is ideal for use in a wide range of applications including construction, agriculture, and industrial vehicles.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |

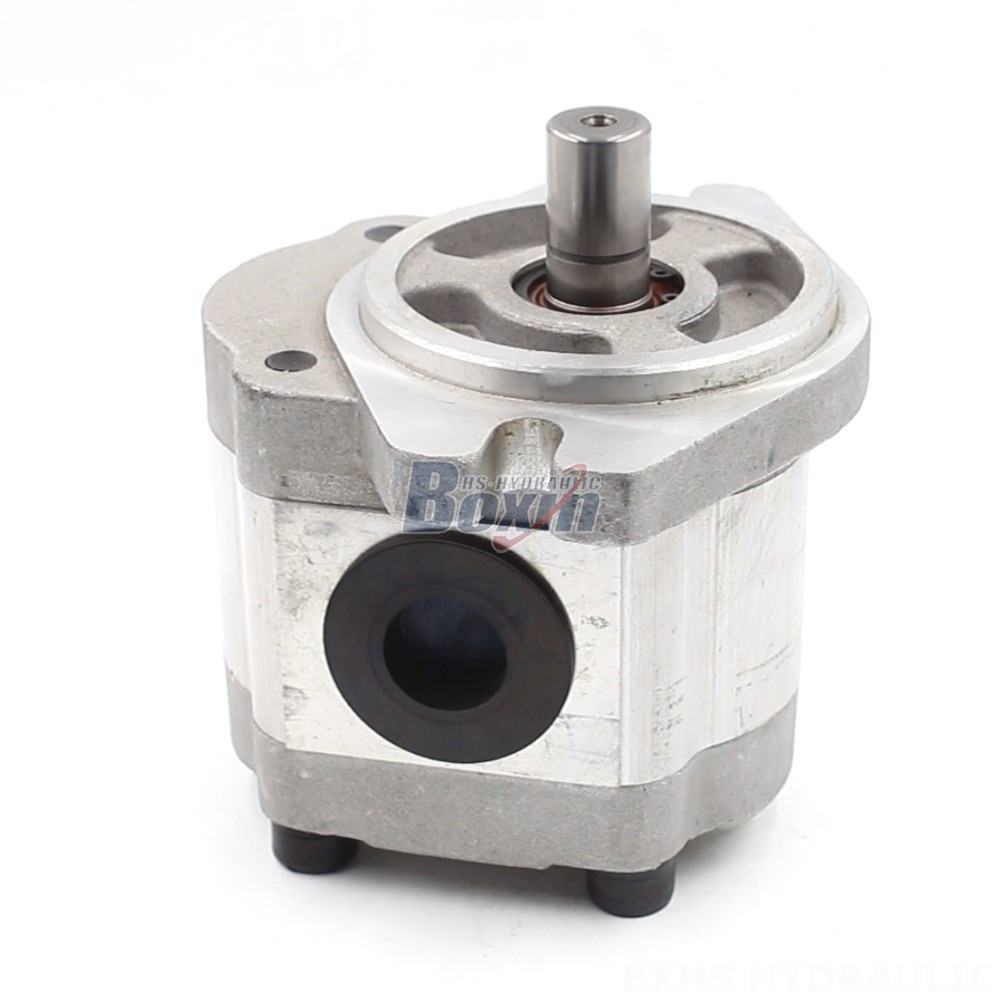

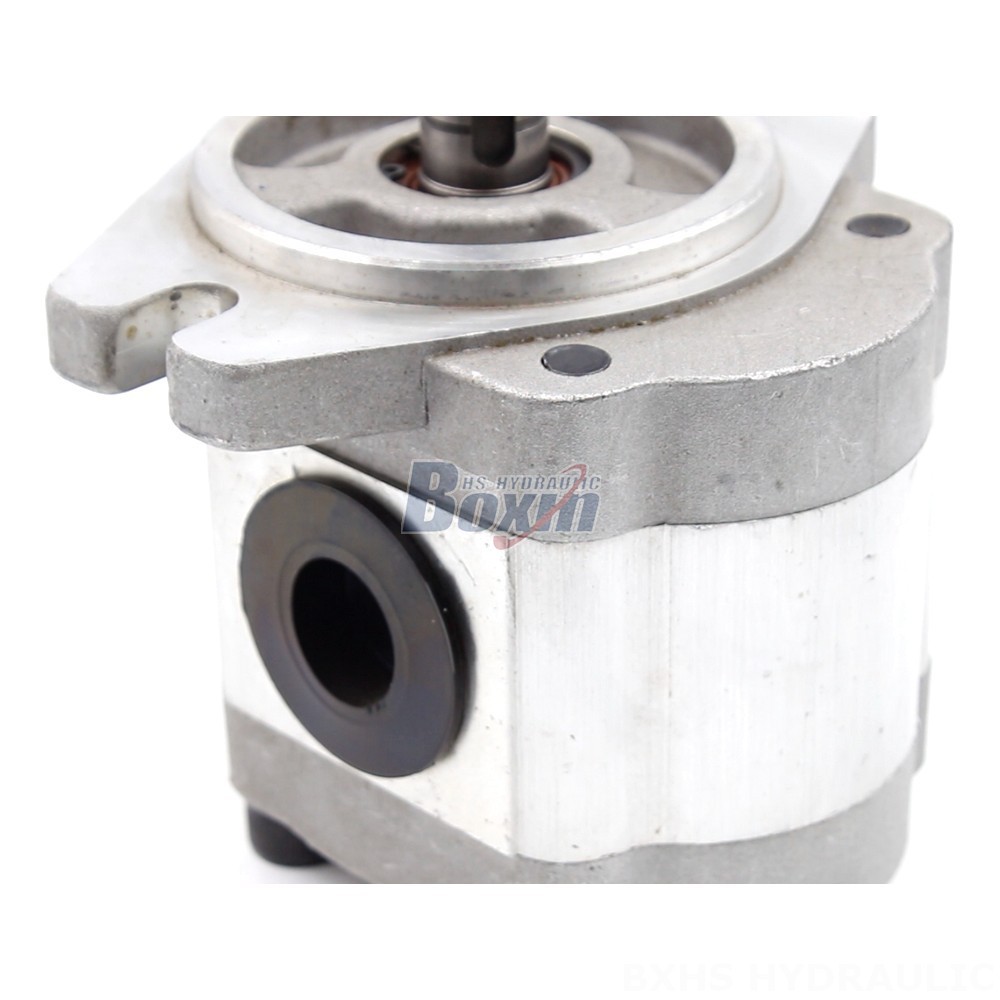

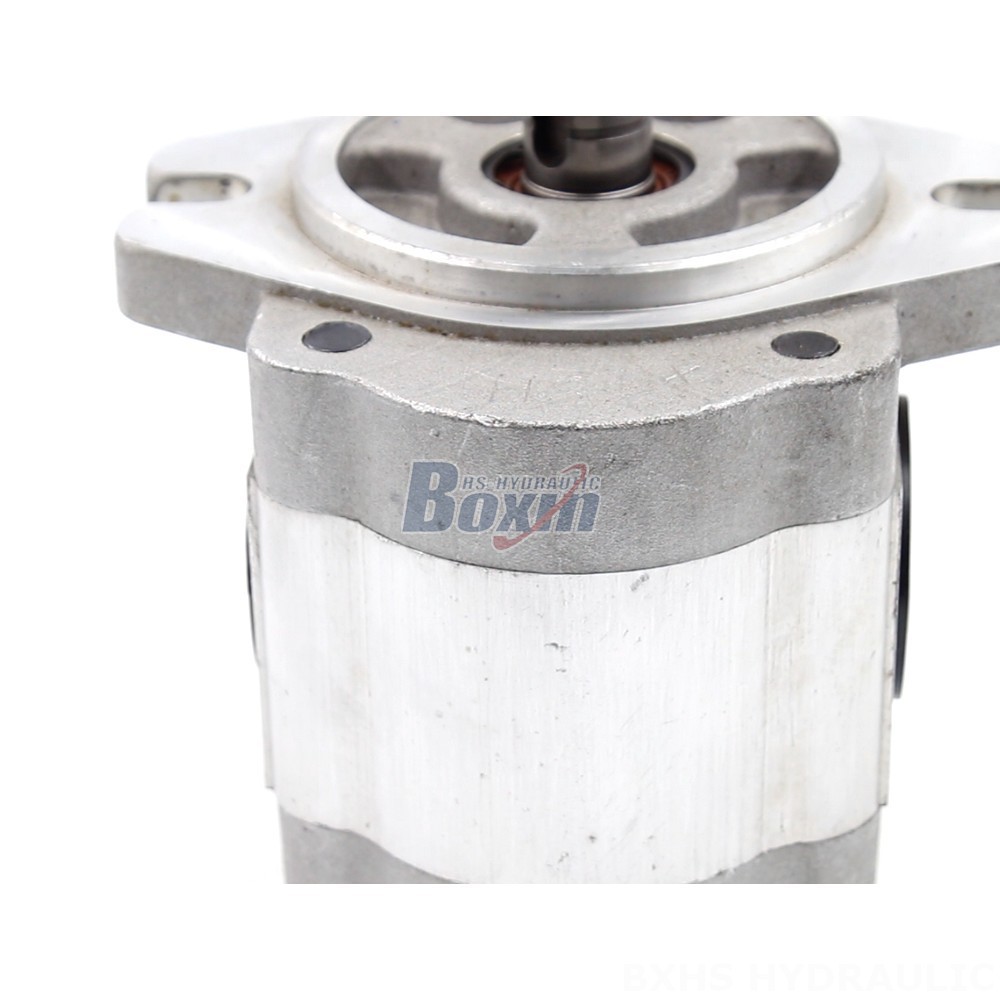

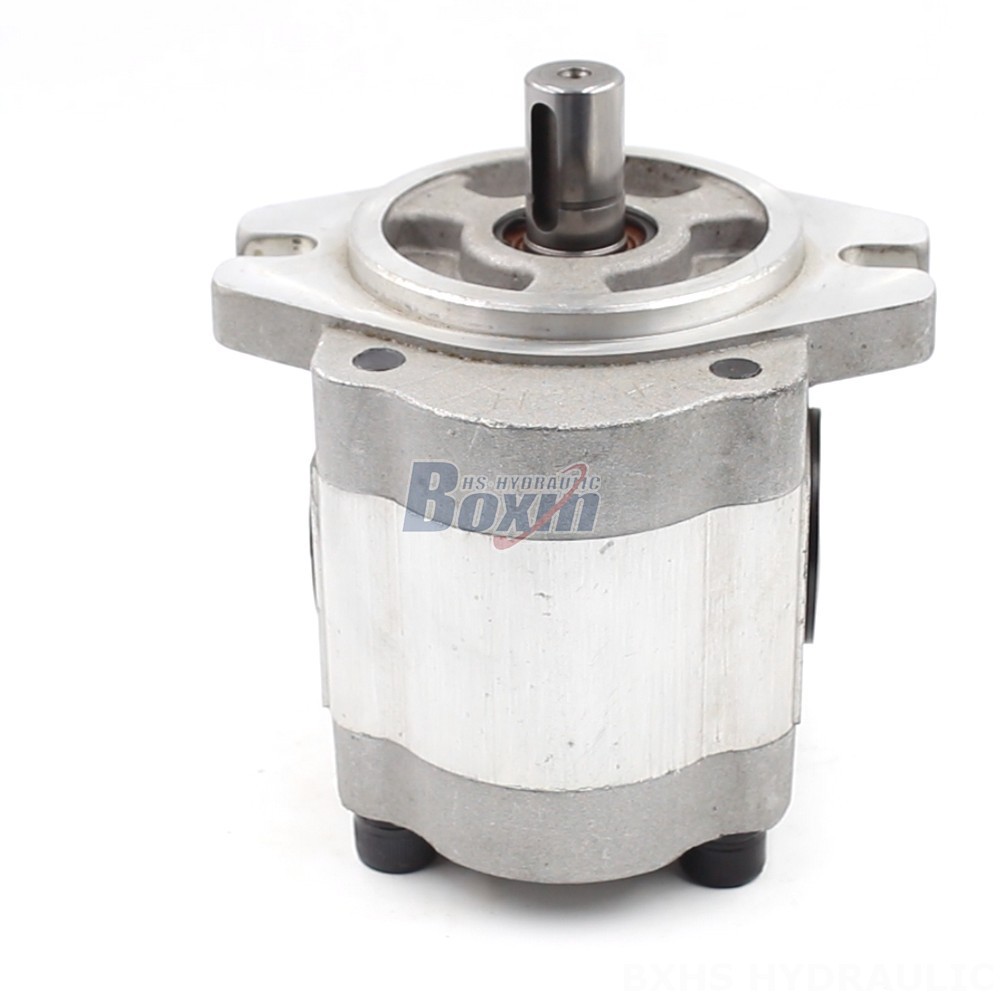

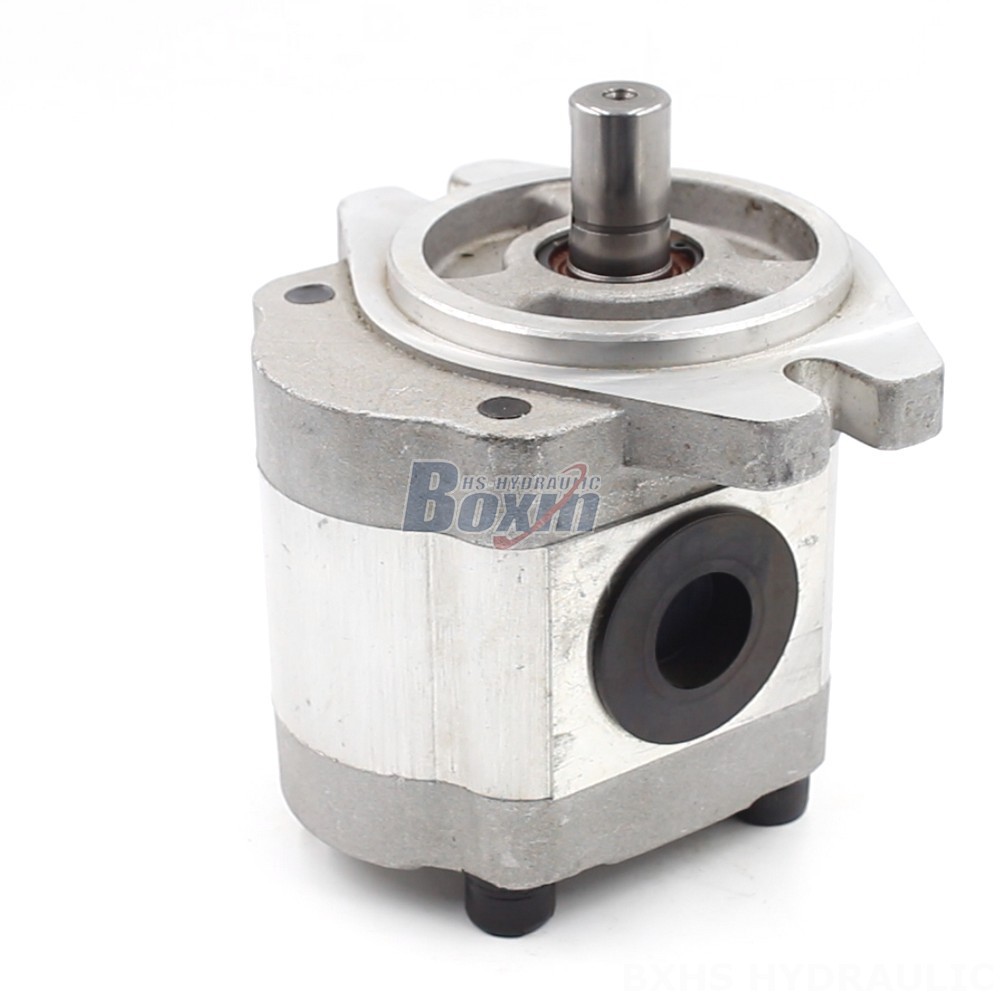

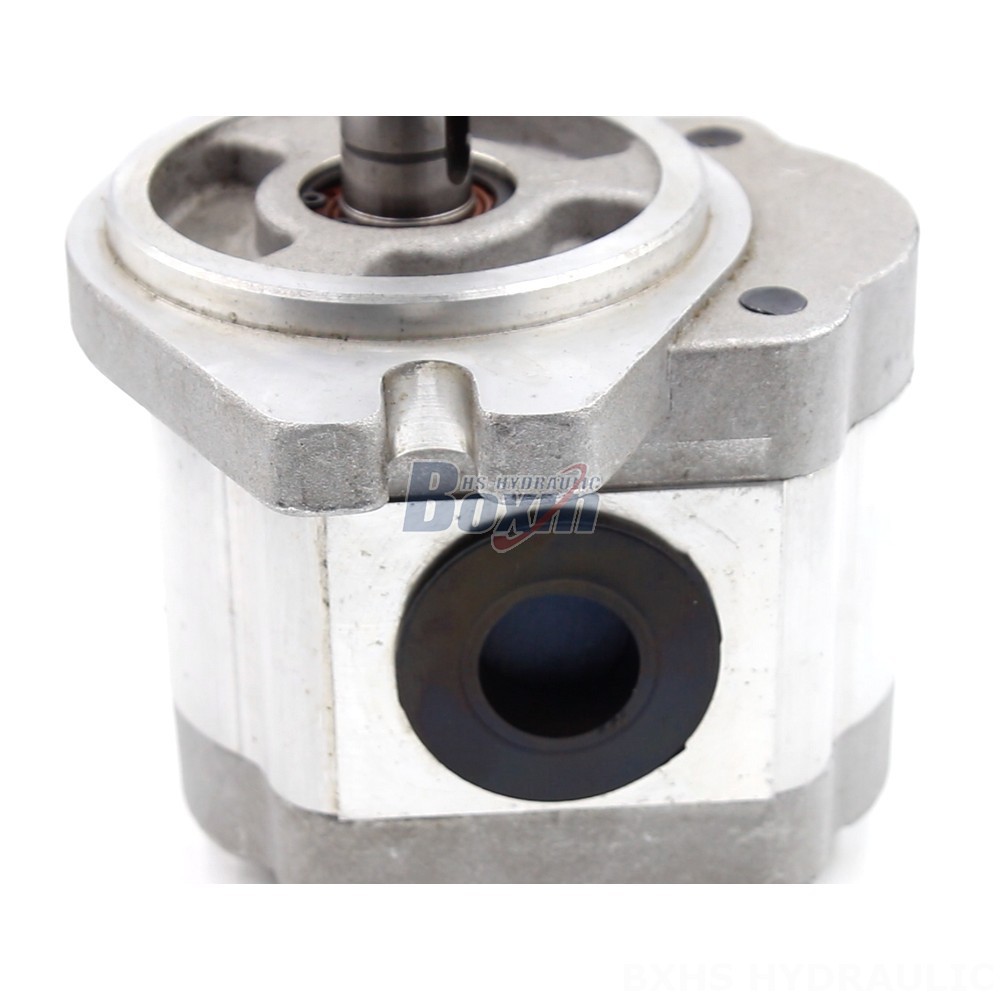

This 6 cc/rev Hydraulic Gear Pump is manufactured with high-quality materials and is designed for durability and reliability. It features an A-Oval flange and a Plain Key shaft, making it compatible with a variety of applications. The pump offers a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. It is also customizable to meet specific requirements. This pump is ideal for use in construction equipment, agricultural machinery, and industrial vehicles. It is particularly well-suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers. As a manufacturer, we offer factory direct pricing, OEM, ODM, and private label services. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
