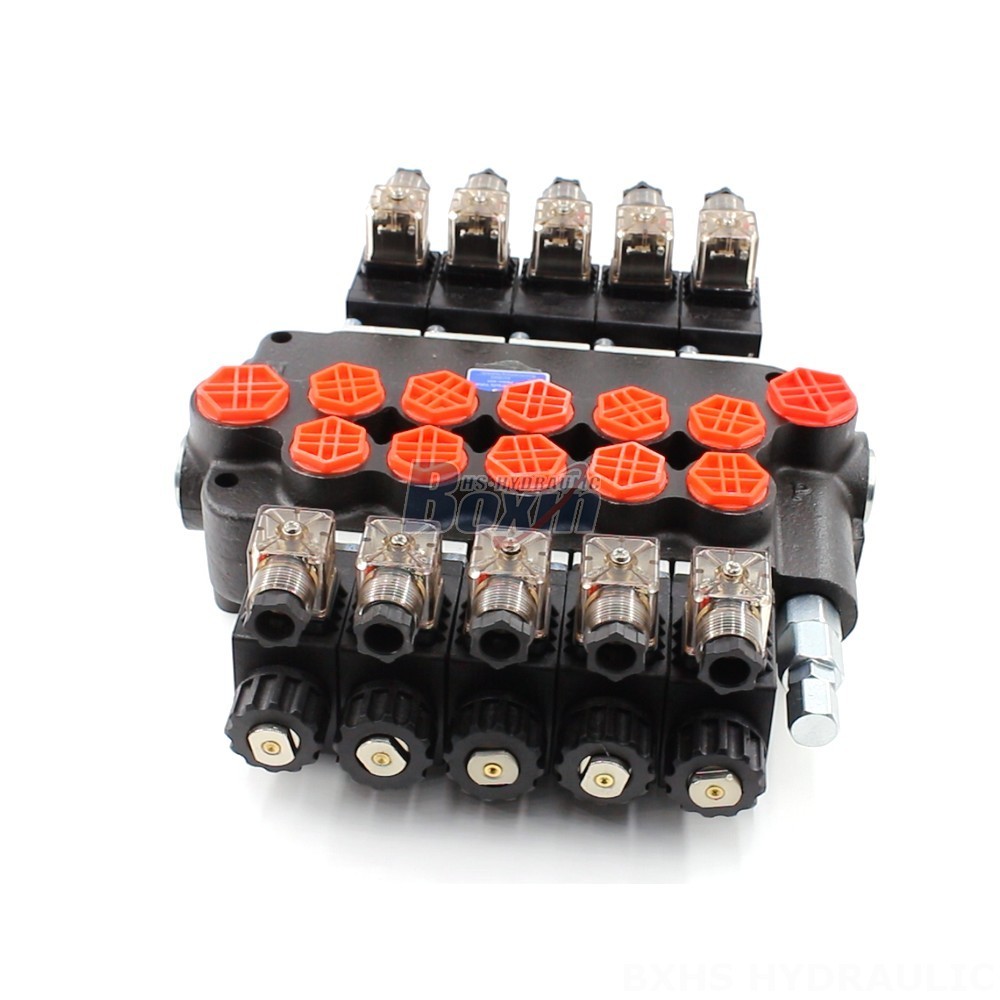

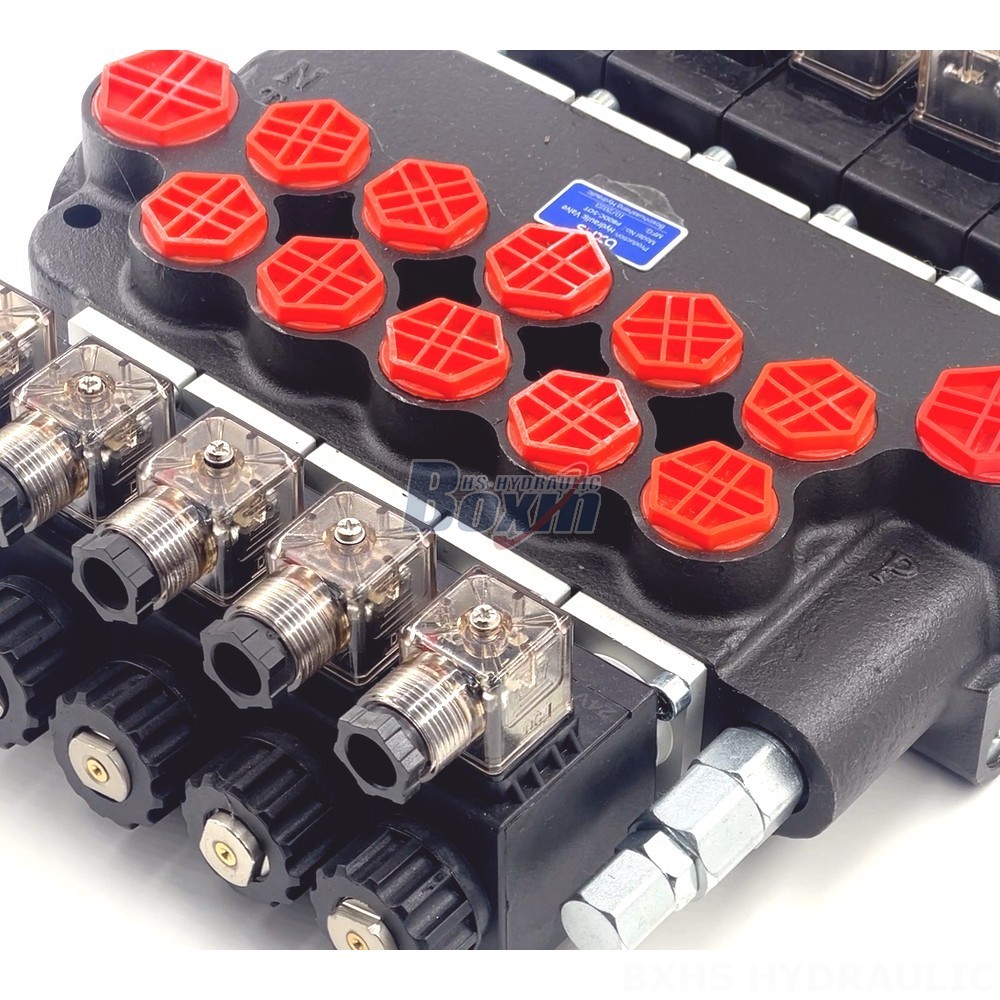

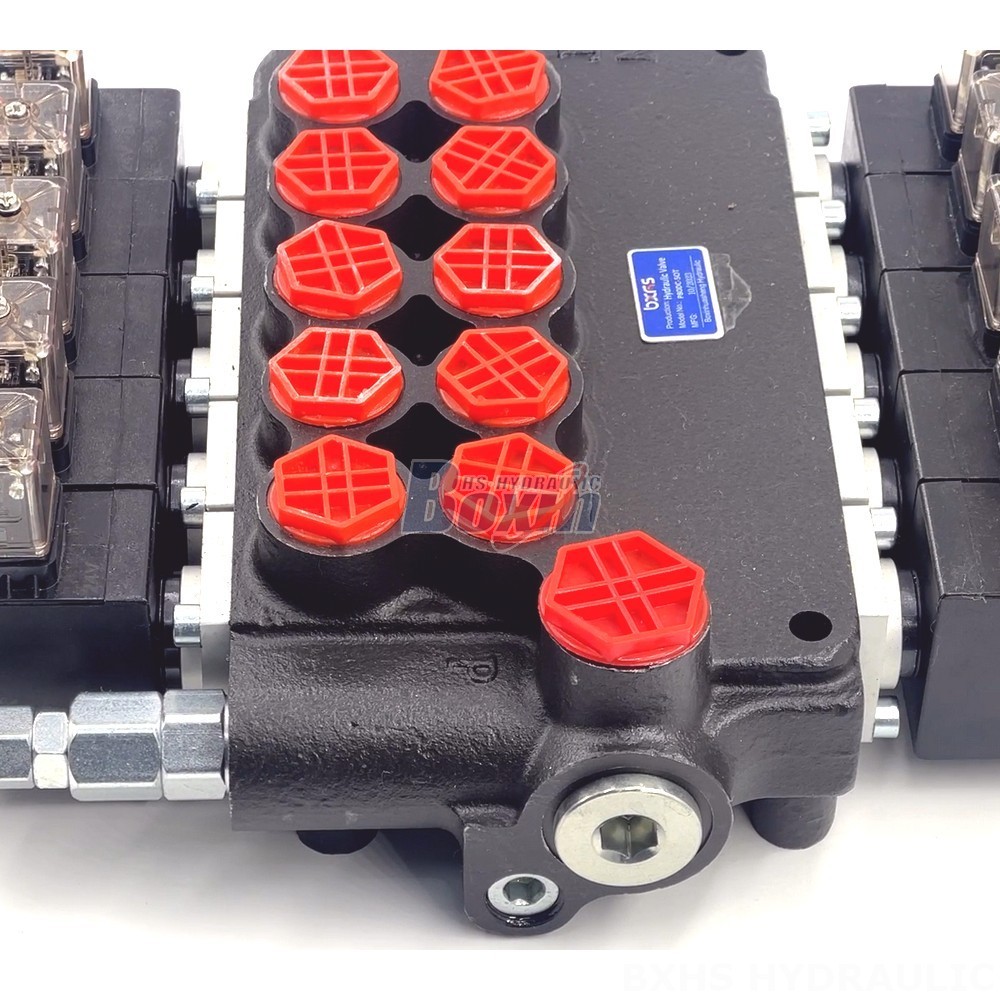

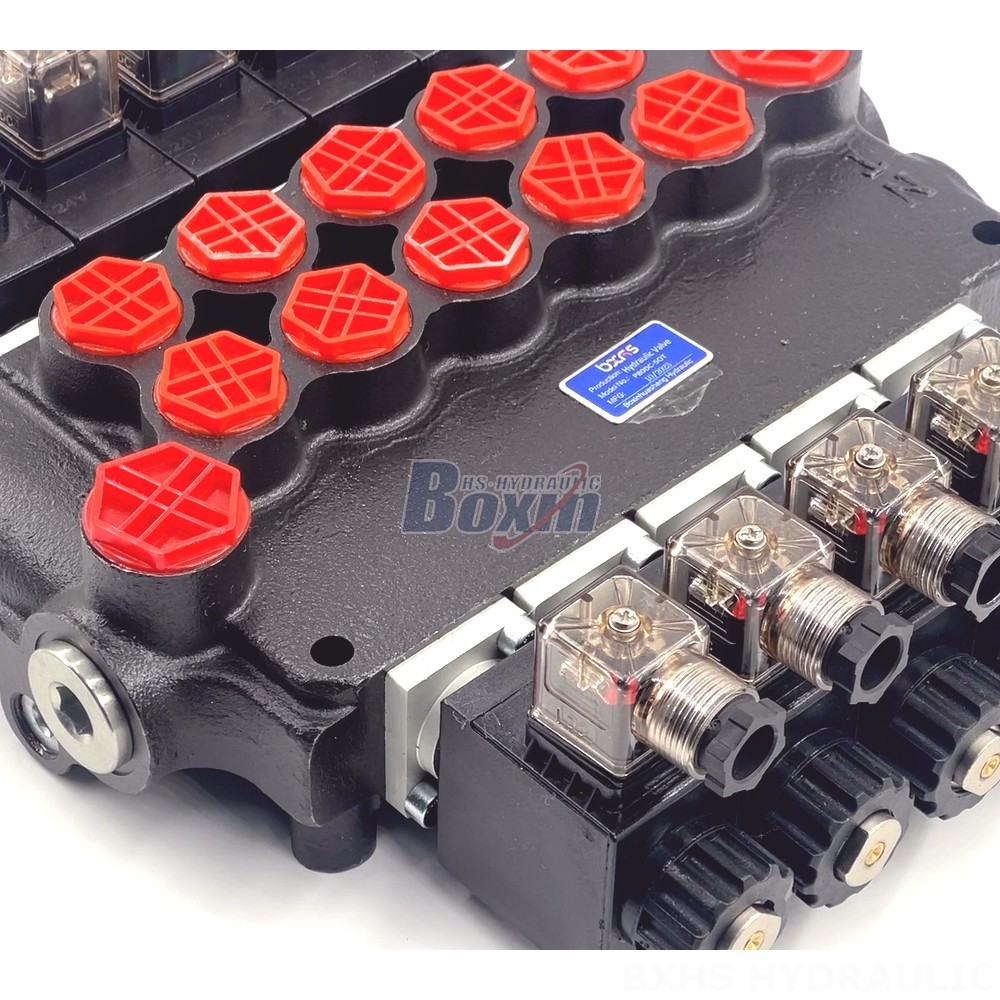

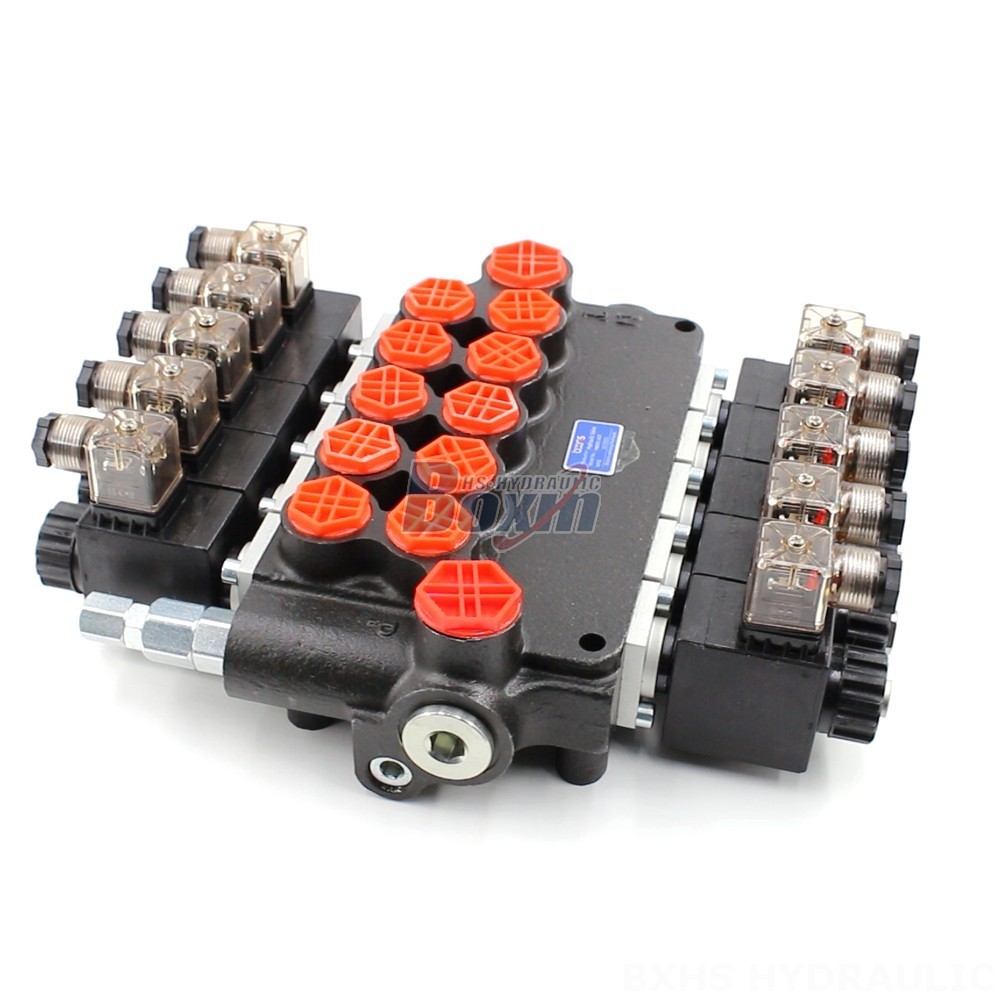

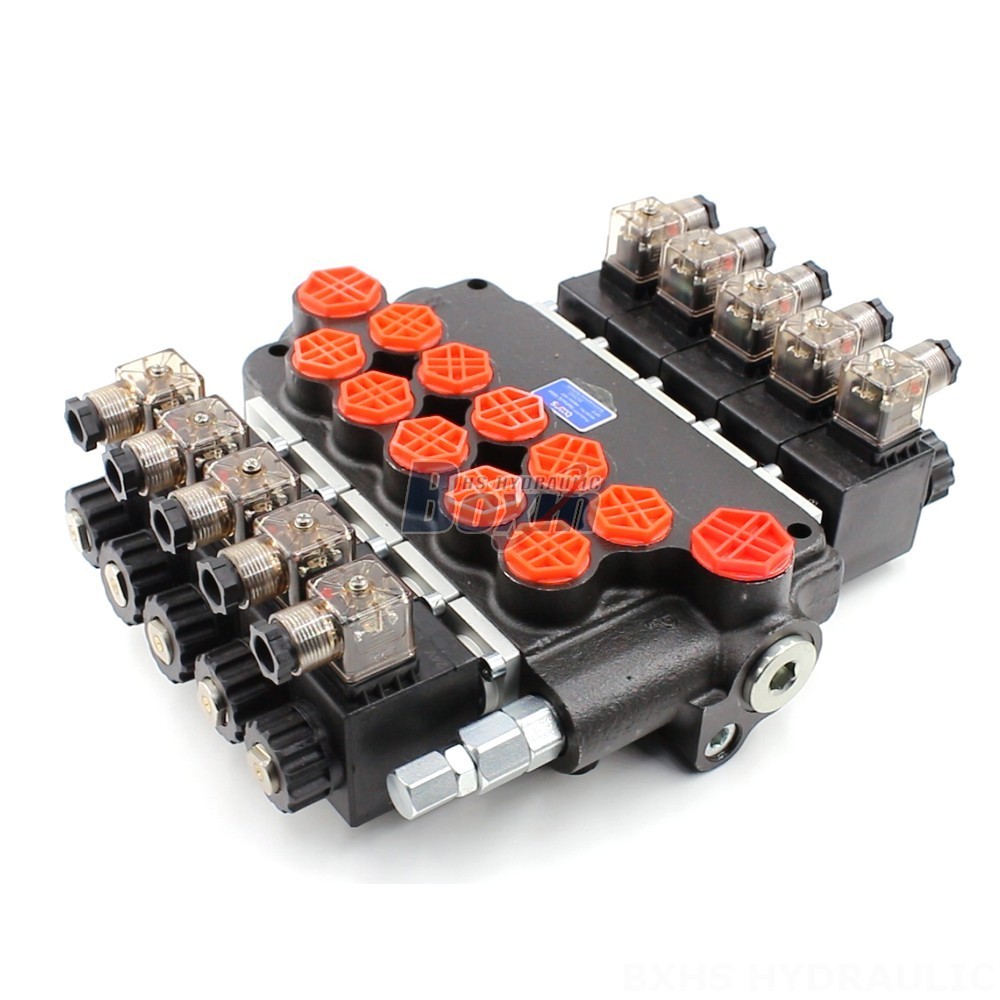

The P80 Series 5-Spool Hydraulic Valve is a high-performance, reliable valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. This monoblock valve features a 5-section design with a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series 5-Spool Hydraulic Valve is a robust and versatile solution for controlling hydraulic functions in a wide range of machines. Its compact monoblock design and 5-section configuration provide efficient and precise control. The valve features a solenoid control method, rated flow of 80 L/min, and a maximum pressure of 250 bar. It is compatible with a wide range of operating viscosity (15 - 75 mm²/s) and ambient temperature (-40°C to +80°C). This valve is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. Choose the P80 Series 5-Spool Hydraulic Valve for reliable performance and durability in demanding applications.
