Production et livraison
Délai de production de 15 à 30 jours

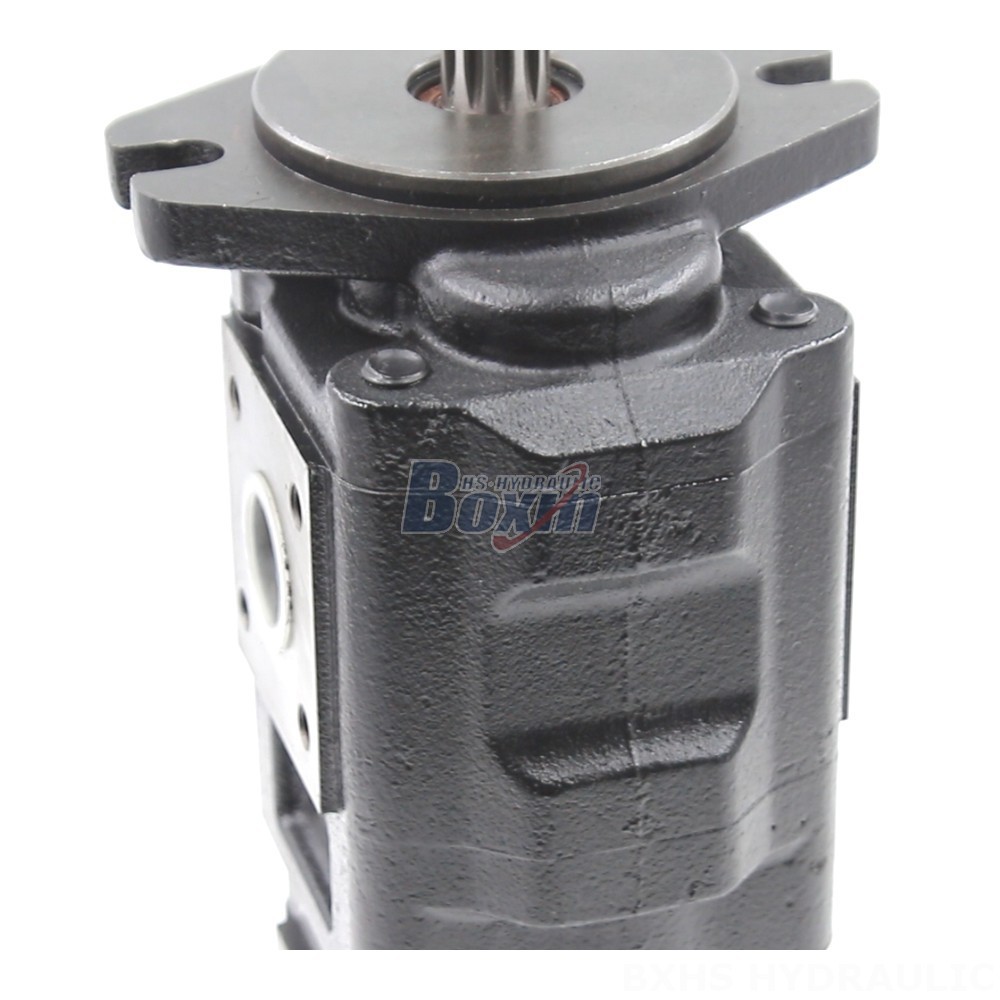

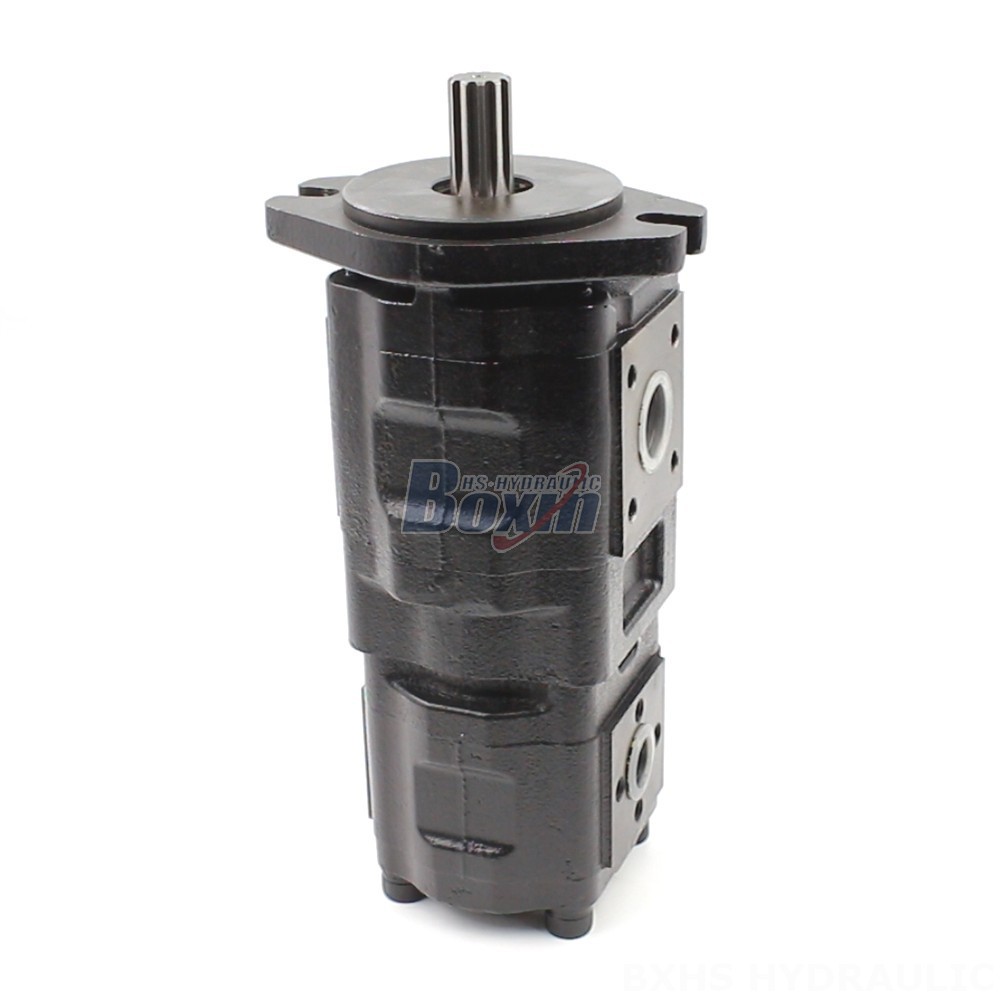

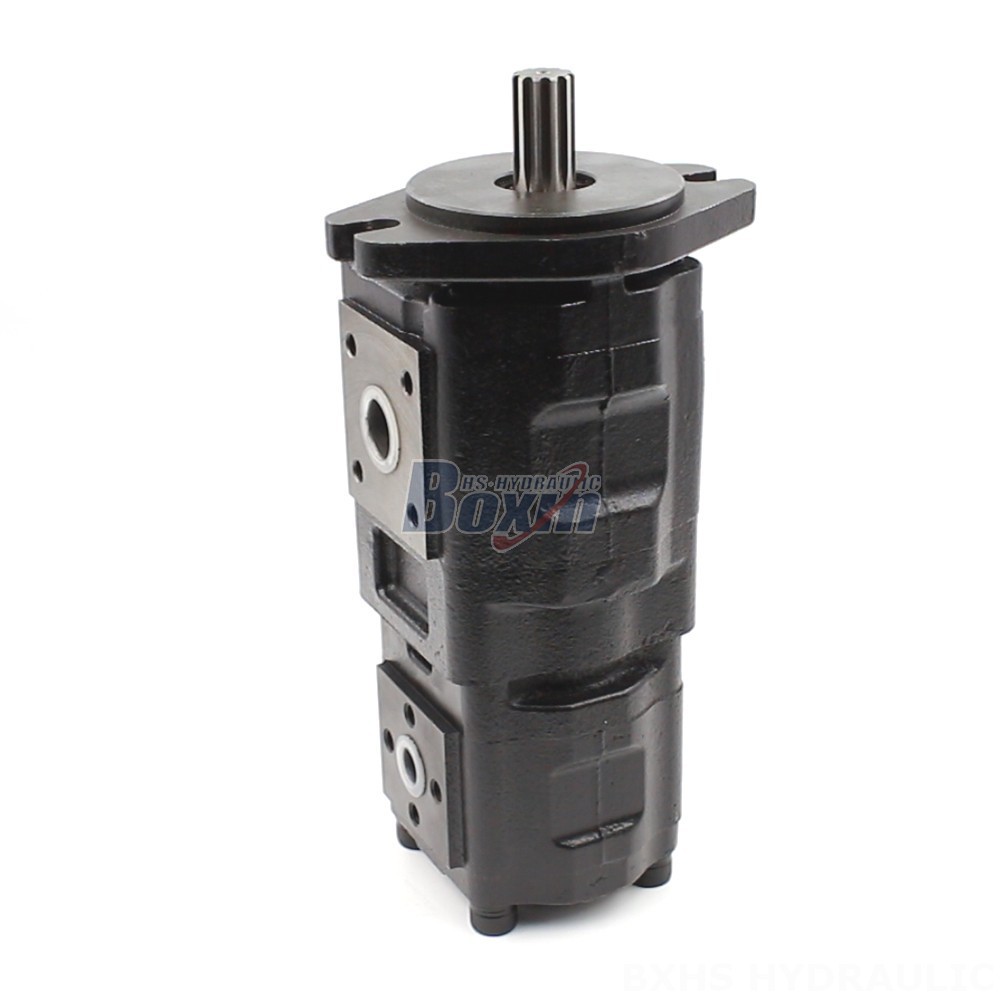

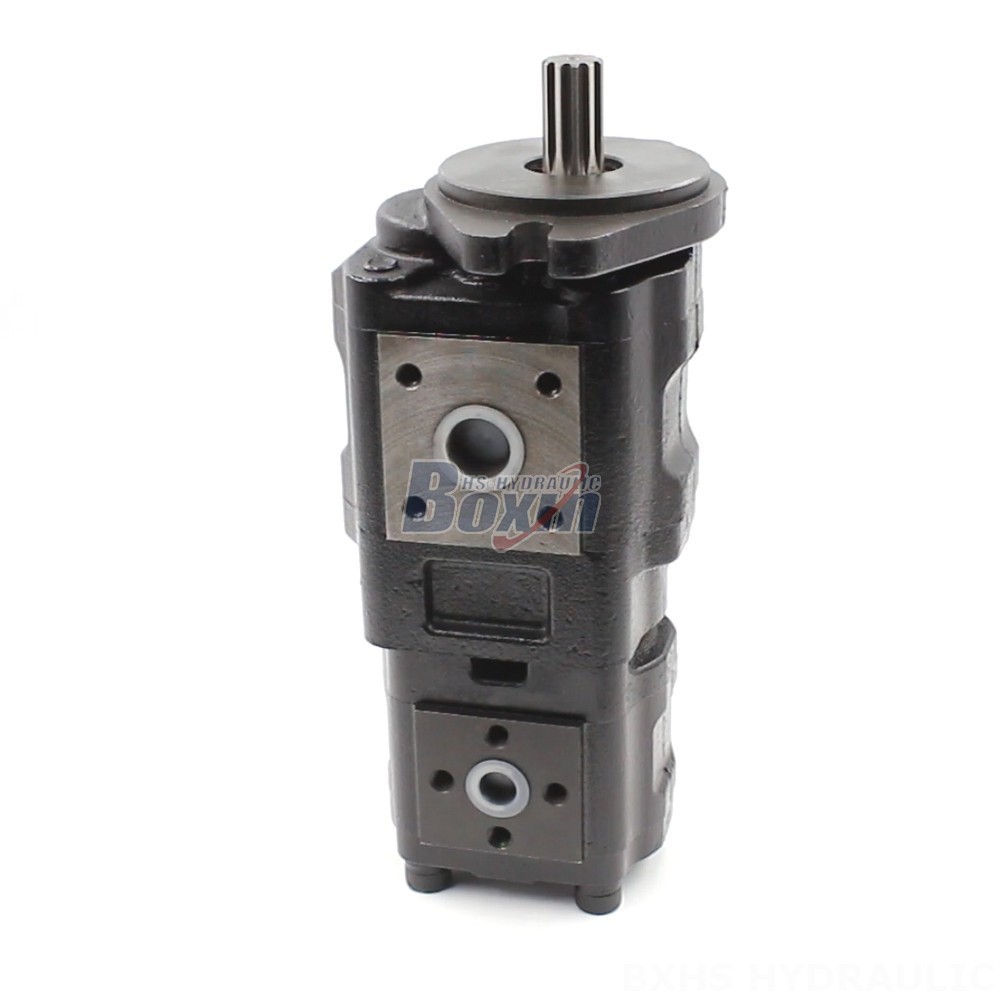

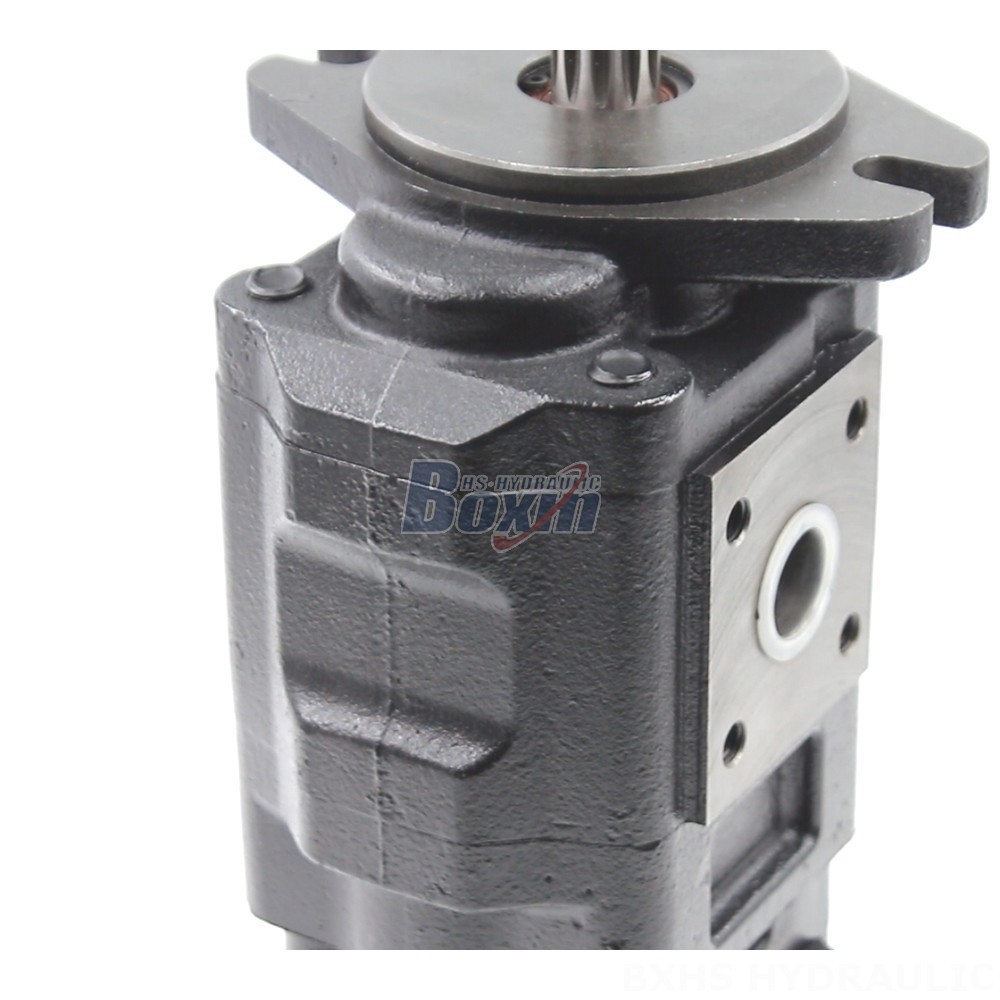

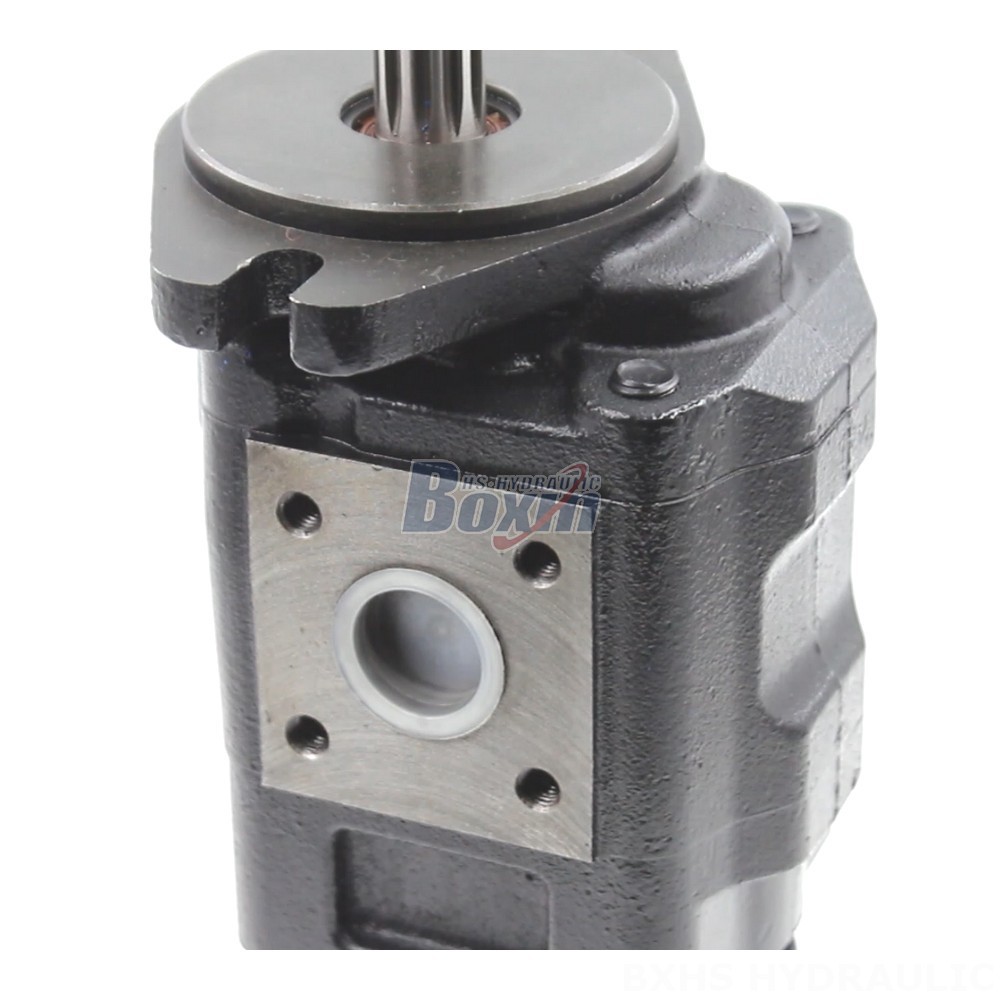

Our 40 cc/rev Hydraulic Gear Pump is a high-performance and reliable solution for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Available in various displacements, pressure ratings, and configurations, this pump is designed for durability and efficiency.
| Série CBHS-F4 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 40 cc/tr, 25 cc/tr, 20 cc/tr |
| Pression nominale | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 2 500 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Fonte, Fonte d'aluminium, Aluminium |
| Structure | Type à plateau oscillant |
| Version de la bride | A - Bride ovale, B - Bride carrée, Trous de montage ISO-4, Trous de montage UNI-3, Bride SAE |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
This 40 cc/rev Hydraulic Gear Pump is a robust and efficient power source for heavy-duty applications. Featuring a cam plate type design, it delivers high flow rates and pressures for reliable operation. With a range of displacements from 32 cc/rev to 80 cc/rev, rated pressures up to 25 MPa (3625 psi), and maximum speeds up to 2500 r/min, this pump offers flexibility and customization to meet specific requirements. The pump's durable construction ensures long-term performance and reliability in demanding environments. Available with A-Oval or B-Square flanges and a rectangle spline shaft, it can be easily integrated into various systems. Our 40 cc/rev Hydraulic Gear Pump is ideal for applications in telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, front-end loaders, and harvesters.
