Production et livraison
Délai de production de 15 à 30 jours

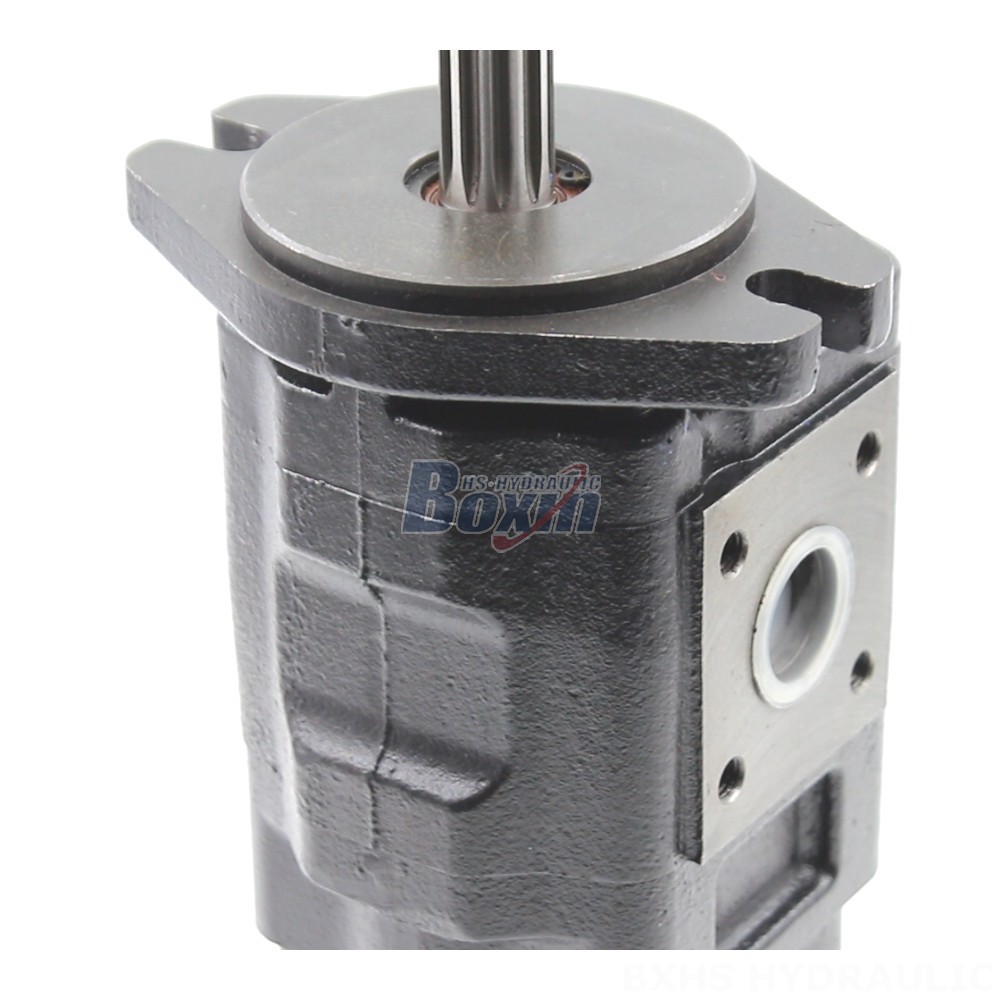

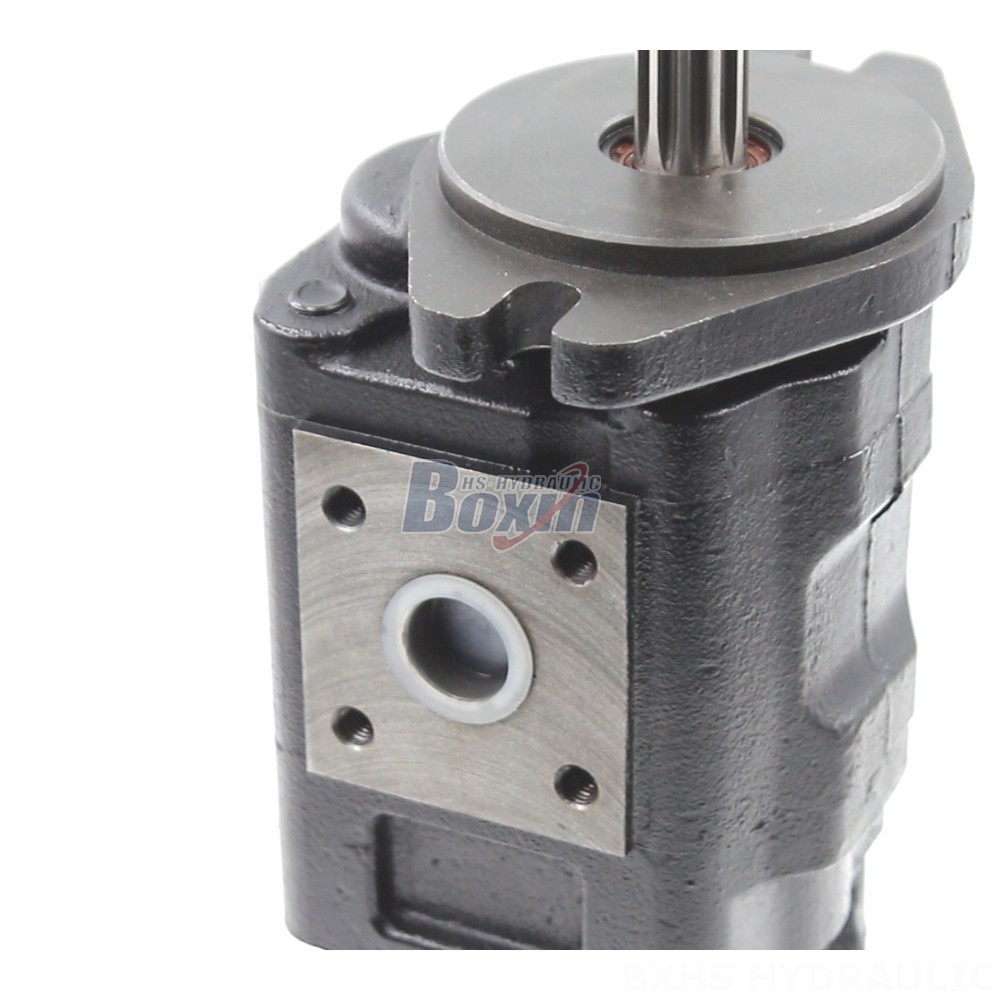

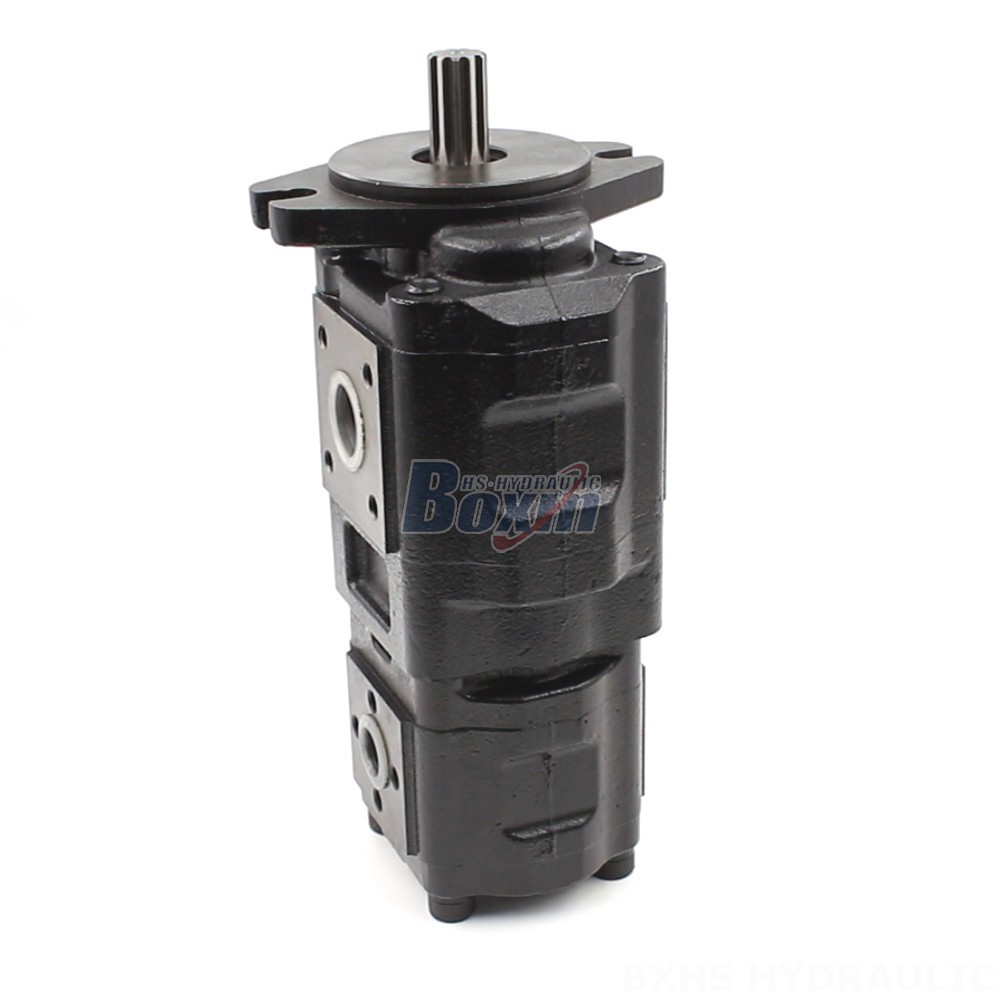

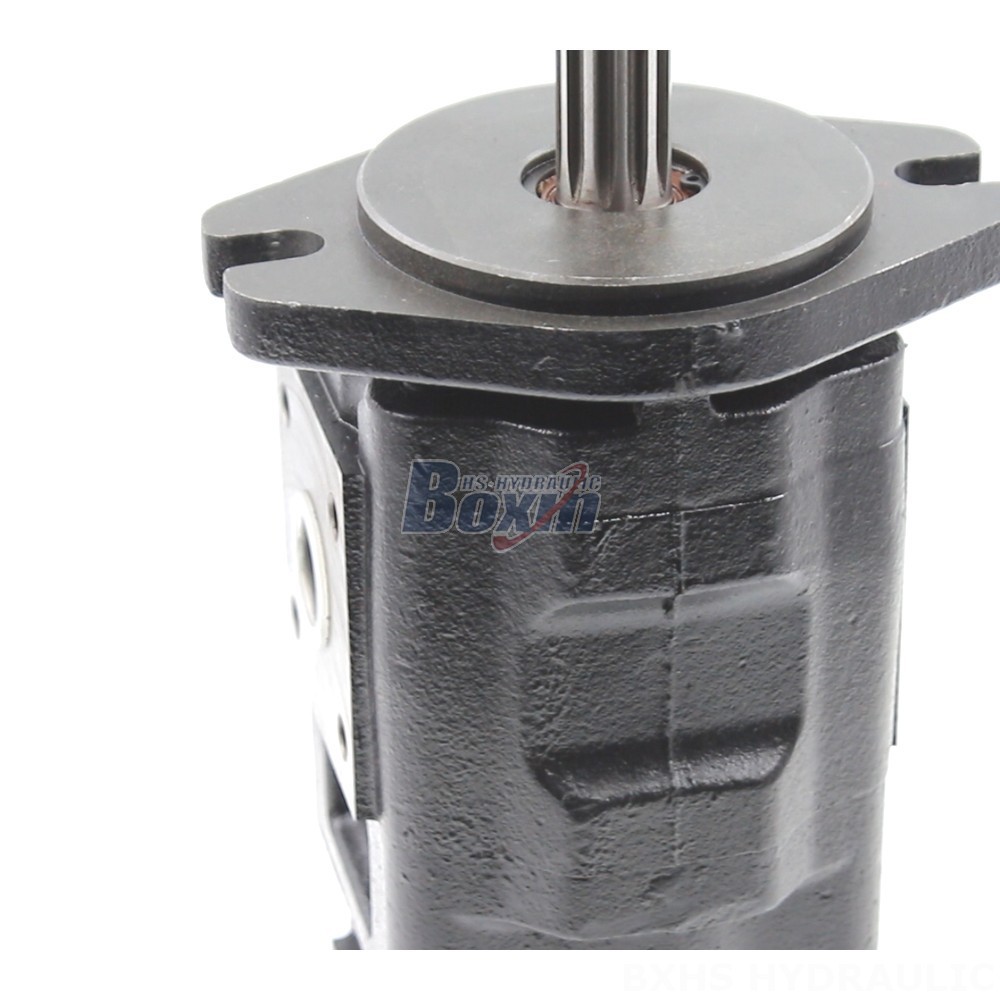

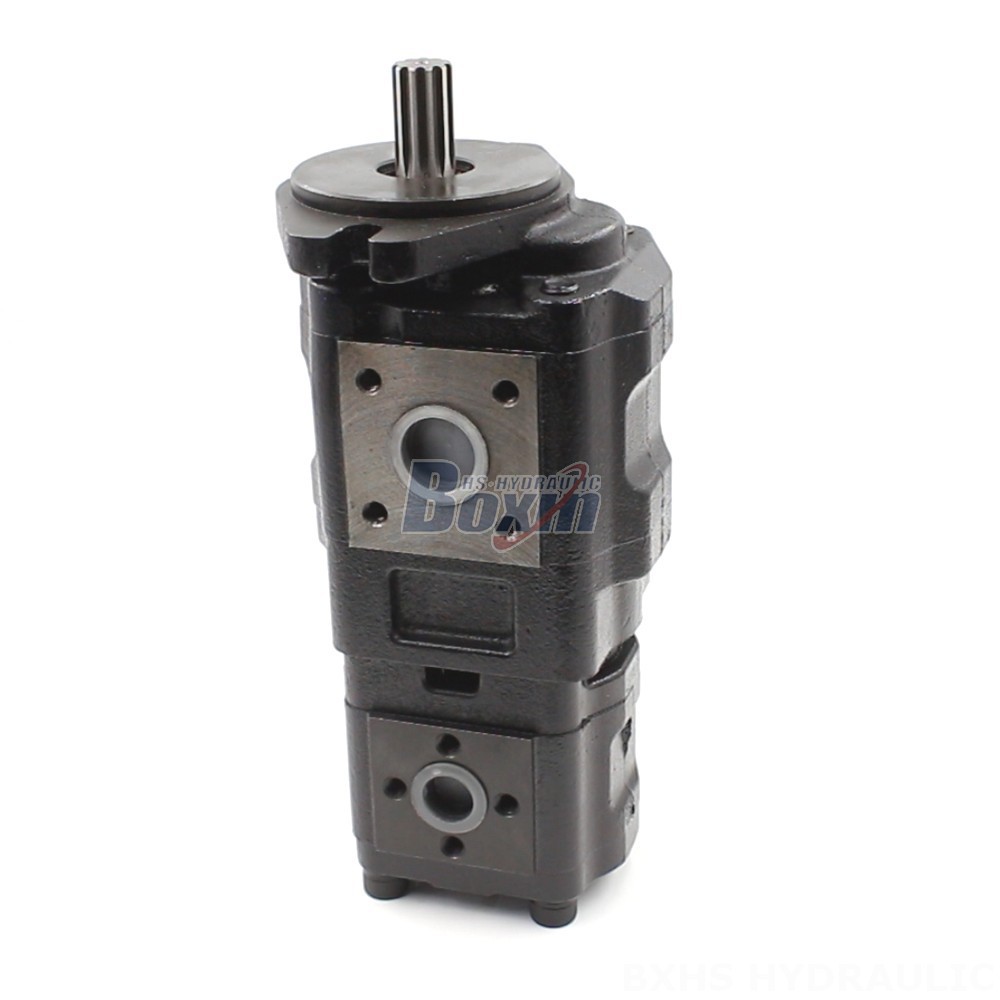

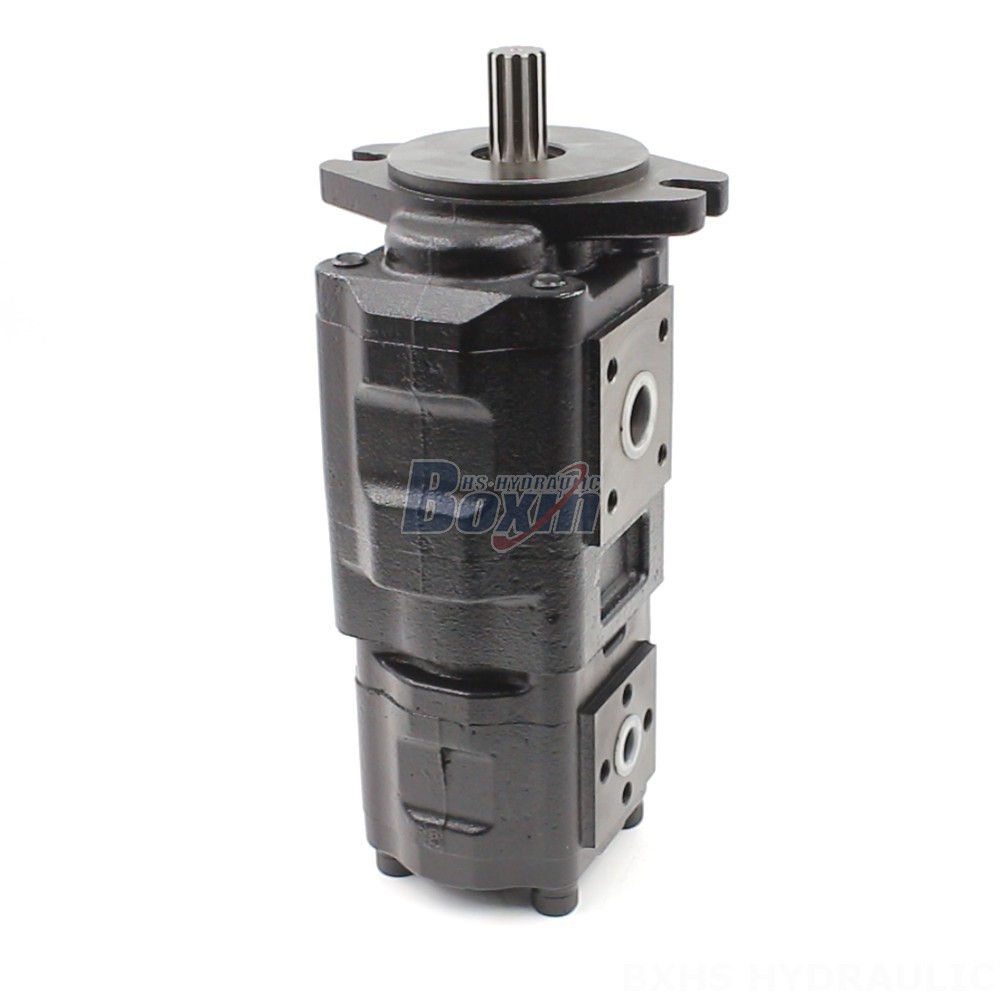

Our 40 cc/rev Hydraulic Gear Pump is a heavy-duty, reliable power source for a wide range of applications in the construction, material handling, agriculture, and industrial vehicle industries. We offer factory direct supply and global distribution, ensuring competitive pricing and timely delivery. Contact us to learn more about our OEM and ODM services.
| Série CBHS-F4 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 40 cc/tr, 25 cc/tr, 20 cc/tr |
| Pression nominale | 20 MPa (2900 psi), 25 MPa (3625 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 2 500 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Fonte, Fonte d'aluminium, Aluminium |
| Structure | Type à plateau oscillant |
| Version de la bride | A - Bride ovale, B - Bride carrée, Trous de montage ISO-4, Trous de montage UNI-3, Bride SAE |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
This 40 cc/rev Hydraulic Gear Pump is designed for high performance and durability in demanding applications. It features various displacement options (63 cc/rev, 80 cc/rev, 45 cc/rev, 32 cc/rev), rated pressure (17 MPa, 23 MPa, 25 MPa), and speed ratings (2200 r/min, 2400 r/min, 2500 r/min) to meet your specific needs. Available in external gear pump, cam plate type construction, with A-Oval Flange and B-Square Flange options, and H: Rectangle Spline shaft type. We are a factory direct supplier and offer global distribution for our CBHS-F4 Series hydraulic gear pumps. This means you can benefit from competitive pricing and fast delivery. We also offer OEM and ODM services to tailor the pump to your specific requirements. Contact us to learn more about our products and services and find the perfect hydraulic gear pump for your application.
