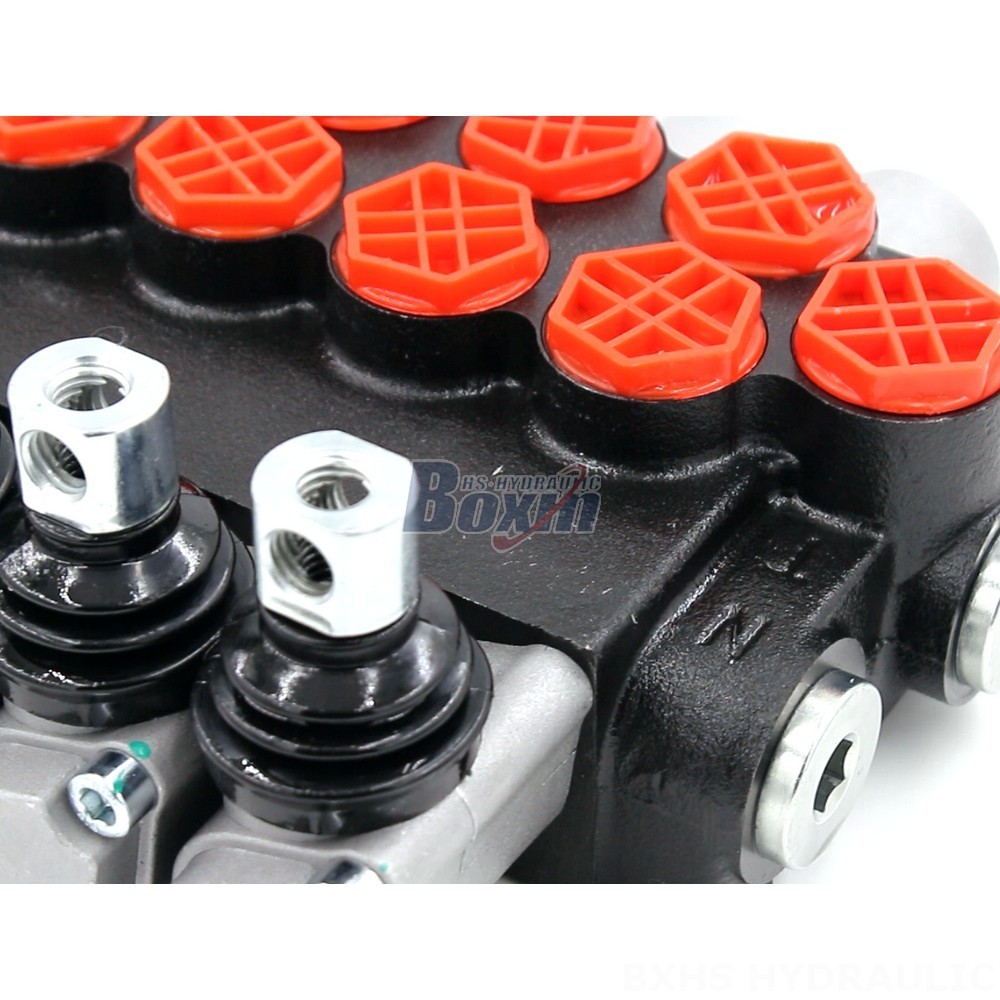

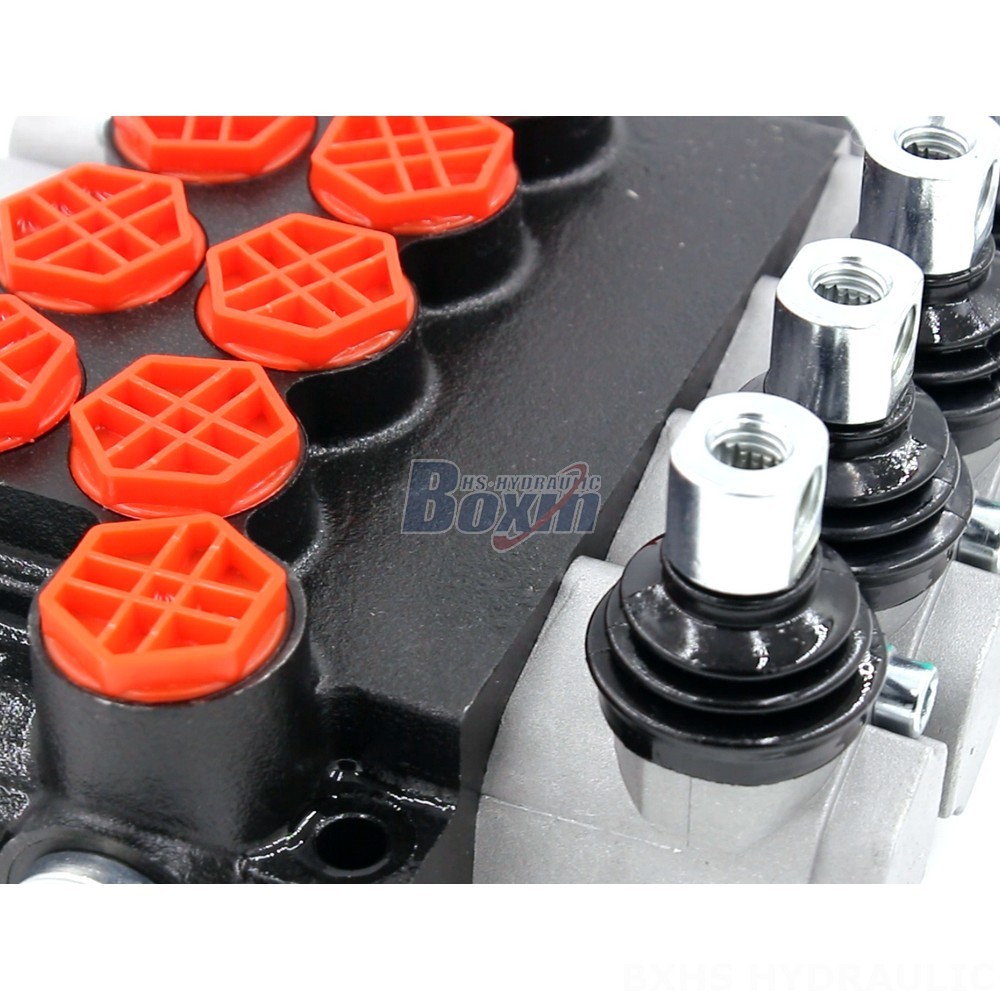

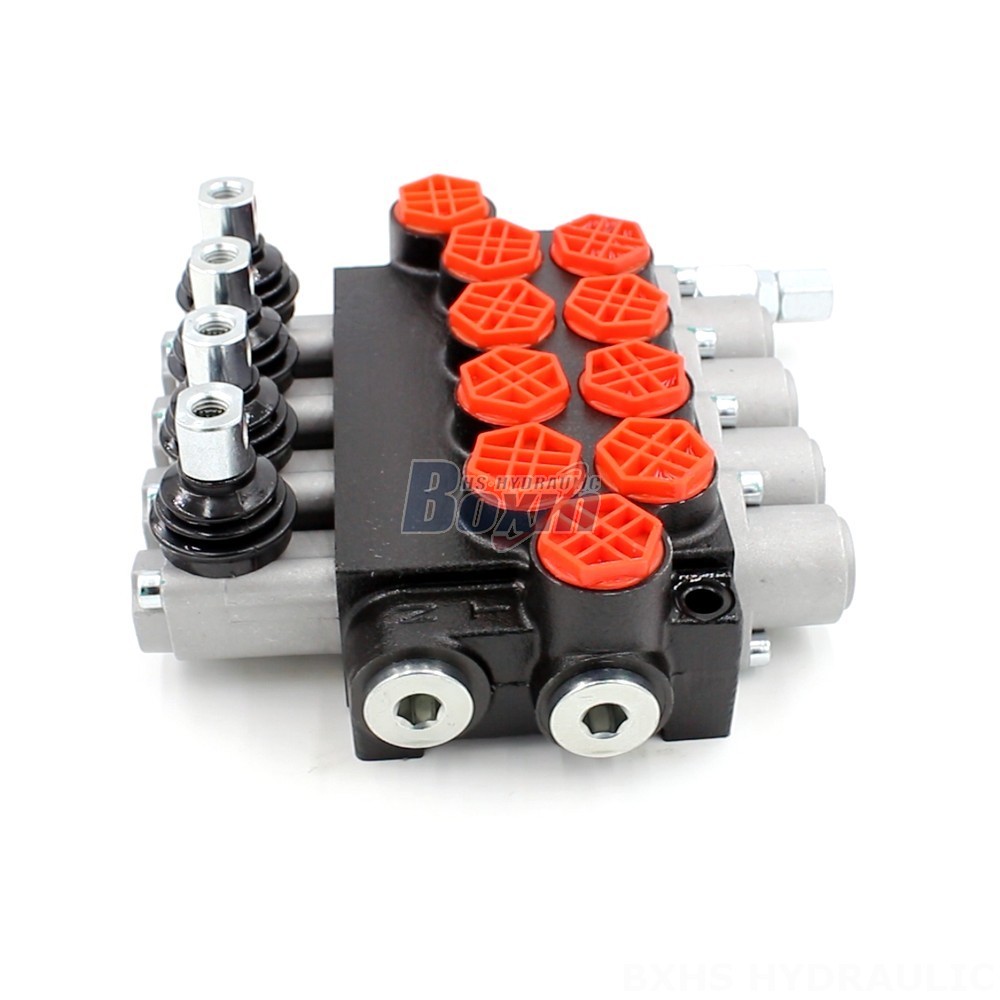

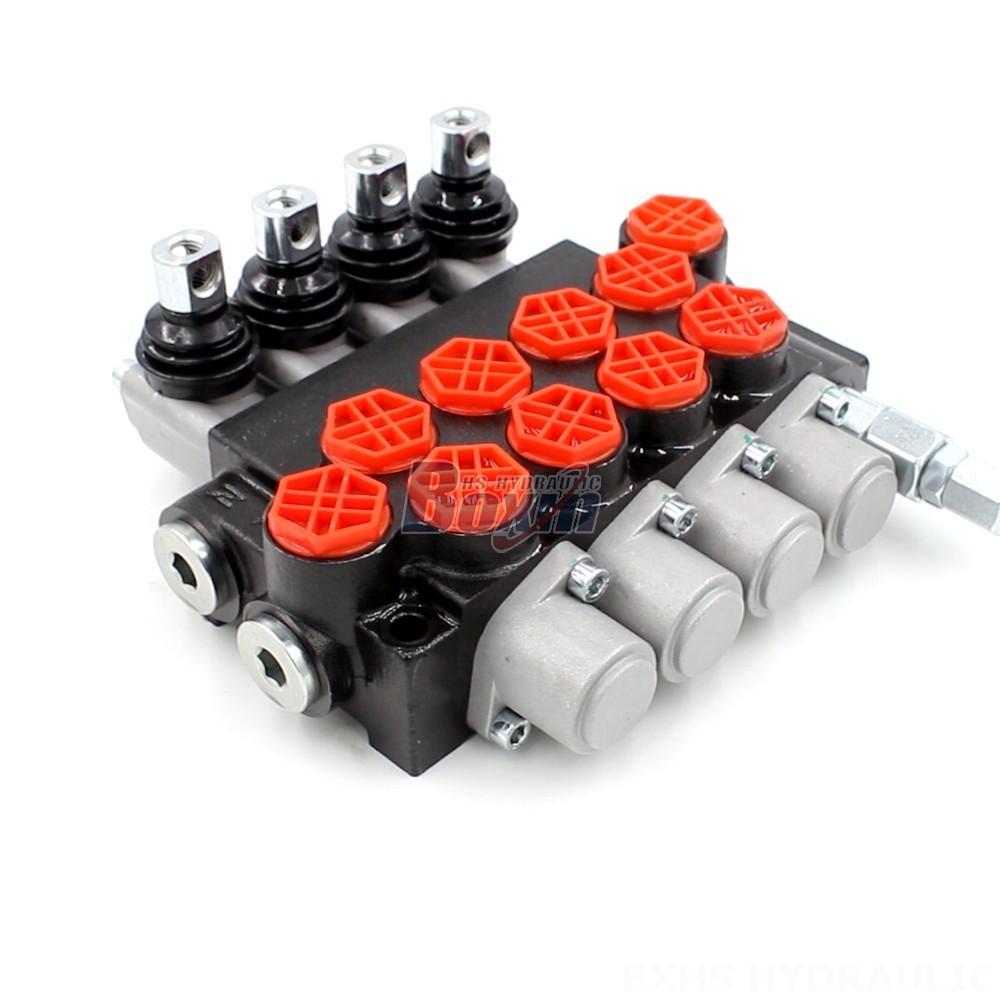

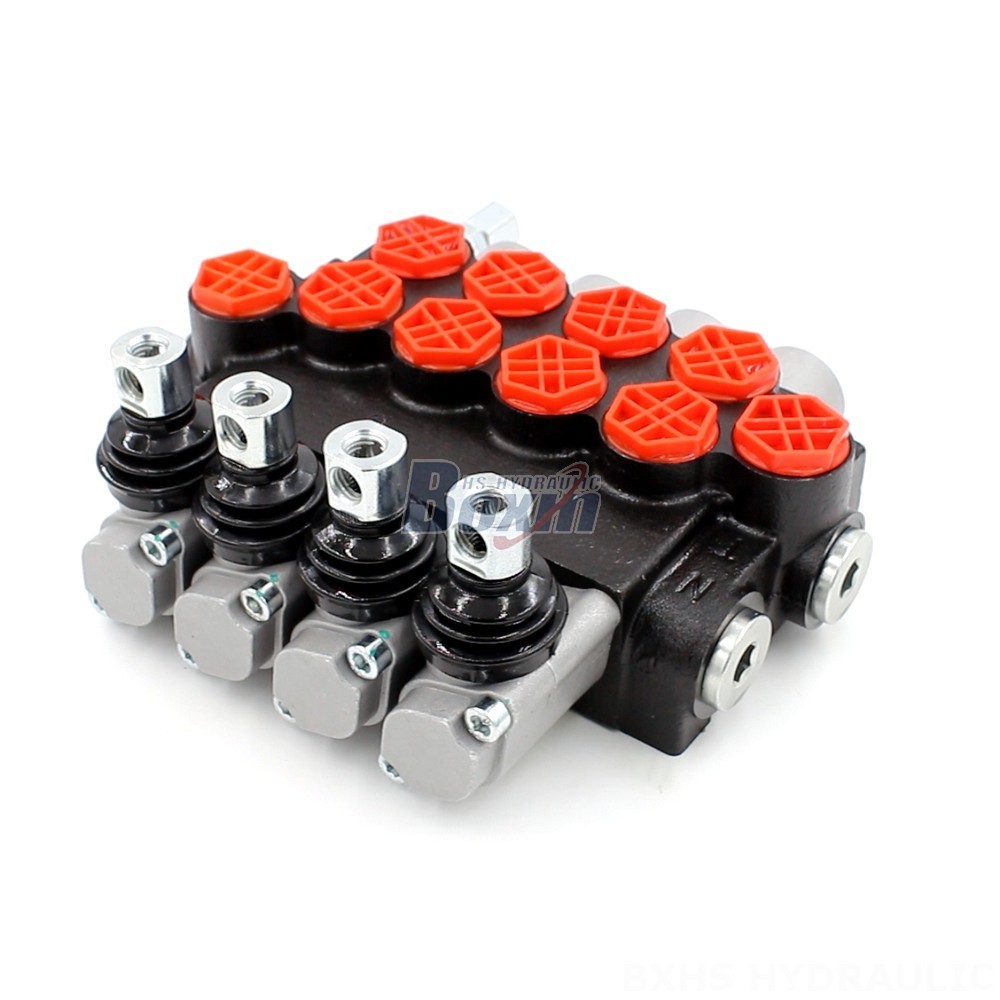

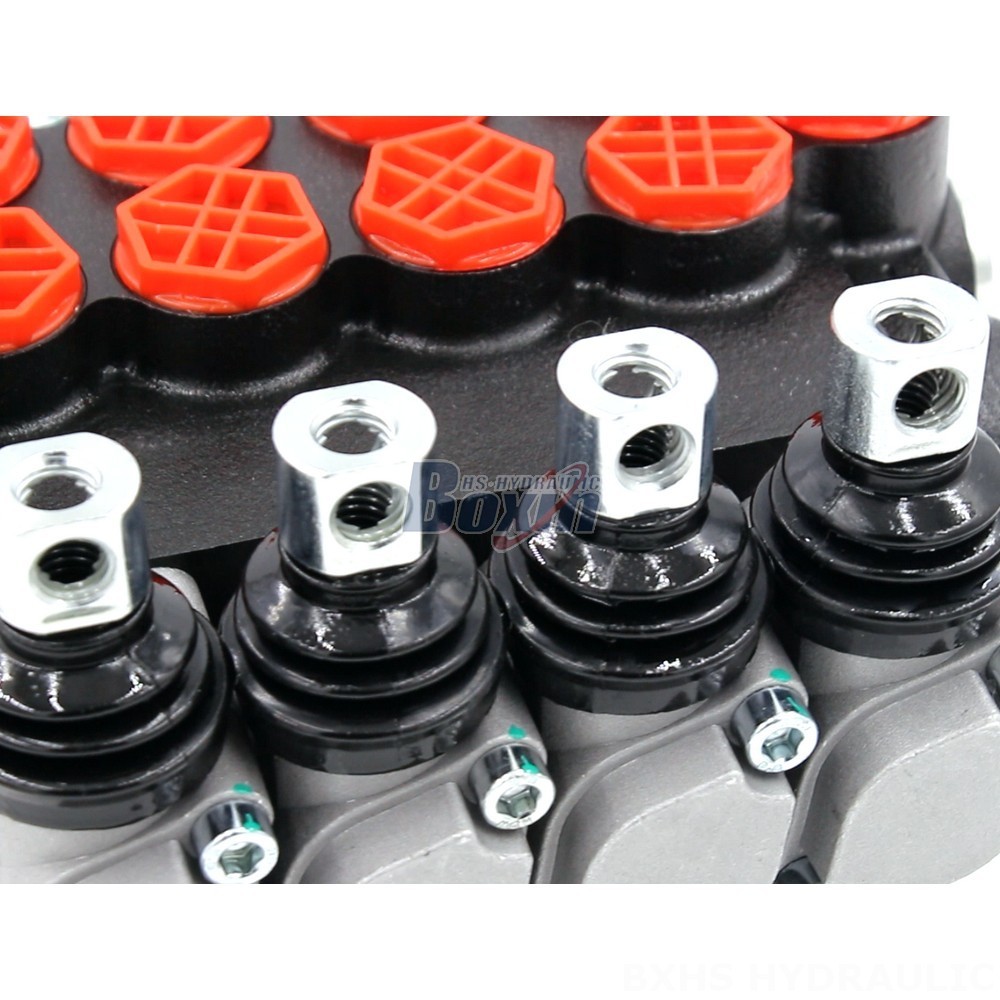

The P40-G12-G38-4OT Series is a 4 Spool Monoblock Directional Valve designed for use in a wide range of industrial and mobile hydraulic applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for controlling the flow of hydraulic fluid in systems such as material handling equipment, construction machinery, agricultural machinery, and industrial vehicles.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38-4OT Series valve features a compact and robust monoblock design, ensuring high durability and reliability. It is manually controlled, allowing for precise and responsive operation. The valve has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C, making it suitable for a variety of operating conditions. The valve is also available in a range of configurations to meet specific application requirements.
