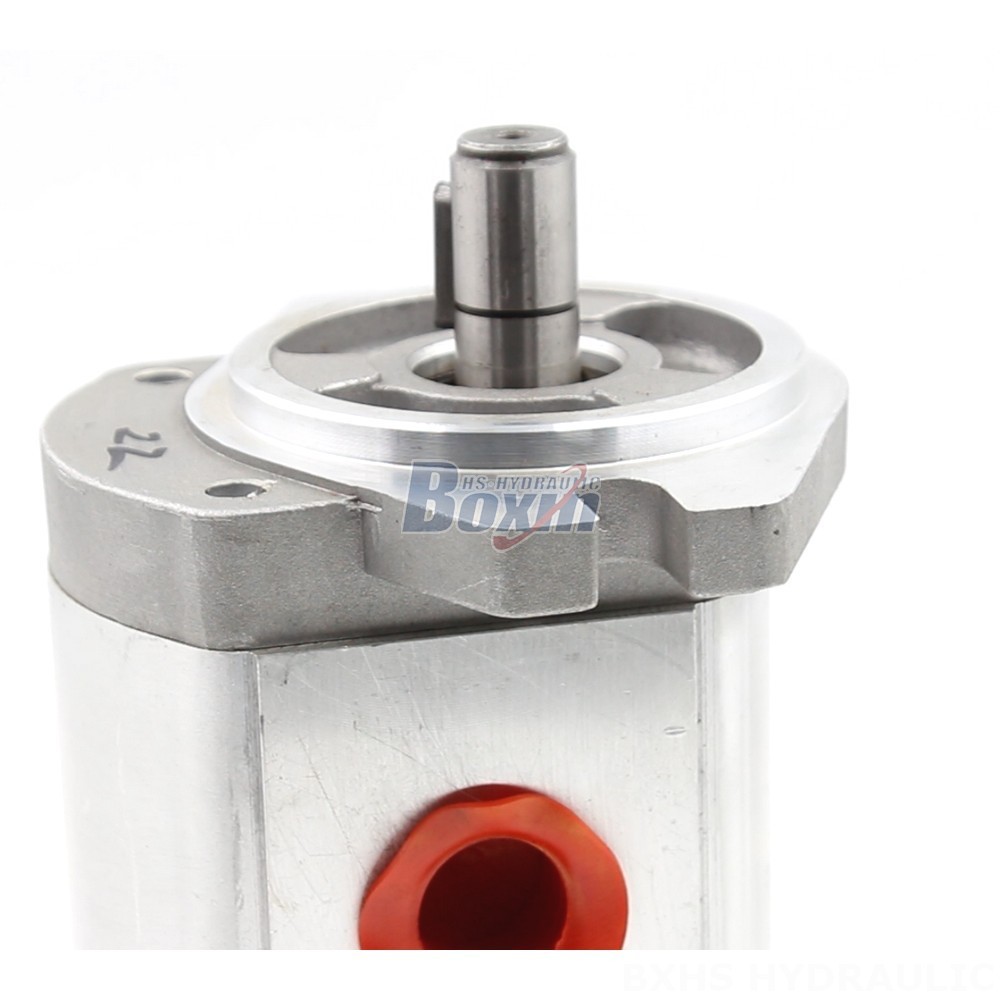

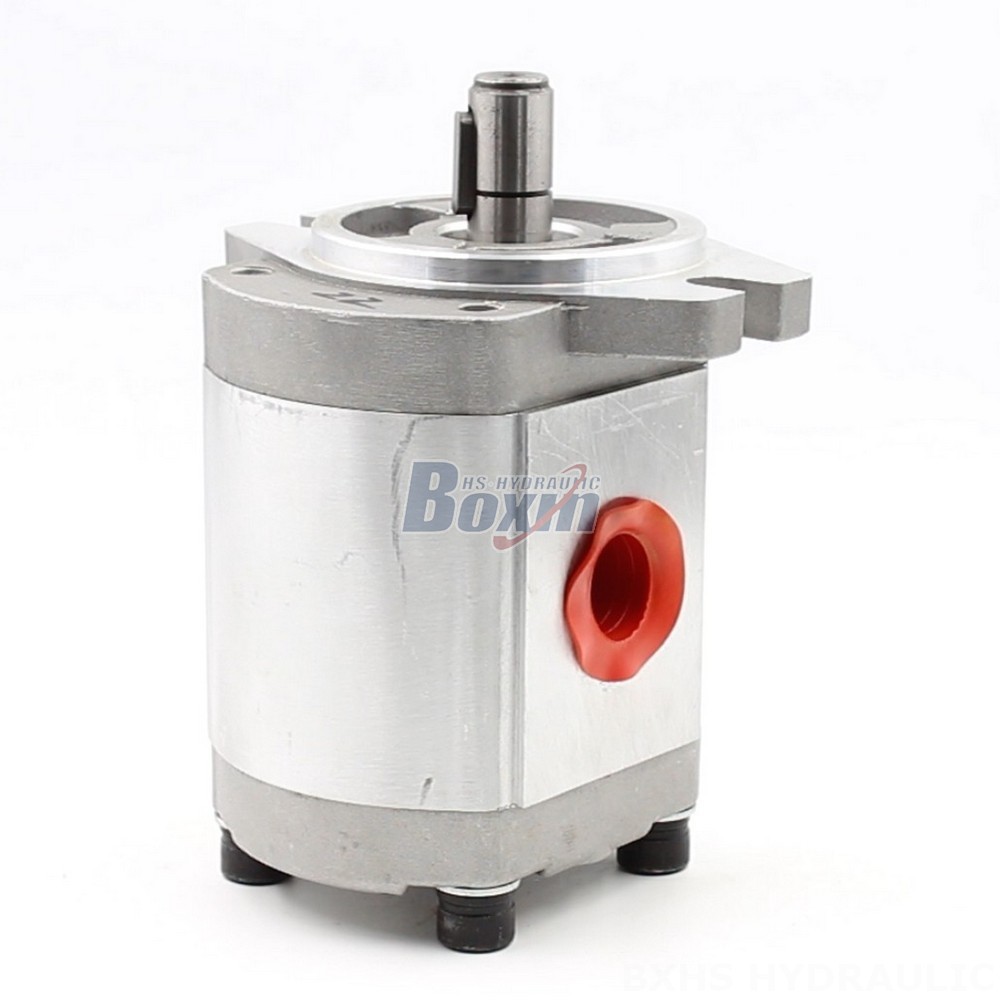

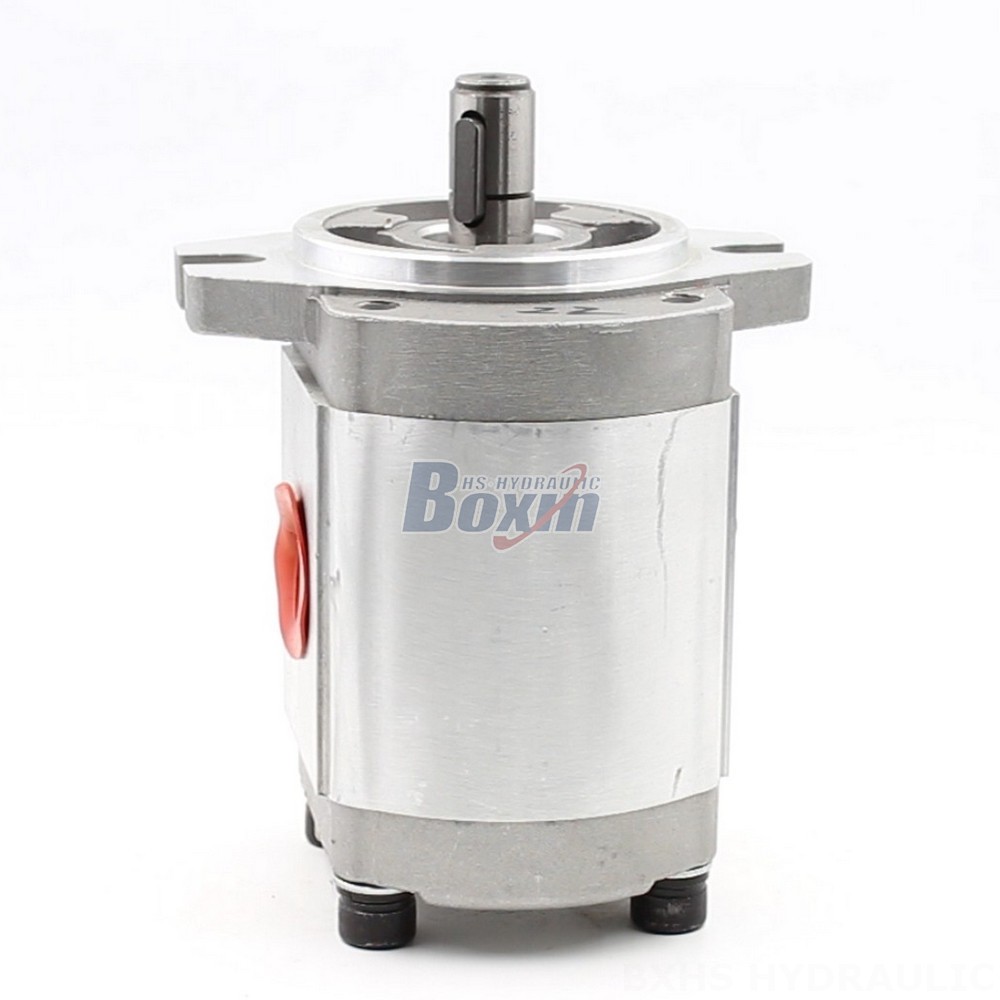

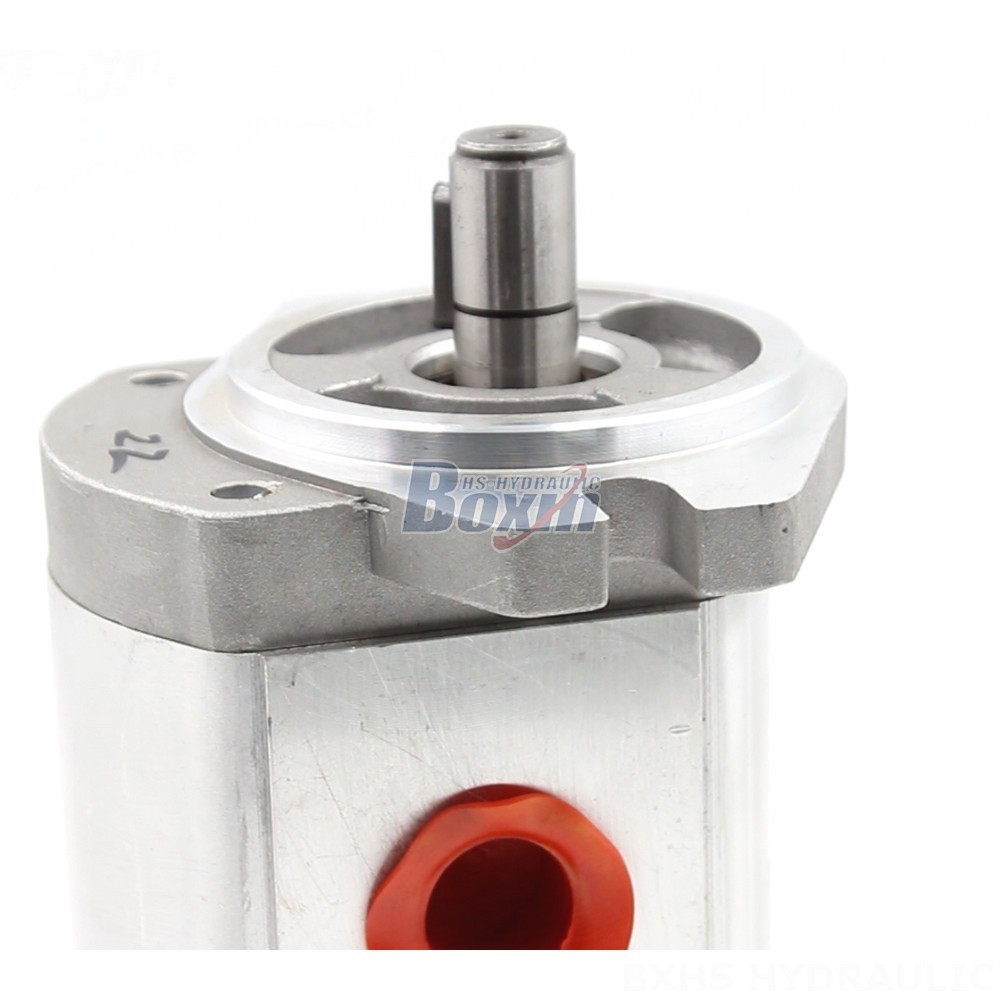

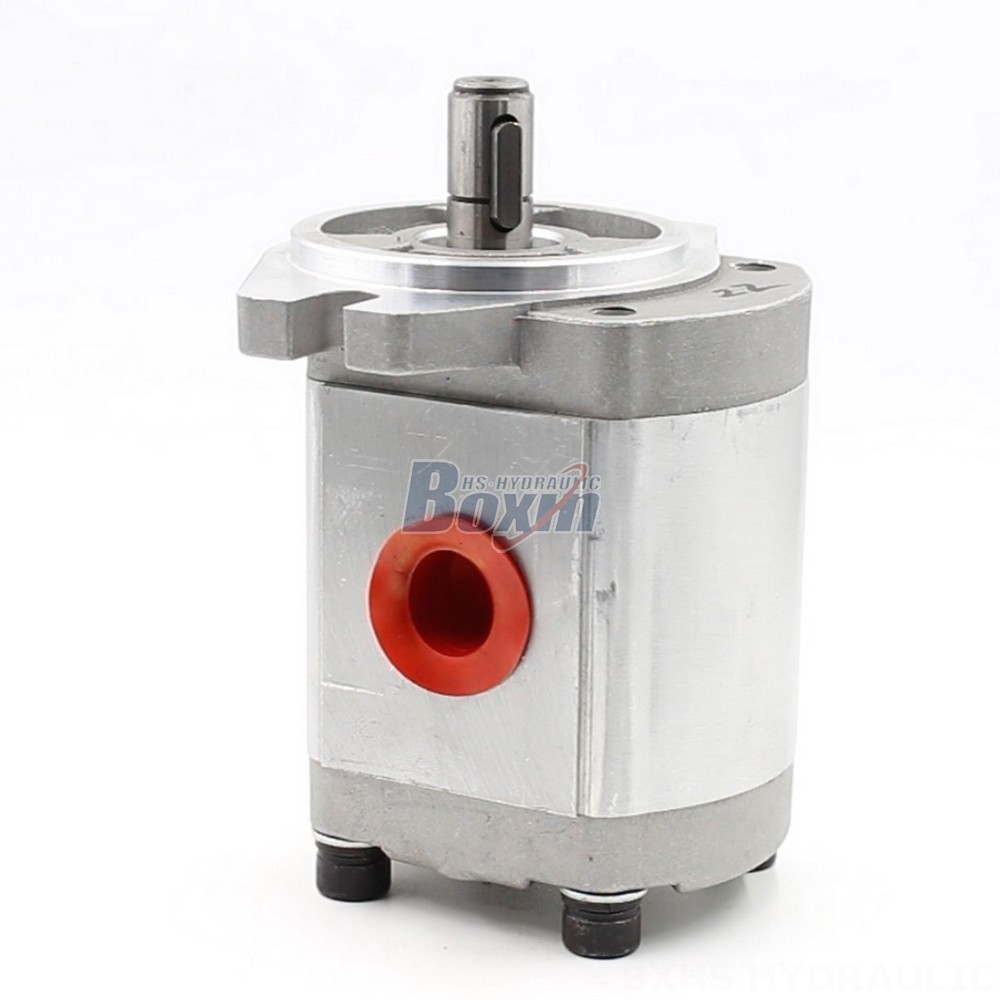

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

Cylindrée:4 cc/tr

Pression nominale:20 MPa (2900 psi)

Pression maximale:25 MPa (3625 psi)

Vitesse maximale:3 000 tr/min

Rotation:R : Droite (horaire)

Marque:BXHS

Type de produit:Pompe hydraulique à engrenages

Série de produits:Série CBHS-FL3 Pompe hydraulique à engrenages

Taille de l'emballage:20*30*20

Poids brut:9.00 kg

Disponibilité: En stock

1733 personnes consultent ce produit

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable

4 cc/rev Hydraulic Gear Pump - CBHS-FL304 | Factory Direct & Customizable drawing image

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance, durable pump designed for use in a wide range of applications, including construction, agriculture, industrial vehicles, and material handling. It is available in various configurations and is customizable to meet specific requirements.

Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres
Cylindrée 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr
Pression nominale 20 MPa (2900 psi)
Pression maximale 25 MPa (3625 psi)
Vitesse nominale 2 000 tr/min
Vitesse maximale 3 000 tr/min
Rotation L : Gauche (antihoraire), R : Droite (horaire)
Matériau Aluminium
Structure Pompe à engrenages externes
Version de la bride A - Bride ovale
Type d'arbre H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple

This CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a robust and reliable component for various machinery. It is a factory direct product, meaning you are getting it straight from the manufacturer, ensuring competitive pricing and direct communication. Furthermore, the pump is customizable, allowing you to tailor it to your specific needs and application. The pump boasts a displacement of 10 cc/rev and a rated pressure of 20 MPa (2900 psi), making it suitable for demanding applications. Its rated speed is 2000 r/min with a maximum speed of 3000 r/min. The pump is available in both left and right rotation options. Constructed with an internal gear pump design using high-quality aluminium, it is durable and built to withstand demanding environments. The pump comes with an A-Oval Flange and Plain Key shaft for easy integration and compatibility with various machinery. The CBHS-FL304 pump is designed to be utilized in a wide array of machinery, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. This versatile pump ensures its suitability across different applications within the construction, agriculture, industrial vehicles, and material handling sectors.
