Production et livraison
Délai de production de 15 à 30 jours
L'innovation favorise le développement ; la technologie forge l'avenir
1063 personnes consultent ce produit

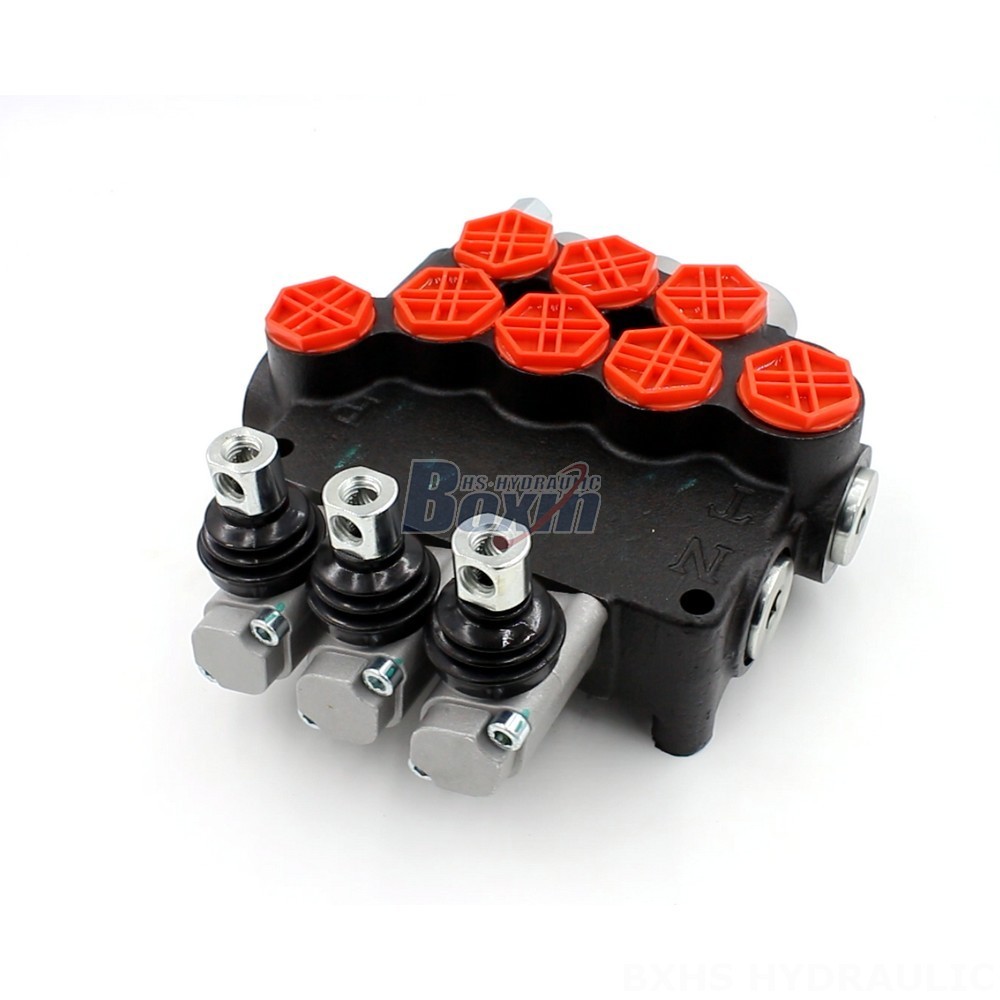

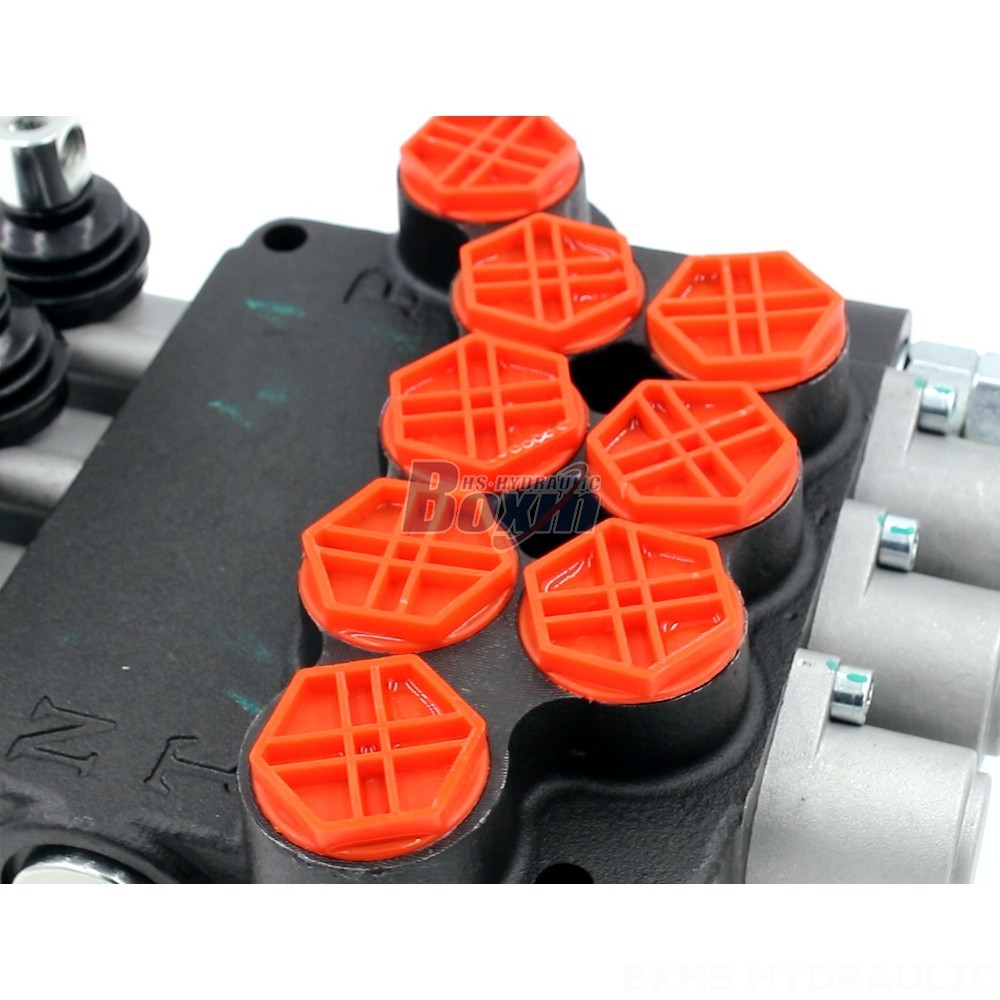

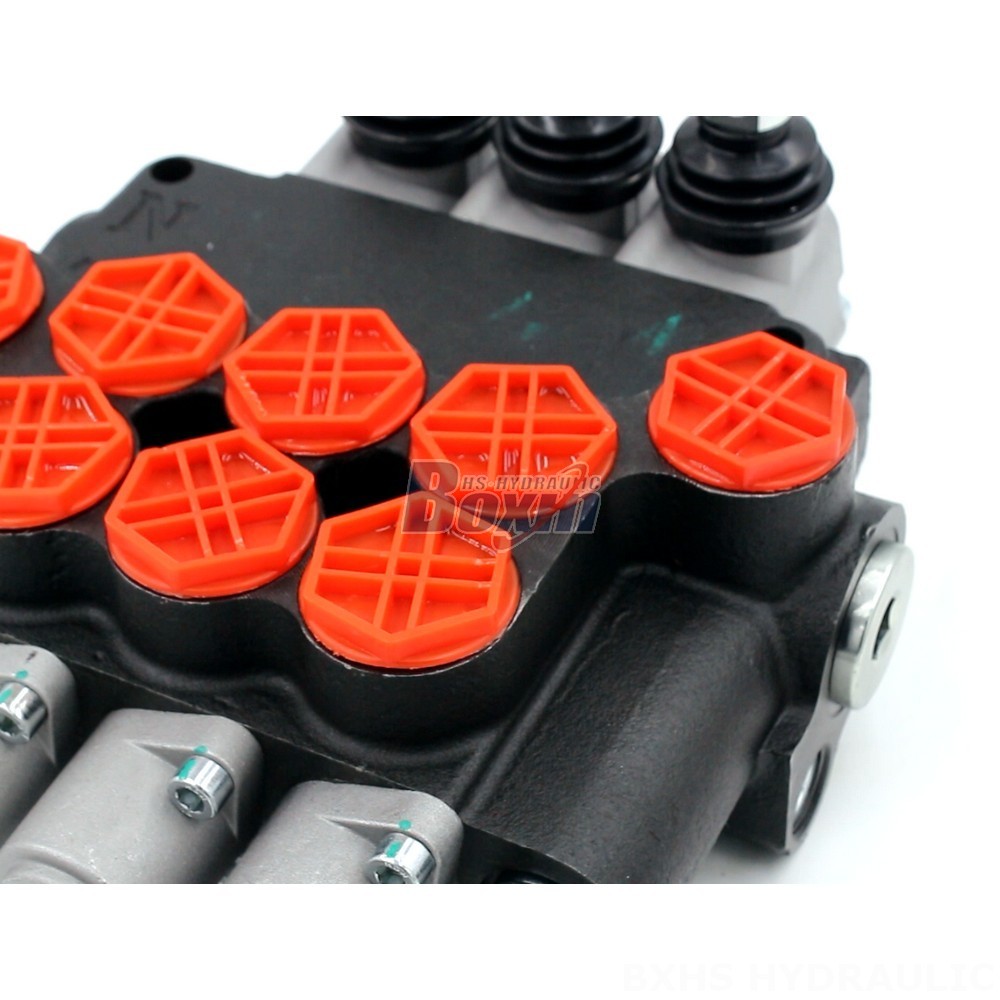

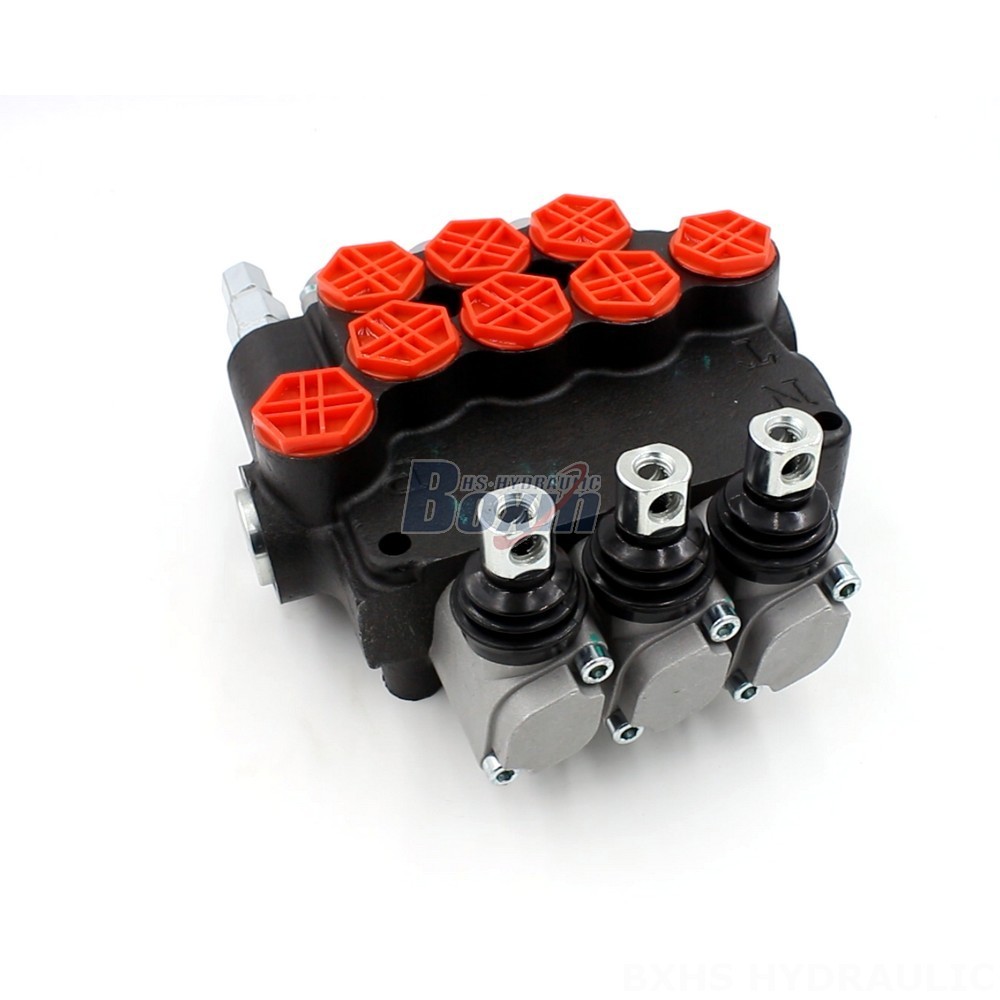

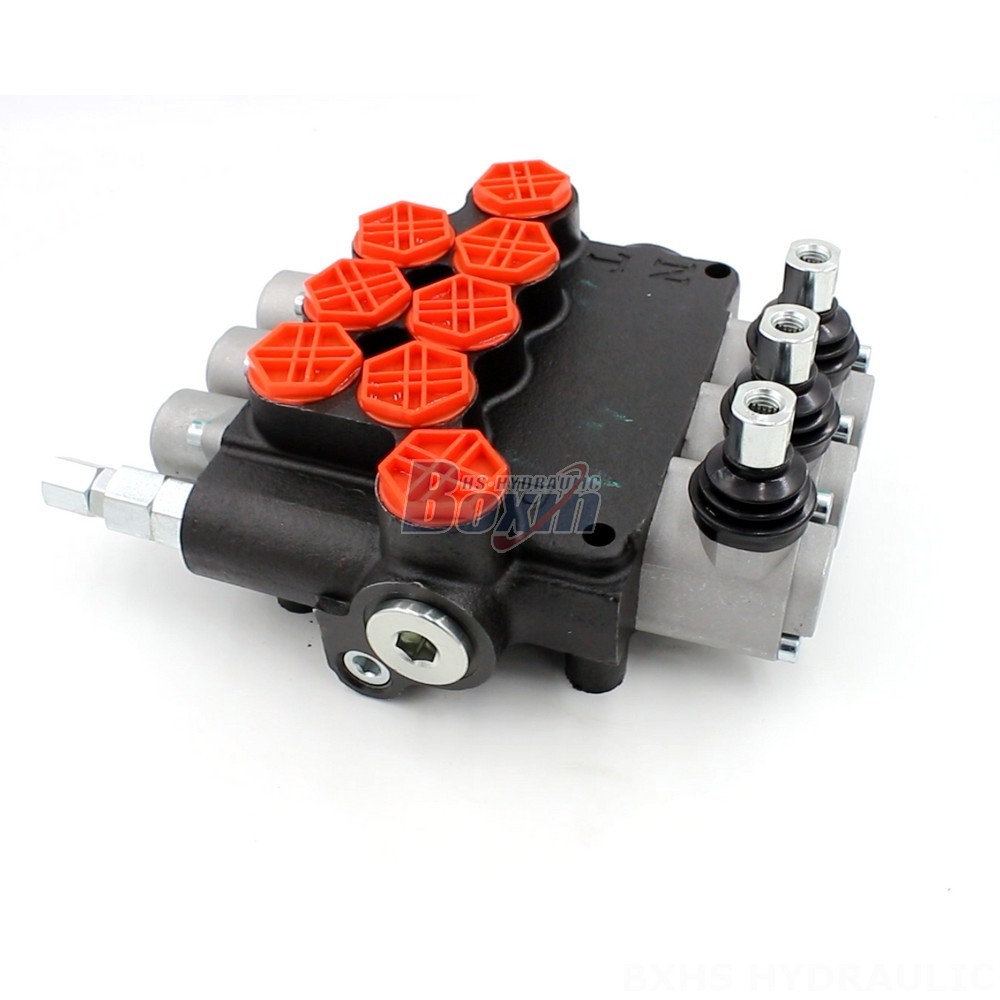

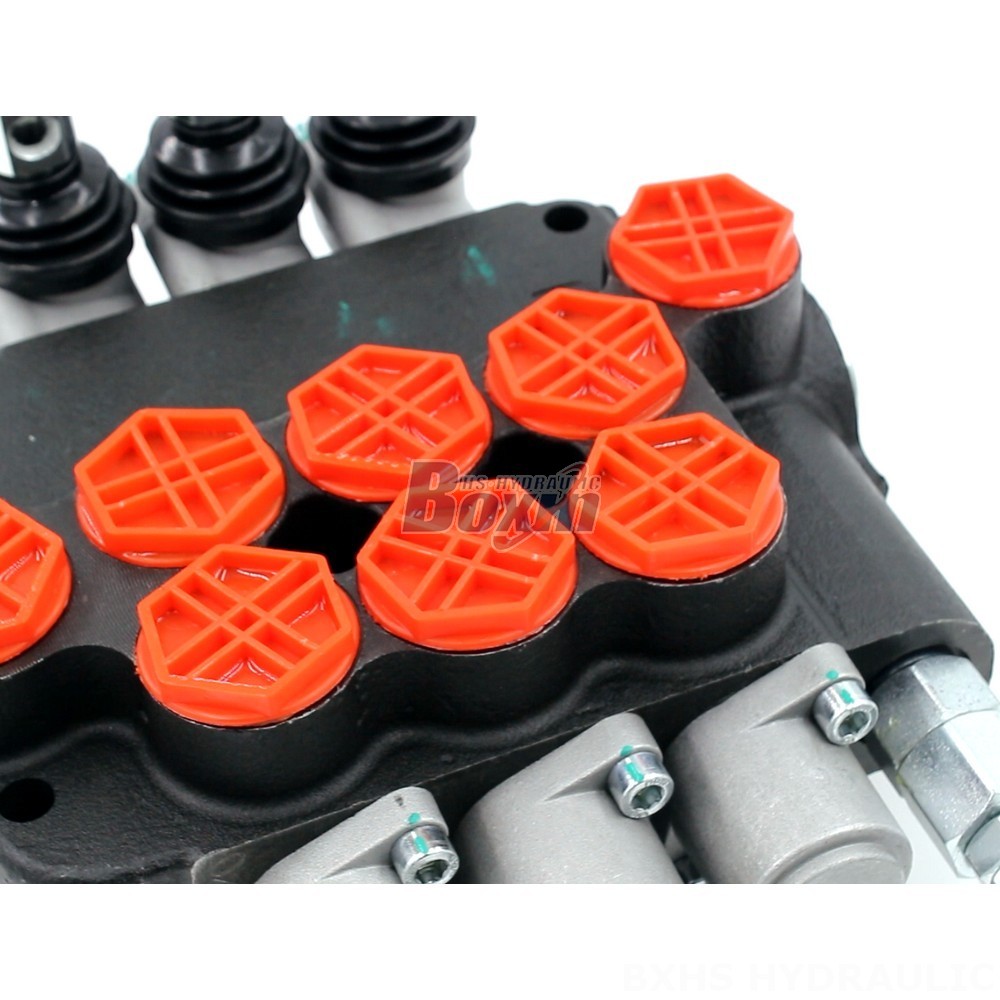

This proportional hydraulic control amplifier with 3 spool valve is designed for demanding applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it's suitable for various machinery including telehandlers, forklifts, excavators, and loaders.
| Série P80 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Manuel et manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 80 L/min (21,2 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Orifice de sortie | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimension du raccord | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This 3-section monoblock valve features manual control and a rated flow of 80 L/min (21.2 US gpm). It operates at a maximum pressure of 250 bar (3600 psi) and is designed for operating viscosity ranges from 15 to 75 mm²/s (15 cSt to 75 cSt). The valve can handle temperatures from -40°C to +80°C (-40°F to +176°F). It's ideal for various applications in material handling, construction, and agriculture, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling, crushers and stone cutters.
