Production et livraison
Délai de production de 15 à 30 jours

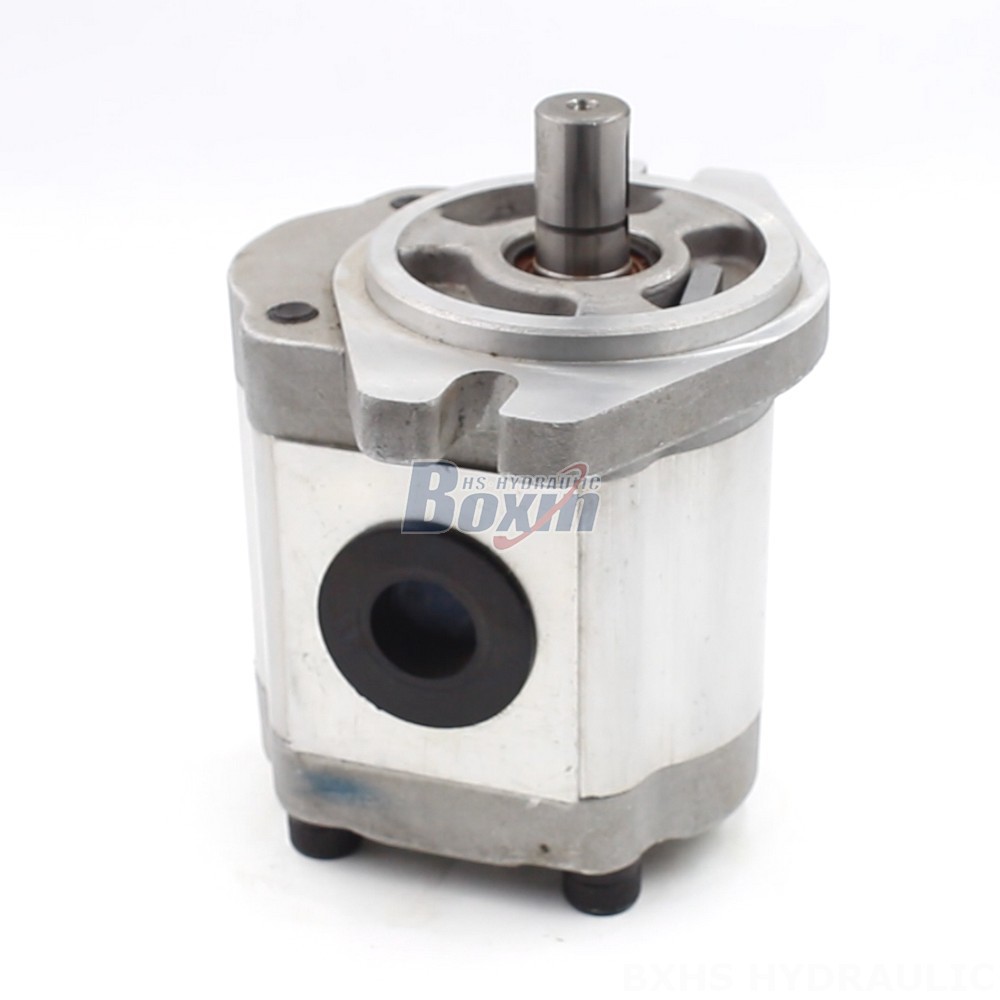

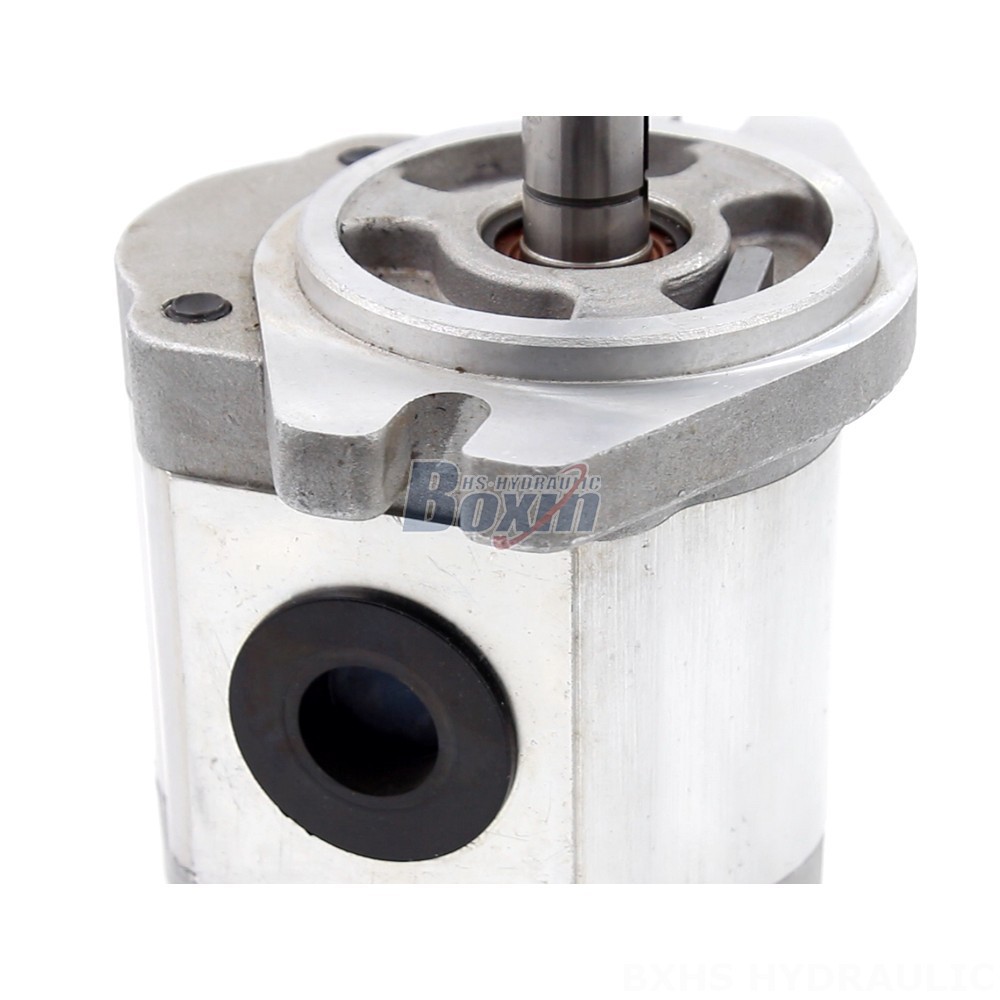

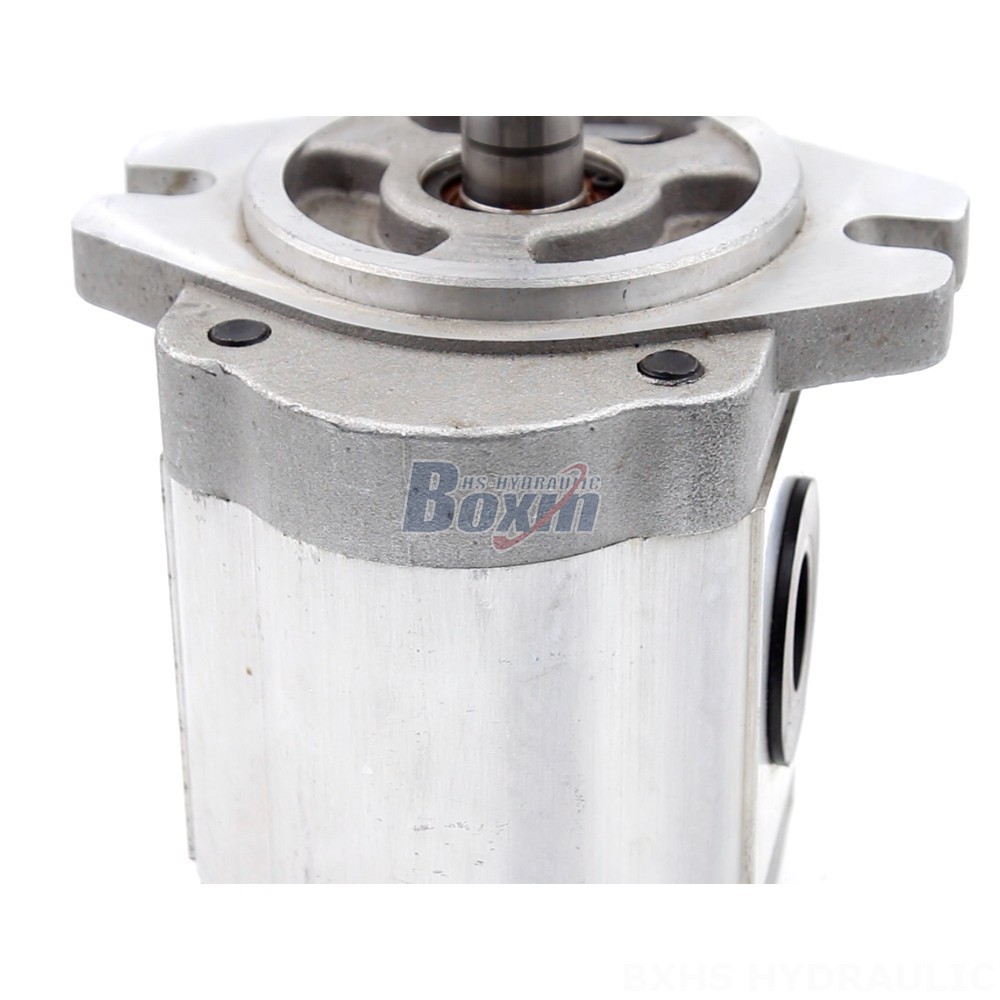

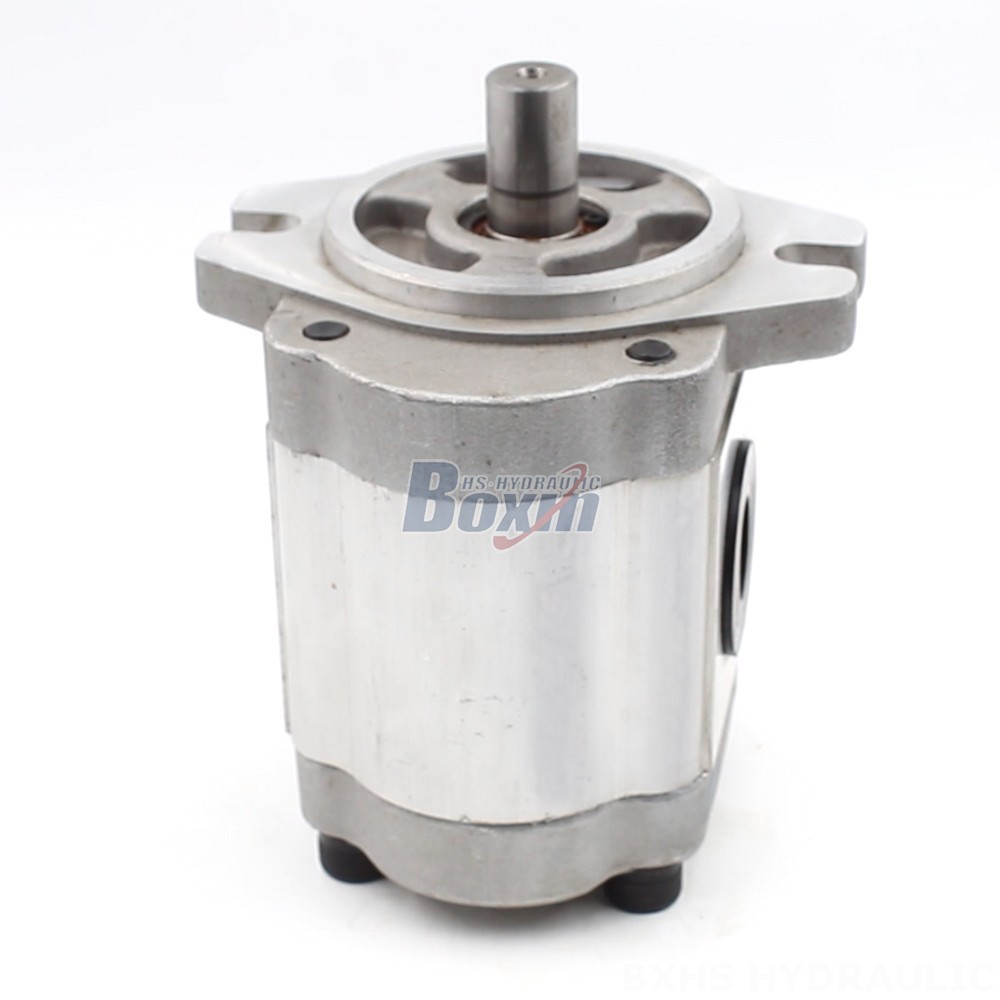

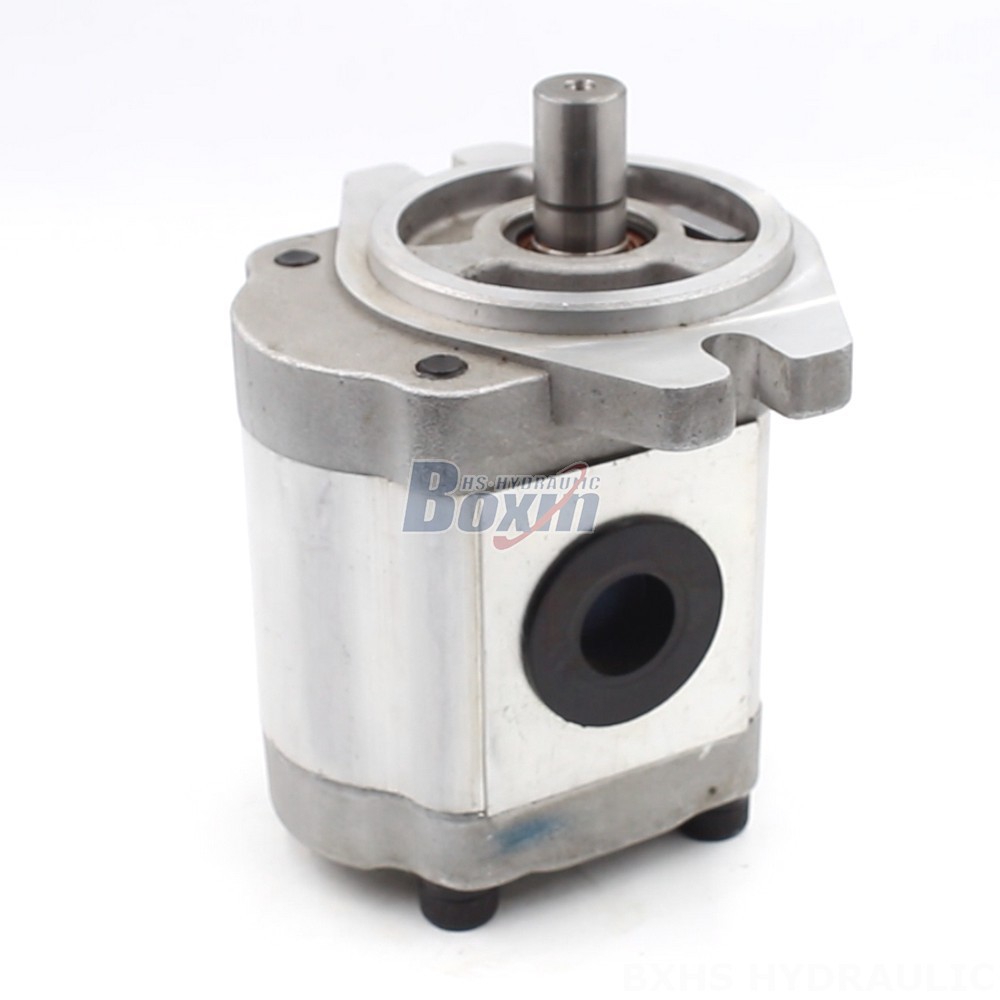

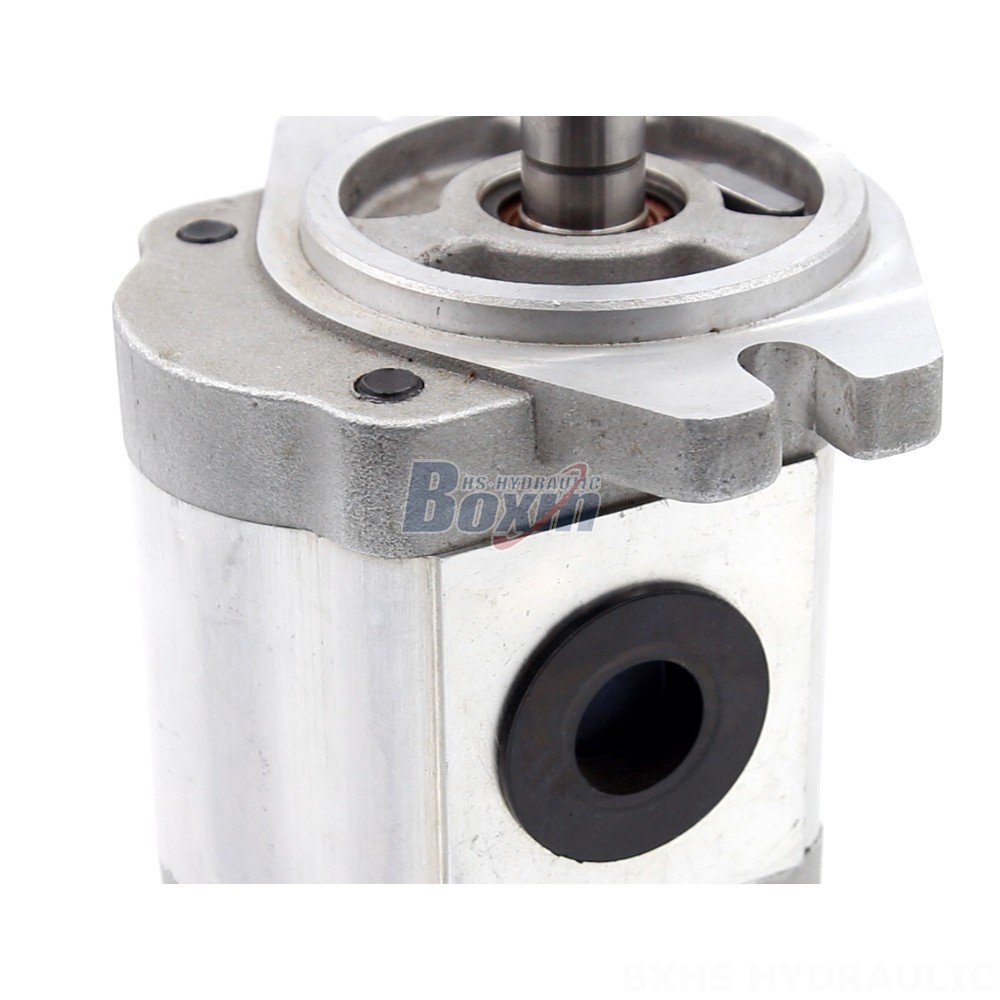

This 16 cc/rev hydraulic gear pump is designed for high-performance applications in construction, agriculture, and material handling. It features a durable aluminum construction, high pressure rating, and customizable options to meet your specific needs. The pump is suitable for various equipment types, including forklifts, telehandlers, skid steer loaders, and more.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |
This 16 cc/rev hydraulic gear pump is a heavy-duty, high-performance solution for various applications. It boasts a 20 MPa (2900 psi) rated pressure and a 2000 r/min rated speed, with a maximum speed of 3000 r/min. This pump features a robust internal gear design, constructed from aluminum for long-lasting durability. Its A-Oval flange and plain key shaft provide flexible mounting options. The CBHS-FL3 Series pump is specifically designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles. This makes it a versatile option for a wide range of equipment types, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini- and midi- excavators, tractors and front-end loaders, harvesters, balers, and sprayers.
