This 16 cc/rev Hydraulic Gear Pump is engineered for precision and power, offering reliable performance in a wide range of applications including material handling, construction, agriculture, and industrial vehicles.
| Série CBHS-FL3 Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 4 cc/tr, 20 cc/tr, 16 cc/tr, 14 cc/tr, 6 cc/tr |
| Pression nominale | 20 MPa (2900 psi) |
| Pression maximale | 25 MPa (3625 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 3 000 tr/min |
| Rotation | L : Gauche (antihoraire), R : Droite (horaire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | A - Bride ovale |
| Type d'arbre | H : Cannelures droites, X : Cannelures hélicoïdales, P : Clé simple |

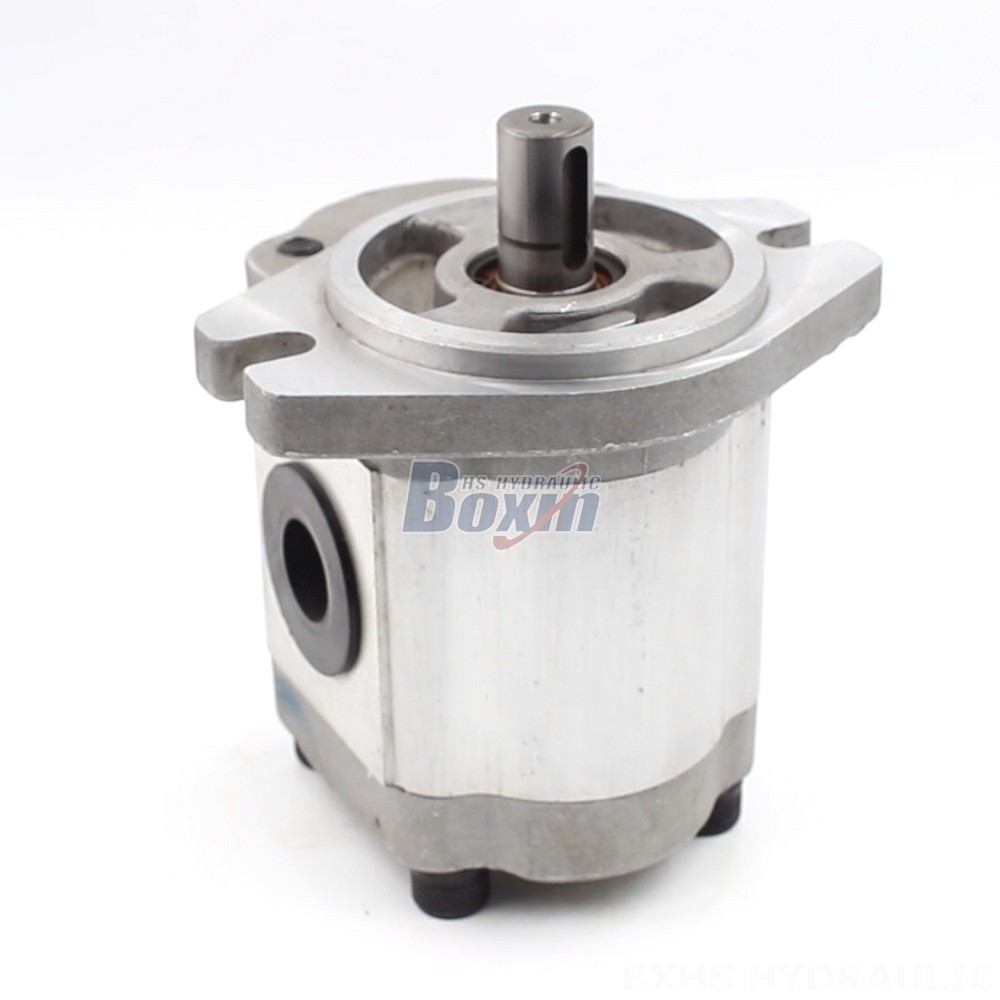

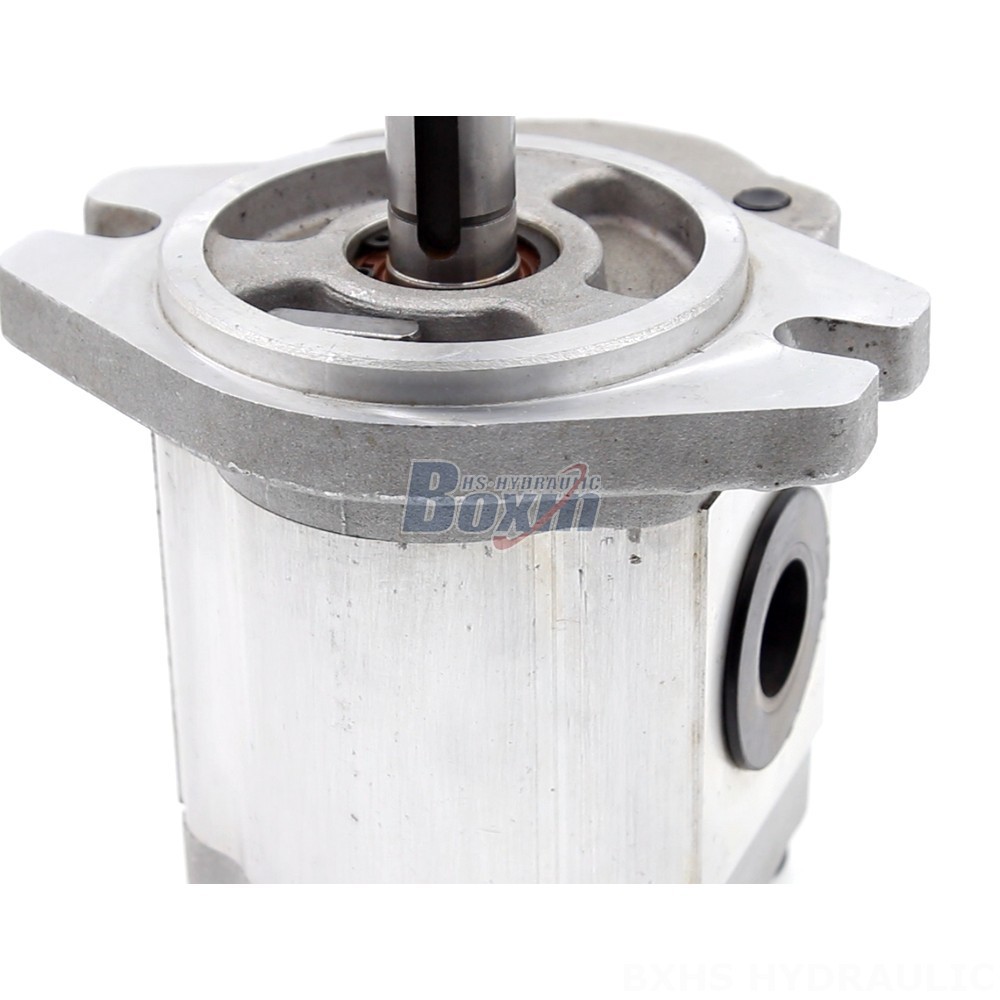

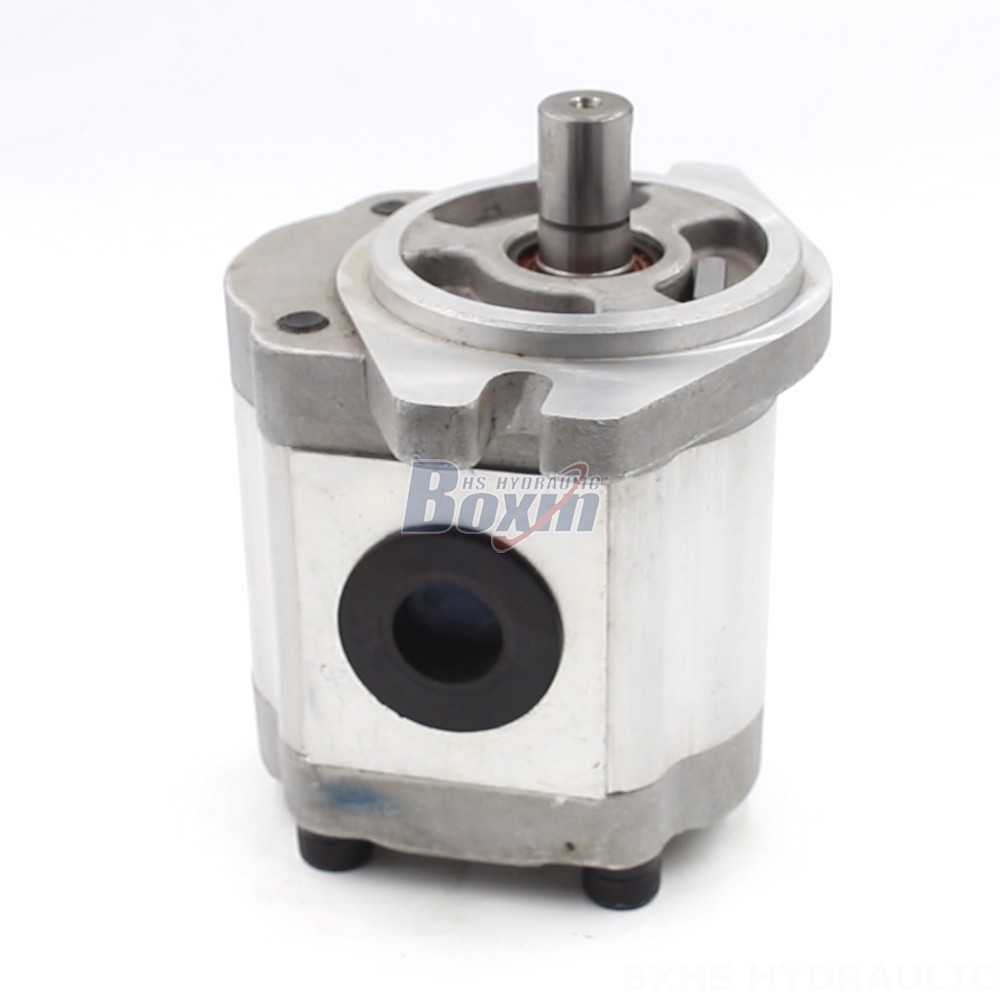

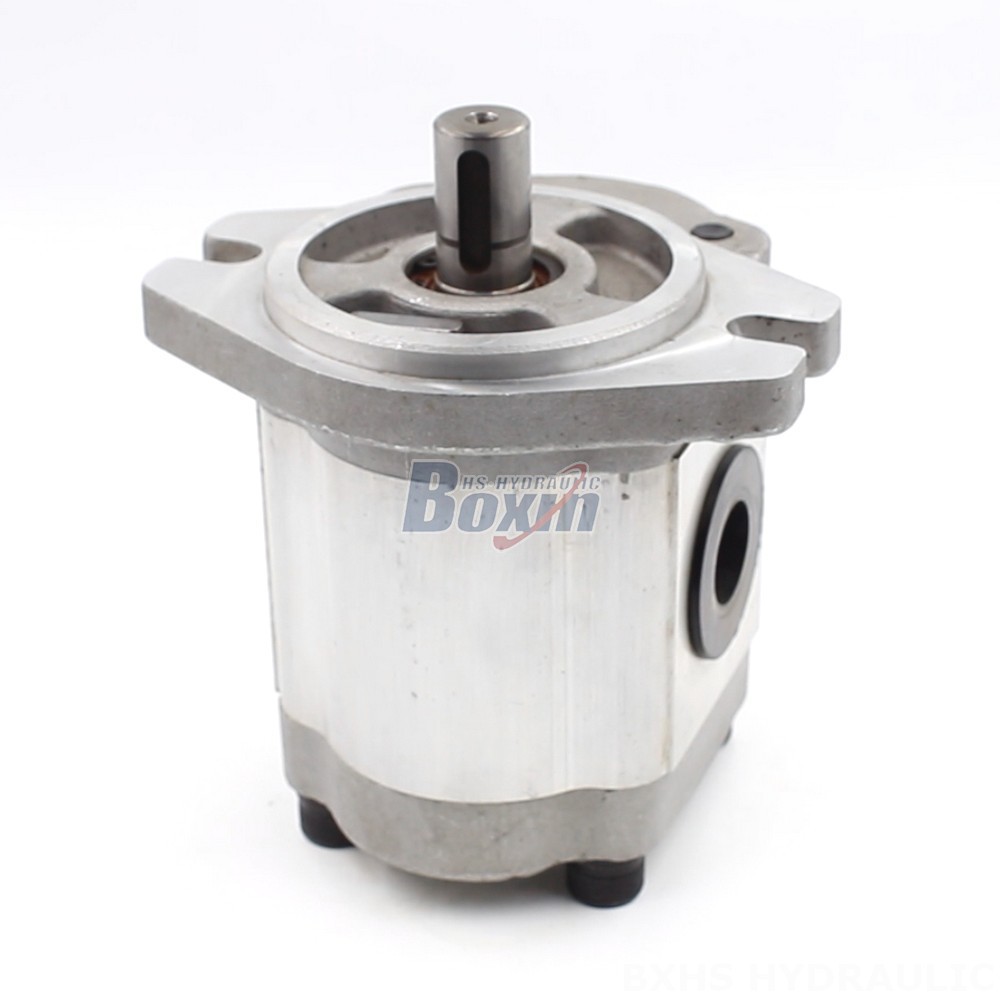

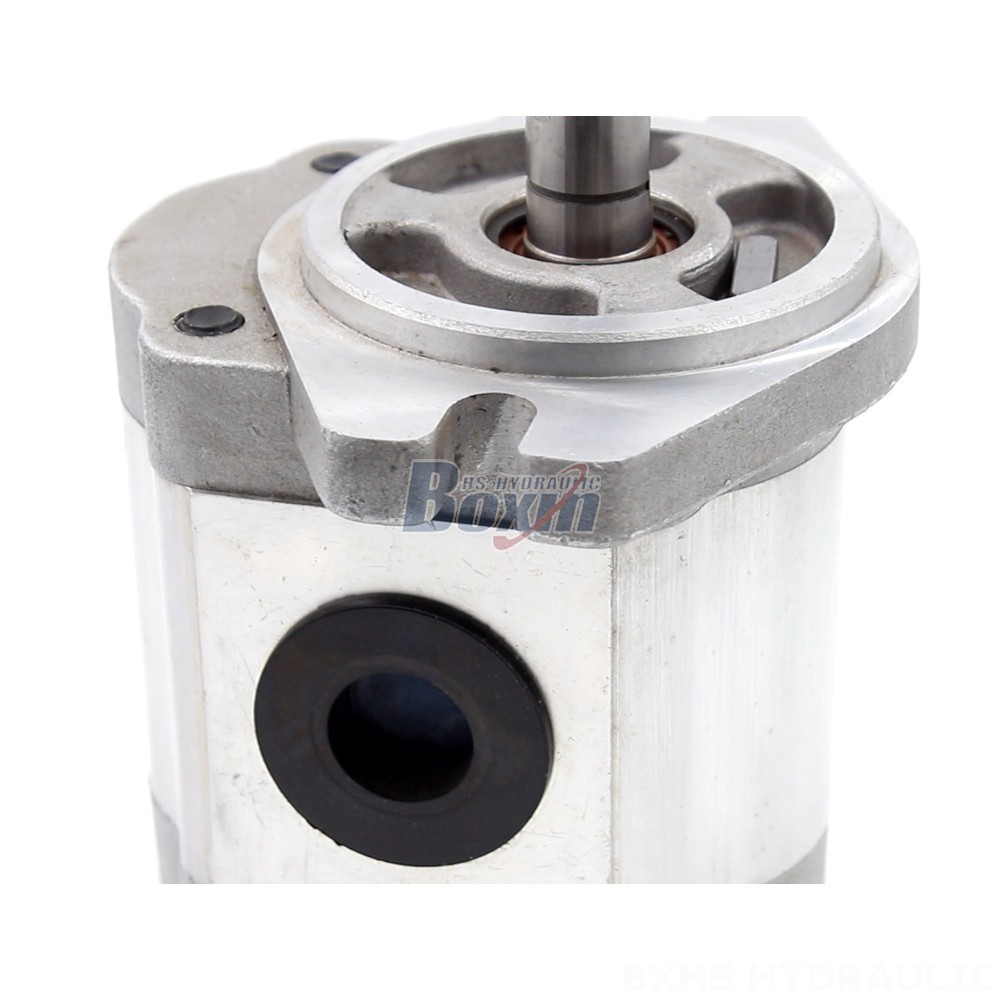

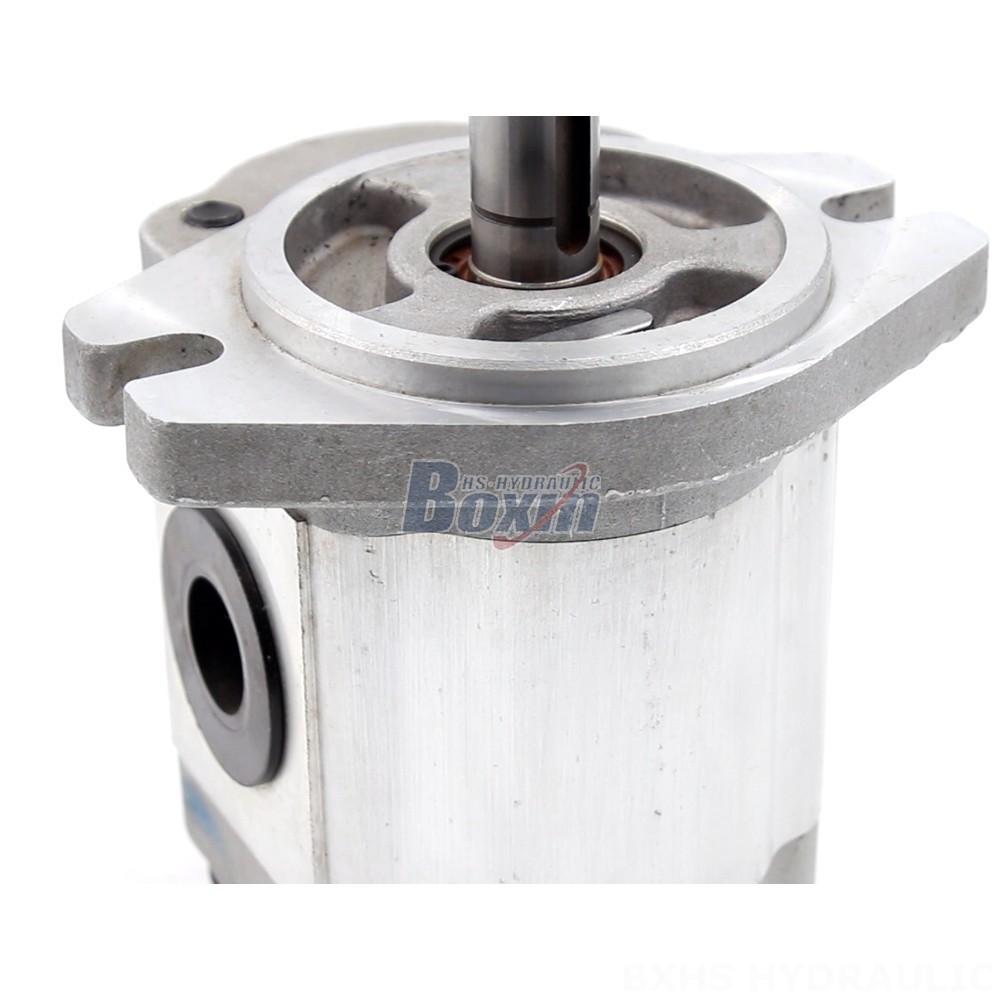

The CBHS-FL3 Series 16 cc/rev Hydraulic Gear Pump features a robust internal gear design, constructed from aluminum with an A-Oval flange and plain key shaft. It delivers a rated pressure of 20 MPa (2900 psi) at a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is suitable for various applications, including forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers.
