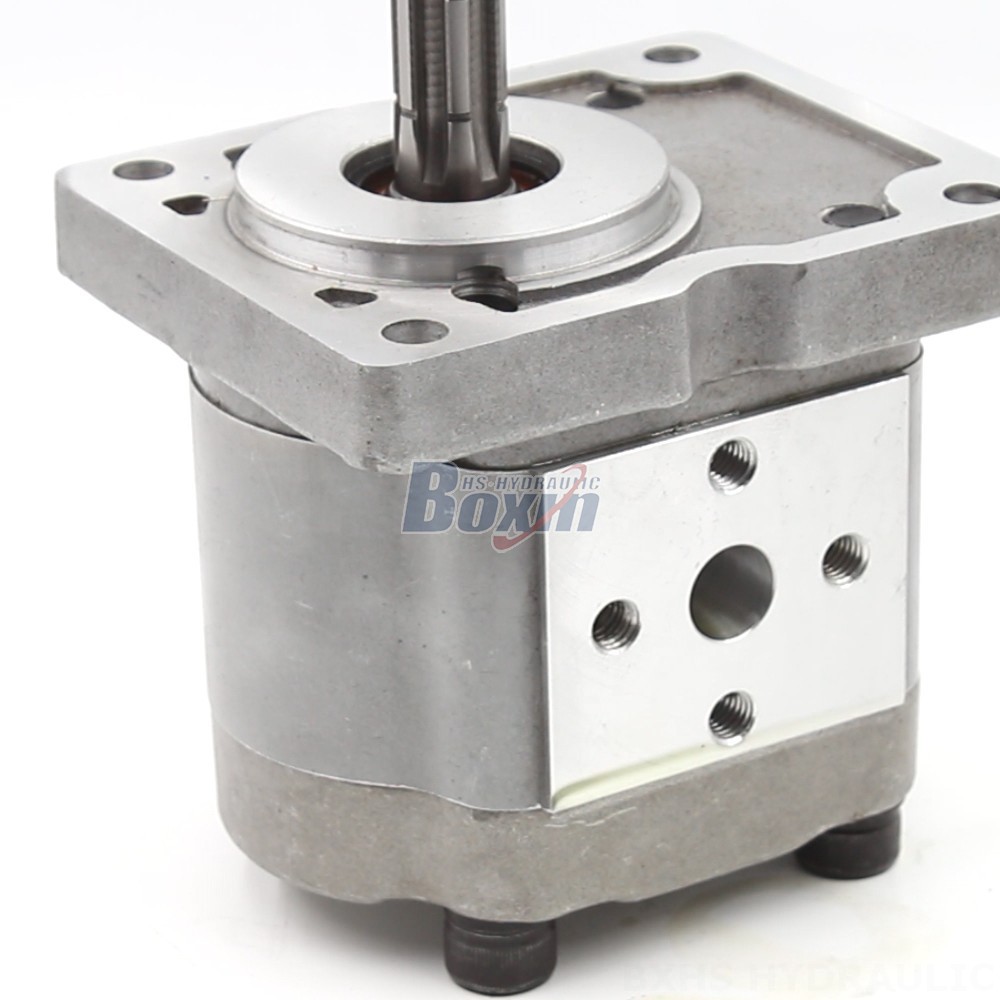

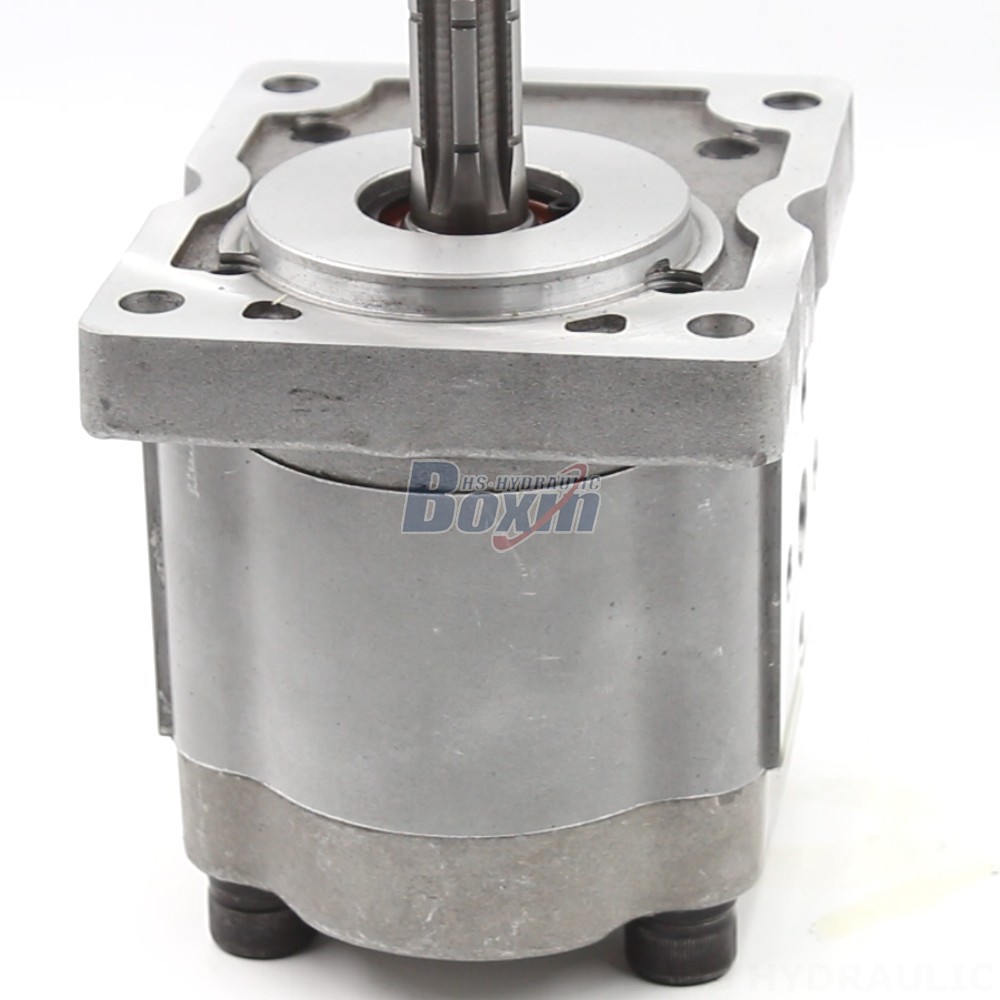

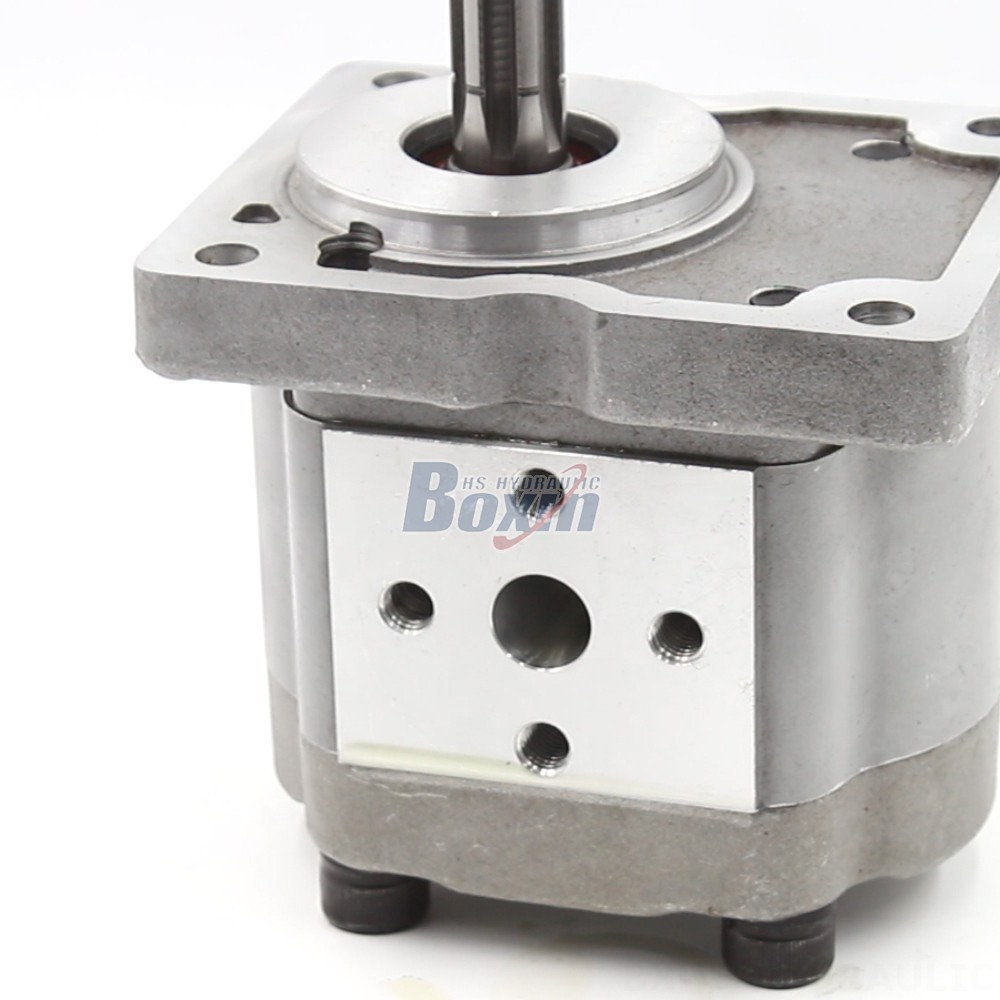

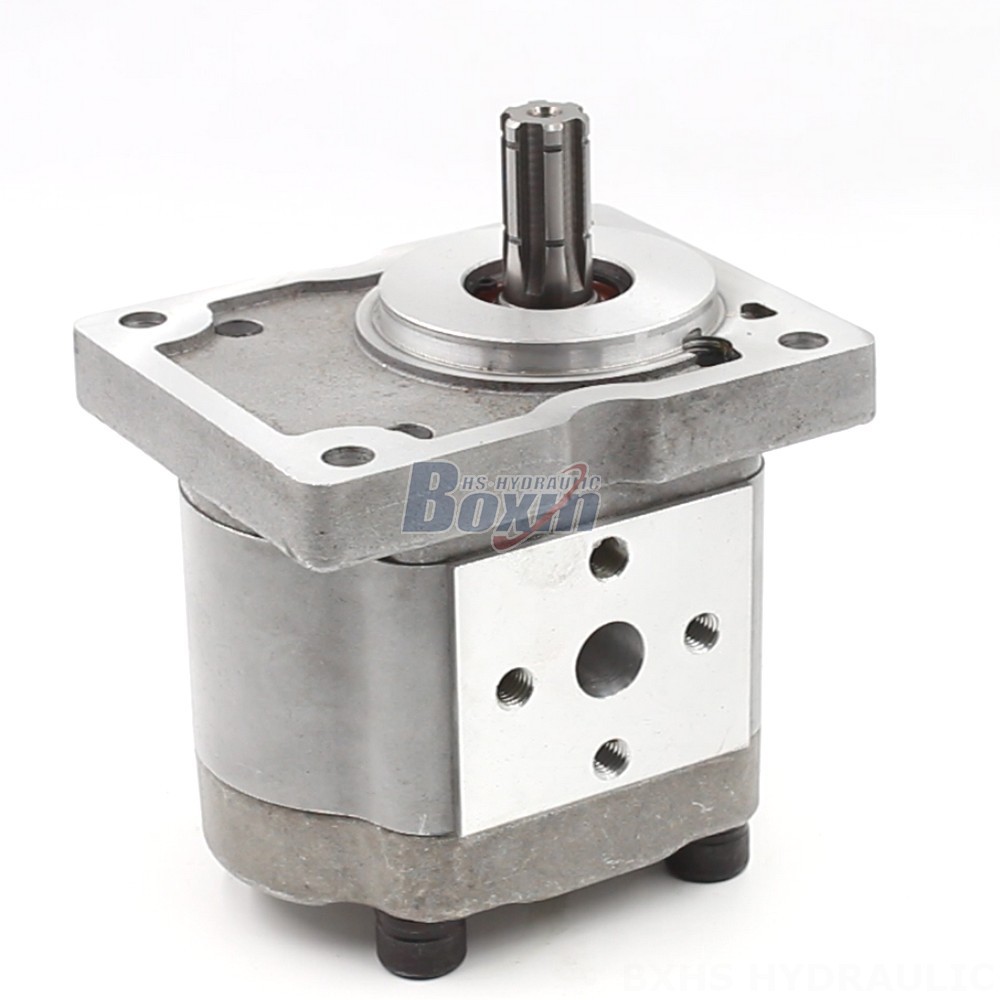

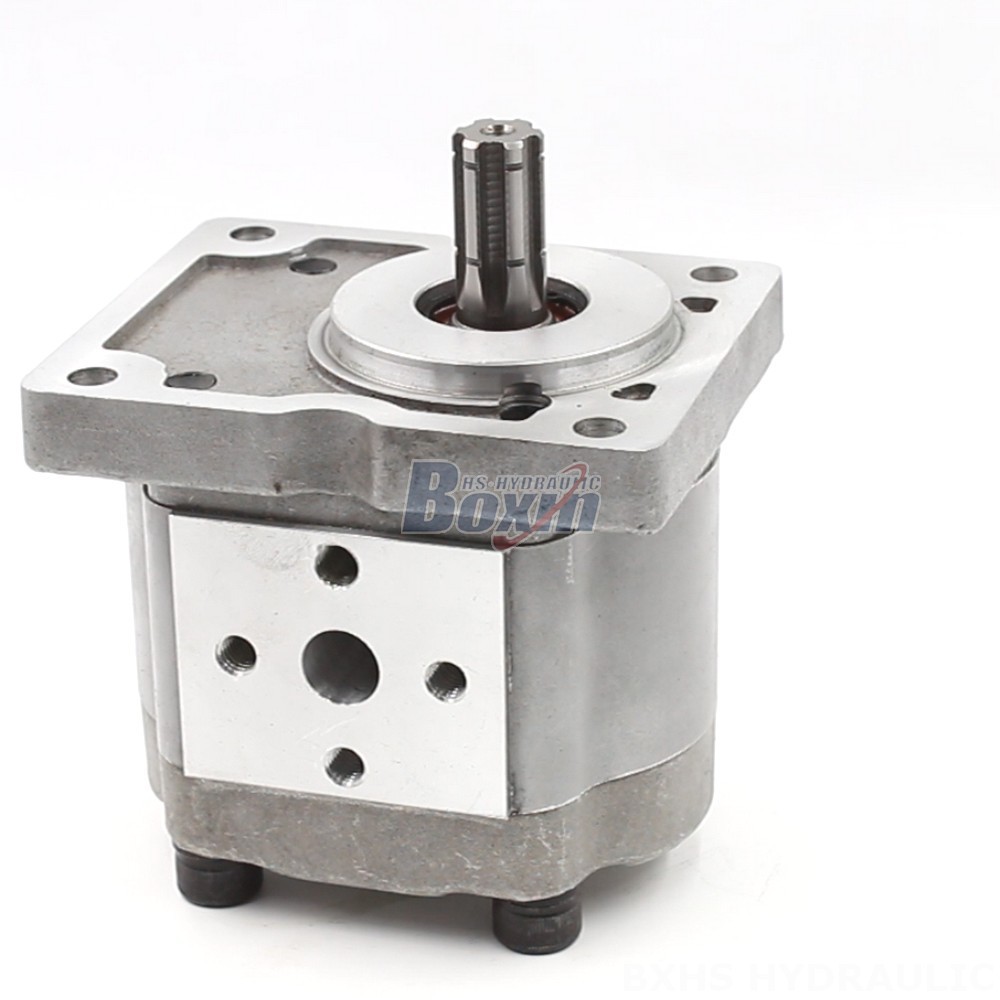

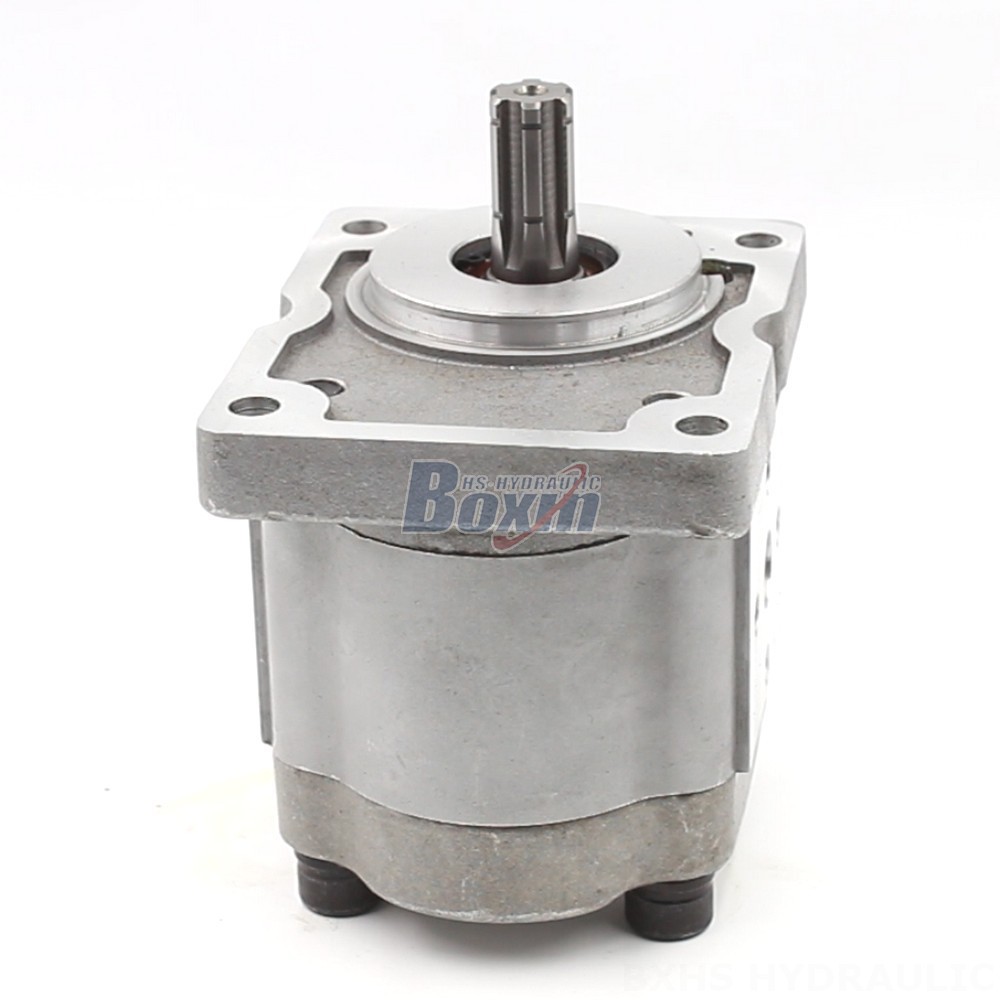

A high-quality 10 cc/rev hydraulic gear pump, designed for use in a wide range of industrial applications. With a rated pressure of 18 MPa and a rated speed of 2000 r/min, this pump is capable of delivering reliable performance in even the most demanding conditions. It is constructed from durable aluminium and features a B-Square flange and an involute spline shaft. It is part of the NSH series and is commonly used in material handling, construction, earth moving, agriculture, and industrial vehicle applications.
| Série NSH Pompe hydraulique à engrenages Paramètres | |
|---|---|
| Cylindrée | 10 cc/tr, 32 cc/tr, 40 cc/tr, 50 cc/tr, 100 cc/tr |
| Pression nominale | 18 MPa (2610 psi) |
| Pression maximale | 20 MPa (2900 psi) |
| Vitesse nominale | 2 000 tr/min |
| Vitesse maximale | 4 200 tr/min |
| Rotation | L : Gauche (antihoraire) |
| Matériau | Aluminium |
| Structure | Pompe à engrenages externes |
| Version de la bride | B - Bride carrée |
| Type d'arbre | X : Cannelures hélicoïdales |
**10 cc/rev Hydraulic Gear Pump**
**Product Specifications:**
* Displacement: 10 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminium
* Flange Version: B-Square Flange
* Shaft Type: Involute Spline
* Series: NSH Series
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
