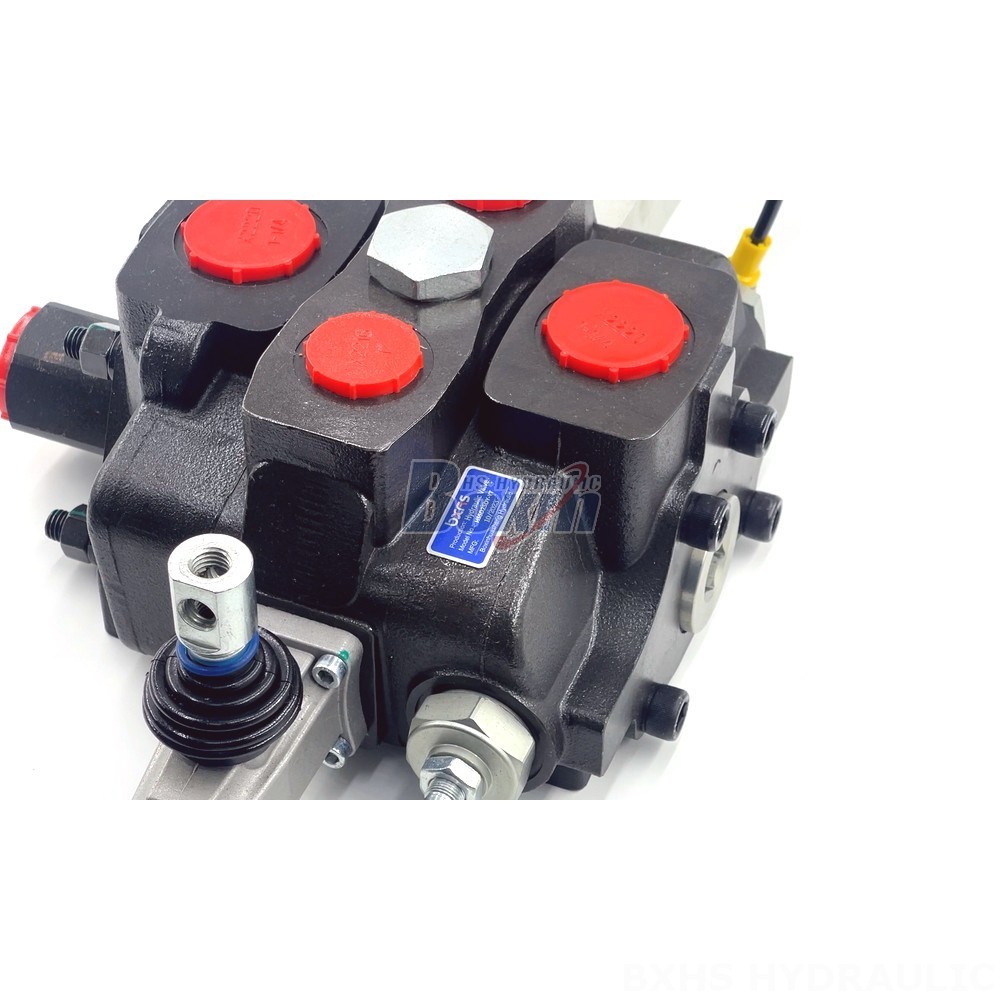

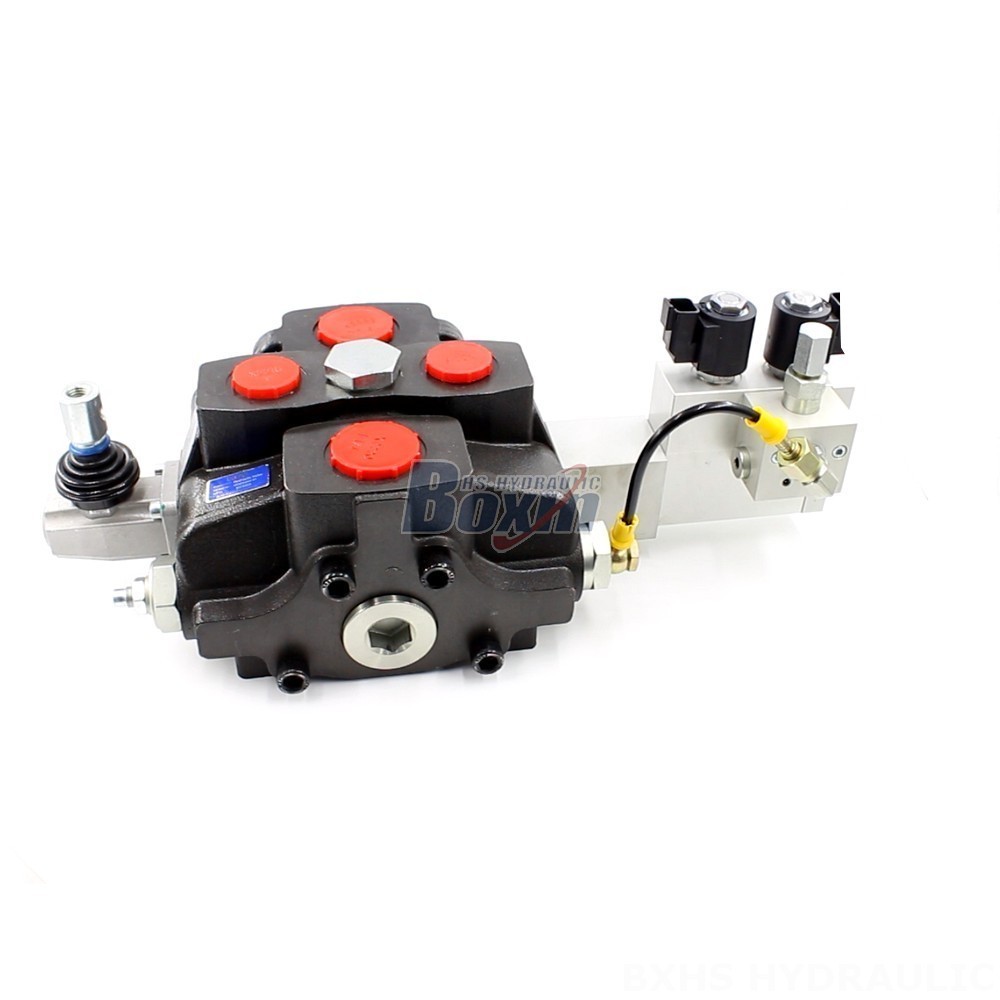

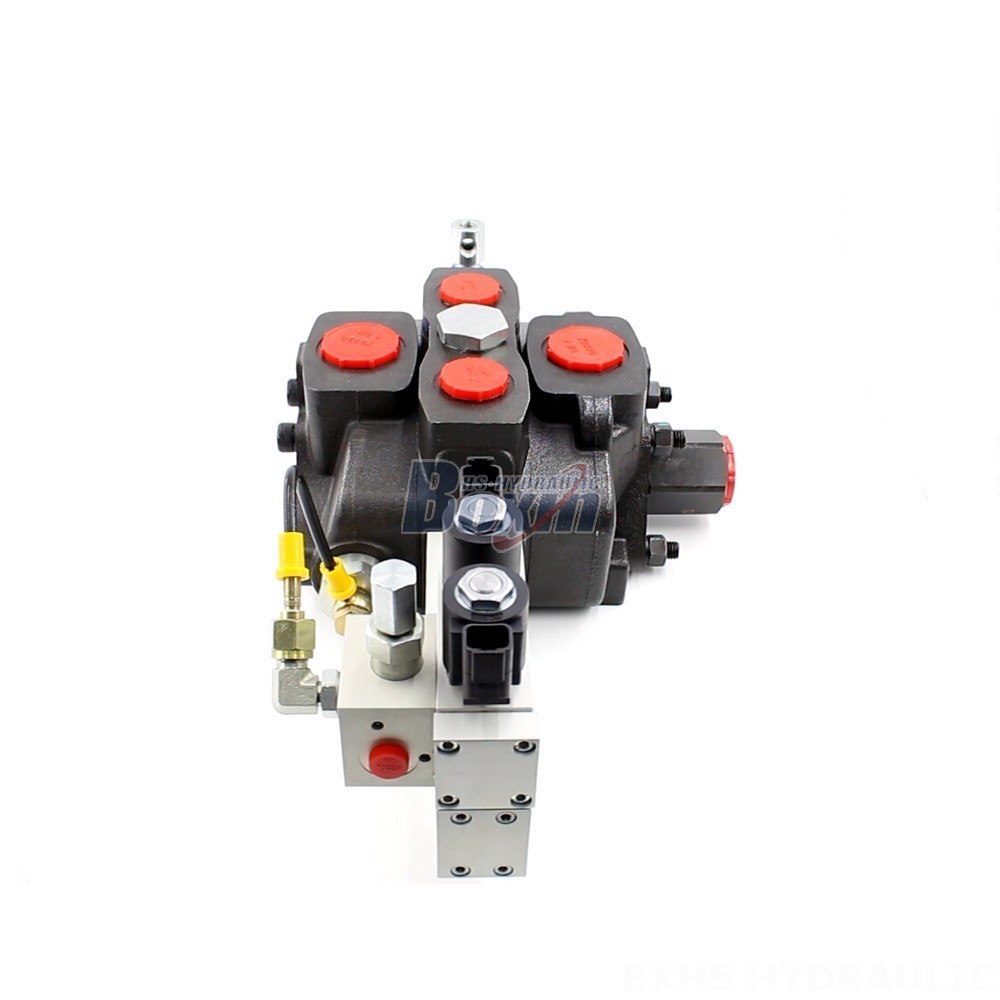

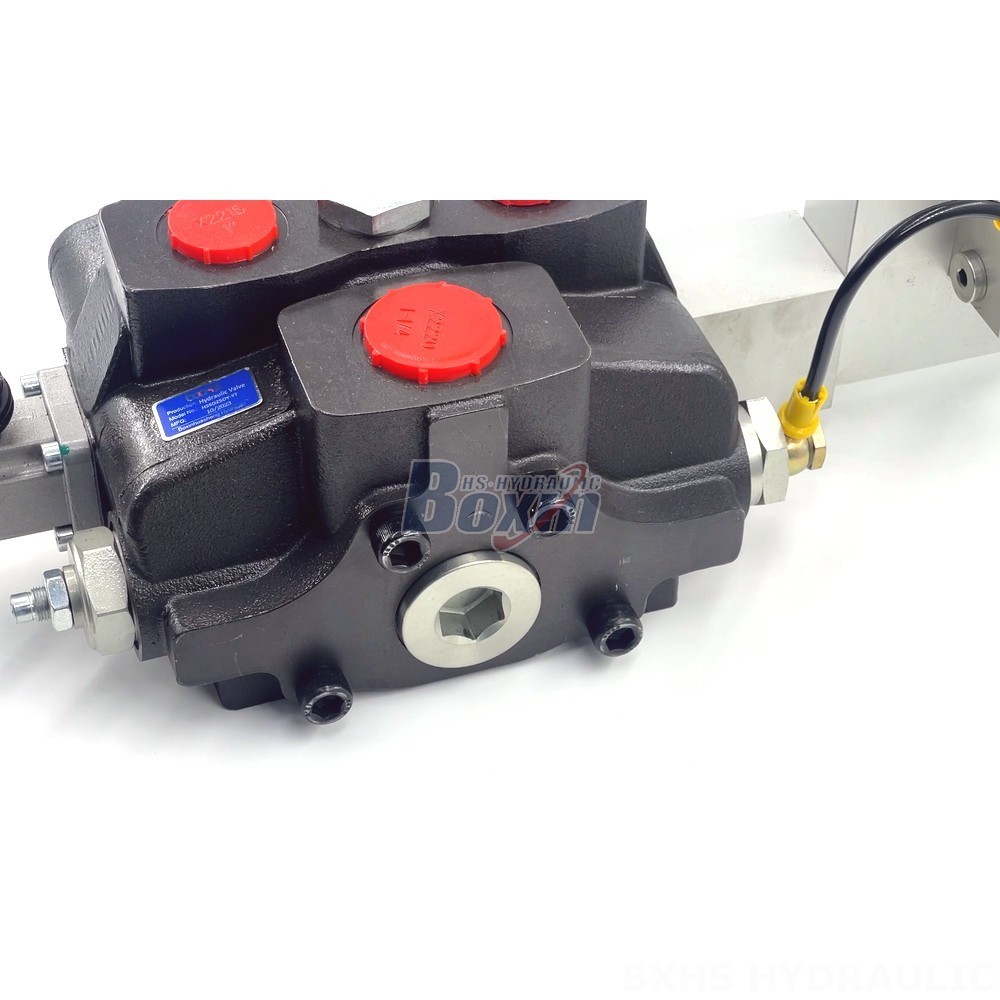

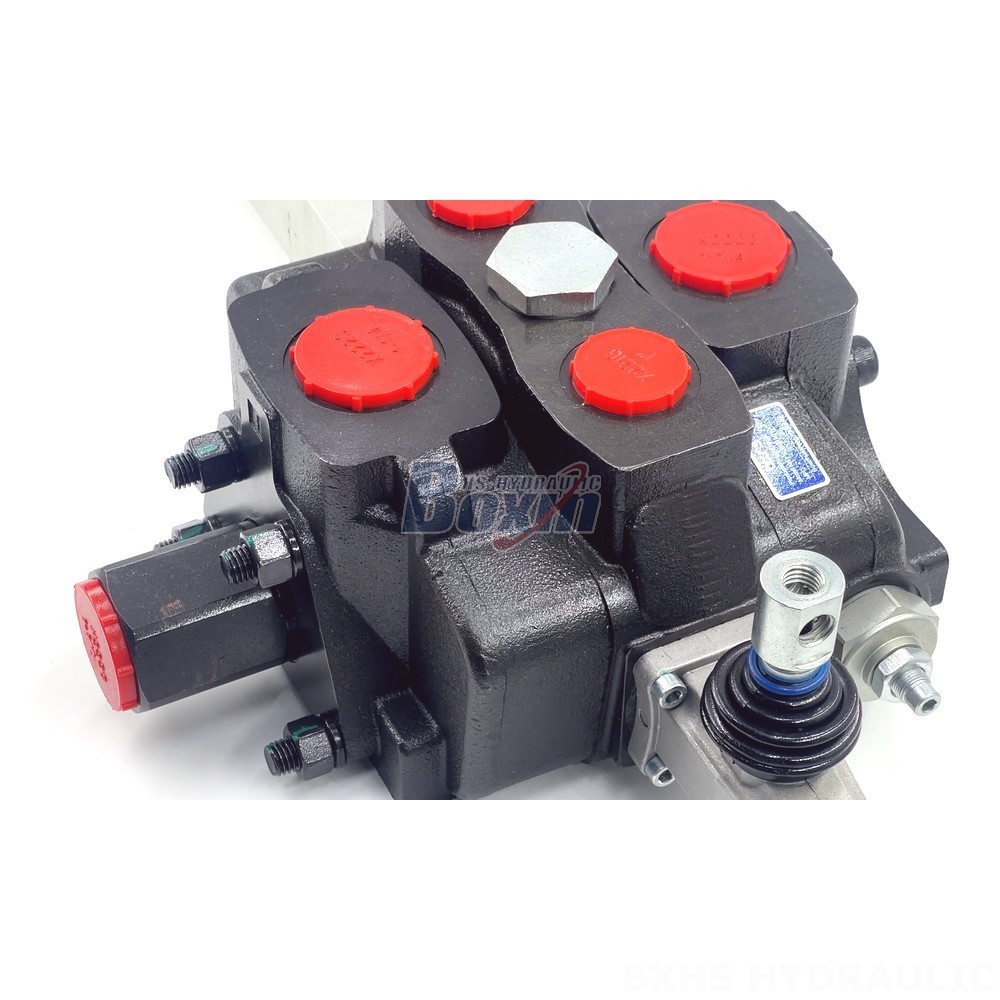

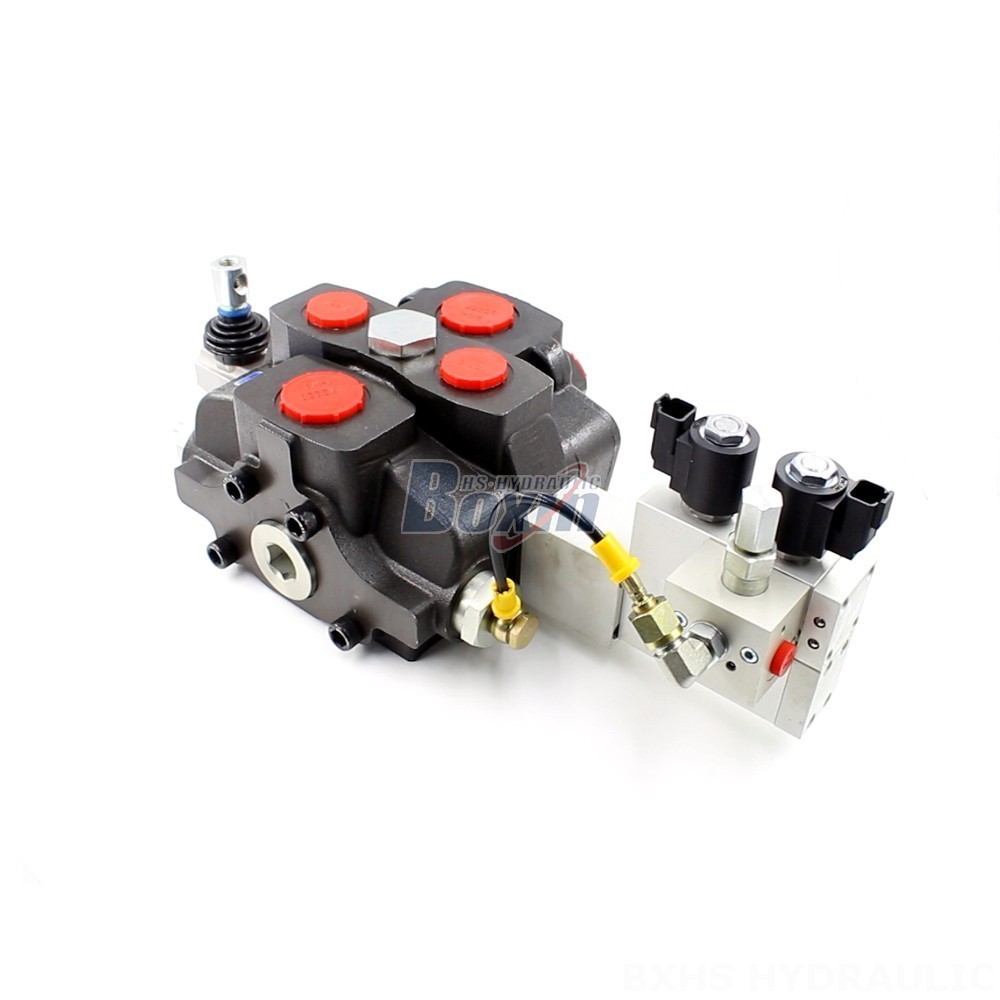

The SD25 Series 1 Spool Sectional Directional Valve is an electro-hydraulically controlled valve designed for use in a wide range of industrial applications. It features a compact monoblock design with a rated flow of 240 L/min (63.4 US gpm) and a maximum pressure of 315 bar (4600 psi).
| Série SD25 Distributeur directionnel sectionnel Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Électro-hydraulique, Hydraulique |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur à clapets |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections, 8 sections, 9 sections, 10 sections |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |
| Débit nominal | 240 L/min (63,4 US gpm) |
| Pression maximale | 315 bar (4 600 psi) |
| Orifice d'entrée | G1, SAE 16 |
| Orifice de sortie | G1-1/4, SAE 16 |
| Dimension du raccord | G1, G1-1/4, SAE 12 |
The SD25 Series 1 Spool Sectional Directional Valve is available in a variety of configurations to meet the specific requirements of any application. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicle applications. Some typical applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
