The 1 Spool Hydraulic Valve from the SD18 Series is a high-performance valve designed for efficiency and precision in various industrial applications. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this monoblock valve offers reliable and efficient fluid control.
| Série SD18 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Hydraulique, Hydraulique et manuel, Câble, Manette |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs |
| Débit nominal | 160 L/min (42,2 US gpm) |
| Pression maximale | 305 bar (4 400 psi) |
| Orifice d'entrée | G1/2, G1, SAE 16 |
| Orifice de sortie | G1, SAE 16 |
| Dimension du raccord | G1, SAE 16 |
| Section | 1 section, 2 sections, 3 sections, 4 sections |
| Type de structure | Distributeur monobloc |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Plage de viscosité de fonctionnement | 12 - 400 mm²/s (12 cSt à 400 cSt) |

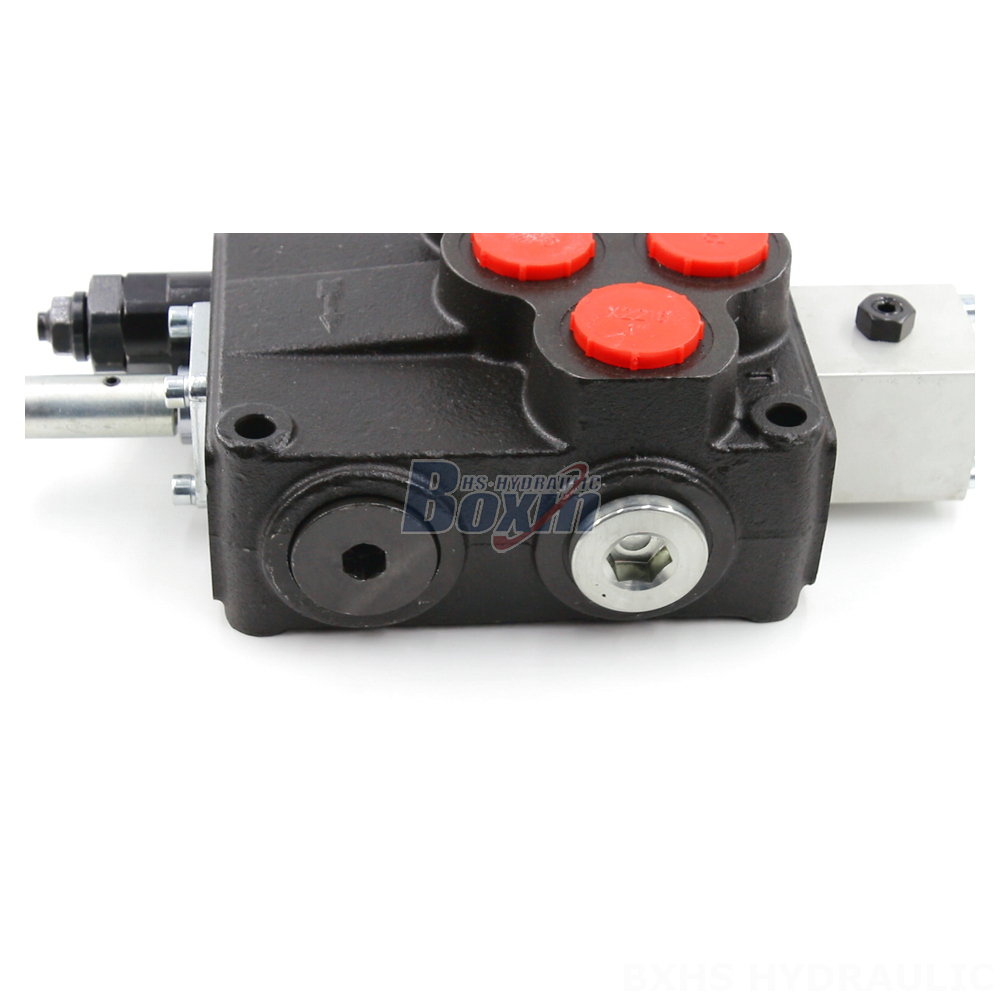

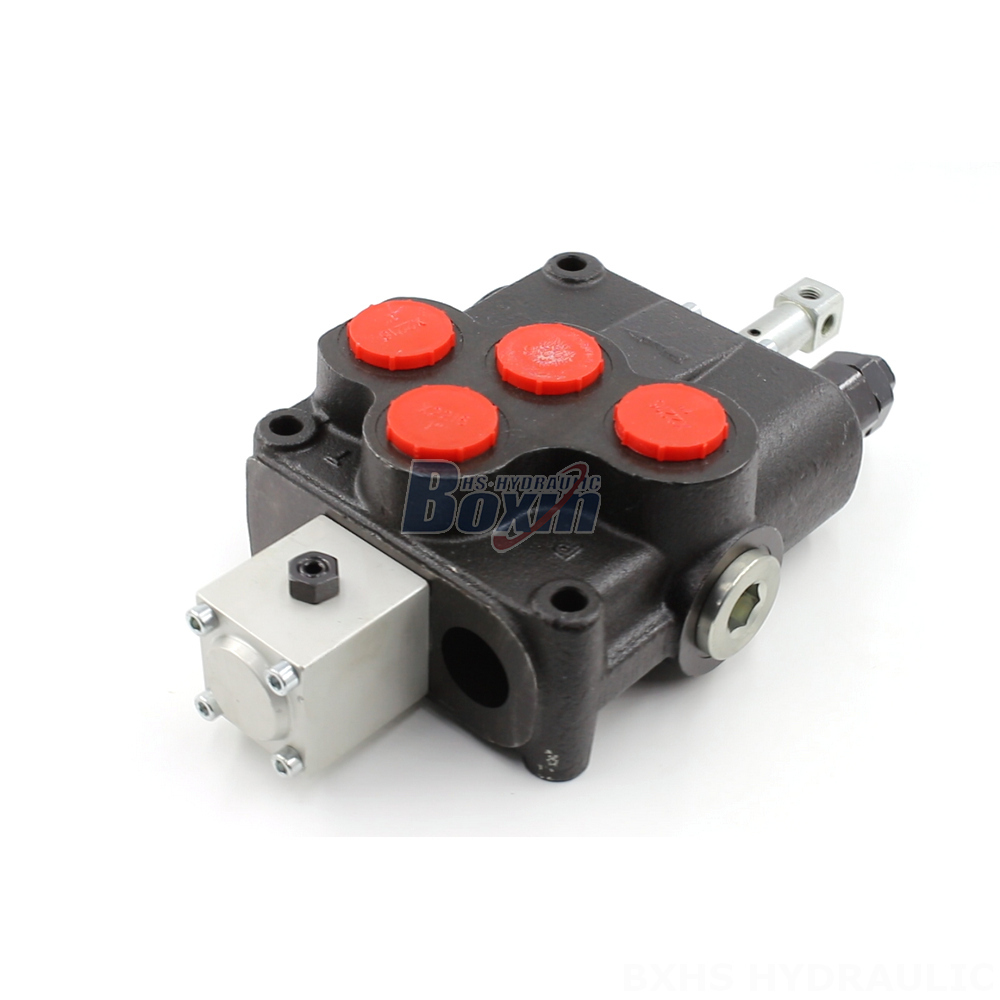

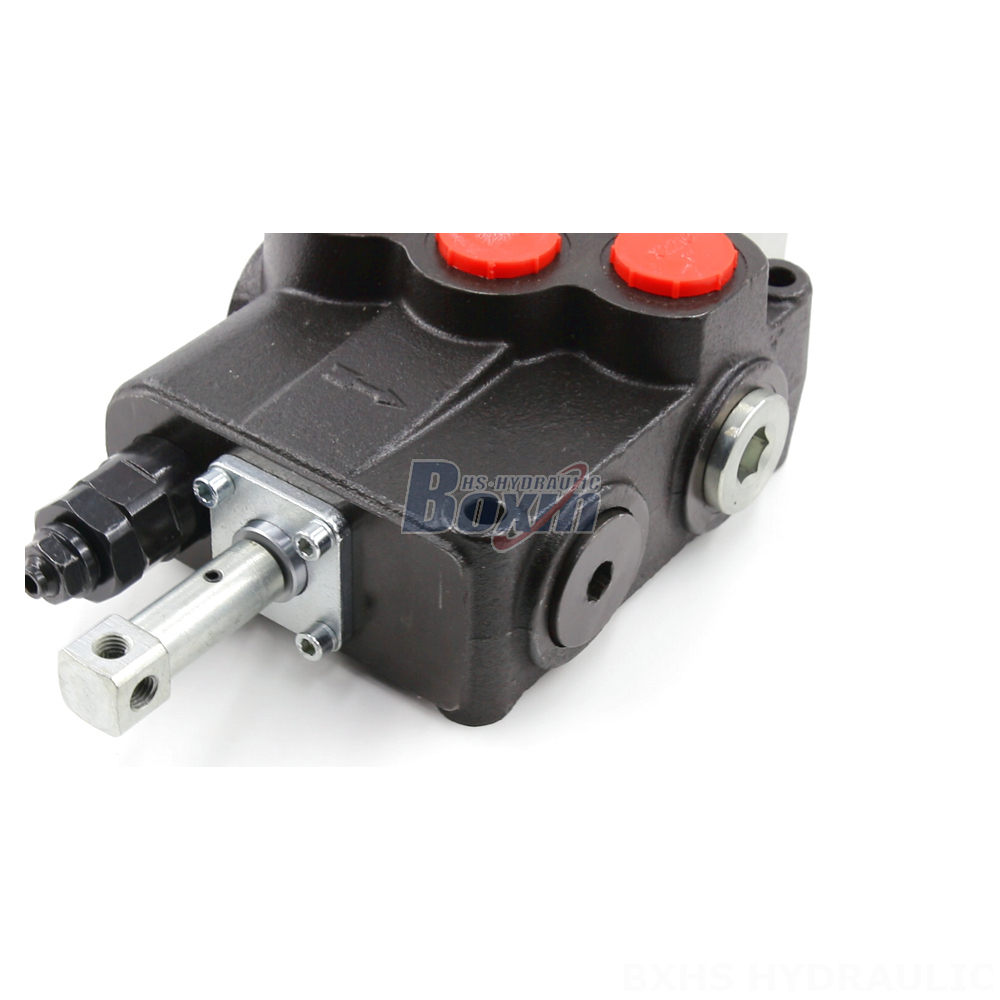

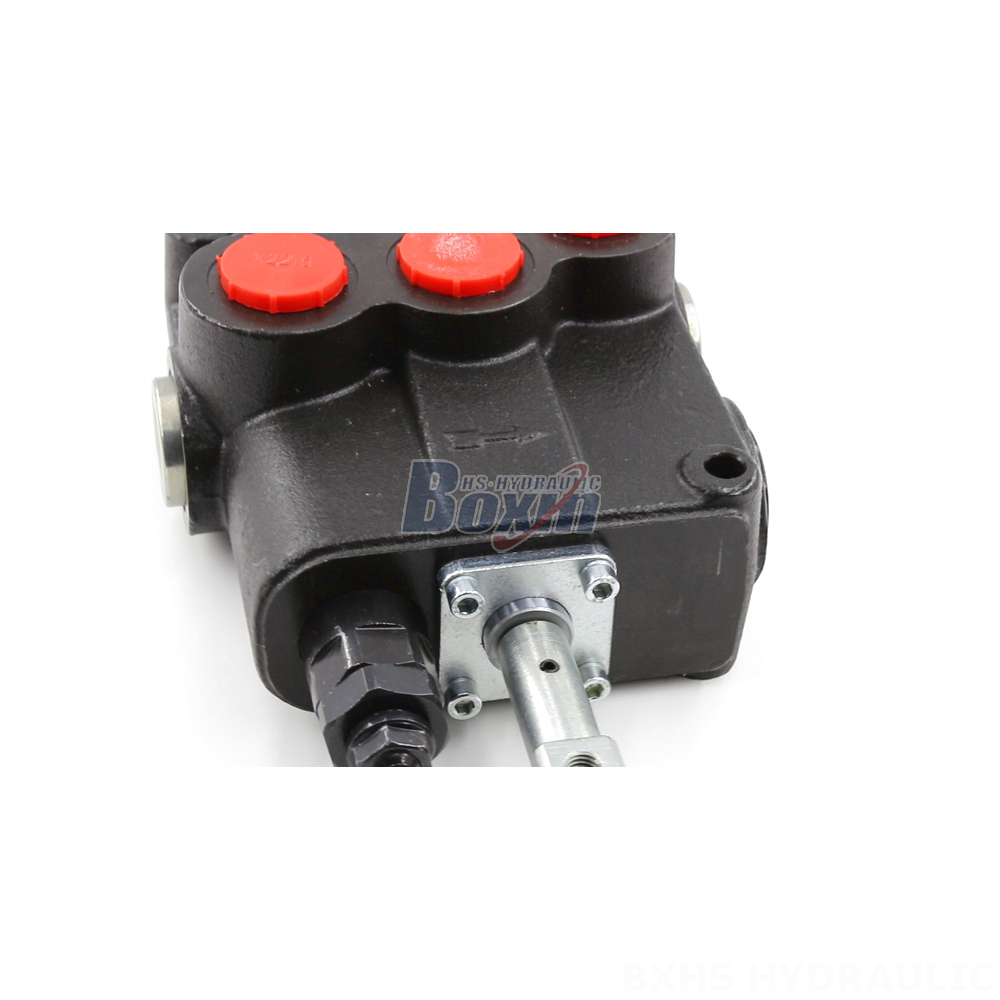

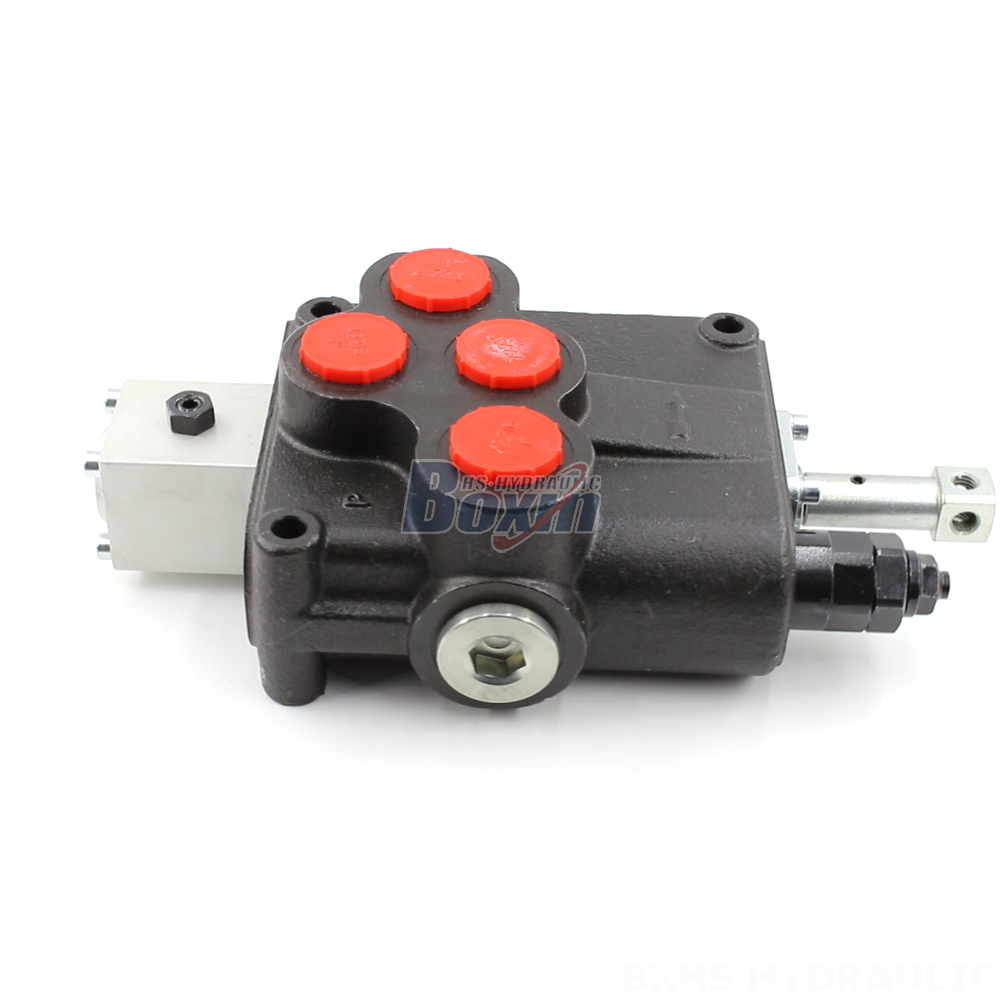

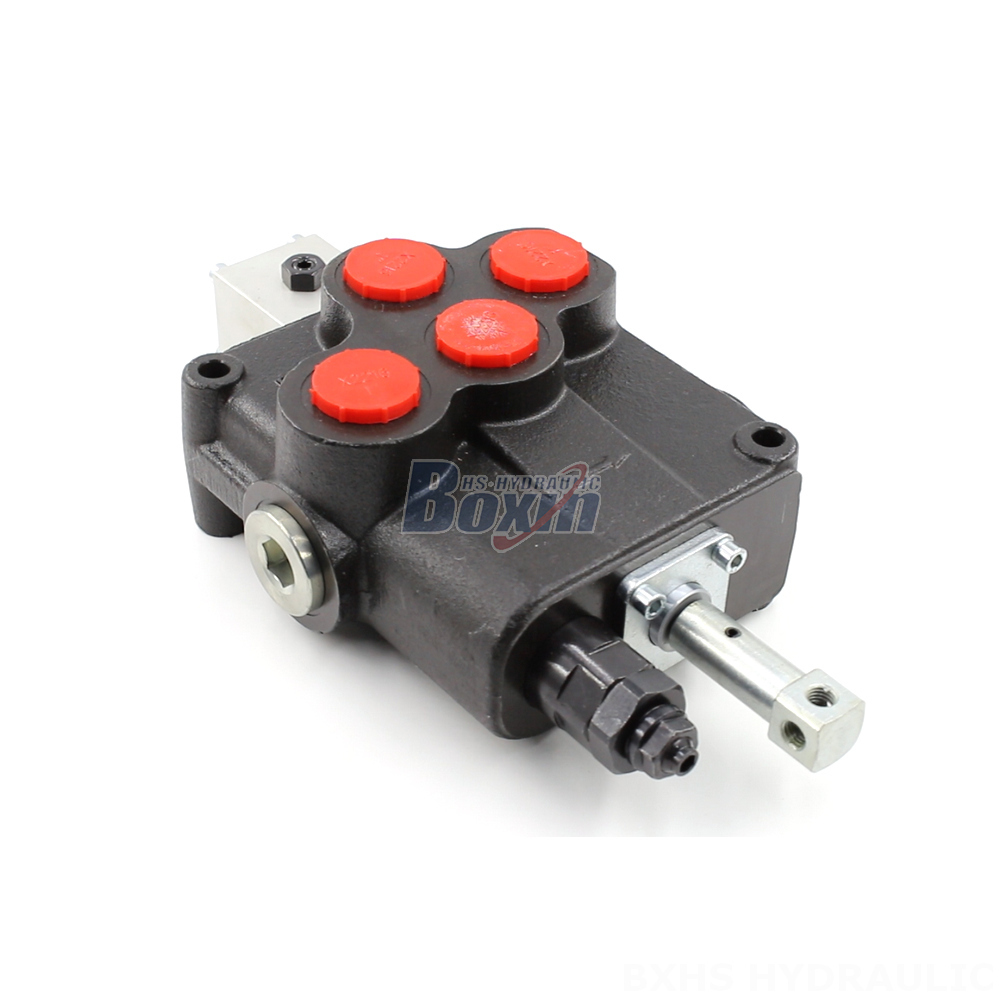

**1 Spool Hydraulic Valve | SD18 Model | Engineered for Efficiency & Precision**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F), -40°C to +60°C (-40°F to +140°F)
**Spool:** 1 Spool
**Series:** SD18 Series
**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, BACKHOE, SEEDING MACHINE, HARVESTER, BALER, SKIP LOADER, WOOD SPLITTER
This hydraulic valve is ideal for applications requiring precise flow and pressure control, such as material handling equipment, construction and earth-moving machinery, agricultural vehicles, and industrial vehicles. It features a robust and compact design, making it suitable for harsh operating conditions.
