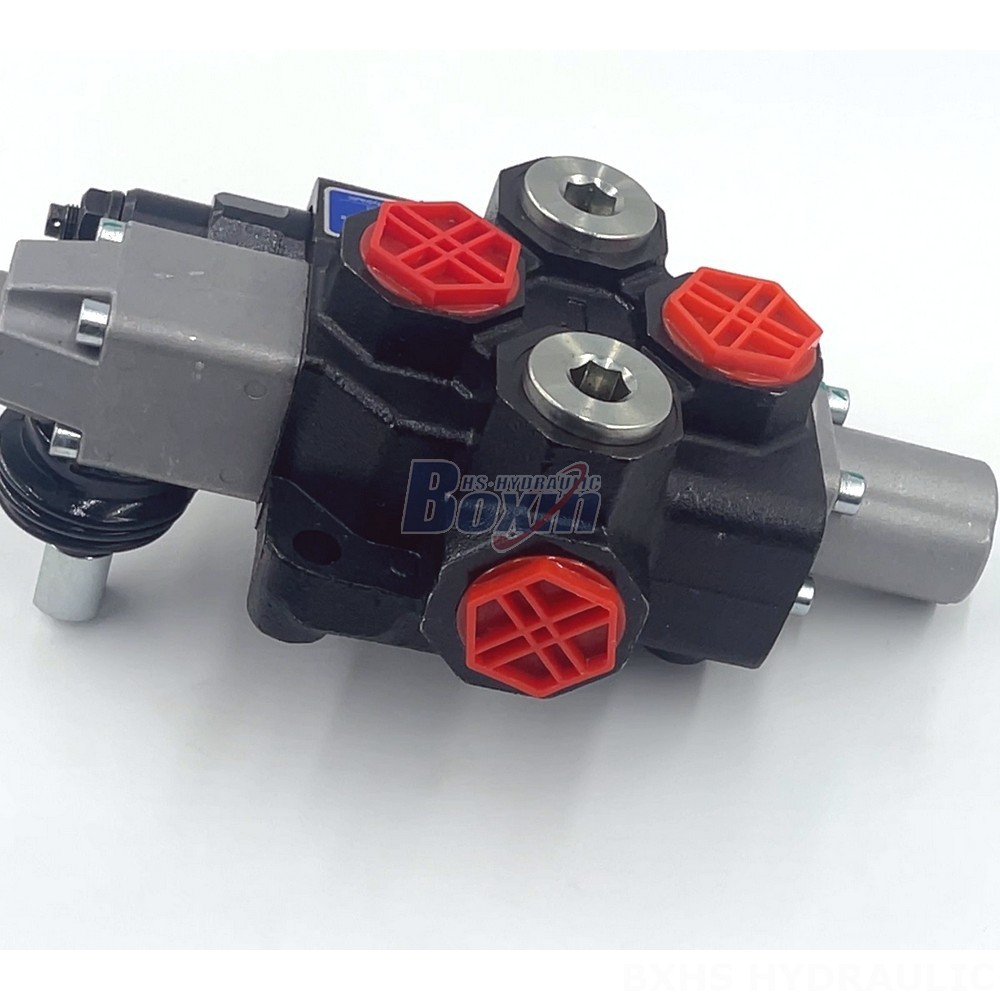

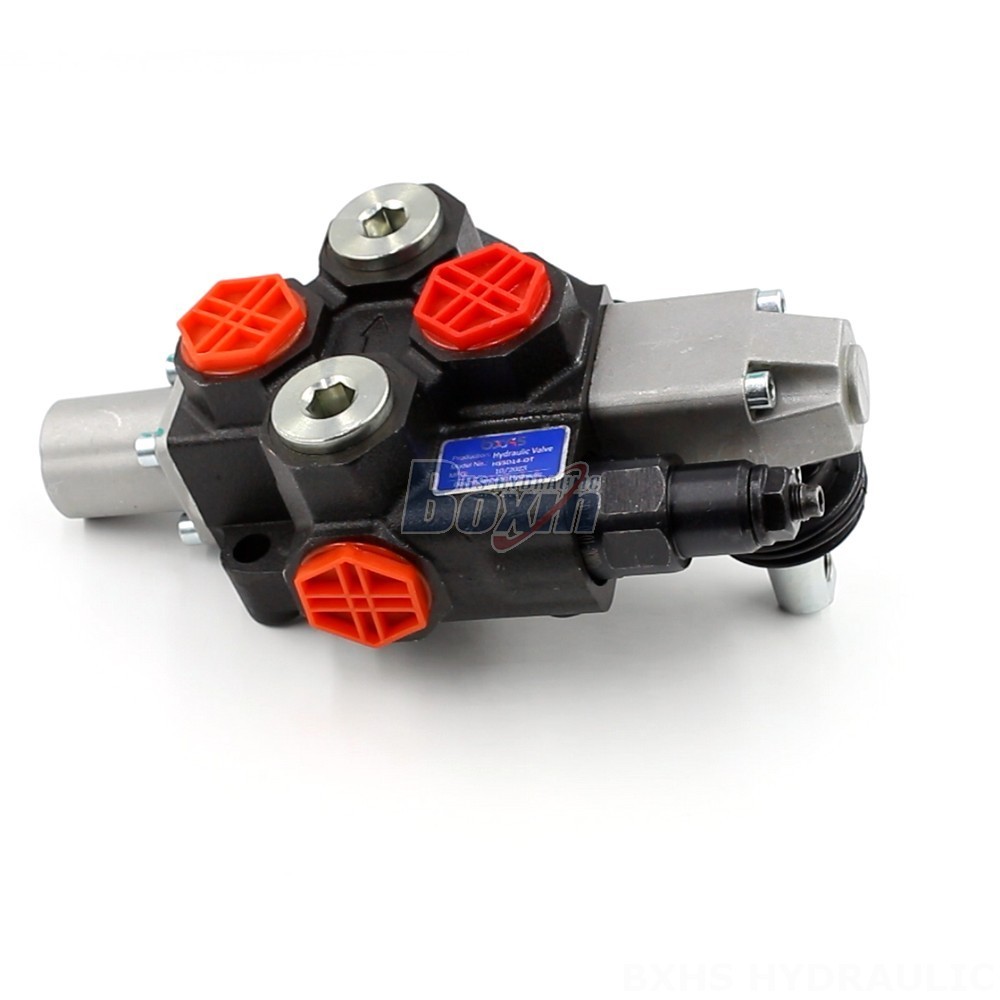

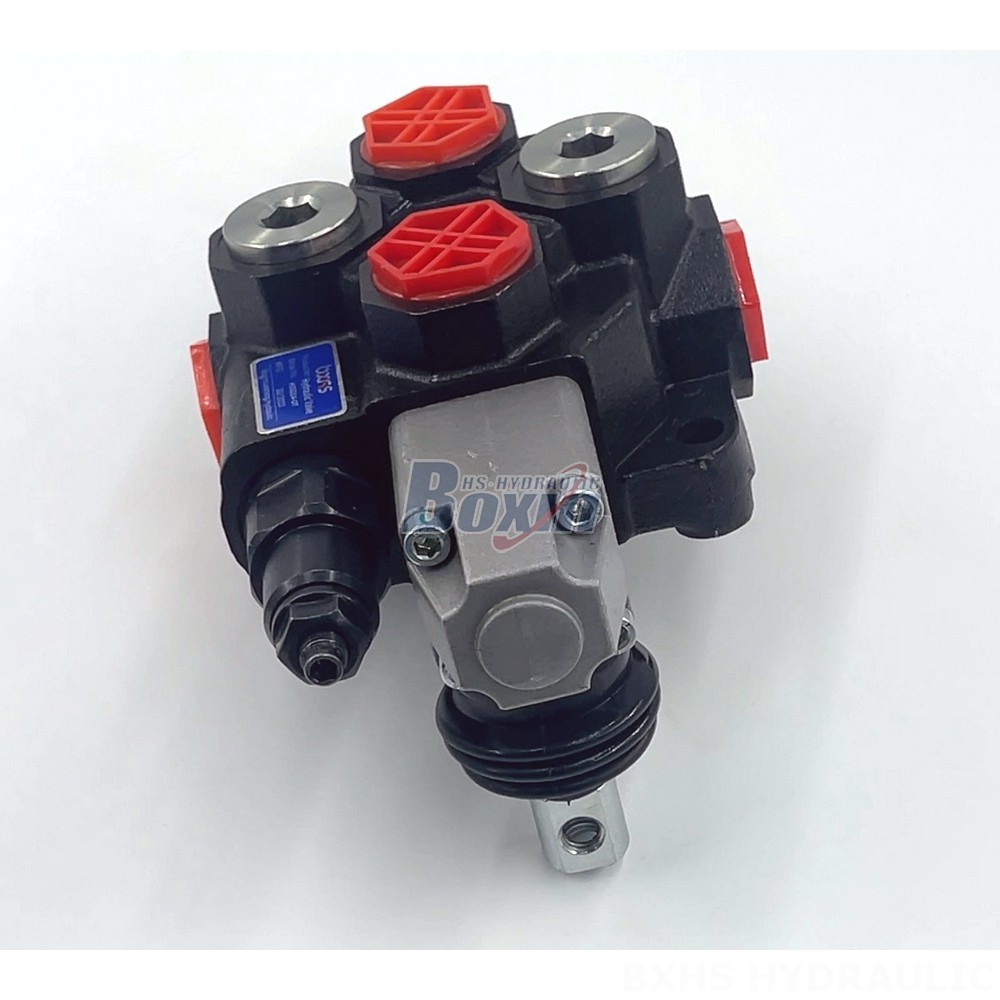

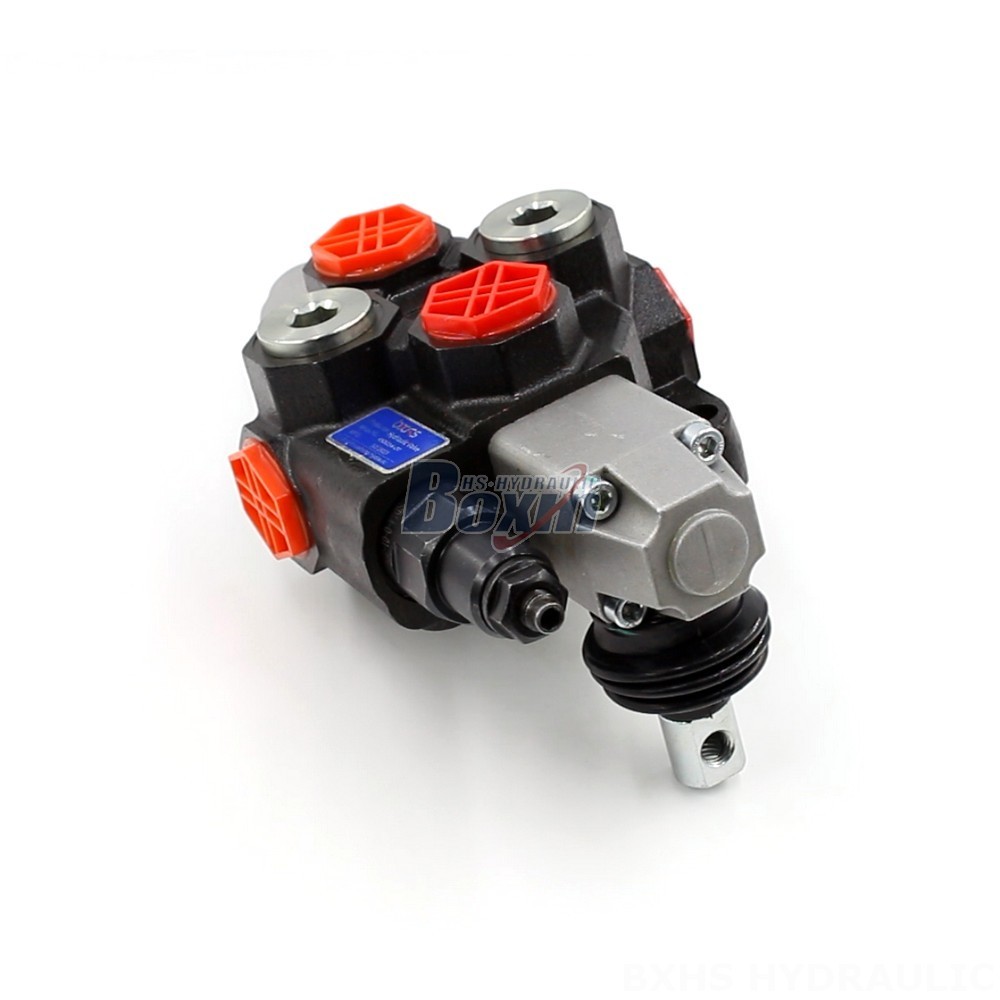

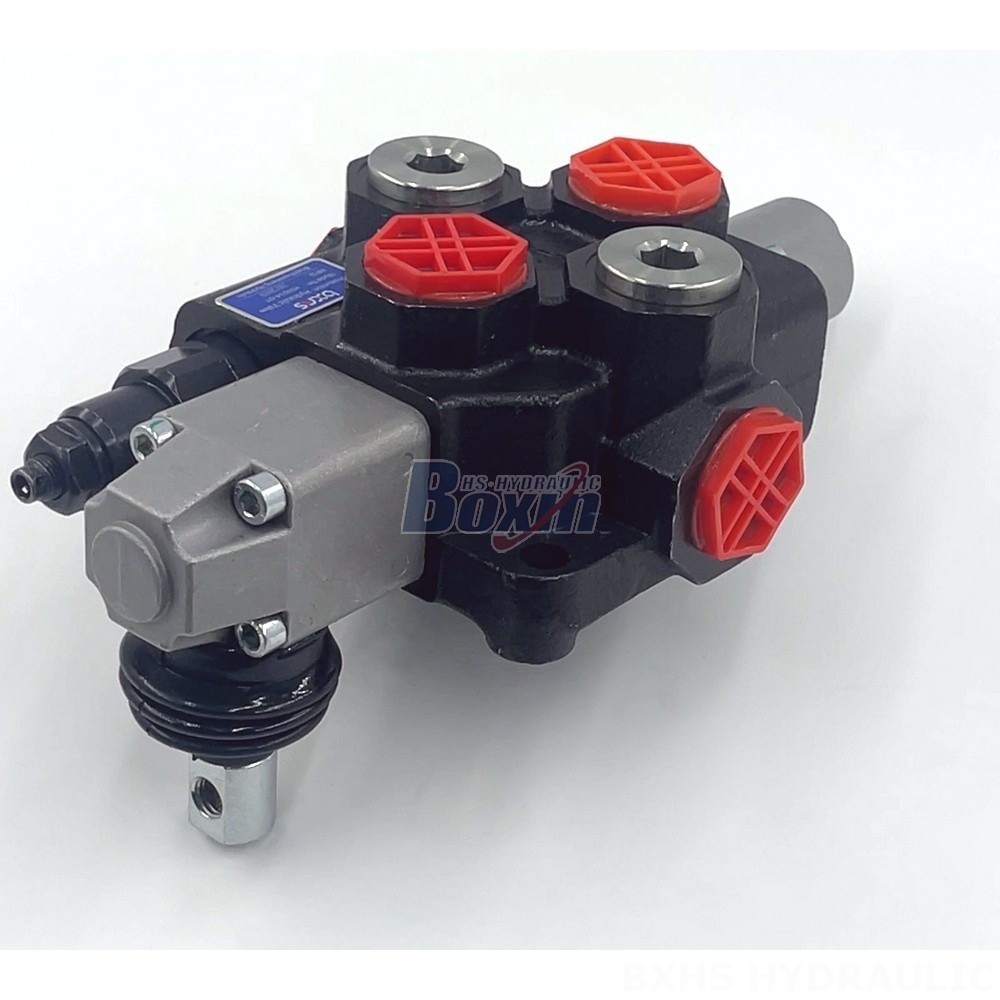

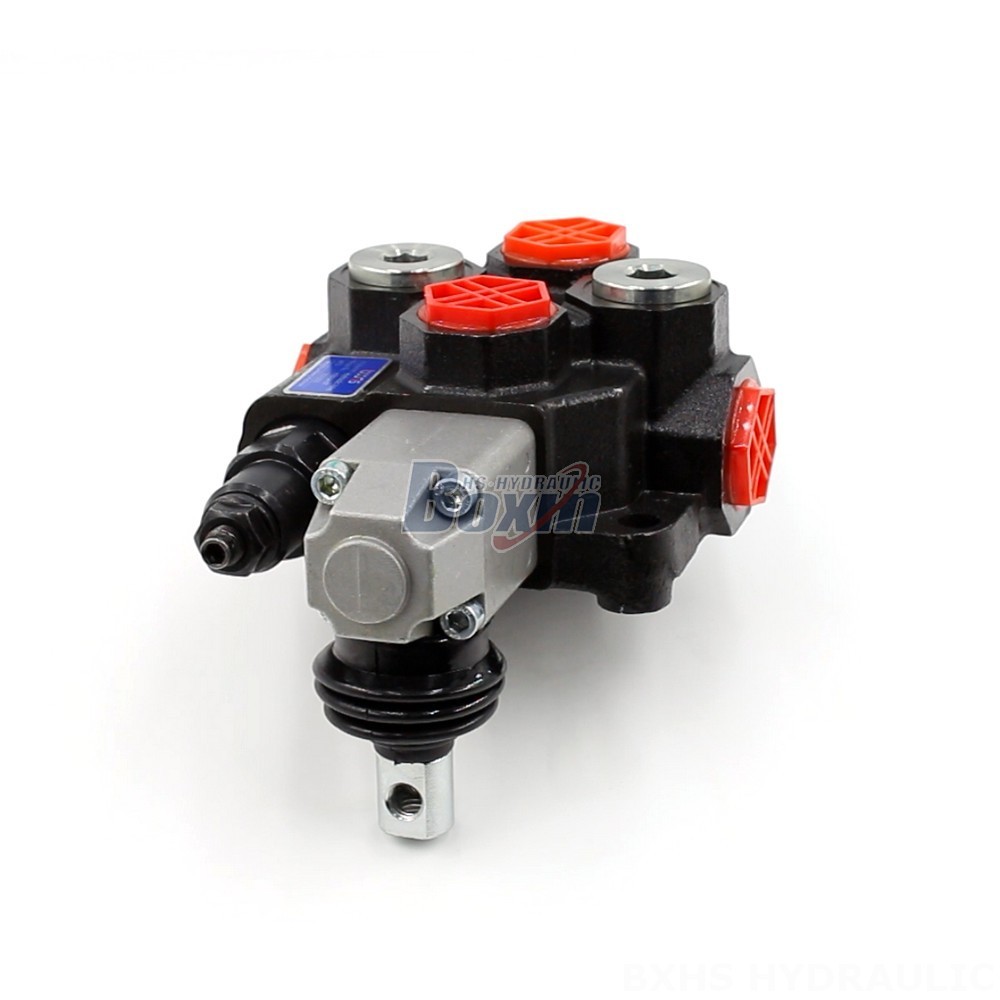

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

Méthode de contrôle:Manuel

Distributeur:1 tiroir

Débit nominal:120 L/min (31.7 US gpm)

Pression maximale:305 bar (4 400 psi)

Orifice d'entrée:G3/4

Orifice de sortie:G3/4

Dimension du raccord:G3/4

Marque:BXHS

Type de produit:Vanne directionnelle monobloc

Série de produits:Série SD14 Vanne directionnelle monobloc

Taille de l'emballage:15*26*15

Poids brut:6.80 kg

Disponibilité: En stock

1090 personnes consultent ce produit

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable drawing image

The SD14 Series Hydraulic Sectional Valve is a high-performance, 1-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control and a rated flow of 120 L/min (31.7 US gpm), this valve is ideal for telehandlers, forklifts, excavators, loaders, and other mobile equipment.

Série SD14 Vanne directionnelle monobloc Paramètres
Méthode de contrôle Manuel, Pneumatique, Hydraulique
Distributeur 1 tiroir
Plage de températures ambiantes -40 °C à +60 °C (-40 °F à +140 °F)
Type de structure Distributeur monobloc
Section 1 section
Plage de viscosité de fonctionnement 15 - 75 mm²/s (15 cSt à 75 cSt)
Débit nominal 120 L/min (31.7 US gpm)
Pression maximale 315 bar (4 600 psi)
Orifice d'entrée G3/4
Orifice de sortie G3/4
Dimension du raccord G3/4

This SD14 Series Hydraulic Sectional Valve is a robust, reliable, and customizable solution for your hydraulic system needs. It features a monoblock construction for increased strength and durability. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve delivers the power and performance you need for demanding applications. This valve is designed for a wide range of operating temperatures (-40°C to +60°C) and viscosities (15 - 75 mm²/s), ensuring reliable operation in various environments. Available directly from our factory, you can customize this valve to meet your specific requirements. Our SD14 Series Hydraulic Sectional Valve is suitable for a wide range of applications, including: Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi-Excavators, Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders. Contact us today to discuss your specific needs and get a customized solution.
