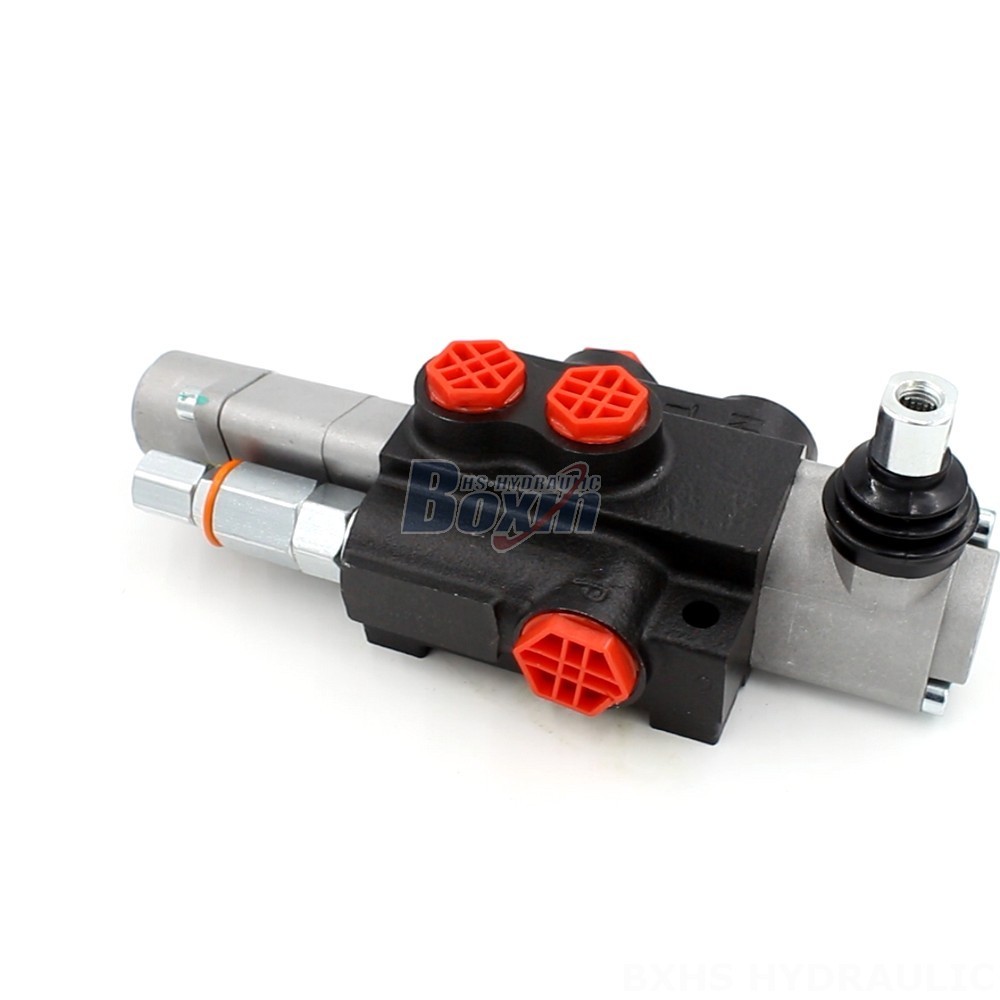

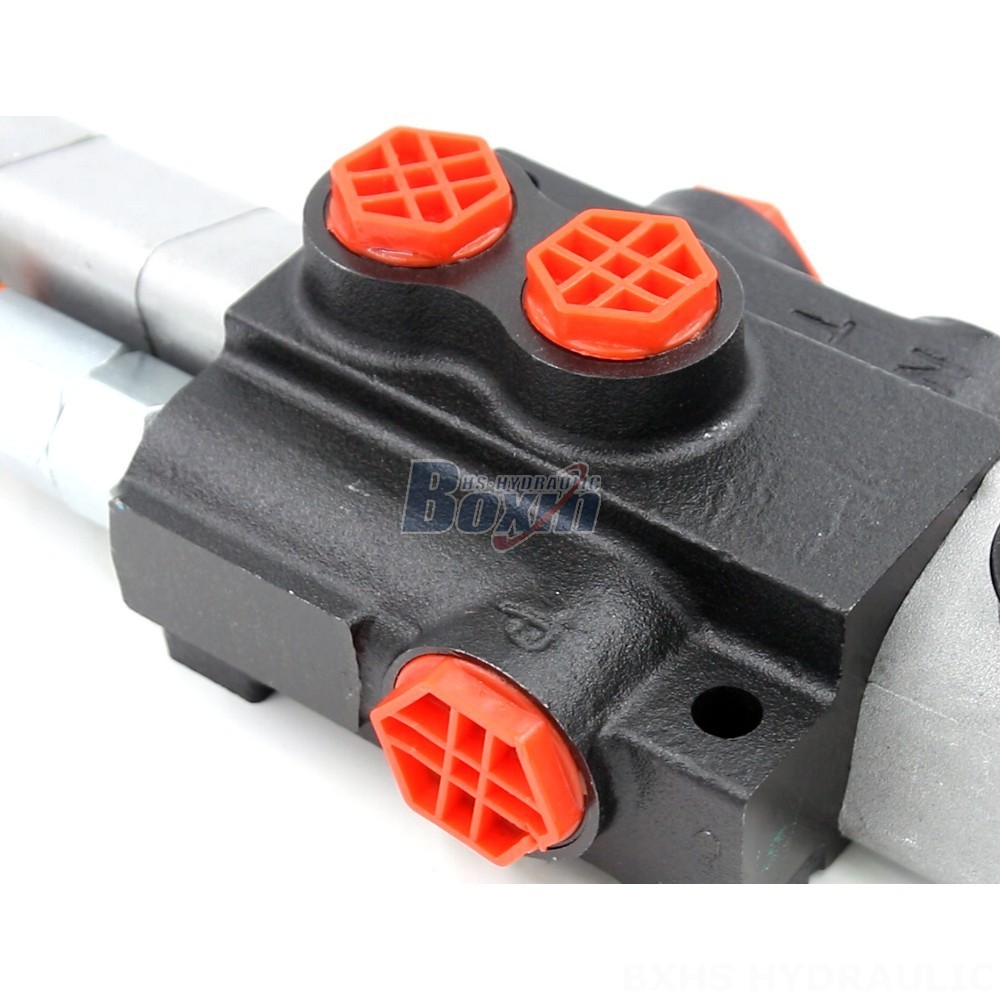

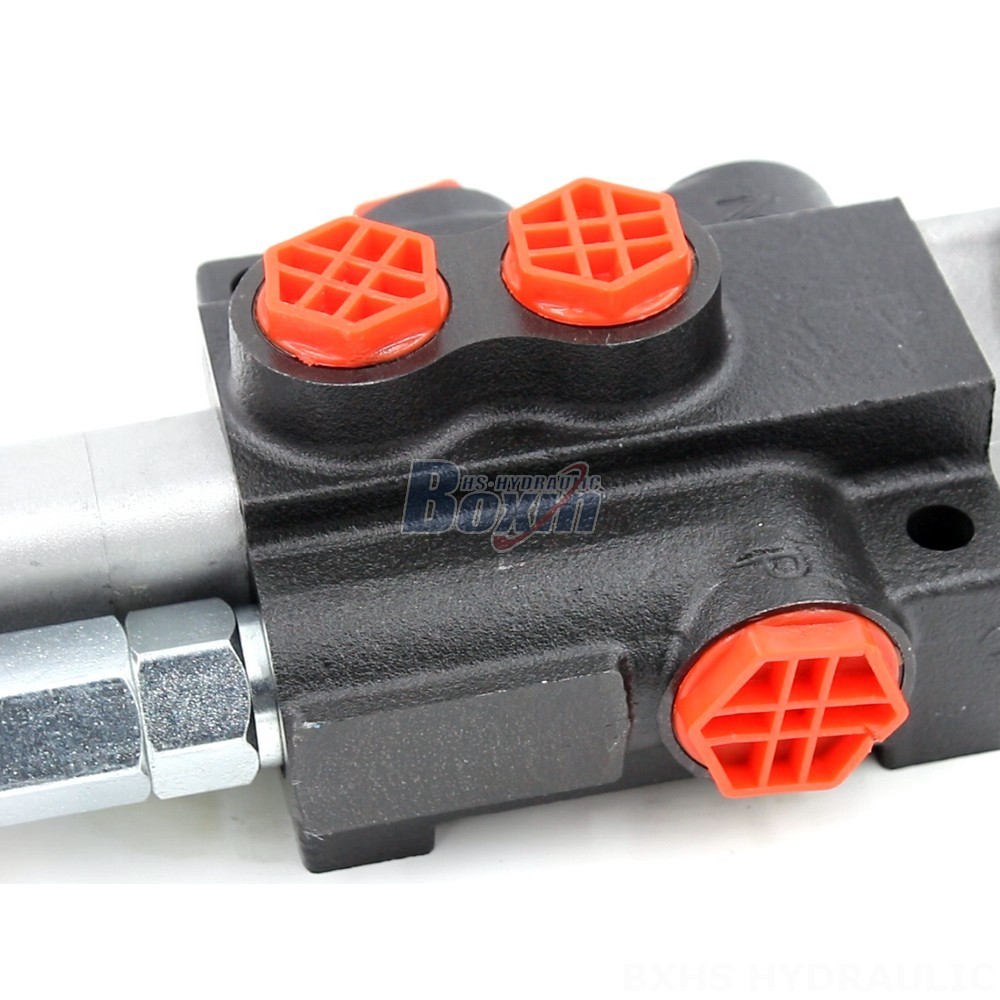

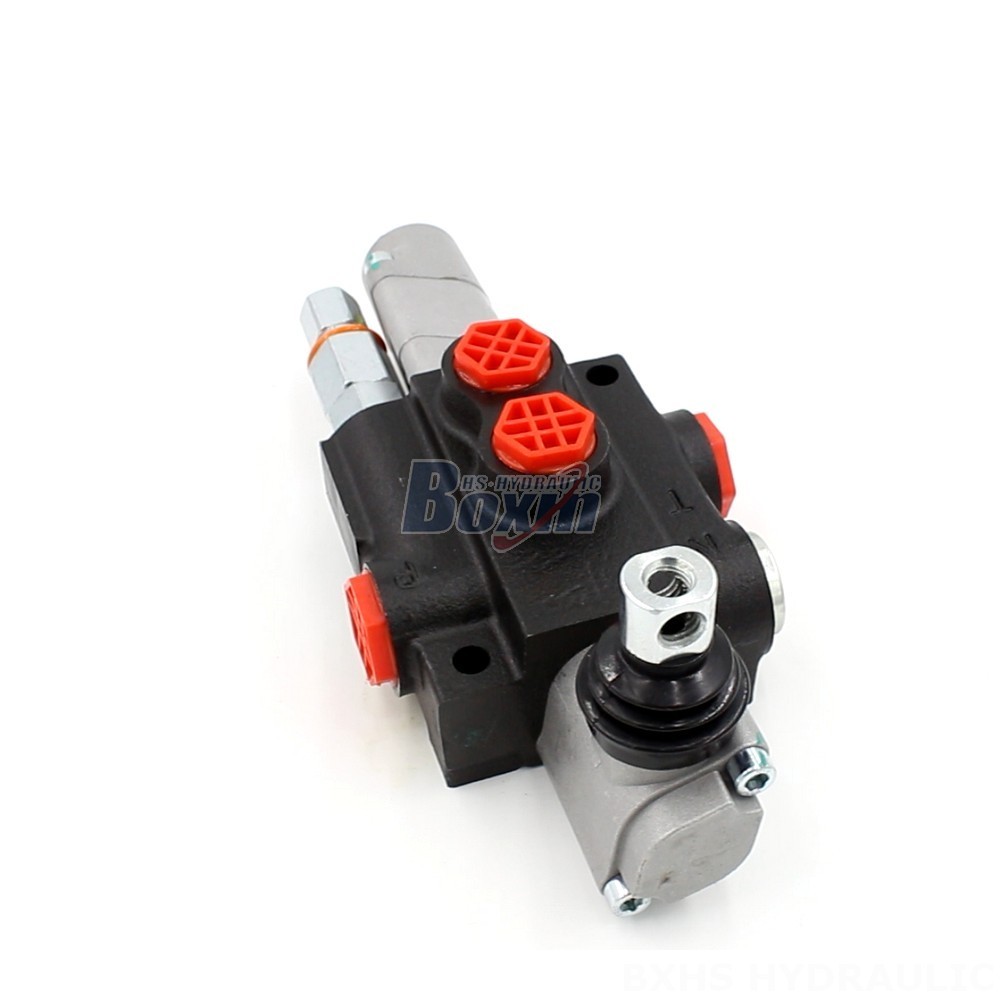

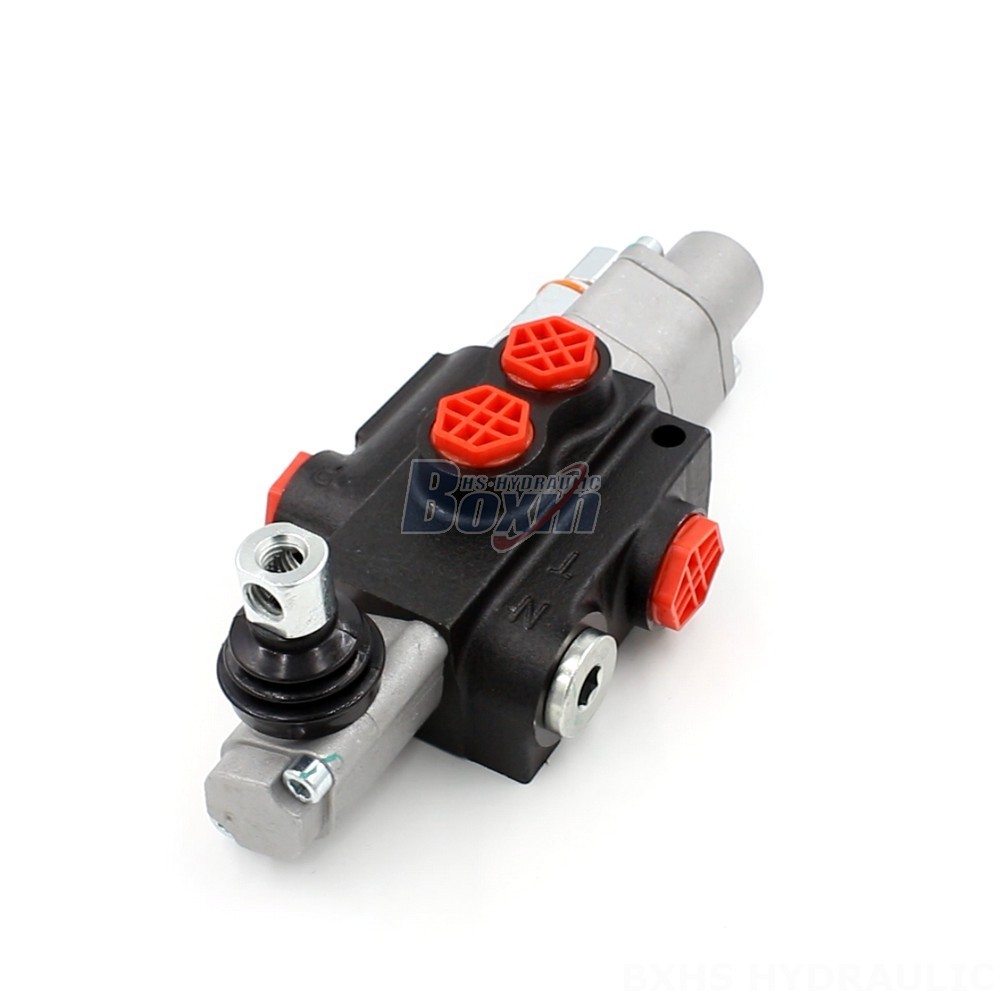

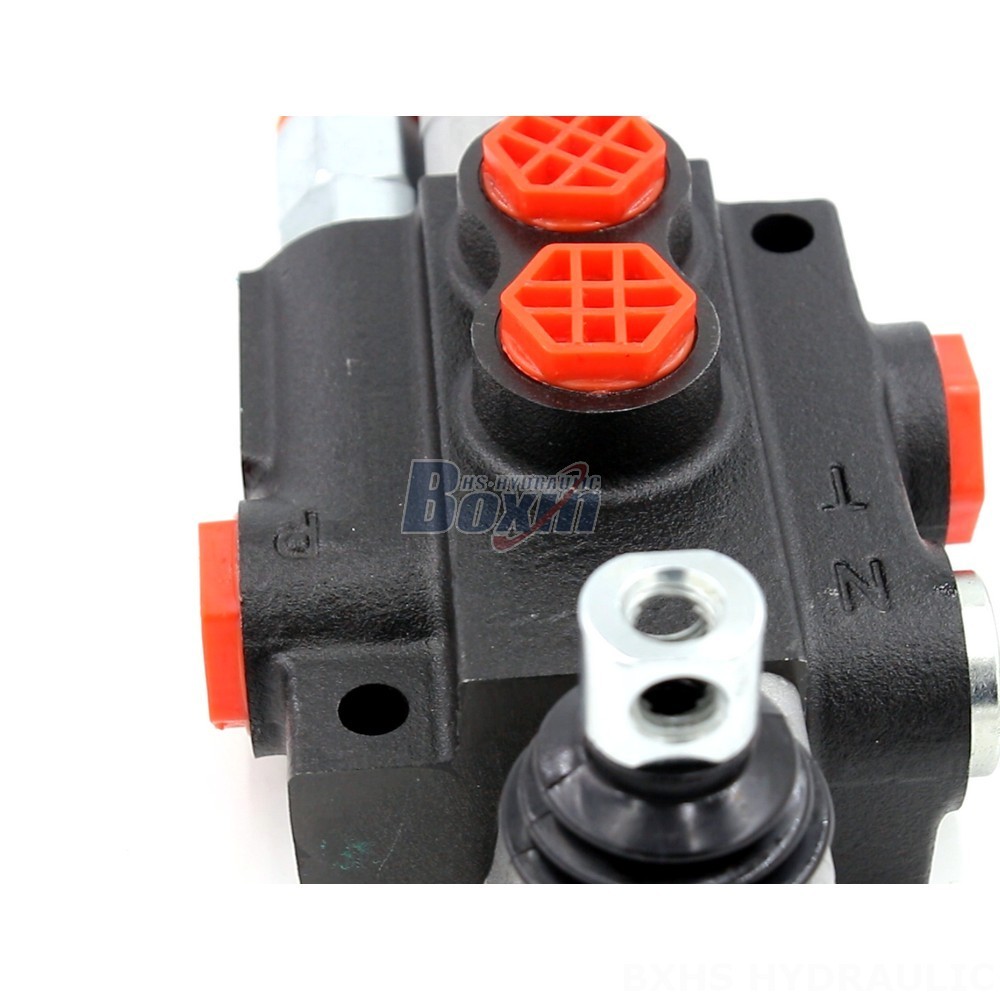

This Electro Pneumatic Control 1-Spool Hydraulic Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications, including material handling, construction, agriculture, and industrial vehicles. It features manual control, a monoblock valve structure, and a rated flow of 40 L/min. The valve is customizable and available directly from the factory.
| Série P40 Vanne directionnelle monobloc Paramètres | |
|---|---|
| Méthode de contrôle | Manuel, Pneumatique, Électro-pneumatique, Électro-hydraulique, Solénoïde, Hydraulique, Hydraulique et manuel, Câble, Manette, Solénoïde et manette, Manuel et manette, Solénoïde et câble |
| Distributeur | 1 tiroir, 2 tiroirs, 3 tiroirs, 4 tiroirs, 5 tiroirs, 6 tiroirs, 7 tiroirs |
| Plage de températures ambiantes | -40 °C à +80 °C (-40 °F à +176 °F) |
| Type de structure | Distributeur monobloc |
| Section | 1 section, 2 sections, 3 sections, 4 sections, 5 sections, 6 sections, 7 sections |
| Plage de viscosité de fonctionnement | 15 - 75 mm²/s (15 cSt à 75 cSt) |
| Débit nominal | 40 L/min (10,5 US gpm) |
| Pression maximale | 250 bar (3 600 psi) |
| Orifice d'entrée | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Orifice de sortie | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimension du raccord | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Electro Pneumatic Control 1-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications. It offers a compact and robust design, with a single spool and a rated flow of 40 L/min. The valve can withstand a maximum pressure of 250 bar and operates within a viscosity range of 15 - 75 mm²/s. It features manual control for precise operation. The valve is suitable for a wide range of applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. Its versatility and reliability make it an ideal choice for various industries. The valve is available directly from the factory and can be customized to meet specific requirements.
